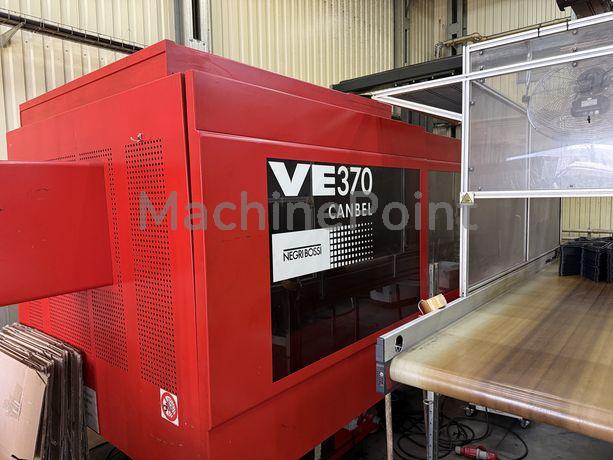

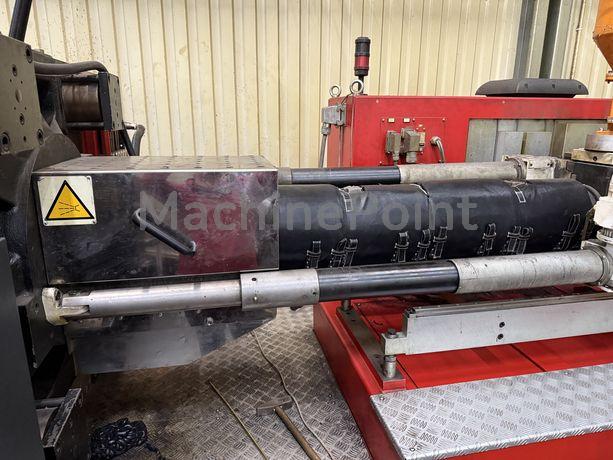

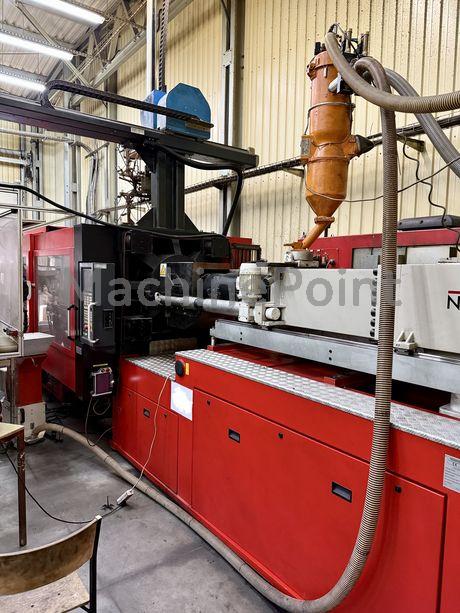

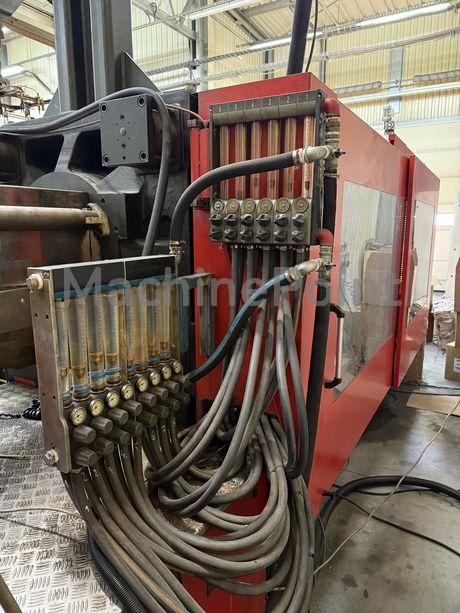

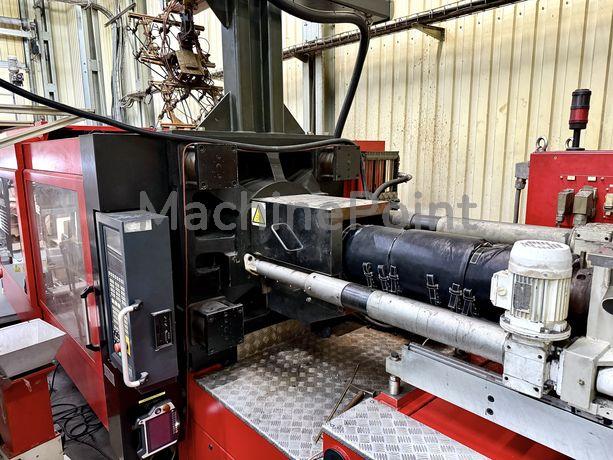

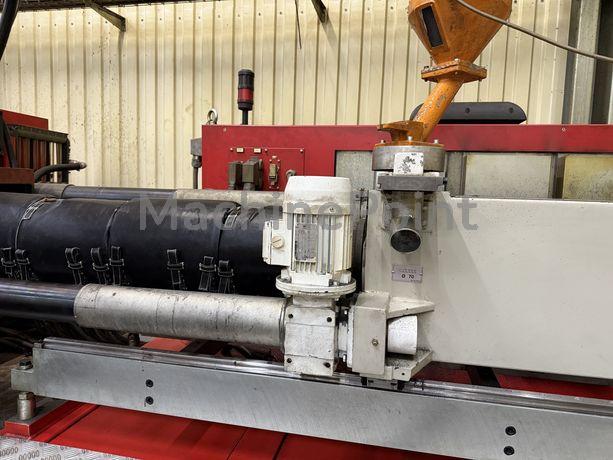

Used NEGRI BOSSI VE 370 - EUROMAP 3700 H - 2300 of 2016 for sale
2016 | Ref.: 300048228
Injection molding machine from 250 T up to 500 T NEGRI BOSSI, The team at MachinePoint will accompany you through the whole process of buying the machine.
Data Sheet of Used NEGRI BOSSI VE 370 - EUROMAP 3700 H - 2300
Ref.: 300048228
Year: 2016
Brand: NEGRI BOSSI
Status:
For sale
Delivery time: 2 - 3 months
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 370 ton
- Shot Weight (Max): 1060 g
- Distance Between Tie-Bars (H): 710 mm
- Distance Between Tie-Bars (V): 630 mm
- Platen Size (H): 1070 mm
- Platen Size (V): 630 mm
- Screw Diameter: 70 mm
- Mould Height (Max): 750 mm
- Mould Height (Min): 300 mm
- Daylight Between Platens (Max): 710 mm
- Opening Stroke (Max): 710 mm
- Ejector Force: 70 ton
- Ejector Stroke: 275 mm
- Screw L/D Ratio: 20
- Screw Speed: 280 rpm
- Screw Torque: 2168 N·m
- Injection Volume: 1175 cm³
- Injection Rate: 610 cm³/s
- Nozzle Force (Max): 50 ton
- Heating Zones: 4
- Orientation: Horizontal
Other Specifications:
Machine got 4615400 cycle worked
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: 2 - 3 months
Full Electric
