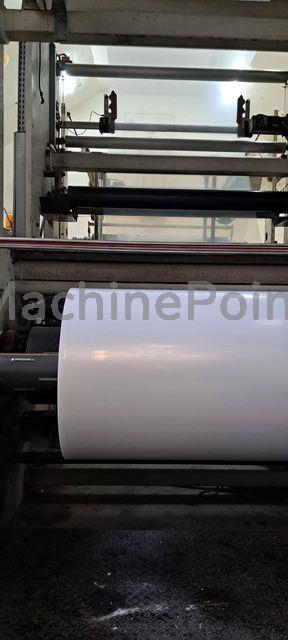

Used REIFENHÄUSER UFA-III-1700-02-1200 of 2000 for sale

5-layer Coextrusion line for shrink and lamination film Thickness 20-180 my Extruders 1 EVOLUTION 60-30-B Extruder A 1 EVOLUTION 70-30-B Extruder B 1 EVOLUTION 90-30-B Extruder C 1 EVOLUTION 70-30-B Extruder D 1 EVOLUTION 60-30-B Extruder E 1 Vacuum-Suction Blower Type 1200-30.5/-50 Hz 5 Gravimetric Batch Blending P4, 4 components for each extruder 5 Pivoting Screen Changers 5-Layer Die Head 300/650-5.1 for die diameters from 300 mm - 650 mm with IBC system EVOLUTION ULTRA COOL Die plate 400 mm 2 Gap Rings 400mm: 1,4 and 2 mm High-capacity cooling EVOLUTION ULTRA COOL Ultrasonic Bubble Control Rotating haul off Evolution 2200 mm Web guide 2200EL Plast Control non-contact measuring head Corona treater for two-sided treatment of tubular film EVOLUTION W-P 2200-02 Film Winder automatic two station centre/surface/gap winder Chiller included

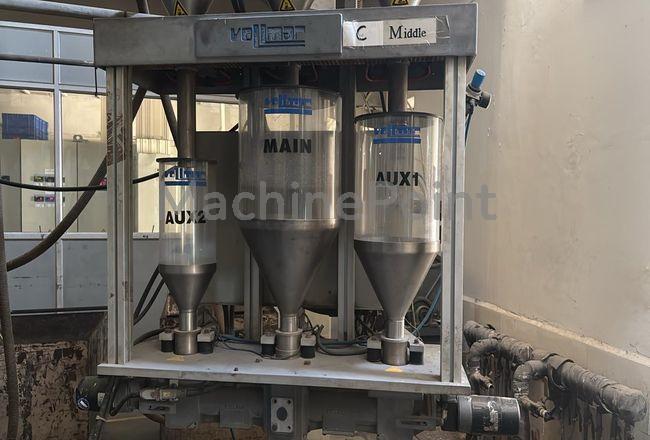

Dosing system : Moretto LT25 C/60 Number of components: 5 Heating zones: 11 Heating power: heater bands Driving system: invertec drives 132kw 400v 3ph Amtec Melt pressure Indicator Fixed die head Diameter of the die head: 270mm approx Diameter of the gap: 247mm approx IBC Air ring type: Saturn 3 ld-md Number of inlets: 6 Cooling caudal (m3/h) 3000 Die lip gap diameter: 1.20mm Motorized adjusting of calibrating basket in diameter and height Oscillating take-off system Web guiding system on 2nd floor Final roll width: 1595mm Final roll diameter: 920mm approx Final roll maximum weight: 1000kg upwards Thickness control system : Lonex Savomat m2 Corona treatment : Vetaphone Corona Plus 1920mm Filter changer : 84mm discs PLC winder Siemens Simatic s5-100 Tower included

5 layers FFS line, 1000 mm wide with an offline printing machine from BFM. 5-layer Coextruder with 50/60/70/60/50 mm extruder L/D 30 Pivoting Screen Changers Evolution 160/500-5 Die Head Layout for die insert 225 mm - 500 mm (8.9''- 19.7'') Prepared for IBC installation Die Insert Set 175 x 1.7/2.5 mm (0.067''/0.098'') decompressive, with inner gap heating of a 5-layer die head 160/500-5 High Performance Cooling System Evolution Ultra Cool 175-FFS Fast start-up of the line due to easy access of the cooling ring, die gap and IBC Air-ring insert for die diameter 175 mm (6.88’’) Evolution Ultra Cool IBC stabilizer 175 mm (6.88’’) Integrated profile control system C2 (48 control segments) Internal Bubble Cooling System typ UC 20 for the supply air and exhaust air of an EVO Ultra Cool system Ultrasonic Bubble Control 3 sensors for control of bubble diameter in combination with high output Calibration basket 1000 -AL5 for lay-flat widths of maximum 1000 mm Motorized height adjustment Motorized diameter adjustment Minimum lay-flat width: 350 mm Contact-less Capacitive Profile Measurement 1000 for C2control system Take-off Evolution T 1000.5 FFS Collapsing frame with aluminum rollers Maximum layflat width: 1000 mm (39,4'') Minimum lay flat width: 450 mm (17,7'') Maximum speed: 130 m/min (426 ft/min) Web Center Guide 1000 -E including ultrasonic sensors and motorized adjustment Corona Treater 1000 mm (39.4''), 130 m/min for two-sided treatment of tubular film EVOLUTION W-S 1000-02 Film Winder automatic two station contact winder Multi-up and side-folded 1500 mm Steel Tower with IPE-beams 4 colors Printing machine BFM S.r.l. Manufacturing year : 2019 Printing possibilities: 4+0 – 3+1 – 2+2 Rollers width: 850mm Useful web passage: 820mm Max – 350mm Min. Printing width: 800mm (max) Printing repeat length: From 350mm to1200mm Anilox rollers Diam.: 140mm Repeat gearing: 10mm Cliché thickness: 2,54mm photopolymer + 0,55mm stick-back Transversal register: 20mm manual Longitudinal register: 360° by torque motor

Speed 50-350 m/min. Coextrusion: Reifenhäuser; REIcofeed II 3-layer (ABC) Net film width: 2500-2550 mm Section A: Dosing:Somos; 4-component gravimetric unit Extruder: Reifenhäuser; Evolution RT 030-1-80-30D, Ø 80 mm Screen changer: Kreyenborg; manual changer type HS-080 Section B: Dosing: Somos; 4-component gravimetric unit Extruder: Reifenhäuser; RT5801 RT 010-5801-1-150-30-D, Ø 150 mm Screen changer: Kreyenborg; manual changer type HS-150 Section C: Dosing: Somos; 4-component gravimetric unit Extruder: Reifenhäuser; Evolution RT 030-1-80-30D, Ø 80 mm Screen changer: Kreyenborg; manual changer type HS-080 Die head Reifenhäuser; gross width: 3100 mm; net width 2900 mm Chill roll: van Baal; Ø 1000 x 3040 mm; year of production: 2022 + van Baal; Ø 1000 x 3040 mm; year of production: 2012 Thickness measuring: Electronic Systems; Hiscan Isosint K, width: 2850 mm Thickness measuring: Electronic Systems; Hiscan Isosint K, width: 2850 mm Tria; edge trim refeeding unit including a shredder and flake refeeding system to extruder B Corona treatment: Ahlbrandt, cooled steel roll with ceramic coating, ceramic electrodes Winding: Reifenhäuser; WF-D01/L-2800-MIDEX I 2-position winder with an rotary arm – roll diameter up to 800 mm Software update + replacement of computers with new ones in 2022. modernization planned for May 2023 – replacement of ceramic coating of the roll with silicone coating, replacement of ceramic electrodes with steel electrodes, replacement of power generators Line is working, continually inspected and maintained. Availability: December 2023

EVO 5-layer blown film line The UltraStretch (MDO) in the haul-off will be removed. Hence the machine will have only standard Reifenhauser Evolution haul-off. Automation : EVO OS Material handling : 25 components Extrusion : 70/70/80/70/70 Die diameter : 500mm Diameter (fixed) die head: 500mm Diameter gap: 1.7/2.5mm Cooling : EVO dual-lip/LD Take-off EVO Ultra stretch (reversing) Thickness range: 20-200mic Gravimetric dosing system Number of components: Extruder A: Main Comp. / 4 Side Comp. Extruder B: Main Comp. / 4 Side Comp. Extruder C: Main Comp. / 4 Side Comp. Extruder D: Main Comp. / 4 Side Comp Extruder E: Main Comp. / 4 Side Comp. Screw : 70/70/80/70/70 º L/D30 ABB drive with gearbox Melt pressure indicator IBC High Capacity Dual-Lip Air Ring KARAT-K3.3-PF-COM2-500 Motorized adjusting of calibrating basket in diameter and height Oscillating take-off system Package for Wrinkle Control (4) 2600 CFK rollers with textile sleeves Web guiding system on frame Rewinder: EVO W-P 2 winding stations Rewinding speed: 150 mpm Gauge control system VARIOcool-5-60 Segmentation of air ring housing K3.2/K3.3 with 60 zones Corona treatment AFS segmented 2600mm Installed power: 800A Trim removal system Tower included Available January 2024
