Data Sheet of Used ELBA SA90HS-11
Ref.: 300048328
Brand: ELBA
Year: 1999
- Welding Width: 1100 mm
- Bag Length (Max): 800 mm
- Bag Length (Min): 400 mm
- Cycles Per Minute: 235 U/min
- Drive: Servo
- Number Of Lanes: 3
Other Specifications:
Automatic line type SA90HS (high speed) for the production of HDPE/LDPE T-shirt bags with 3 lanes.
Max. quantity of bags per pack : 100 (according to the thickness and quality of the film)
Stacker on needles positioned at 120mm from the edge of the bag.
Max mechanical speed : 250 strokes/min
Max working speed : 235 strokes/min
The line includes :

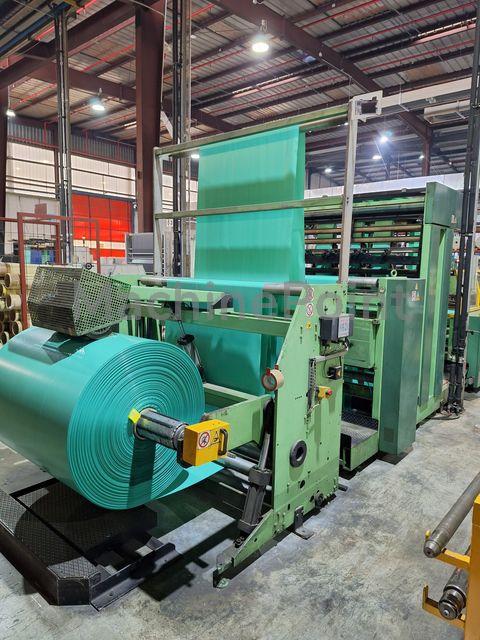

*1 unwinder type PBI-16 complete with 2 expandable shafts.
Max reel diameter 1500mm, up to a max width of 1000mm. With a width over 1000mm, max diameter 1200mm.
Hydraulic reel lifting, max reel weight 1800kg.
Manual reel aligner
Motorization by AC motor.
Constant unwind control dancer
Automatic stop at end of reel
2 expandable shafts, max load 800kg
*1 1600mm FK type centering device for film centering:
2 parallel cylinders
electrical equipment

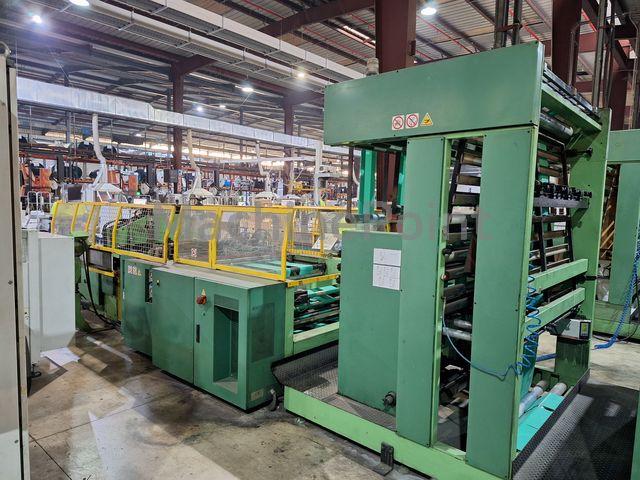

*1 vertical gusset former type SV24-16 1600mm complete of cutting-welding unit with 2 knives for 3 lanes

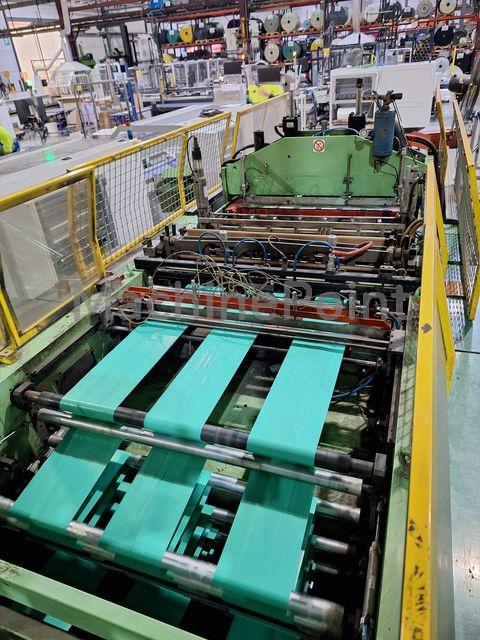

*1 automatic welding machine type SA90HS-11 of 1100mm, with servomotor feed and rotating cutting blade.
Photocell for reading the printed material.
Rotary band cutting blade with sharpening and cleaning device while the machine is in production.
Automatic machine stop in case of film snagging in the welding or stacking area.
*1 welding unit type C4A-11 of 1100mm for double welding execution.
Cooling of the welding supports through water with closed circuit
*1 bag stacking unit type MO-11
Heated and cold needles for the stacking of bags placed 120mm from the cutting point
Oscillating bag stacking group to avoid folding in the welding process
Pneumatically controlled vertical movement of the bundles forming floor
*1 automatic die-cutting and conveying of bundles type TF90HS-11
Picking up of the bundles of bags through pneumatic grippers placed on the trolley
Packages transport through automatic carriage with travel on toothed guides and commanded by servomotor in A.C.
3 interchangeable die knives
*1 extension table type TL-11 motorized.
