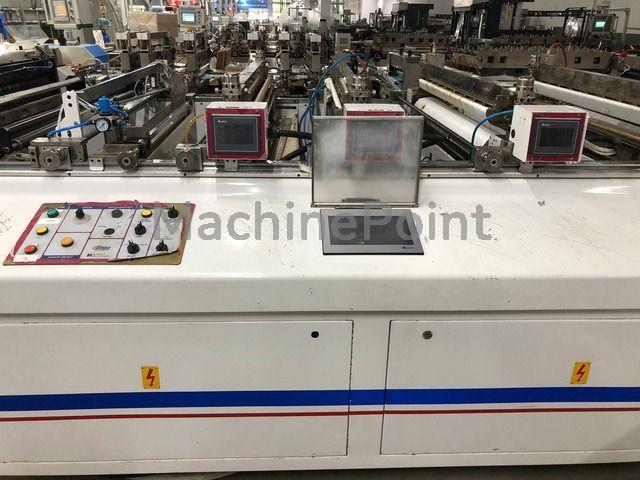

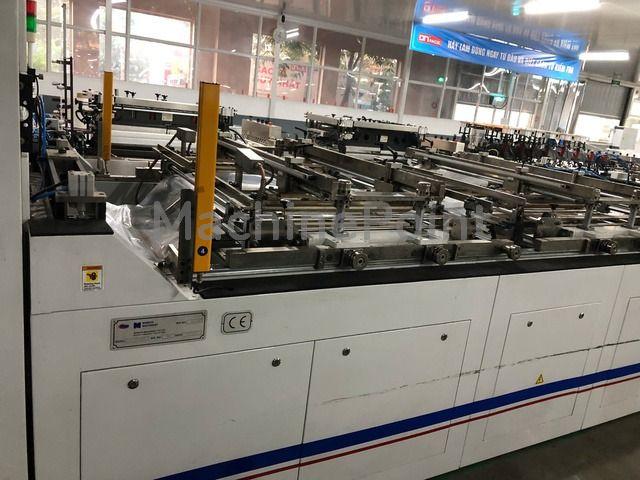

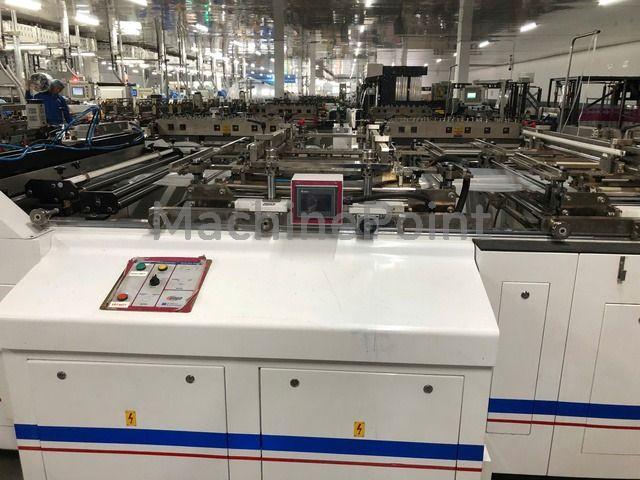

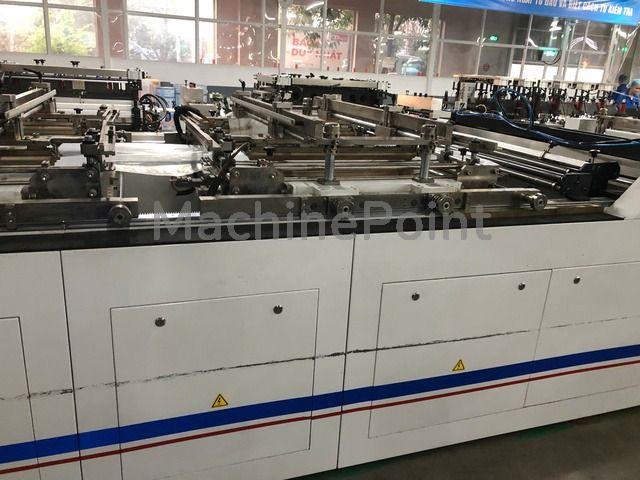

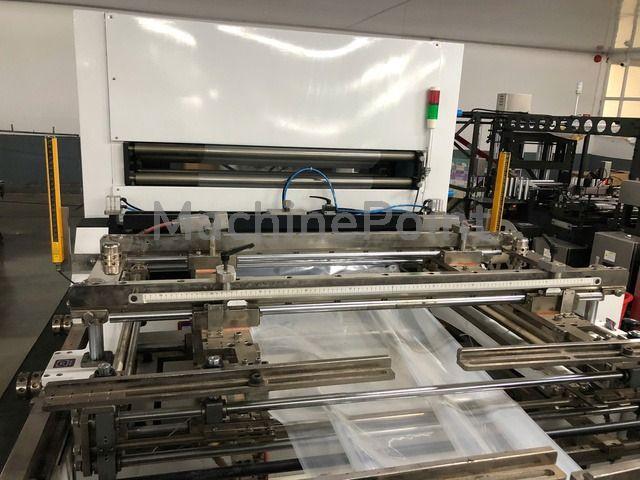

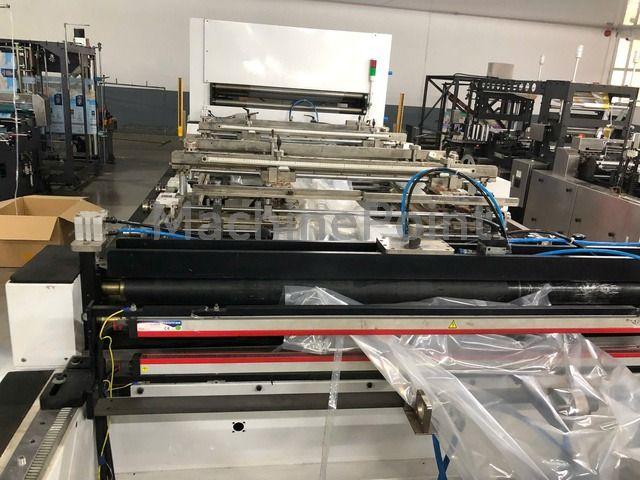

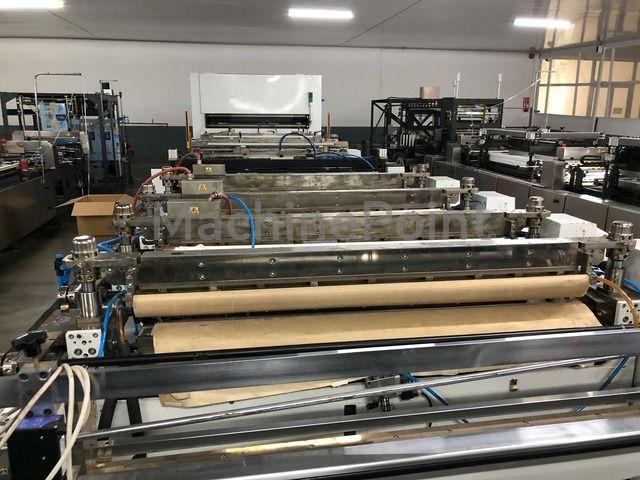

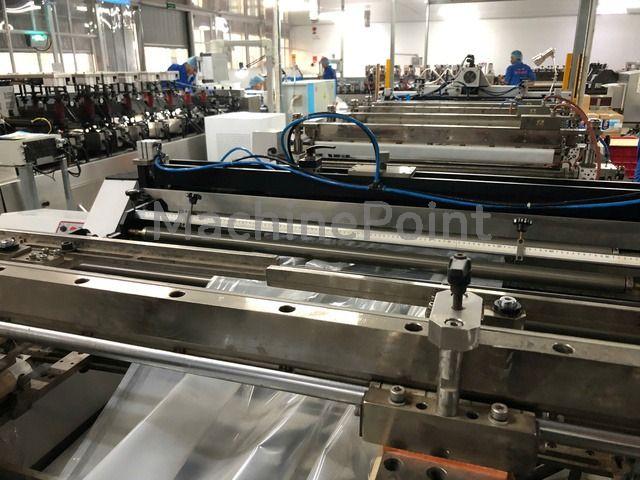

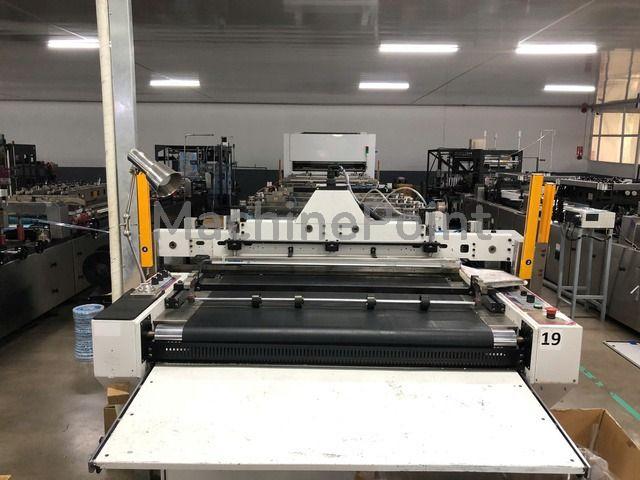

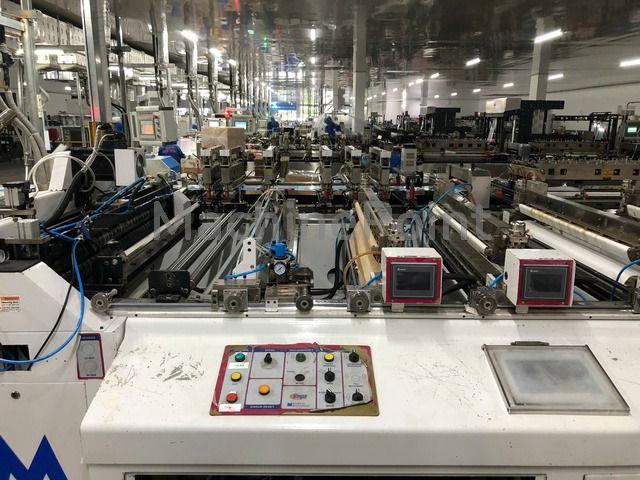

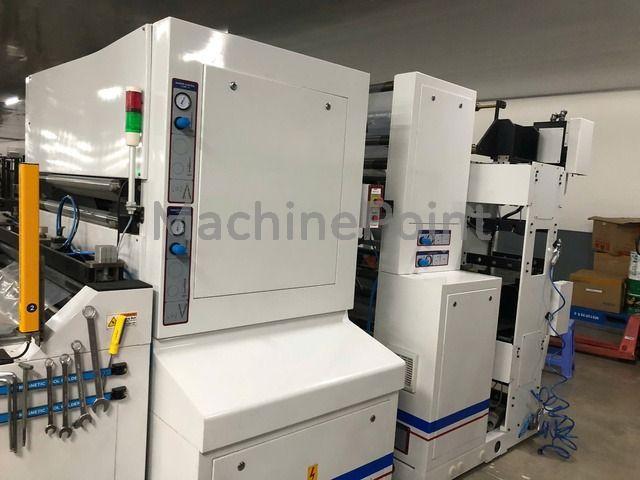

Used MAMATA VegaPlus 1020 of 2020 for sale

2020 | Ref.: 300048411

Pouch making machine MAMATA, We guarantee that the buying process for used machinery through MachinePoint is safe and professional.

Data Sheet of Used MAMATA VegaPlus 1020

Ref.: 300048411

Year: 2020

Brand: MAMATA

Status:

For sale

Delivery time: 1 - 2 months

Ask for machine price Want to sell your machine?

Photos

Technical Specifications:

Welding Width: 1020 mm

Other Specifications:

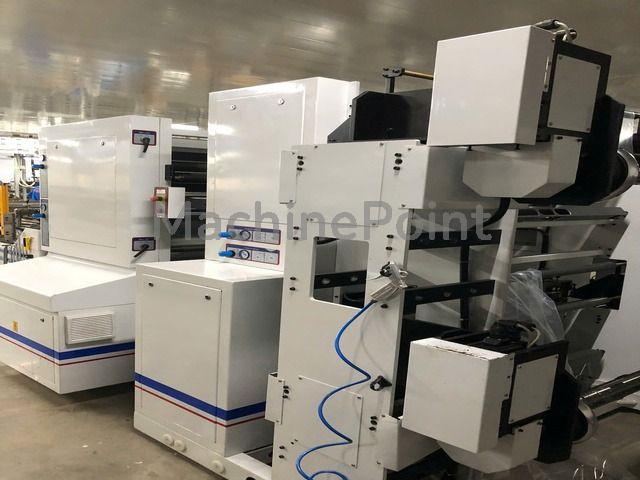

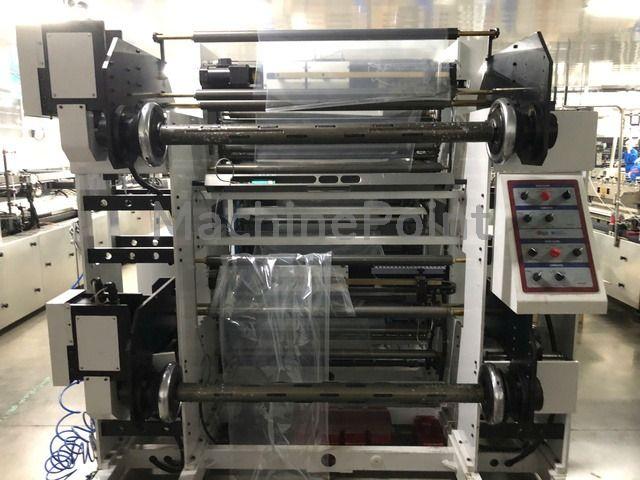

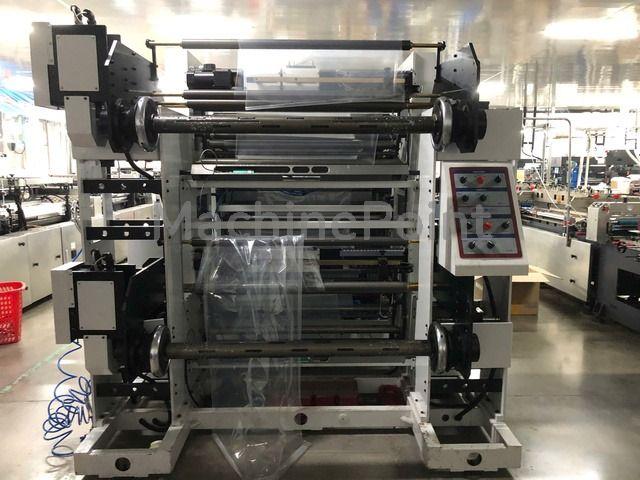

1020 Wide Servo Driven Dual Unwinder with Dual Pivot Dancer..
- Two Independent Servo Drive
- Air Shaft and Safety Chucks
- Film reel exhaust sensor
- Independent dancer for running two separate film

Trim Winder
2 Side slitters on Single bar

Long Sealing Zone 2...with 2900 mm Long Platform
- Structure and Control for Long Seal & Cool module
- Servo Driven Rear Index

Servo Driven Long Seal Module (For 610 Long Seal Platen)
- Servo Driven Long Seal module
- Long Seal module suitable for 24" Long seal bars
- Sealing Station, Seal Bar & Sealing Tool selection as per Customer requirement

Top & Bottom Long Seal Station (For 610 Long Seal Platen) with 50mm X 610mm
Long Sealing Stations with 10mm, 16mm and 20mm width sealing tool set.
Separator For Co-Ex Pouch Processing

Servo Driven Long Cool Module (For 610 Long Seal Platen)
- Servo Driven Long Cool module
- Long Cool module suitable for 24" Long Cool bars
- Cool Bars equipped for water circulation

Top & Bottom Long Seal Station (For 610 Long Seal Platen) with 50mm X 610mm
Long Sealing Stations with rubber base and 22mm width cool tool.

Transverse Sealing Zone-1 With 2950 mm Long Platform

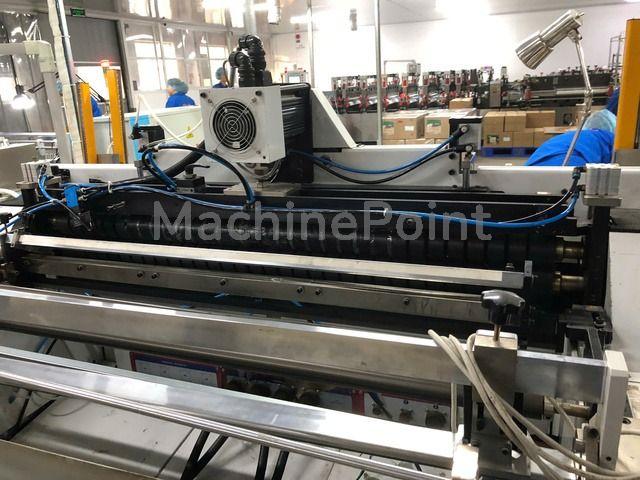

- One Servo operated Flying Knife System for cutting
- Servo Driven Film Index (Front)
- Servo Driven Secondary Index

Top & Bottom Sealing Stations with 50mm x 1020mm Sealing Platen with Rubber base and 10mm, 16mm and 20mm Sealing Tools.
Top & Bottom Cooling Station with 50mm x 1020mm Sealing Platen with Rubber base and 22mm Cooling Tools.
One V-Notch Punch Trolley with Punch Unit with V-Notch Punch
Conveyor With Stacking Tray
Flying Knife Blade

Pouch Type:
1) Three side seal
- Laminates of Polyester, BOPP, CPP Minimum 40 microns Maximum 200 microns
- Co-ex Film based on Nylon, EVOH, LD/ LLD etc Minimum 50 microns Maximum 200 microns
- BOPP Minimum 30 microns Maximum 55 microns

Other Details:

Guarantee: Without guarantee

Current condition: In Production

Availability: 1 - 2 months

Frequency: 50 Hz
, Frequency: 60 Hz
