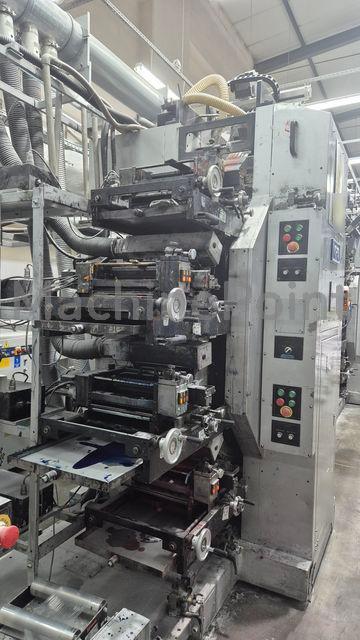

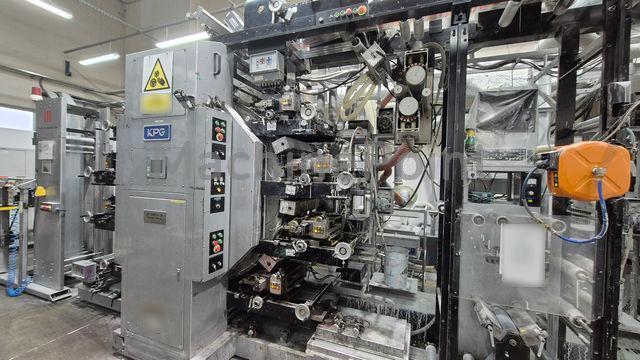

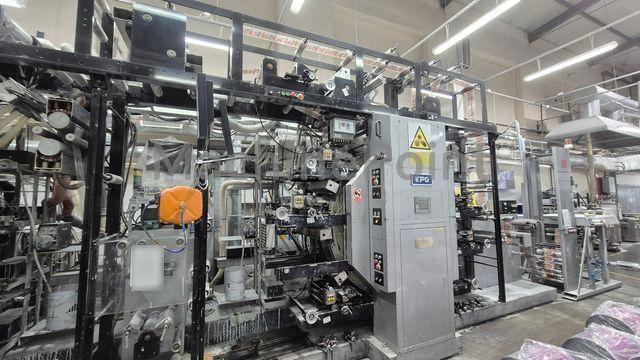

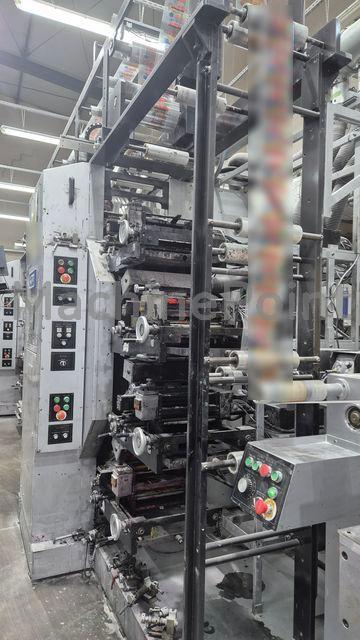

Used KPG Euroflex 250 Casing Press of 2008 for sale
Label flexo printing machines KPG, The team at MachinePoint is constantly looking for the best offer of machinery all over the world in order to offer our clients attractive and quality machinery.
Data Sheet of Used KPG Euroflex 250 Casing Press
Ref.: 300048416
Year: 2008
Brand: KPG
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Number Of Colours: 16
- Printing Width: 255 mm
- Printing Repeat (Min): 190 mm
- Printing Repeat (Max): 457 mm
- Maximum Unwind Diameter: 800 mm
- Maximum Rewind Diameter: 610 mm
Other Specifications:
Fully automatic UV Flexo 16 Colour + 2 varnish stations
Material types: Polyamide casings, fibrous casings, collagen casings, shrink sleeves, film
Max. speed: 100 m/min
Repeatability: 18 inches
Single-sided printing:
Max. 15 colours + 2 varnish stations
Material width: 30 mm to 255 mm
Double-sided printing:
Max. 16 colours + 2 varnish stations
Material width: 30 mm to 255 mm
UV inks
Open chamber doctor blade system with peristaltic pumps for ink supply:
19 doctor blade chambers
10 peristaltic pumps for inks
Sleeve dimensions:
Length: 265 mm, internal diameter: 70,144, without locks, for photopolymer plates with a thickness of 1.7 mm
Mounting foam thickness: 0.38 mm
Drying between inks. UV lamp drying after each printing unit (GEW engineering)
2 BST cameras + BST Super Handy Scan 3000 control
15” color monitor
Double corona discharge device SOFTAL ELECTRONIC (one control unit is not working)
Printer equipped with a powdering system
Main drive / Printer body:
Two liquid-cooled central cylinders. Hard chrome plated
Layer thickness: 80 - 100μm
Rotational accuracy: +/- 0.02mm
Five liquid-cooled intermediate cylinders
Oscillating doctor blade allows printing outside the printed material. Removes ink residues from central cylinders
Side edge control: 4 pcs. with ultrasonic edge sensor and electronic positioning drive. Manual adjustment
Unwinding, rewinding: Double rotary arms equipped with pneumatic clamping cores by Martin Automatic – allows non-stop printing (automatic roll change). Adapted to sleeves with internal dimensions of 78mm and 152mm
Clamping length: 250mm
Roll weight max. 60kg
Machine equipped with the following format sleeves:
260, 280, 290, 300, 310, 320, 330, 340, 360, 380, 400, 420
Additionally, the machine is equipped with 40 Anilox:
Lineature: Transfer: Quantity:
100 l/cm: 13.0 cm³/m²: 4 pcs
160 l/cm: 8.5 cm³/m²: 13 pcs
200 l/cm: 7.0 cm³/m²: 7 pcs
280 l/cm: 6.8 cm³/m²: 5 pcs
280 l/cm: 8.5 cm³/m²: 2 pcs
400 l/cm: 5.0 cm³/m²: 3 pcs
400 l/cm: 4.5 cm³/m²: 4 pcs
“S” flow-through: 2 pcs
Total: 40 pcs
The machine has a faulty corona on one side, but it is working all the time, tests are possible.
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
Frequency: 50 Hz
, Frequency: 60 Hz
