Used ARSOMA EM280 of 1997 for sale

1997 | Ref.: 300048444

Label flexo printing machines ARSOMA, You can contact our team and analyze your needs so we can offer you the best possible solution depending on your budget.

Data Sheet of Used ARSOMA EM280

Ref.: 300048444

Year: 1997

Brand: ARSOMA

Status:
For sale

Delivery time: Immediate

Ask for machine price Want to sell your machine?

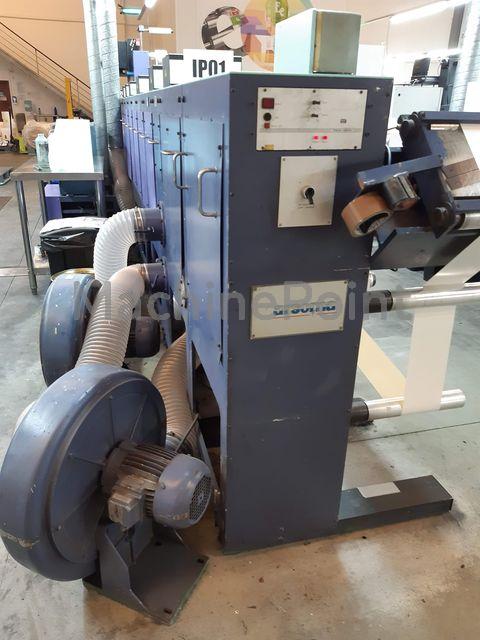

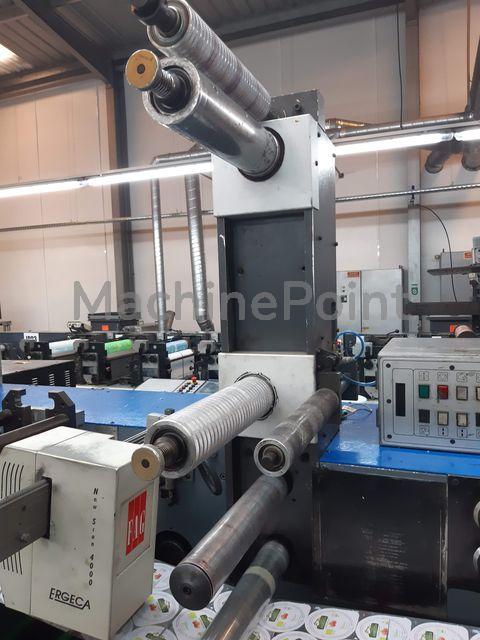

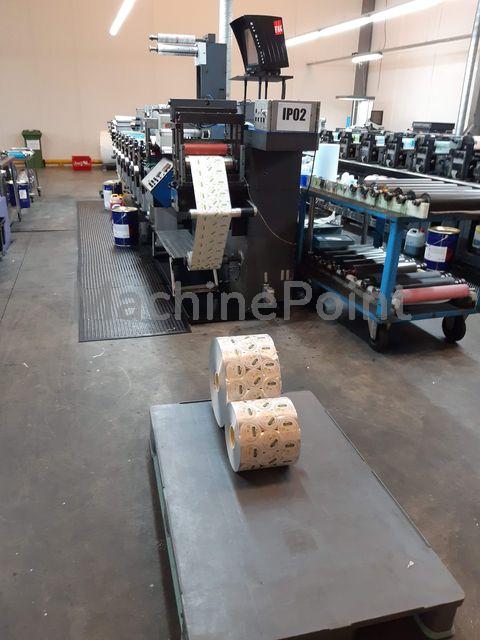

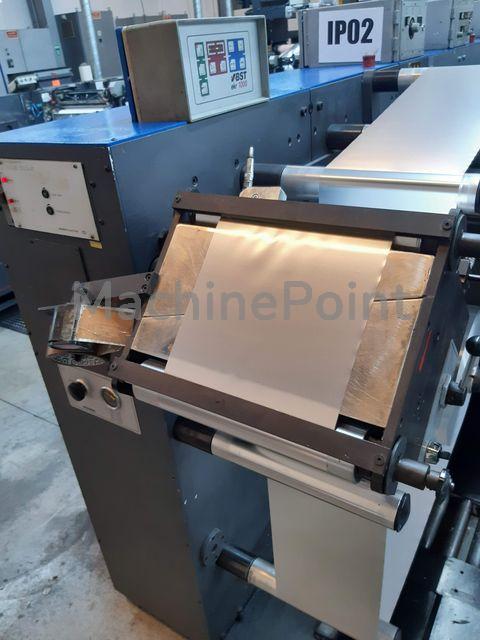

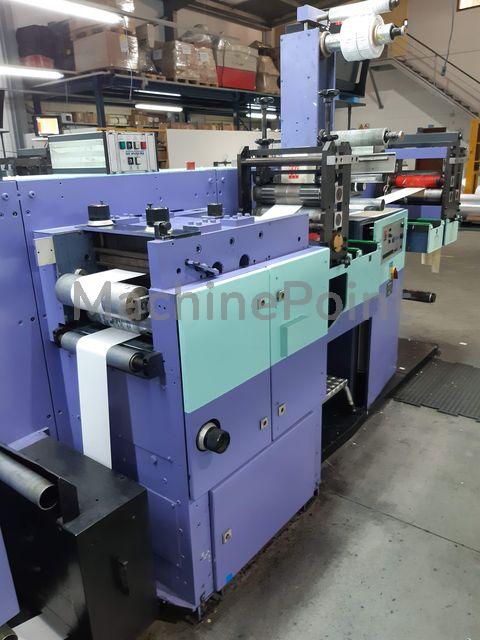

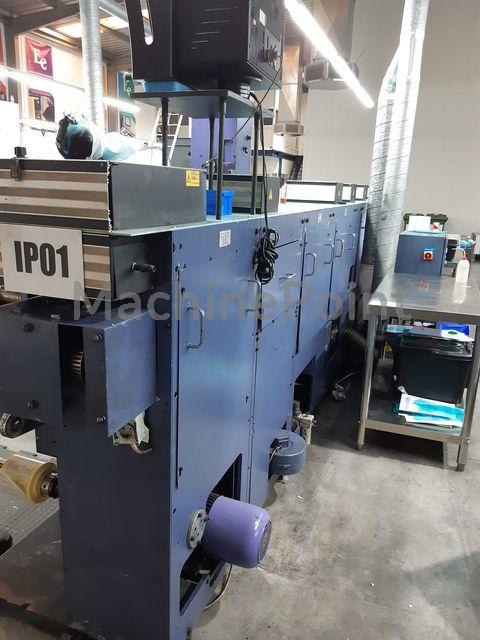

ARSOMA - EM280 - Used machine
ARSOMA - EM280 - Used machine
ARSOMA - EM280 - Used machine
ARSOMA - EM280 - Used machine
ARSOMA - EM280 - Used machine
ARSOMA - EM280 - Used machine
ARSOMA - EM280 - Used machine
ARSOMA - EM280 - Used machine
ARSOMA - EM280 - Used machine
Please accept marketing-cookies to watch this video.

Technical Specifications:

  • Number Of Colours: 7
  • Printing Width: 280 mm

Other Specifications:

Package of 2 machines :

Machine 1 :
Manufacturer: Gallus (Arsoma)
Model: EM 280
Printing Width: 280mm
Year: 1997
7 Flexo Units
7 Hot Air Drying Stations
1 UV Station (UV Varnishing)
2 Rotary Die Cutting Stations
Video-Scanner ERGECA included
Condition: Working daily, 2 Shifts

Machine 2 :
Manufacturer: Gallus (Arsoma)
Model: EM 280 (250 Factory up-graded)
Printing Width: 280mm
Year: 1992
6 Flexo Units (4 needing to be refurbished)
6 Hot Air Drying Stations
1 UV Station (UV Varnishing)
1 Hot Foil Station
2 Rotary Die Cutting Stations
1 Flat Bed Cutting Station (Factory Extra)
Video-Scanner ERGECA included
Condition: Working daily, 1 Shift

Included Tools
16 Ink Tranf. Rollers
10 Magnetic Cylinders assorted from 8” to 14”
14 Anilox Rollers assorted from 110 Lcm to 420 Lcm
20 Printing Cylinders assorted from from 8” to 15”
More than 800 Flat Bed Die Cut Plates
Others to confirm

The first machine is working in 2 daily shifts, in full capacity, and doing all the kind of jobs needed (7 Stations, 6 Printing + 1 Varnish).
The second machine is working daily, but almost do blank labels and 1-2 colour/text labels (the printing stations need to be rectified).

Other Details:

Guarantee: Without guarantee

Current condition: In Production

Availability: Immediate
