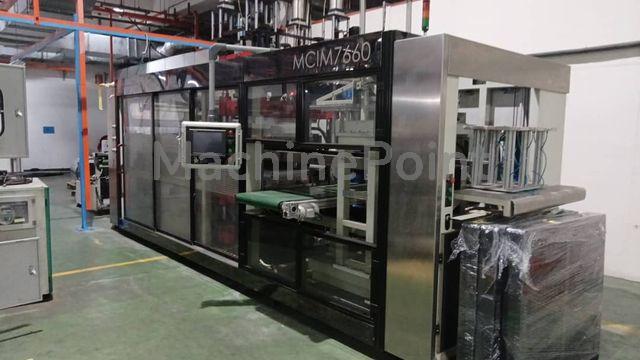

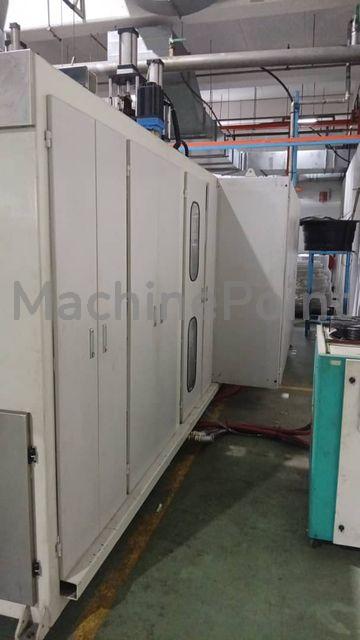

Used MENGXING MCIM7660 of 2020 for sale
Thermoformer MENGXING, The team at MachinePoint is constantly looking for the best offer of machinery all over the world in order to offer our clients attractive and quality machinery.
Data Sheet of Used MENGXING MCIM7660
Ref.: 300048506
Year: 2020
Brand: MENGXING
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Material : APET, PETG, PVC, HIPS, PET, PS, OPS
- Forming Area (Vxh): 760 x 600 mm
- Depth Of Draw: 175 mm
- Material Thickness (Min): 0.2 mm
- Material Thickness (Max): 1.5 mm
- Number Of Stations: 2
- Products Type: Container
- Feeding Systems: Roll & Sheet fed
- Type: Hydraulic - Vacuum
Other Specifications:
Sheet width: 500-800 mm

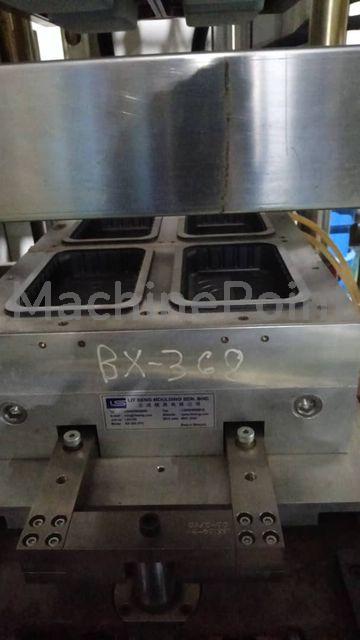

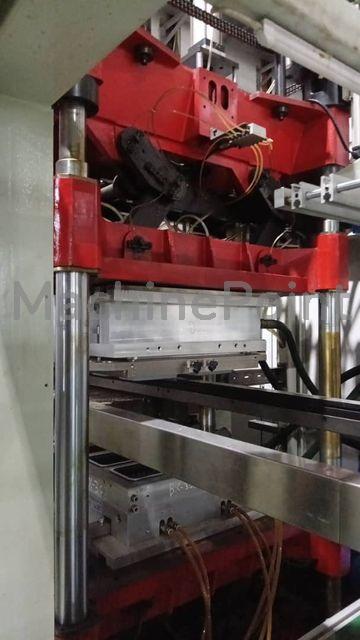

Forming mould stroke: Up mould 140 mm, Down mould 210 mm
Locking mould force: 30 ton
Min forming area: 500 x 380 mm2
Forming mould width: 500-760 mm
Forming mould length: 460-600 mm
Cutting force: 45 ton
Stacking way: Downward stacking/Manipulator stacking
Cycle time (cycle/ min): Manipulator: Max18；Downward stacking:Max30
Cooling Outlet: Water cooling
Vacuum pump: Busch R5 0100
Heater power (kw): 150
Technical Configuration:
PLC Controller: Taiwan Delta

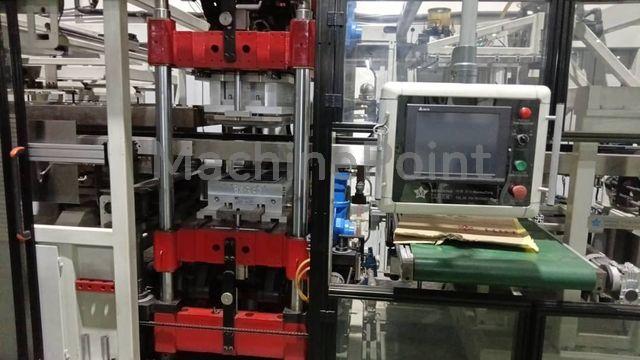

Touch Screen Monitor ( 10.4″inch /Color ): Taiwan Delta
Feeding servo motor（4.5kw）: Taiwan Delta
Forming up/down mould servo motor（5.5kw）: Taiwan Delta
Heater(250pcs): Germany Elstein Or Ireland Ceramicx
Contactor: Germany Siemens
Thermo Relay: Germany Siemens
Relay Germany: Weidmuller
SSR: Switzerland Carlo Gavazzi
Vacuum: Pump Germany Busch
Pneumatic: JAPAN SMC
Cylinder: JAPAN SMC & Taiwan Airtec
Other Details:
Guarantee: Without guarantee
Current condition: Not running. Can be shown with material
Availability: Immediate
Voltage: 380 V Triphase
Frequency: 50 Hz
Voltage: 200 Kw
