Used BALLIU Megacut 5A of 2001 for sale
CNC machining centers BALLIU, MachinePoint offers their clients all the services necessary to buy the machine: Transport, dismantling, and legal consultancy.
Data Sheet of Used BALLIU Megacut 5A
Ref.: 300048520
Year: 2001
Brand: BALLIU
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Number Of Axes: 5
- Work Area (Lxwxh): 2000 x 3000 x 600mm
Other Specifications:
Travels: X=2000 mm, Y = 3000 mm, Z=600 mm
A +/- 185°
C +/- 90°

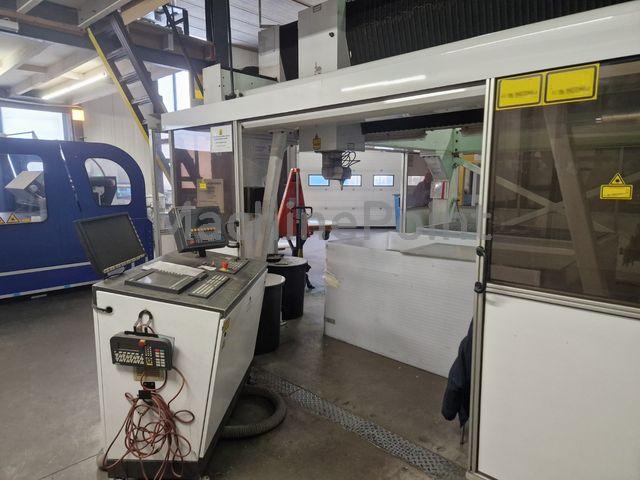

Siemens 840 D control including TCP, plane selection
laser power control, 3D tracking & teach in panel

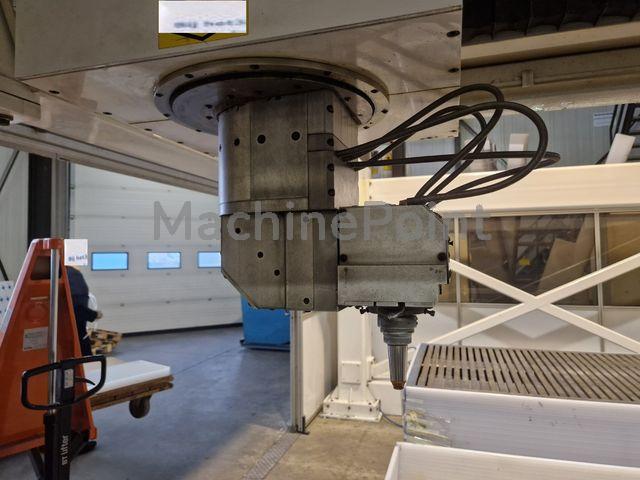

included Precitec 5" KN ( or similar ) tracking head
Advanced gas system including:
· proportional valve
· 3 gases controlled through the CNC up to 8 bars
· high pressure cutting up to 20 bars
· flow meters

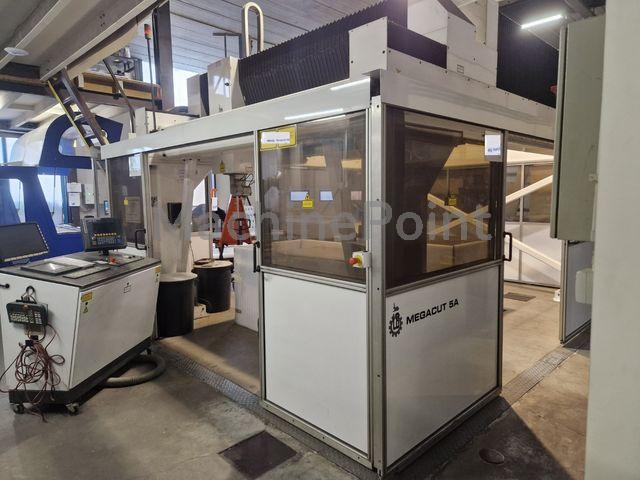

Class One protective cabin

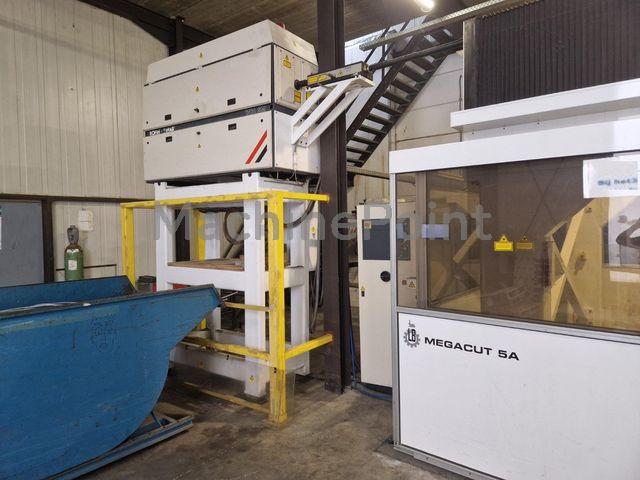

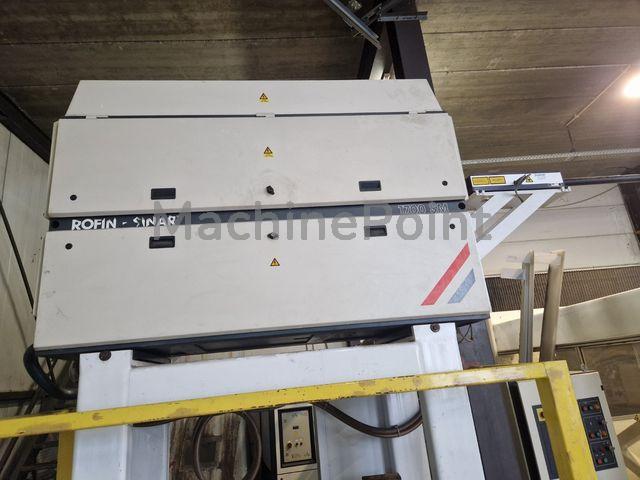

1 x Rofin Sinar RS1700SM high power CO2 Laser (1900 Watt)
. HeNe workpiece alignment laser
. Mirror telescope for constant beam quality (Kugler)

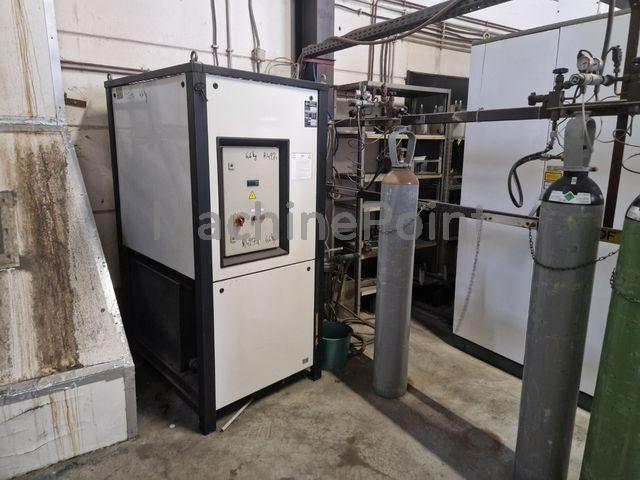

1 x HT 30 Pedia 35kW Process Water Chiller
32KVA, 50A
Other Details:
Guarantee: Without guarantee
Current condition: Not running. Can be shown in dry cycle
Availability: Immediate
Voltage: 400 V Triphase
Frequency: 50 Hz
