Used SIDEL Ocme Hydra 144/120/36 of 2008 for sale
Complete PET filling line for still water SIDEL, In MachinePoint we work so that our buyers receive a professional service and so the transaction is safe.
Data Sheet of Used SIDEL Ocme Hydra 144/120/36
Ref.: 300048527
Year: 2008
Brand: SIDEL
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Output: 55000 U/h
- Bottle Size: 0,5
- Valves-Filling Heads: 120
- Pitch: 90 mm
- Bottle Material: Plastic
Other Specifications:
Products: still water
Bottle type (basic): from 0.5 l to 1.5 l volume (due the specifications of the filler the maximum format is 1.5lt)
PET closing type: 30/25
Labels: Plastic Roll Fed
Package format: 3x2, wrapped in heat shrink film
Tray: Euro-type
Line capacity - 55.000 bottles/h
The capacity is calculated on the basis of a 0.5 l PET bottle

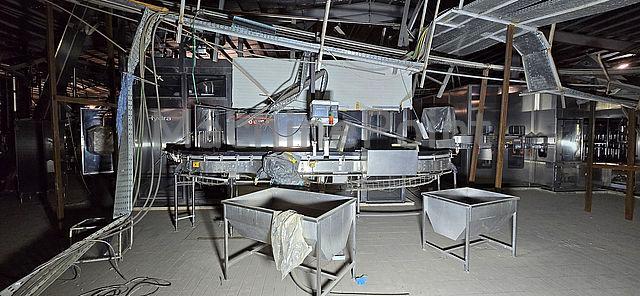

The line includes the following:
Injection molding machine: Netstal PETline 3500-3550R Year 2006 - molds 96 cavities

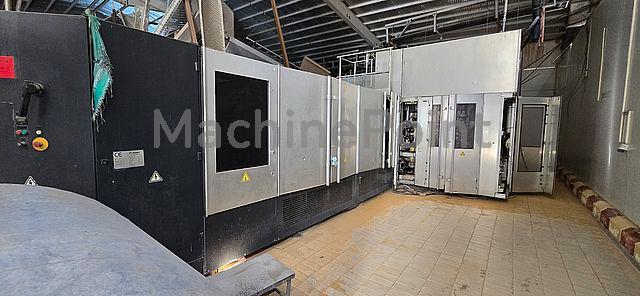

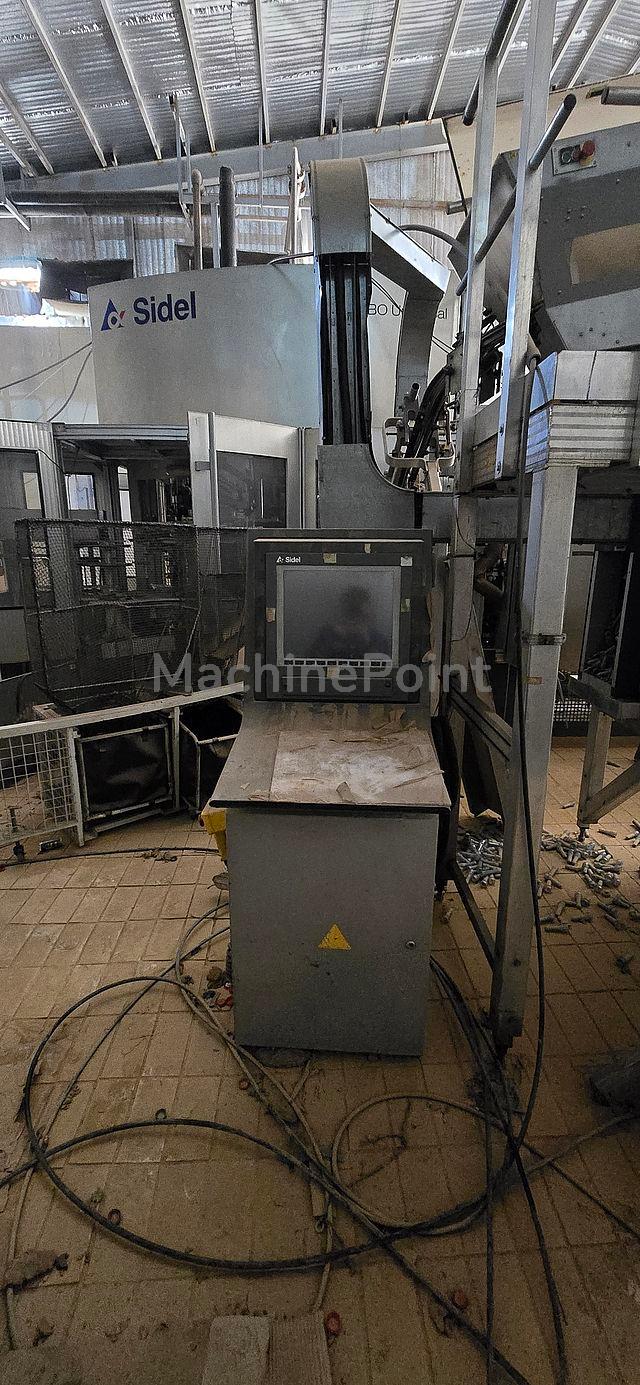

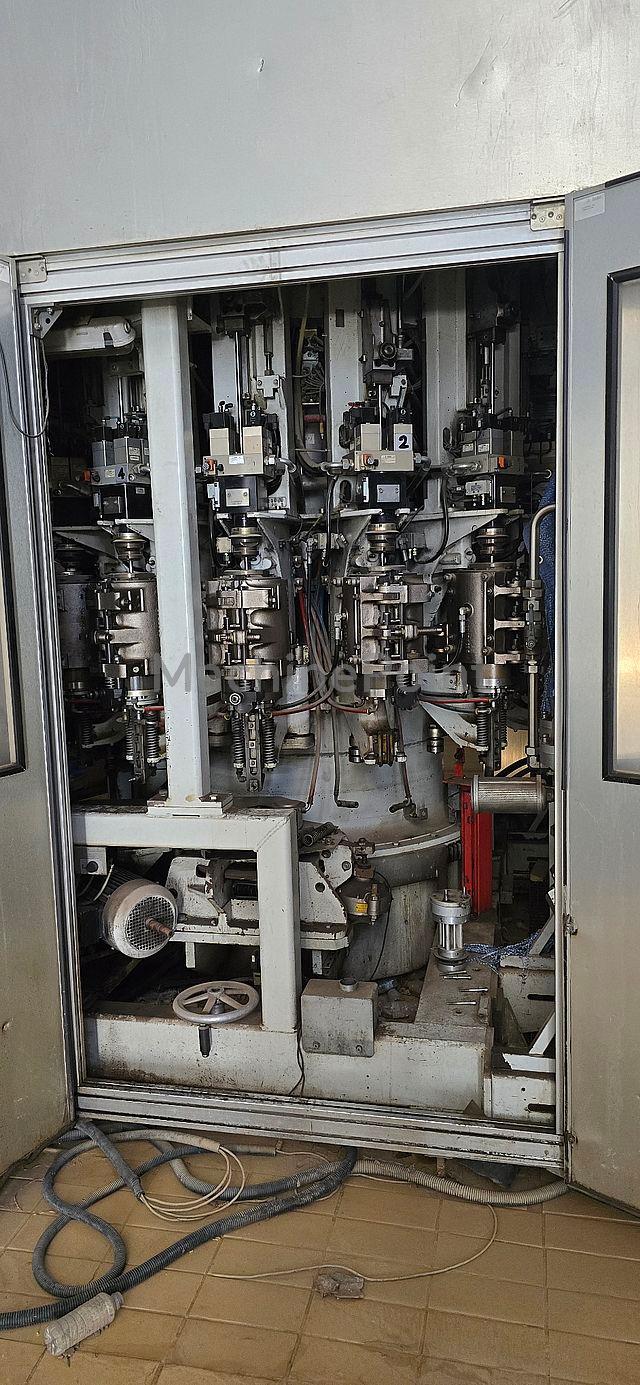

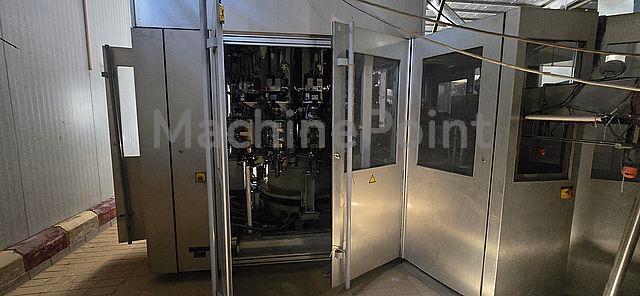

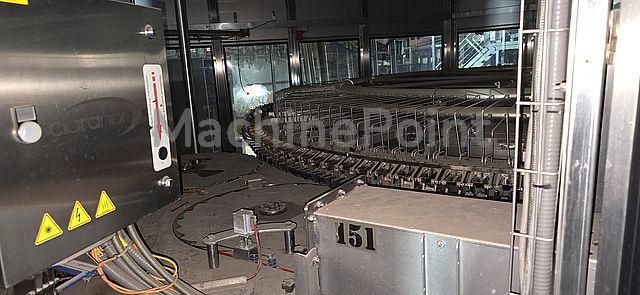

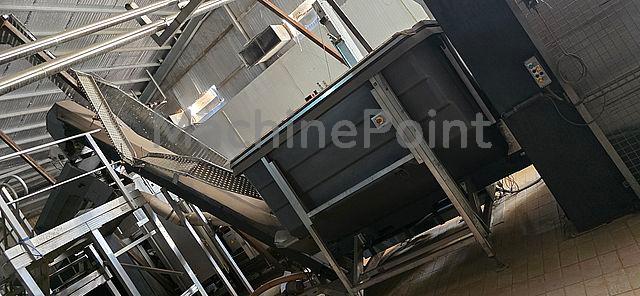

Stretch Blow molding machine Sidel SBO 14 Universal from 2008 complete with: preform tipper, preform elevator/orienter
Sidel SBO 16 Universal from 2008 complete with: preform tipper, preform elevator/orienter

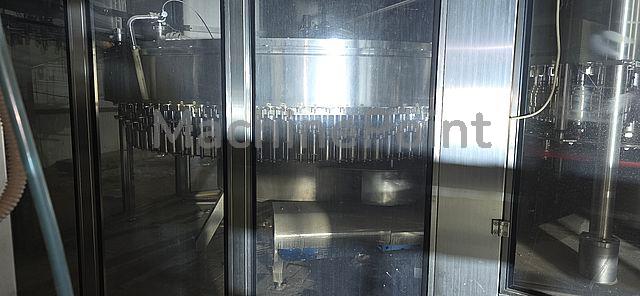

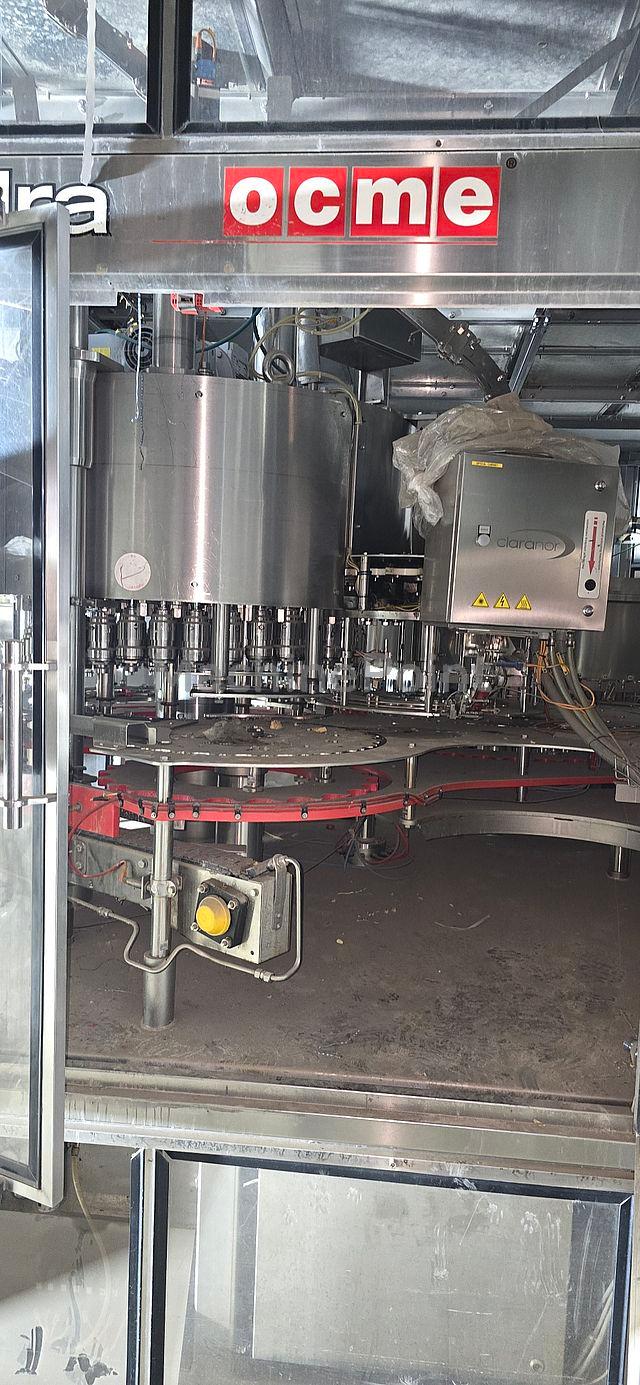

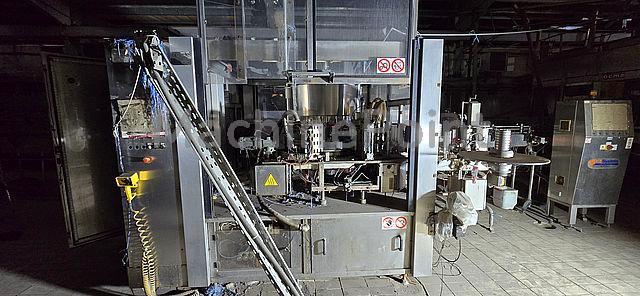

Monoblock: Ocme Hydra 144/120/36 from 2008 with Capper Arol
Maximum bottle heigh 360mm
Maximum bottle diameter 90mm
Maximum bottle weight (with water) 2kg

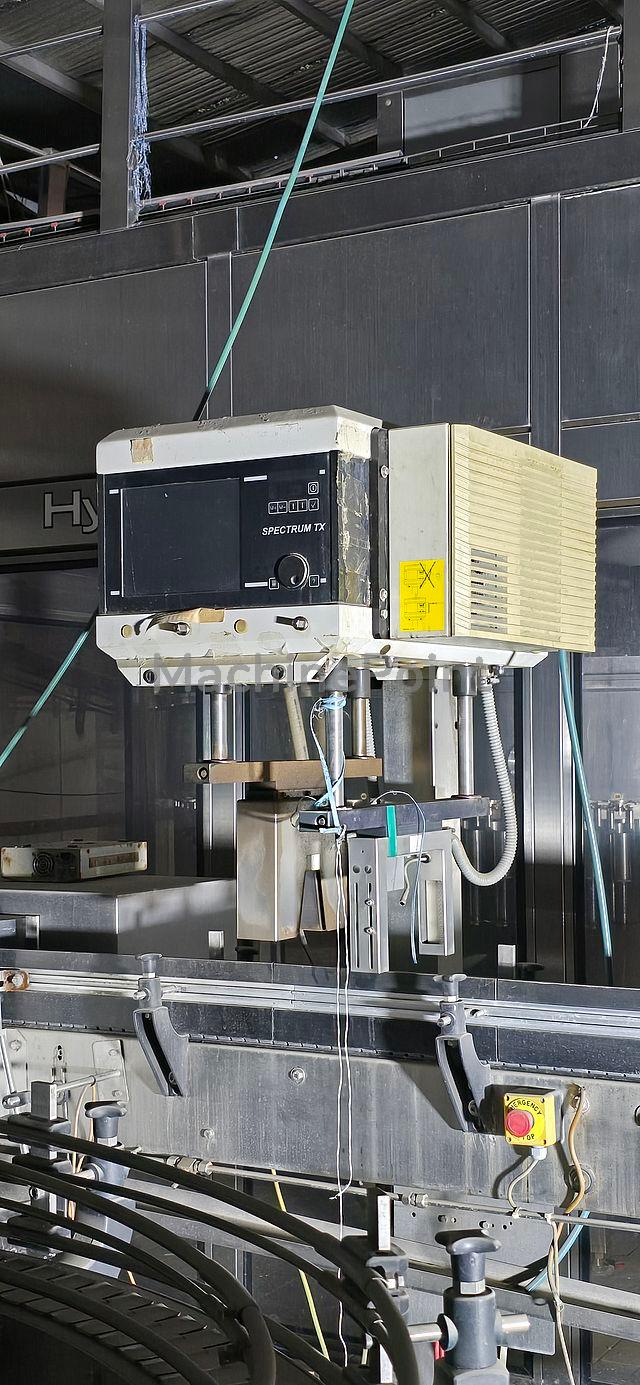

Bottle inspector: Heuft

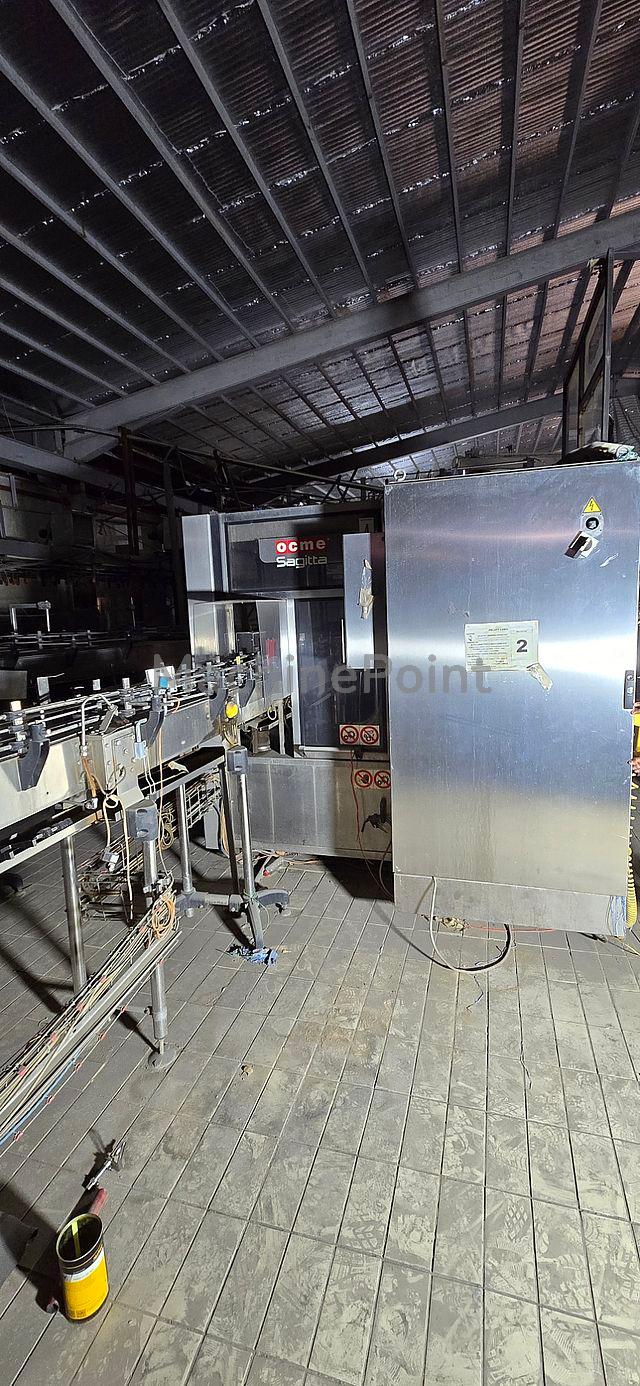

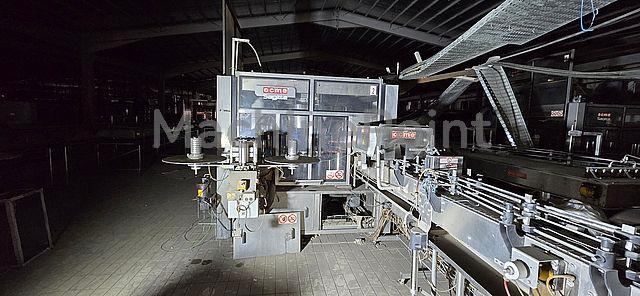

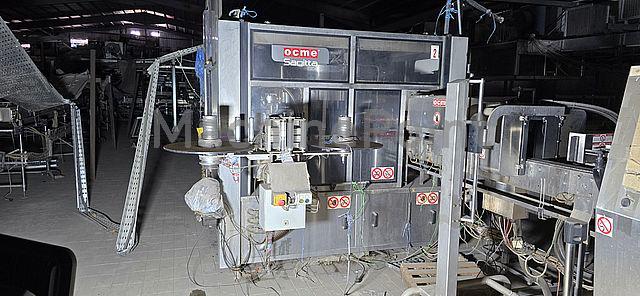

Labeller: Ocme Sagitta 2-21 from 2008
Laser Printer: Markem from 2008

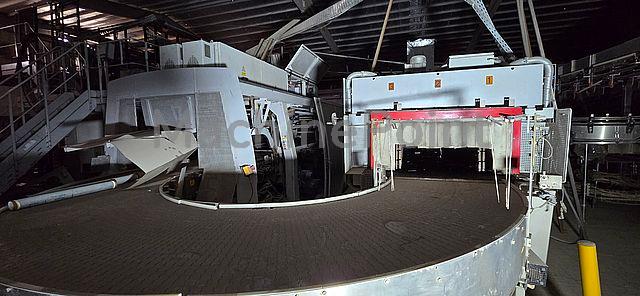

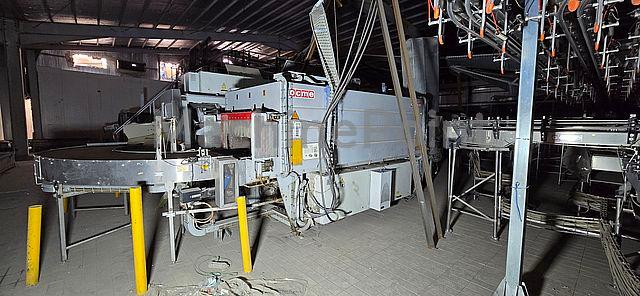

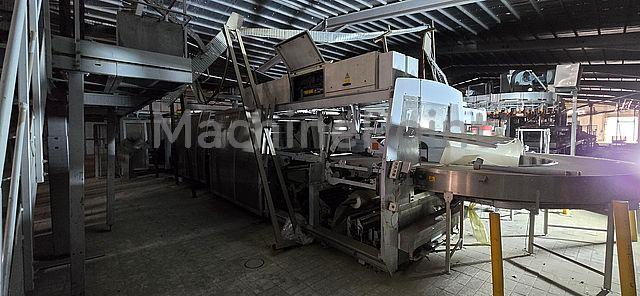

Shrink Wrapper/Carton Packer : Ocme Vega S60V from 2008
handle applicator: NO
Palletizer: Ocme Perseus Year 2008
Pallet wrapper: Ocme Pieri Year 2008
User and maintenance manuals, electrical diagrams of all machines
Line installed, not connected to the electricy, not in production and immediately available
Other Details:
Guarantee: Without guarantee
Current condition: Disconnected. Can't be seen in running condition
Availability: Immediate
