Used JIANGSU LAIYI LY-ASCP90/55-1400 of 2017 for sale

Technical Specifications:

Other Specifications:

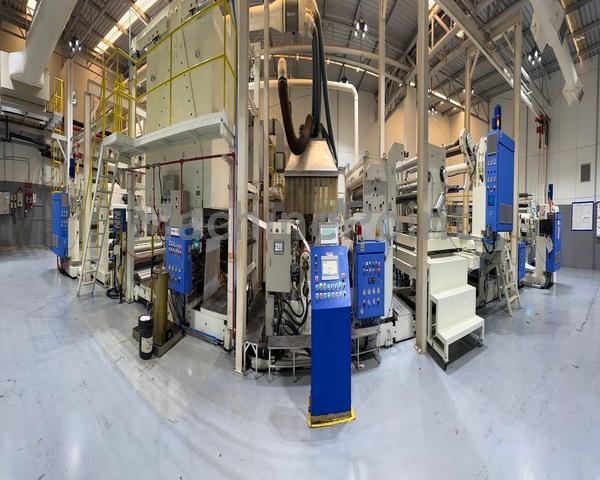

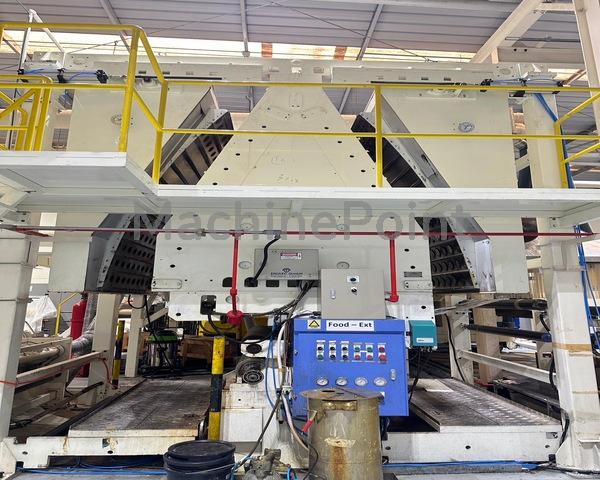

Extrusion lamination line
- Roller Width: 1400mm
- Valid Coating Width: 600- 1300mm
- Max. Unwing Diameter: 1200mm
- Max. Rewind Diameter: 1200mm
- Core Diameter: 3"/6"
- Substrate Material:
+ Roll Paper: 30-60g/m2
+ PET Film: 12u
+ BOPP: 20u
+ MPET: 12u
+ MOPP: 18-30u
+ AL Foil: 7-9 micron
- Resin:
- Max. Extrusion Capacity: 200kg/h + 70kg/h
- Resin Thickness: 7-50u (when thicker, speed will slower)
- Thickness average: ≤ +- 5%
- Mechanical Speed: 200m/ min
- Laminating Speed: 150m/ min, but the exact speed depends on the material and process.
- Air Source Pressure: 0.6- 0.9 MPa
- Water Source Pressure: 15° -25°
- Total Power: About 180kw
- Steady Power: About 150kw

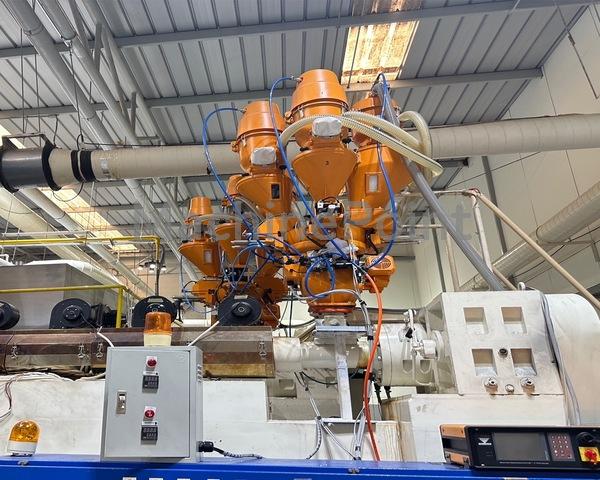

Co-extruder
- Type: Co-extrusion
- Screw: A Extruder-ZB G90mm, B Extruder- ZB
- Screw L:D: A Extruder- L/D 35/1, B Extruder- L/D 33/1
- Max. Extrusion Capacity: A Extruder 200kg/h + B Extruder 70kg/h

Single colomn single- plate Filter- 2 sets

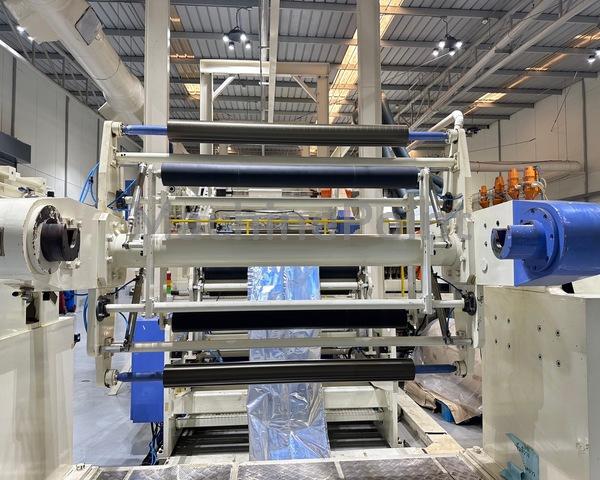

Unwinder:
- Type: Active Automatic Turet Type Unwinder
- Max. Unwind Width: 1300mm
- Max. Unwind Diameter: 1200mm
- Tension range: 20-800N, Tension precision is ≤ +- 2N
- Tension control way: Swing roller + AC Frequency motor, Brand: Siemens

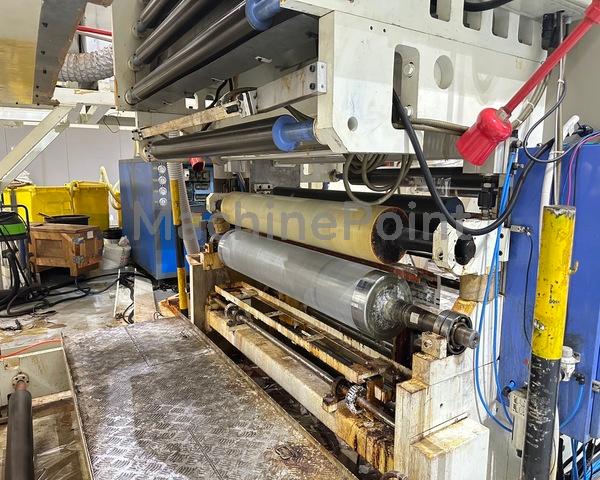

Primer Coating System:
- Coating Roller Length: 1400mm
- Coating Roller Diameter: ø200mm
- Coating Roller Type: Mirror Type Coating Roller , surface wrapped with componed rubber Shome hardess 60° - 65°
- Laminating Rubber Roller: ø180mm

Oven
- Valid Heating Length: 6m
- Inside Oven material: stainless steel
- Max. Oven temperature: 150° C (room temp. 20° C)
- Heating source: Gas heating

Corona- 2 sets
- Model: GX308
- Power: 8kw
- Power: 15-20kw
- Brand: Sherman

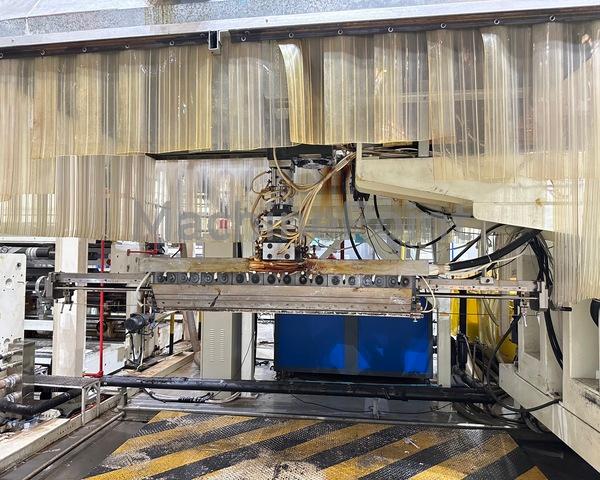

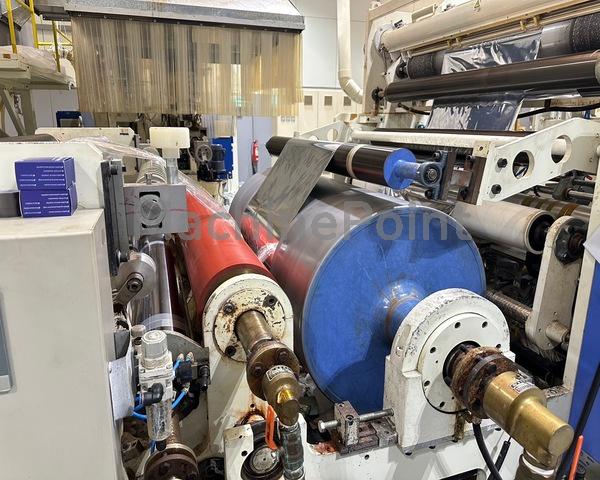

Extrusion Laminating Unit:
- Type: 3 Rollers Lamination
- Chill Roller Diameter: 700mm
- Chill Roller Length: 1400mm
- Chill Roller Surface Type: Mirror surface, Surface roughness RZ 0.5
- Inside Flow Type of Chill Roller: Multi- head spiral roller, jacket through cooling water
- Silicon Rubber Roller Diameter: 255mm
- Silicon Rubber Roller Length: 1400mm
- Surface Wrapping Material: solid silicon rubber, roller hardness 85° ≤ +- 2°
- Supporting Roller Diameter: 240mm
- Supporting Roller Length: 14000mm
- Surface of Supporting Roller: Mirror Surface

Sandwich Unwinder:
- Type: Active Automatic Turet Type Unwinder
- Max. Unwind Width: 1300mm
- Max. Unwind Diameter: 800mm
- Tension range: 20-600N, Tension precision is ≤ +- 2N
- Tension control way: Swing roller + AC Frequency motor, Brand: Siemens
- Drive Motor: 7.5kw AC motor
- Max. Unwind Weight: 800kgs
- Core: 3"/ 6" Air shaft

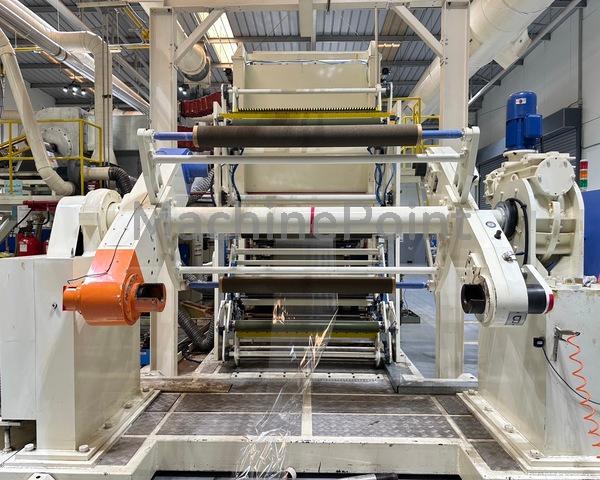

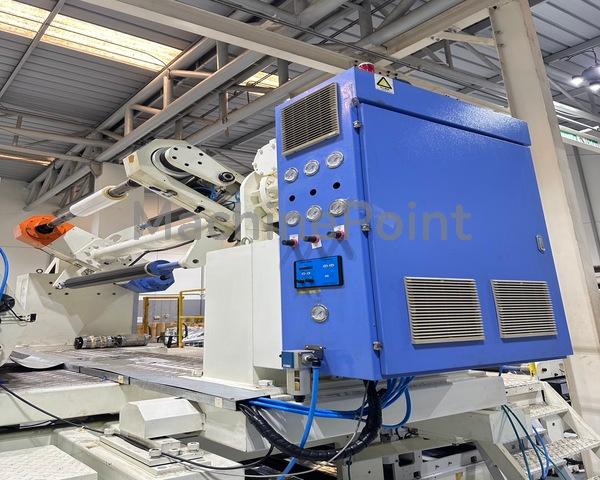

Rewinder
- Type: Automatic Turret Rewinder
- Max. Rewind Width: 1300mm
- Max. Rewind Diameter: 1200mm

Chiller- Available

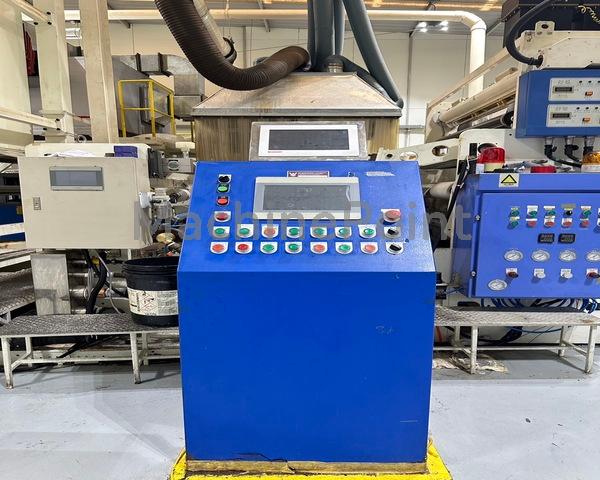

PLC Siemens

Other Details:

Guarantee: Without guarantee

Current condition: In Production

Availability: < 1 month
