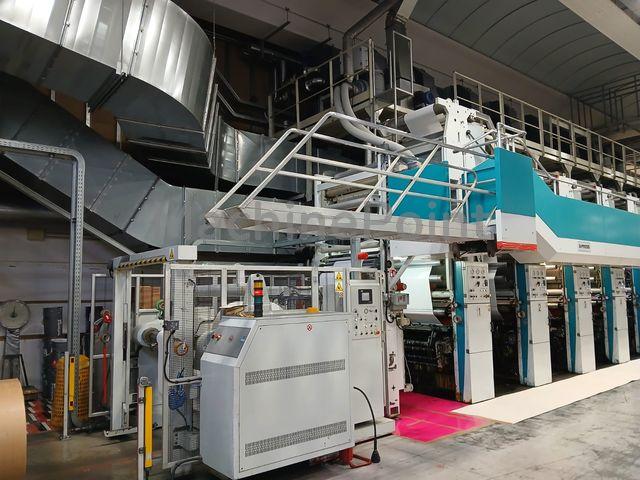

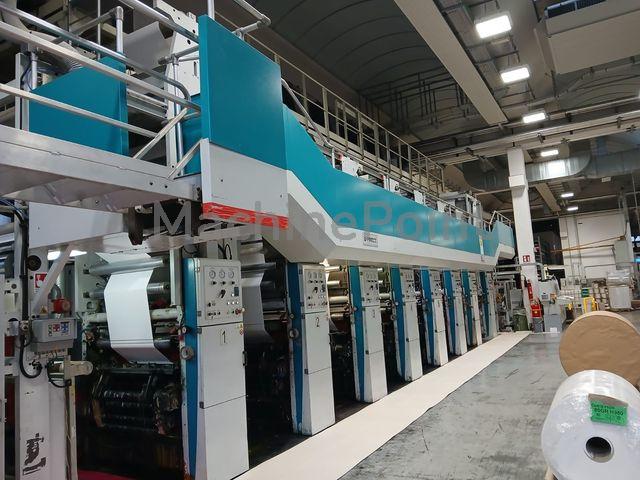

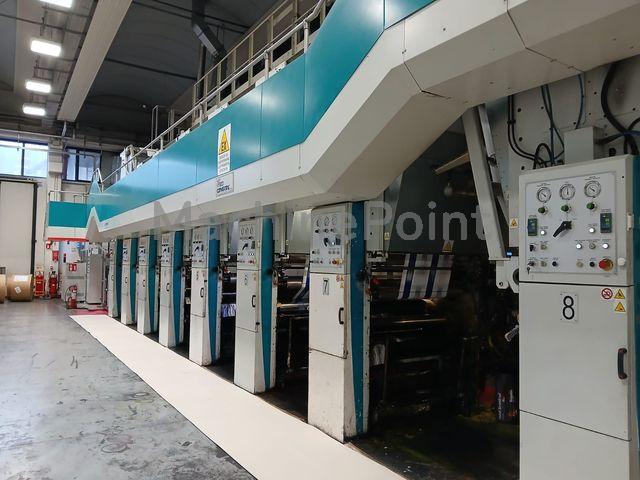

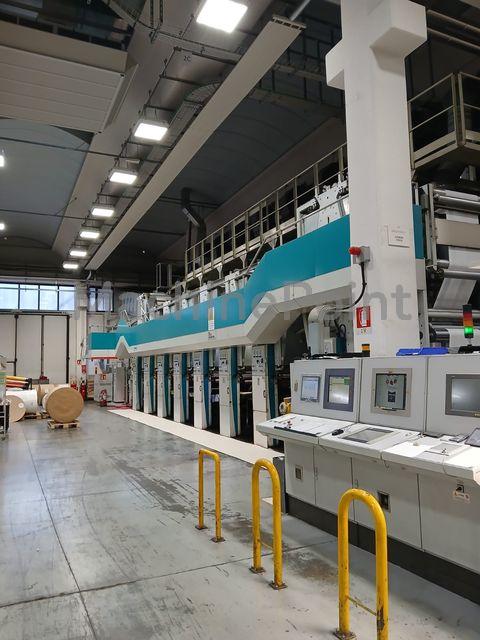

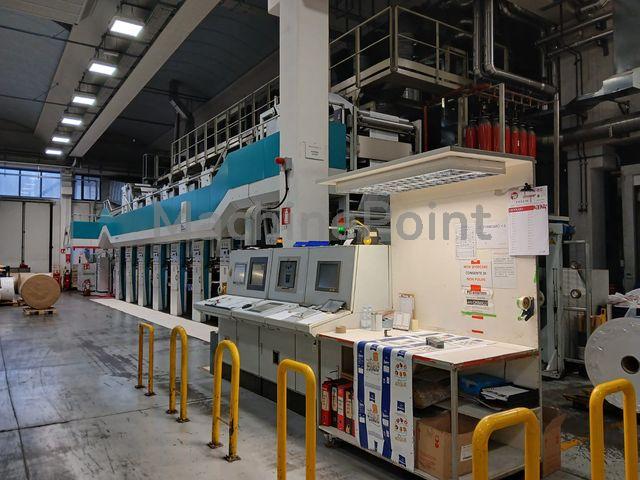

Used UTECO Q S-press/8 of 2007 for sale

Solventless lamination with one-component adhesive Trolley with 4 solventless rollers Dry lamination with solvent-based adhesives Gravure printing trolley Max. film width 1,150mm Min. film width 700mm (with adapter 300 mm) Max working speed up to 400m/min Inner diameter of the main unwinder core mm 76 + 152mm Inner diameter of the secondary unwinder cores mm 76 + 152mm Inner diameter of the rewinder cores mm 152mm Max. Max. reel weight of the main unwinder 1,200kg Max. Max. reel weight of the secondary unwinder 1,200kg Max. Max. reel weight of the rewinder 1,200kg Corona Treatment Ferranini Material Main unwinder Secondary unwinder Rewinder Paper and films 20 -150 g/m2 20 - 150 g/m2 Glued up to 200 g/m2 BOPP neutral and metallised 12 - 80 p, 12 - 80 pi Glued up to 200 gim 2 PET 8 - 40 g, 8 - 40 p. Glued up to 200 g/m2 PP 20 - 150 p, 20 - 150 p, glued up to 200 g/m2 LDPE 30 - 200µ 20 - 200 p, glued up to 200 gim2 HDPE 30 - 200 p, 15 - 200 1.1. glued up to 200 g/m2 Rigid PVC 15 - 100 p. 15 - 100 la.Glued up to 200 g/m2 Nylon 20 -130 p, 15 -130 1.1 Glued up to 200 g/m2 BOPA 12 - 100 p, 12 - 100µ Glued up to 200 g/m2 Aluminium 9 - 50 u 6.3 - 50 p. Glued up to 200 g/m2 Accesories included: Solvent manual mixer Several sets of sleeves 3 Temperature control units for the coating rolls Application for partial lamination (similar but same as cold seal) Several spare parts Mixing unit , Heating and cooling system is not included

Mechanical speed up to 400 mt/min Solvent based inks Unwinder and rewinder doubles automatic, reel up to 1000 mm diam. Web guide before and after the printing unit Automatic pre -register Automatic washing system Viscosimeters Gama G29 Pneumatic pumps Video System with defect control Grafiskan 2200 Automatic color control Register system "Click & Drag" "Kiss&Go" system for automatic pressure regulation 24 sleeves and 12 anilox

Speed up to 500 mt/min Solvent based inks Automatic double unwinder and rewinder for 1000 mm Web guide BST before the printing unit Corona treatment Ferrarini& Benelli Polimetal Thermoregulation unit Frigosystem Automatic pre-register Video System BST One set of anilox and sleeves included (dimension to be discussed)

Flexographic printing press central drum 8 colors +1 stack unit Automatic Unwinder TA-u 1000 Web guide before and after printing unit Motorized registers Automatic pre-register Category G (gearless) Automatic washing system 8 Electric Pumps Video BST Premius digital 3 with color pre-register Automatic rewinder TA-R 1000 Slitting unit with razor blades Viscosímeters Fasnacht Maximum mechanical speed 365 m/min Solvent-based inks 1 anilox set and 1 sleeve set included

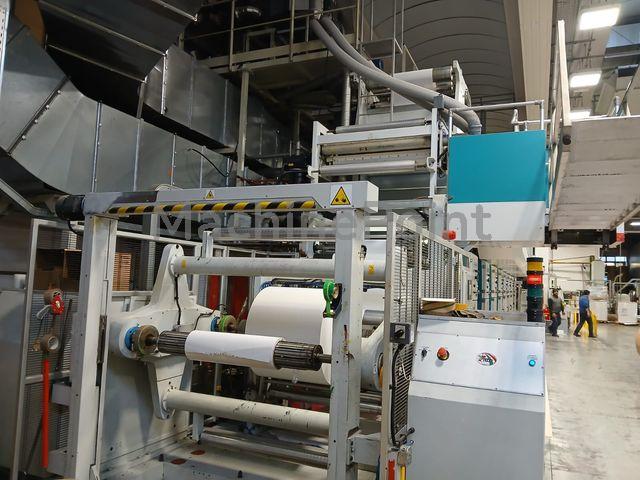

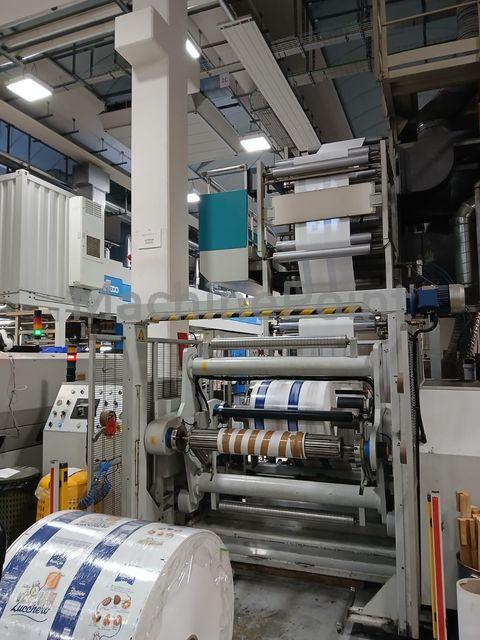

Maximum mechanical speed: 400m/min Turret-type unwinder with automatic changeover Maximum diameter of the reel in unwinder: 1000 mm Reel-holding shafts: 2 x 3" and 2 x 6" SVECOM shafts Turret type rewinder with automatic changeover Reel-holding shafts: 2 x 3" and 2 x 6" shafts SVECOM Reverse printing FIFE Guide PRESS GO - Defect detector Pneumatic pumps SMC 15 Ingersolrand pneumatic agitators GRAFIKONTROL automatic register system Automatic rinsing Automatic viscosity control INSPEK Automatic temperature control In-line cutting Spare parts package available Anilox (only half of the list is included) (Quantity/ LPI(cm)/BCM(cm3)) Praxair and Simec 1/250/9 1/250/10,5 1/100/10,8 1/80/10,5 1/300/10 2/305/10,5 3/120/10,8 2/500/5,8 1/500/4 1/500/6,5 4/700/3 5/800/2,7 2/305/6,5 1/406/6,5 2/508/4,5 2/711/3 4/812/2,7 Sleeves (only half of the list is included) (Z/quantity) Rossini 390/20 400/28 420/18 430/28 440/28 450/32 460/24 470/24 480/16 490/18 500/32 510/8 520/18 530/16 540/20 550/18 560/18 570/16 590/8 600/8 620/18 630/8 640/18 650/10 670/10 700/8 720/8 780/8 800/8 CARRIER/17
