Used WITTMANN W 821 of 2017 for sale
Robot WITTMANN, You can contact our team and analyze your needs so we can offer you the best possible solution depending on your budget.
Data Sheet of Used WITTMANN W 821
Ref.: 300048574
Year: 2017
Brand: WITTMANN
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Robot Type: Cartesian
- Entry Point: Top
- Number Of Axes: 3
Other Specifications:

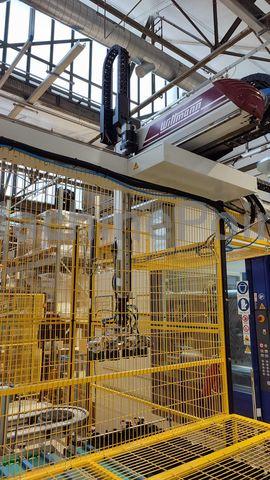

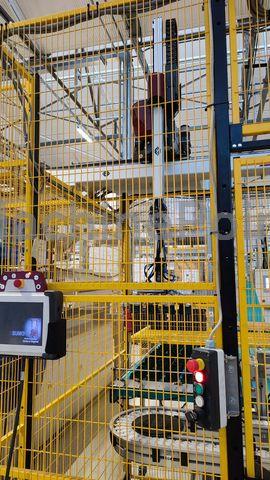

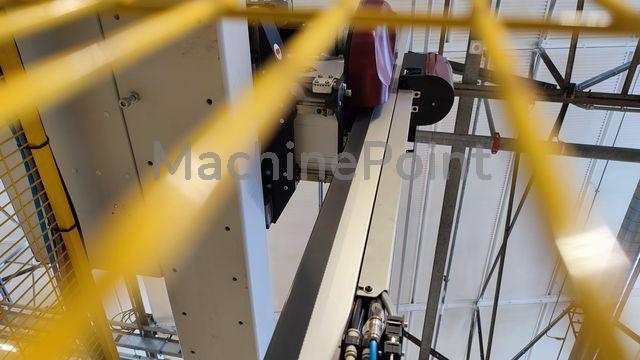

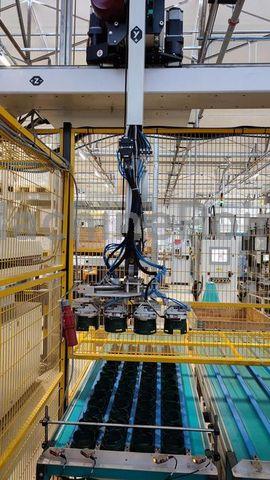

No. 1 Wittmann industrial robot model W 821 (3 interpolated electric axes)
Drive strokes
X-axis, extension stroke mm 550 electric with brushless motor
Y-axis, vertical stroke mm 1,400 electric with brushless motor
Axis-Z, transverse stroke mm 3,000 electric with brushless motor
Mounting Fixed table press - Control integrated in the robot
Max. transportable weight kg 10 (including gripper hand)
Additional accessories (included in price)
- Adapter for mounting with unloading on operator side, with floor stand
- Pneumatic C-axis: 0 - 90°

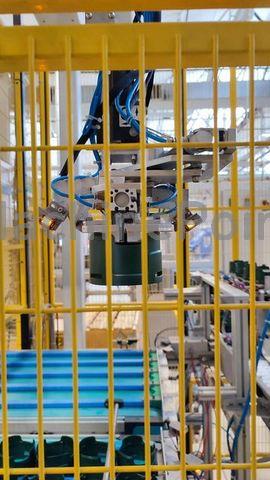

- No. 3x 5/2 bistable compressed air lines on gripper hand
- No. 2x vacuum lines on gripper hand
- Interface for conveyor belt
- Interface for external equipment 4x INput + 5x OUTput (24 V/DC) in robot X axis
- Interface for additional external equipment 24x INput + 24x OUTput (24 V/DC) in robot X axis
- Interface for CAN Bus press (for integration in Unilog B8 press control)
- Portable control unit with Teachbox R8.3 LCD touchscreen video
- External safety package with safety microswitch and light signal
AVAILABLE (PRICE AND PHOTOS ON REQUEST)
No. 1 Wittmann integrated dehumidification system model DRYMAX E 30 - 70 M
Dual molecular sieve wheeled dehumidifier for dehumidification of plastic granules
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
Voltage: 380 V Triphase
, Voltage: 400 V Triphase
Frequency: 50 Hz
, Frequency: 60 Hz
