Used SIDEL Ocme Hydra 144/120/36 of 2010 for sale

2010 | Ref.: 300048577

Complete PET filling line for still water SIDEL, In MachinePoint we work so that our buyers receive a professional service and so the transaction is safe.

Data Sheet of Used SIDEL Ocme Hydra 144/120/36

Ref.: 300048577

Year: 2010

Brand: SIDEL

Status:
For sale

Delivery time: Immediate

Ask for machine price Want to sell your machine?
SIDEL - Ocme Hydra 144/120/36 - Used machine
SIDEL - Ocme Hydra 144/120/36 - Used machine
SIDEL - Ocme Hydra 144/120/36 - Used machine
SIDEL - Ocme Hydra 144/120/36 - Used machine
SIDEL - Ocme Hydra 144/120/36 - Used machine
SIDEL - Ocme Hydra 144/120/36 - Used machine
SIDEL - Ocme Hydra 144/120/36 - Used machine
SIDEL - Ocme Hydra 144/120/36 - Used machine
SIDEL - Ocme Hydra 144/120/36 - Used machine
SIDEL - Ocme Hydra 144/120/36 - Used machine
SIDEL - Ocme Hydra 144/120/36 - Used machine
SIDEL - Ocme Hydra 144/120/36 - Used machine
SIDEL - Ocme Hydra 144/120/36 - Used machine
SIDEL - Ocme Hydra 144/120/36 - Used machine
SIDEL - Ocme Hydra 144/120/36 - Used machine
SIDEL - Ocme Hydra 144/120/36 - Used machine
SIDEL - Ocme Hydra 144/120/36 - Used machine
SIDEL - Ocme Hydra 144/120/36 - Used machine
SIDEL - Ocme Hydra 144/120/36 - Used machine
SIDEL - Ocme Hydra 144/120/36 - Used machine
SIDEL - Ocme Hydra 144/120/36 - Used machine
SIDEL - Ocme Hydra 144/120/36 - Used machine
SIDEL - Ocme Hydra 144/120/36 - Used machine
SIDEL - Ocme Hydra 144/120/36 - Used machine
SIDEL - Ocme Hydra 144/120/36 - Used machine
SIDEL - Ocme Hydra 144/120/36 - Used machine
SIDEL - Ocme Hydra 144/120/36 - Used machine
SIDEL - Ocme Hydra 144/120/36 - Used machine

Technical Specifications:

  • Output: 80000 U/h

Other Specifications:



Products: still water
Bottle type (basic): from 0.5 l to 1.5 l volume (due the specifications of the filler the maximum format is 1.5lt)
PET closing type: 30/25
Labels: Plastic Roll Fed
Package format: 3x2, wrapped in heat shrink film
Tray: Euro-type
Line capacity - 80.000 bottles/h
The capacity is calculated on the basis of a 0.5 l PET bottle

The line includes the following:

Injection molding machine: Netstal PETline 6000-6600R Year 2009 - Mold 192 Cavities

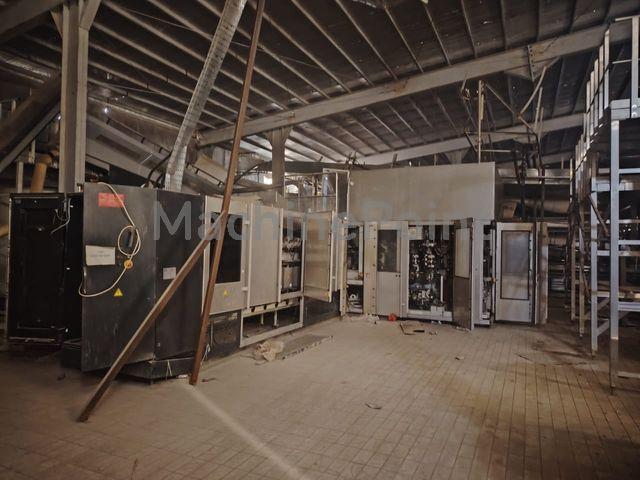

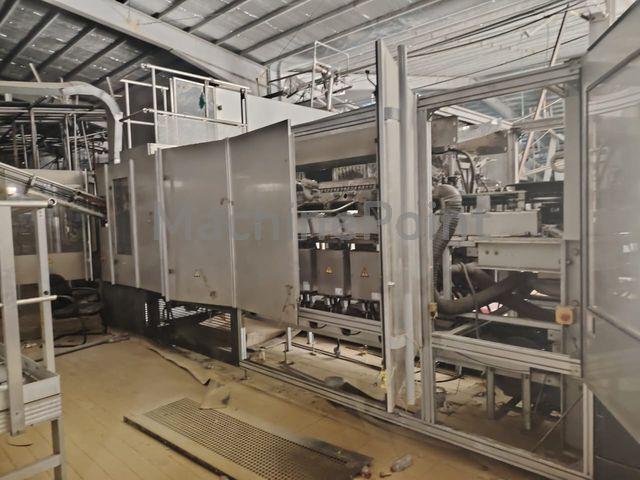

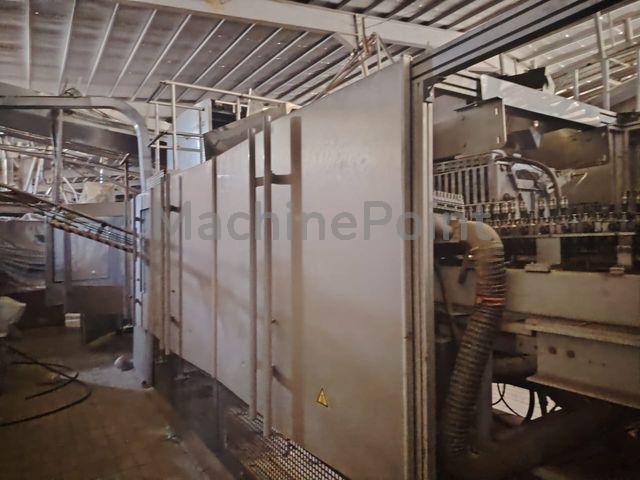

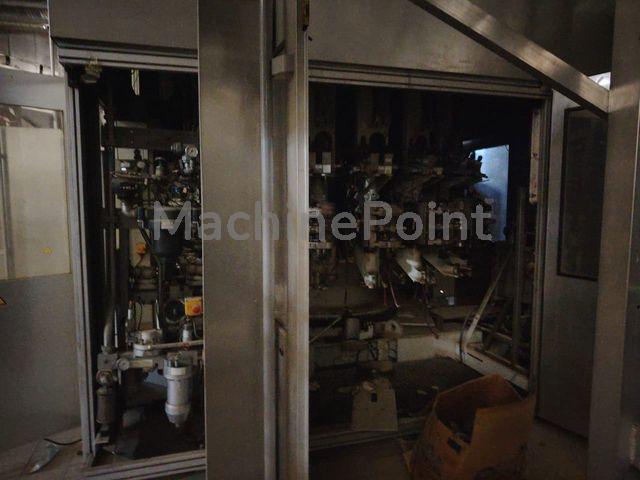

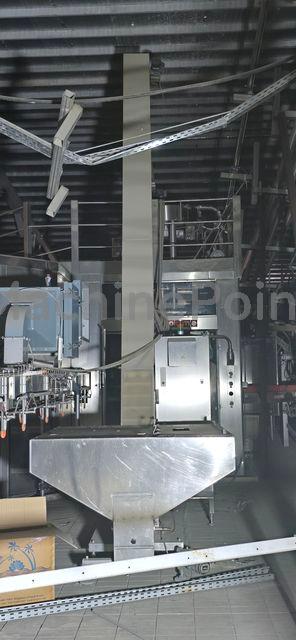

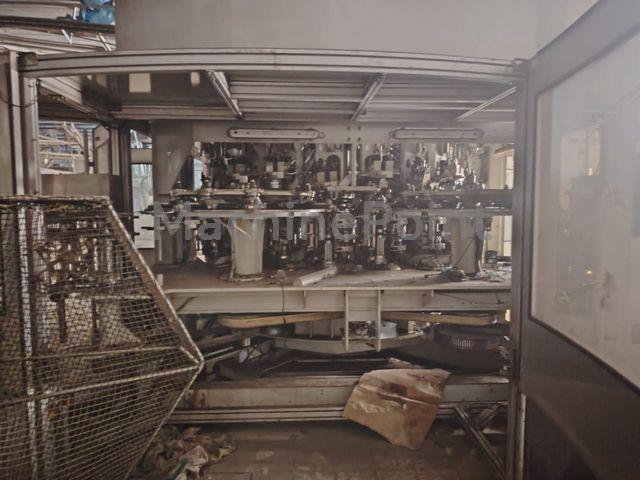

Stretch Blow molding machine Sidel SBO 20 Universal from 2010 complete with: preform tipper, preform elevator/orienter
Sidel SBO 20 Universal from 2010 complete with: preform tipper, preform elevator/orienter

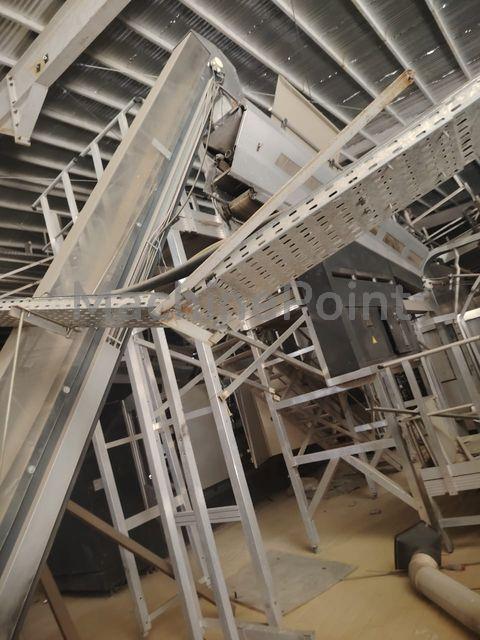

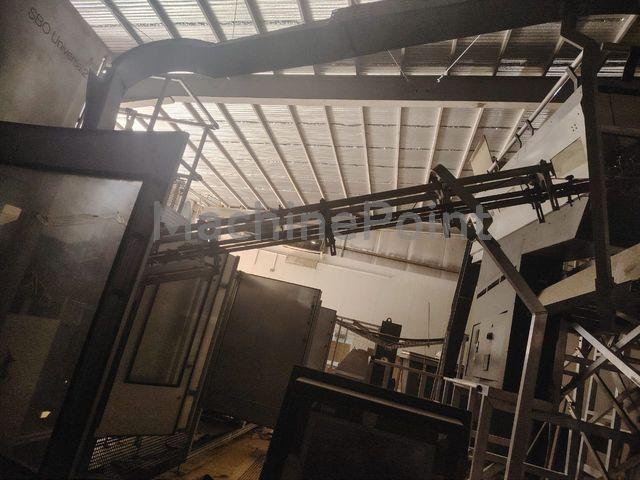

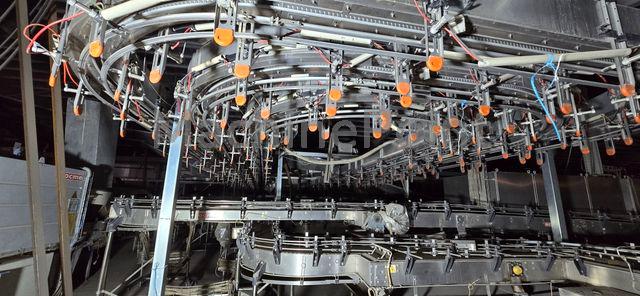

Air Conveyor: Vetromeccanica

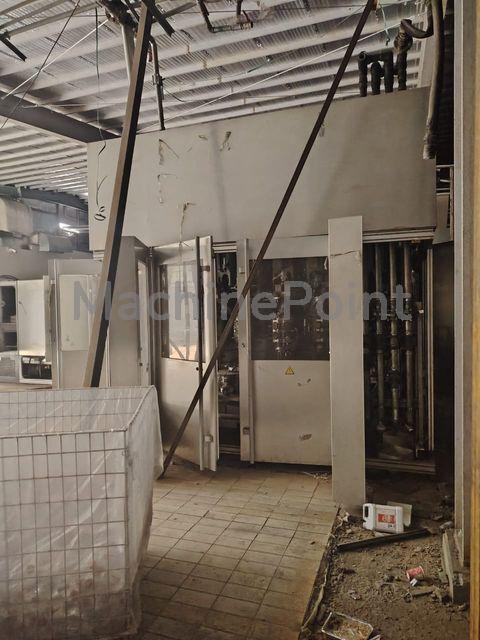

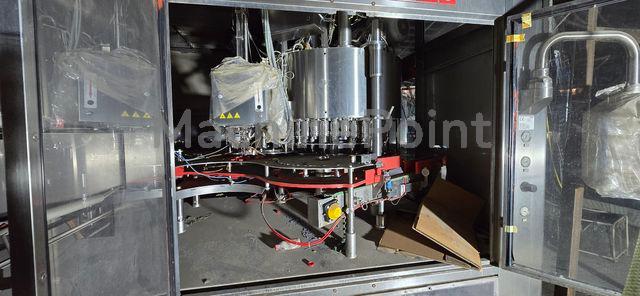

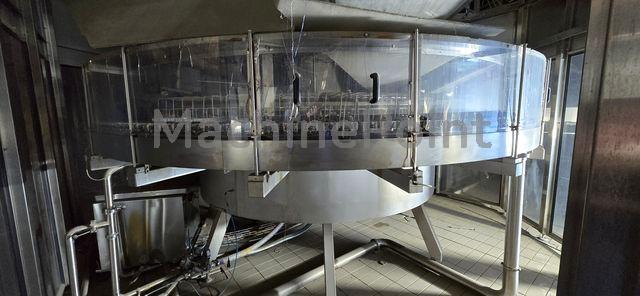

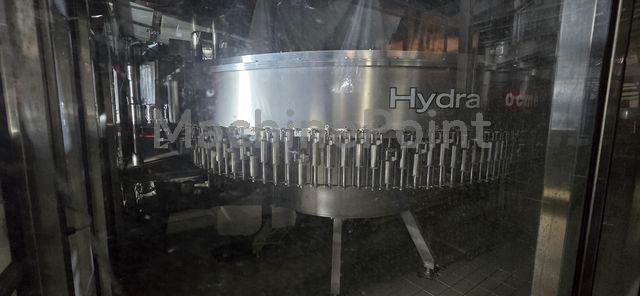

Monoblock: Ocme Hydra 144/120/36 from 2010 with Capper Arol
Maximum bottle heigh 360mm
Maximum bottle diameter 90mm
Maximum bottle weight (with water) 2kg

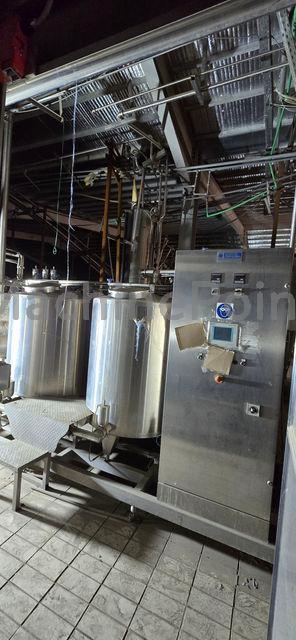

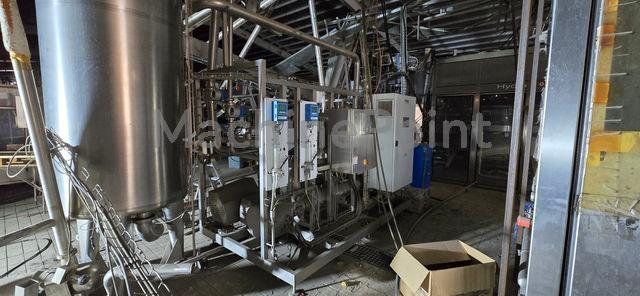

CIP UNIT: SAP

Bottle inspector: Heuft

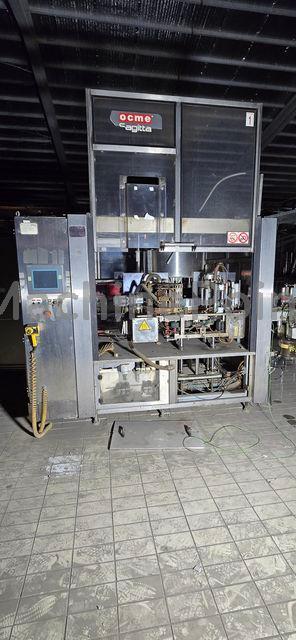

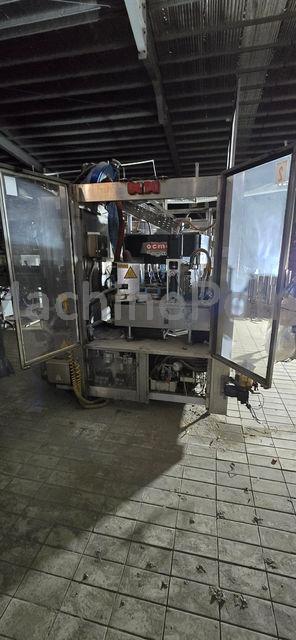

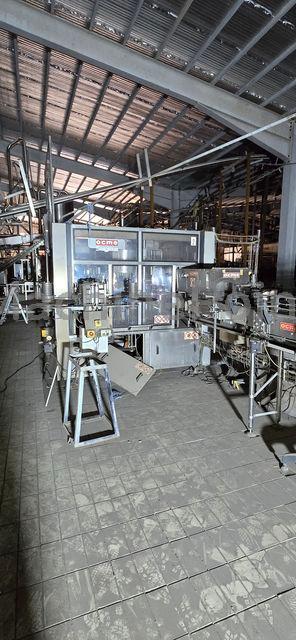

Labeller: Ocme Sagitta 2-21 from 2010

Laser Printer: Markem from 2010

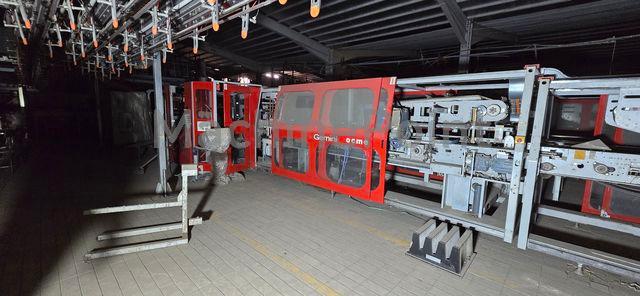

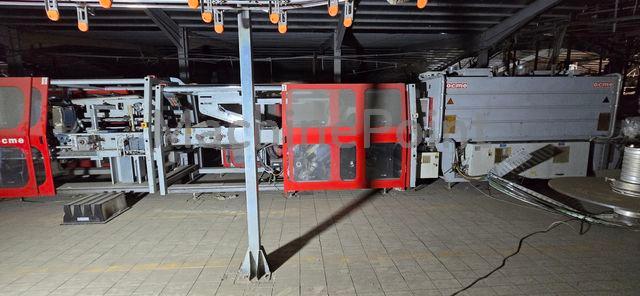

Shrink Wrapper/Carton Packer : Ocme Gemini S40 from 2010

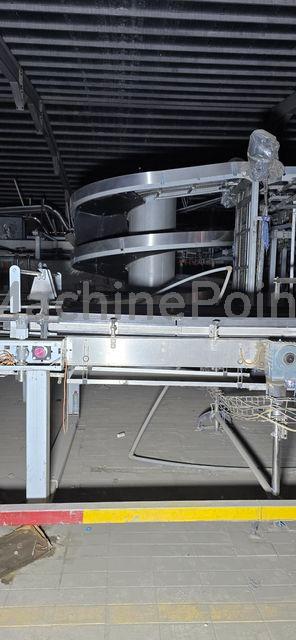

Spiral Conveyor: AmbaFlex

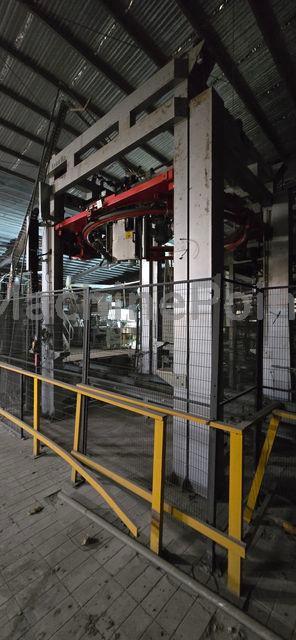

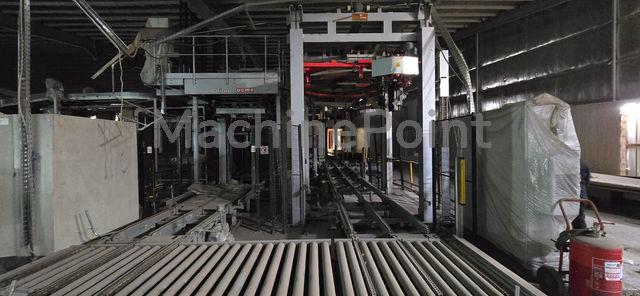

Palletizer: Ocme Orion Year 2010

The line is installed but disconnected

Other Details:

Guarantee: Without guarantee

Current condition: Disconnected. Can't be seen in running condition

Availability: Immediate

MachinePoint's services:

Loading and lashing

Packaging

Dismantling

Complete Plant Solutions

Refurbishing & Overhauling services

Used Machinery Appraisals

Transport of industrial machinery
