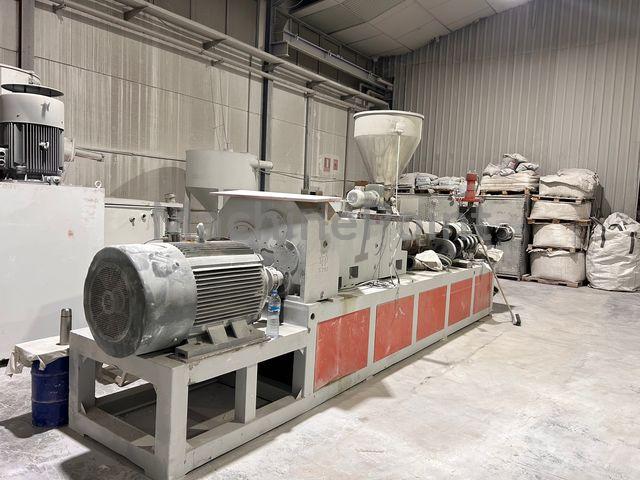

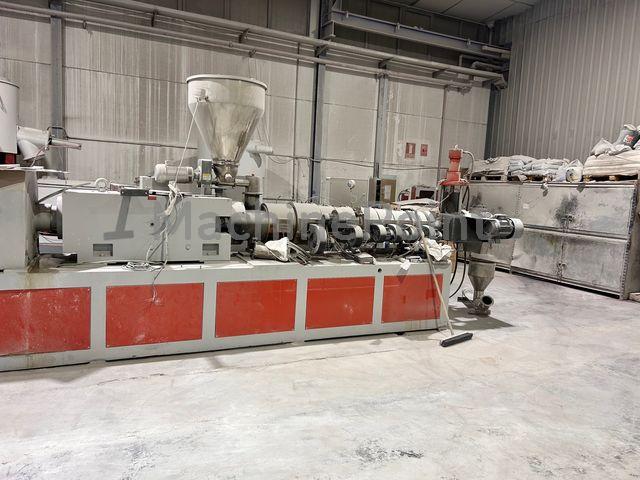

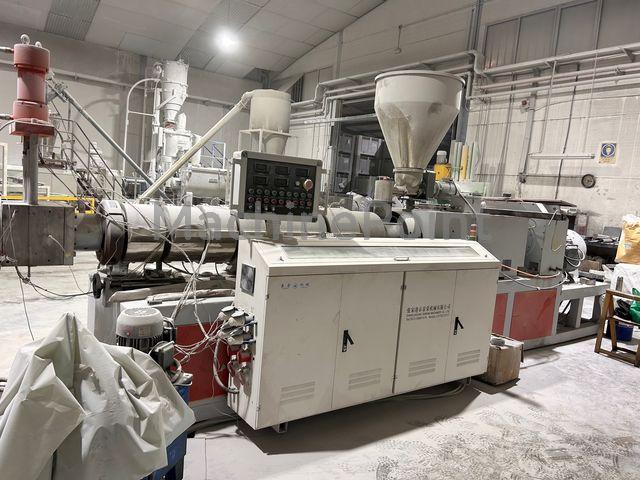

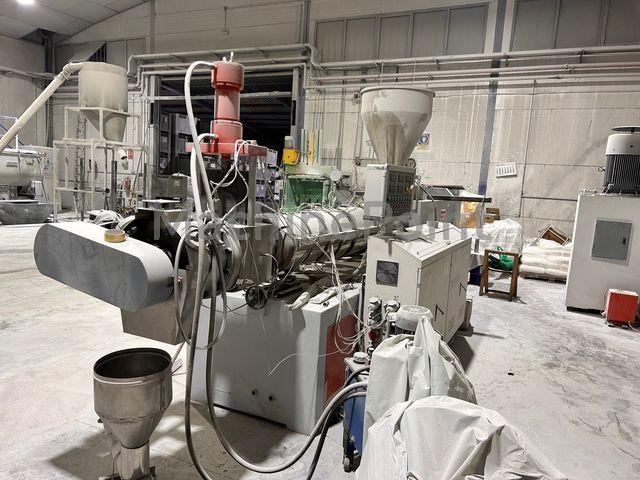

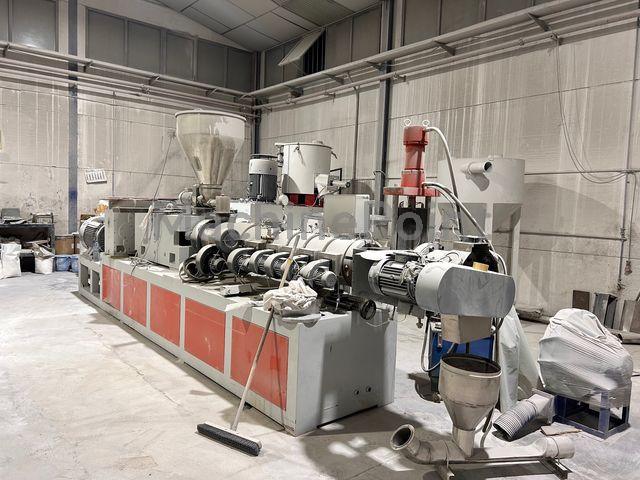

JWELL SJZ92/188 of 2021
Twin-screw extruder for PVC compounds JWELL, We guarantee that the buying process for used machinery through MachinePoint is safe and professional.
Data Sheet of Used JWELL SJZ92/188
Ref.: 300048581
Year: 2021
Brand: JWELL
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Screw Diameter: 92 mm
- Throughput: 800 kg/h
- Screw Configuration: Parallel
- Type Of Rotation: Counter rotating
Other Specifications:
Jwell SJZ92/188
Capacity: 600-800 kg/h
Works from right to left
380V, 3P, 50HZ
Controlled by AC frequency converter ABB
Vacuum exhaust system: 1 vacuum pump with water circuit (1 set)
Vacuum pump motor: 5.5 kW, 5.5 kW three-phase asynchronous motor, 0-0.075 MPa, vacuum degree: 0-0.075 MPa
4 / 7

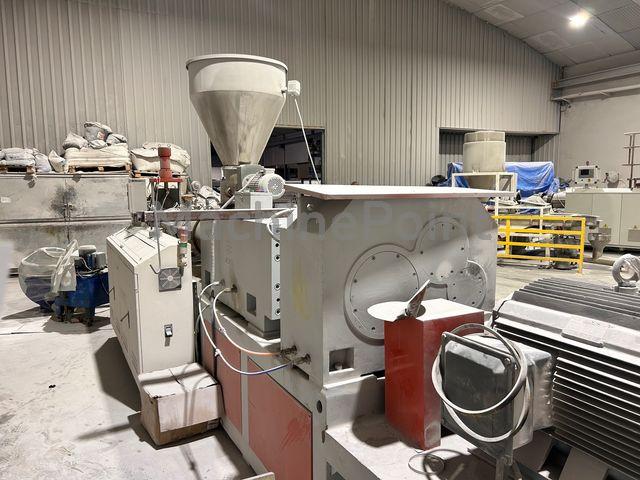

Transmission system: High-torque gear box
Water-cooling device: 20CrMoTi
Gear material: 20CrMoTi
Hardening of the teeth, precision grinding
German technology: long service life, low noise level and low heat build-up
Direct connection to the motor via flexible shaft coupling for improved efficiency of the transmission with horizontal gearbox
Distributor: Torque transfer from single-screw to twin-screw gearbox via superconical gearing. Main motor system: 110 kW
Motor power: SIEMENS BEIDE AC frequency motor 110 kW
Main motor speed control: ABB AC drive: 5750 × 1650 × 2760 mm
Outer dimensions: 5750 × 1650 × 2760 mm
Central height: 1100 mm
Extruder weight: 10 tons

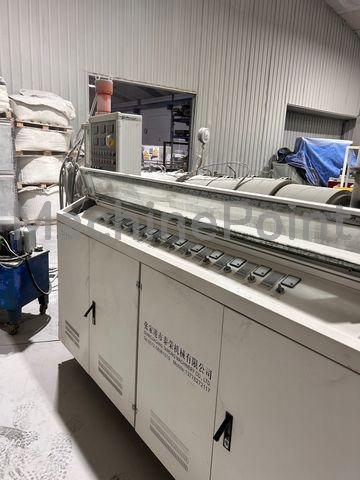

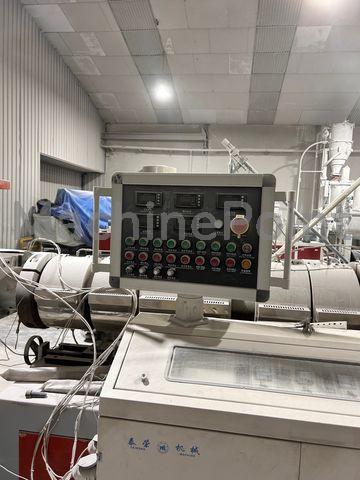

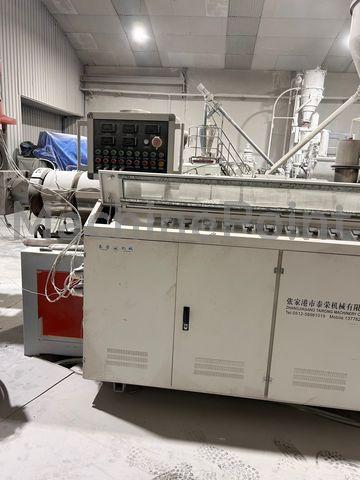

PLC electrical control system
The control uses a Siemens PLC control cabinet.
1. Current overload of the main extruder.
2. After running the main motor, allowing a maximum torque of 105 % for 3 minutes, the alarm disappears. The distributed network structure has not only closed-loop synchronous speed control and self-learning function, but also intelligent management. Low voltage switch:
Emergency stop and alarm system.
Alarm system test device
Over current protection and alarm function
Optoelectronic screw dislocation protection device
Oil tank constant temperature alarm

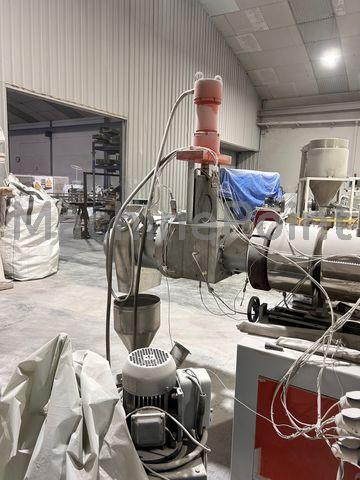

Pelletising cutting head: Four lines of holes. Hole diameter: 3 mm or 4 mm.
Cutting head: 314 mm diameter, made of high quality alloy steel, wear and corrosion resistant. 2.2 kW.
Thermal cutting machine RQ200: Motor power: 2.2 kW. 3 blades.
Air transmission machine: Three-stage transmission system, with 3-metre stainless steel transmission pipe. Swirl type air transmission structure. Power of first motor: 5.5 kW, second motor both 4 kW. ZS1000

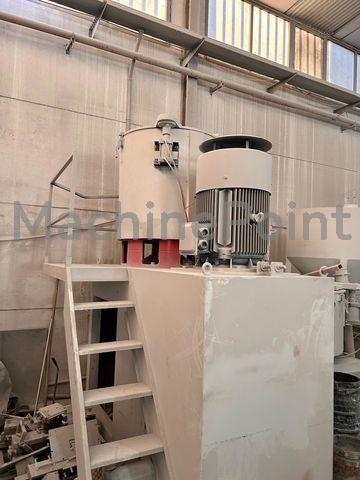

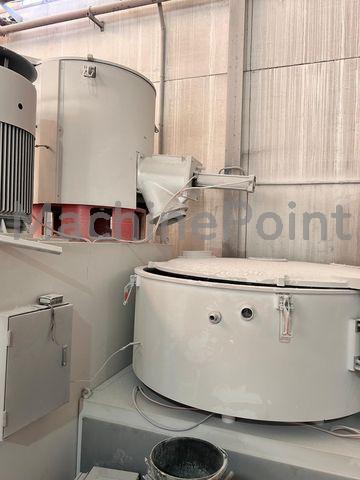

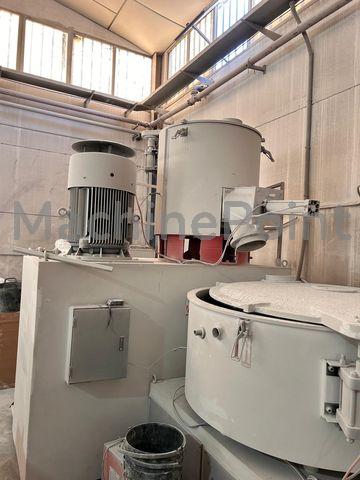

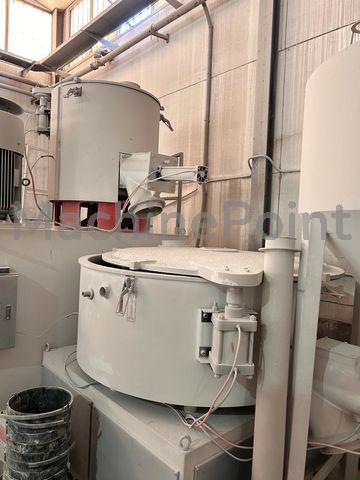

MIXER 400/1200 not included in the offer (Ask for price)
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
Voltage: 380 V Triphase
Frequency: 50 Hz
, Frequency: 60 Hz
