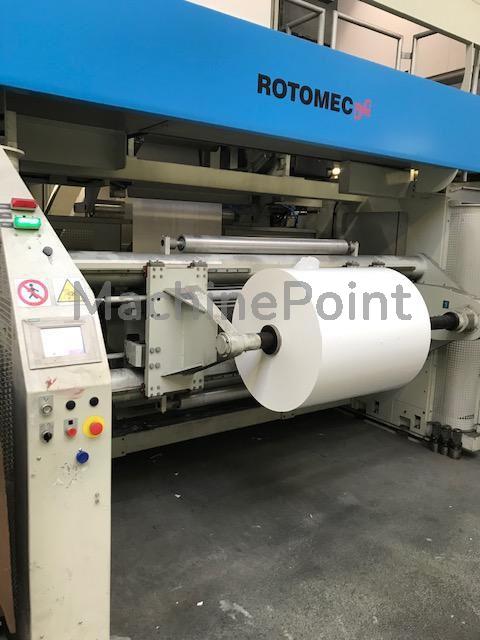

Used ROTOMEC RS 4003 MP of 2007 for sale

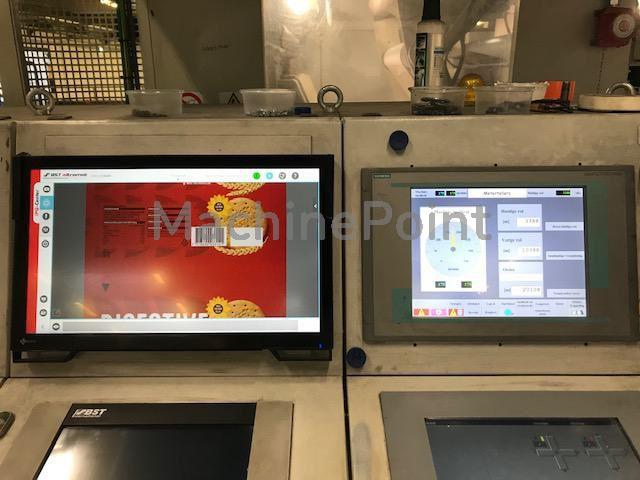

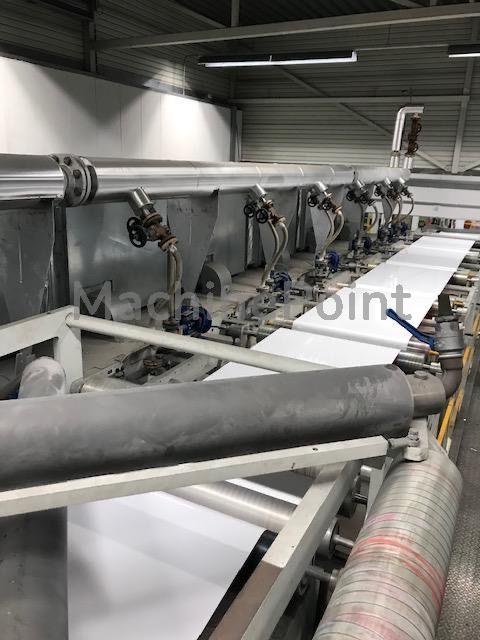

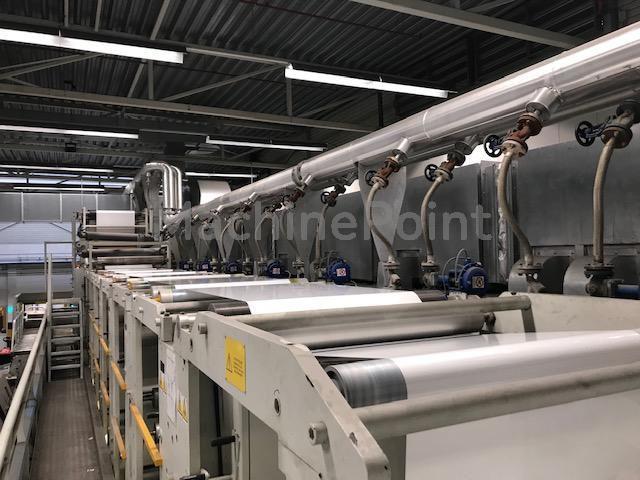

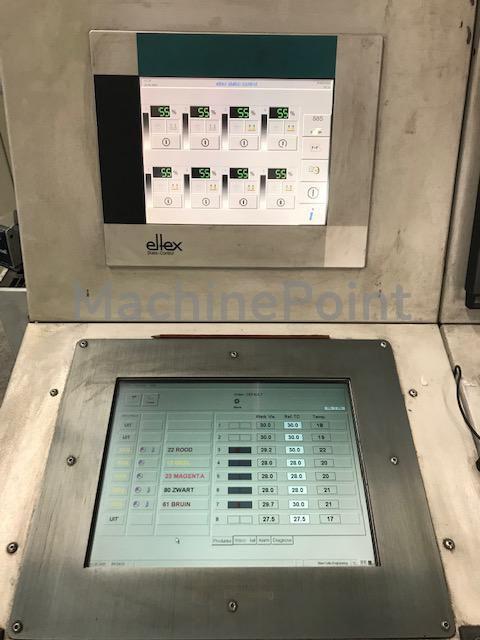

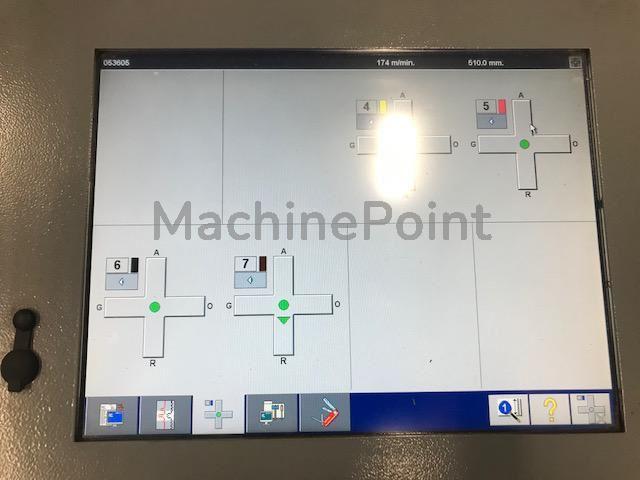

Working width 650-1320 mm Operating speed max mt / min 300 Workable materials - coated and uncoated papers, laminated, PET, PP with weights from 15 to 200 gsm No. 8 printing elements of which No. 7 with normal drying; No. 1 with extended drying; reversibility No. 2 elements (arrangement of the 1st element only) Diathermic oil battery heating, boiler not included Grafikontrol register control Electrostatic assist system for Ace printing (a total of 6 groups usable on the first six elements simultaneously) Grafikontrol Covistat / F viscosity control system Optional at extra price 1500 cylinders

Pack of 2 machines : Machine 1 : Rotomec The Rotomec is a rather complex machine 4 Rotomec rotogravure units 2 DCM HAC 1100 rotogravure units 4 Manzoni Nesa 70 4c flexo units Double unwinders Drying tunnel and inter-units (thermal oil exchanger batteries). It can print on film and paper. Printing on both sides Laminating on a width of 1000mm (1020max) Printing width : 1050mm in rotogravure, 1000mm in flexo Paper web width : 1050mm Max. roll diameter at unwinder and rewinder: 1000mm Inner diameter of cores at unwinder and rewinder: 70mm Maximum acceptable weight: 120g Max pulling speed: 150m/min Average speed: 120m/min Printing repeat : 350-920mm for 4 Rotomec rotogravure 400-1000mm for 2 DCM rotogravure 320-920mm for 4 Manzoni flexo Min-max table of rotogravure cylinders : 850-1100mm Doctor blade The combination of colors can be as follows: 6 rotogravure + 4 flexo 6 rotogravure + 3 flexo + 1 both side varnish 6 rotogravure + 3 flexo + 1 both side glue for lamination Machine 2 : Cerutti Helio 18R year 1965 It can print on film and paper. It is in excellent condition despite the years. Cerrutti : Double unwinders, inter-unit drying only (thermal oil exchanger batteries). 7 colors : 5 helio + 1 mixed unit + 1 helio Double sided printing possible on the mixed unit and on the n7 Printing width : 900mm Width of paper : 920mm Max. roll diameter at unwinder : 1000mm Max. roll diameter at the rewinder: 800mm Inner diameter of the cores at unwind and rewind: 70mm Maximum width of the paster rolls: 1000mm Maximum acceptable weight: 120g Max speed: 150m/min Average speed: 120m/min Repeat : 340-800mm Min-max table of rotogravure cylinders : 735-980mm Adjustable doctor blade displacement Possibility to make window cuttings in one operation: Printing Window cutting Film laminating

9 colors rotogravure printing machine Material width 400-1250 mm Max mechanical speed 240 mt/min Unit 8 and 9 reversible V1750 standard dryer from printing unit 2 to 8 V3000 extended dryer for printing units 1 and 9 Original Iso Flow viscosity control Color Registration Control Bobst Registron Materials: PE, PP,OPP, PET,PAPER

RotoGravure printing machine with Electronic Line Shaft (10 colours) 2 units need overhaul Max Reel Weight: 1125 Kg Accept both 3 inch and 6 inch core Duplex Automatic unwinder & Rewinder (Shaftless) Tension Control by Dancing roller and load cell Dryer Oven Double Type = Unit 8-10 ( Unit 9-10 need overhaul) Corona Treatment ·Web Turn bar at PU10 Viscosity control system Taiyo register control Dryer V 2000 at PU 1 -7 Dryer 2: V2000 at PU 8-10 Automatic Color Registor (Eltromat DGC650) 11 Antistatic Bars Eltromat Web Video 2001 Siemens Drive & PLC Drying system: full set of LPG gas burner with blowers and full ducting 18 ink trays 17 trolley Impression Roll ( Rubber, Sleeve Only ) = 110 each ( varied cut ) BOPP 12-50 Micron BOPA 12-30 micron OPP 20-60 micron LDPE/LLDPE 35-100 micron PET 10-40 micron CPP 20-50 micron Cellophane 28-60 micron Paper and Boardd 35-150 g/m2. Aluminum Foil 25-35 micron Laminates 35-150 g/m2 Gas burner unit included

Delivery in April 2020 once new machine is installed Material:BOPP, LDPE, PET, PAPER Printing possibilities:REVERSE- SURFACE Thickness range: Max: 12 microns Min: 120 microns Unwinder type:double - flying splice Rewinder type: double - flying splice Unwinder width: 1020mm Rewinder width:1020mm Mother reel width:1000mm Mother roll diameter:1000mm Web guiding system: BEFORE INFEED UNIT Video BST-ELTROMAT Doctor blades: Type: SPRING STEEL Number: 8 Ink pumps Type: ELECTRIC MOTOR PUMP Number:8 Ink trays Type: STAINLESS STEEL Number:14 Cylinders Type: ROTOGRAVURE Number: Dimension: 1100 MM LENGTH In year 2017 we upgraded registration system to latest Quadtech. We bought a new PC and changed all sensors. Same year we also bought a new Eltromat camera and installed on this machine
