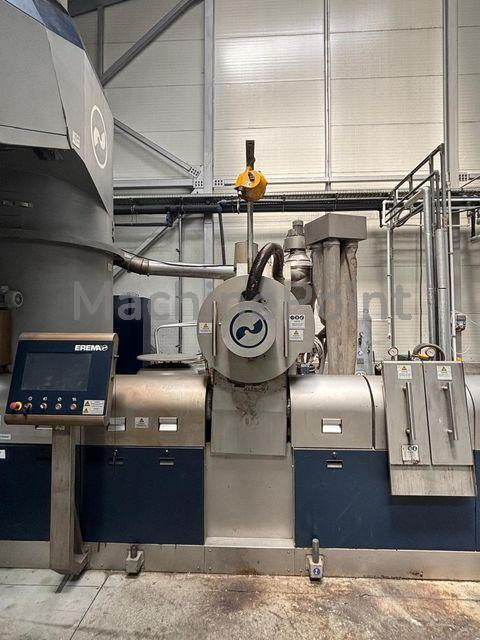

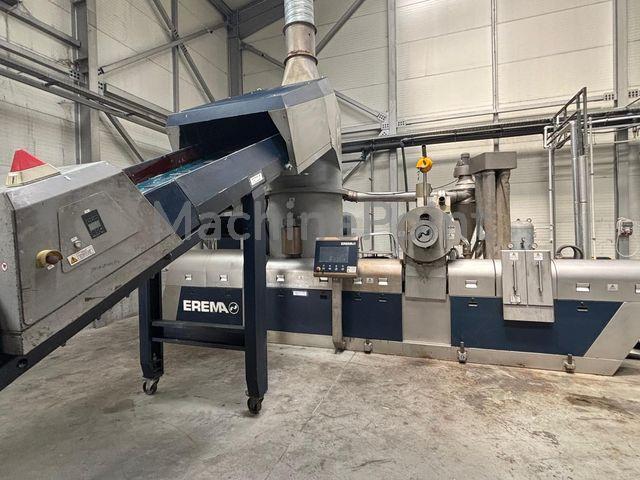

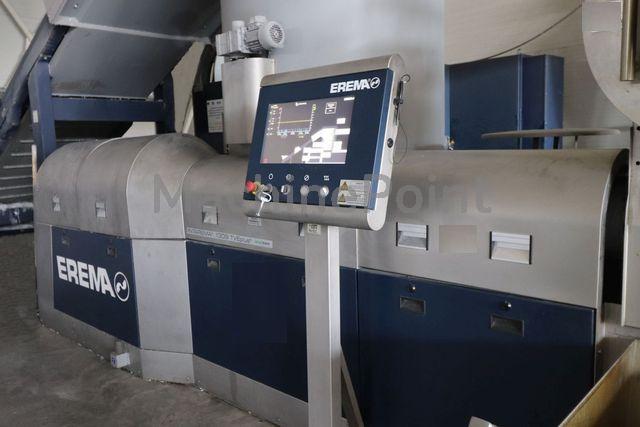

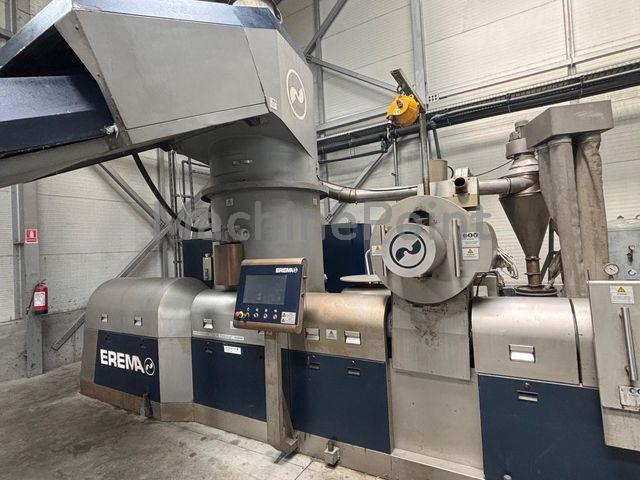

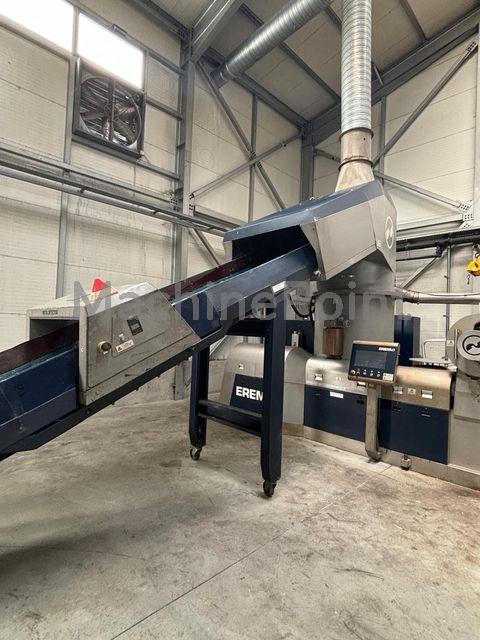

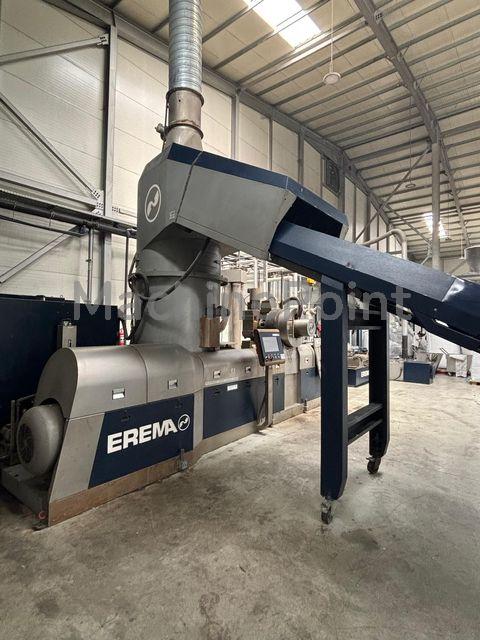

Used Single screw repelletizing line: EREMA Intarema 1309 TVEplus of 2019

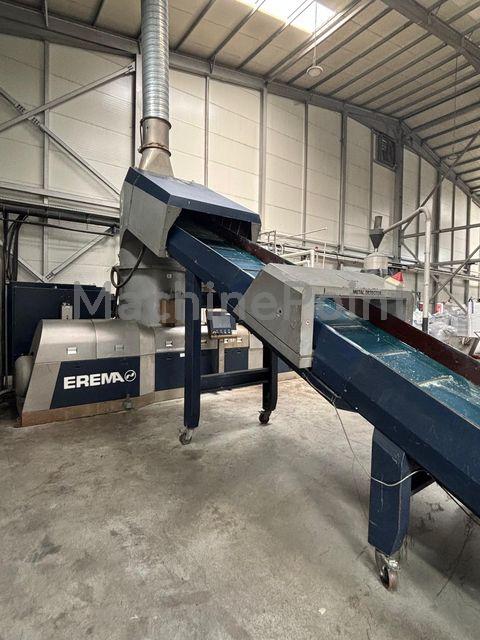

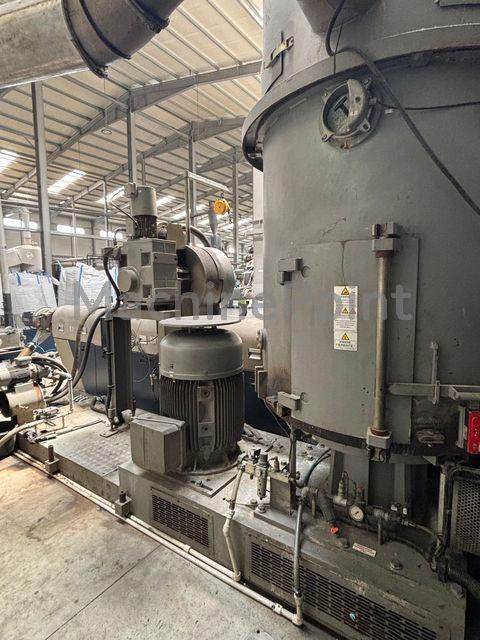

HDPE : 900-1200 Kg/h LDPE/LLDPE : 1000-1300 Kg PP Conveyor belt FB_10000_1200_SH Inner width of the belt : 1150 mm Usable conveyor length : 9900 mm Max. load by conveyor belt : 200 kg Drive power : 1.5 kW Belt speed : 4.7 m/min Weight with metal detector : approx. 2180 kg Process combination I_1714_TVEplus Shredder drive : 315 kW Gate: 0.12 kW Extruder drive : 315 kW Heating capacity zone 1 cylindrical zone (ZZ-1) : 13,2 kW Heating capacity zone 2 cylindrical (ZZ-2) : 8,80 kW Heating capacity zone 3 cylindrical (ZZ-3) : 10,90 kW Heating capacity zone heating zone of plug (VEZ) : 2,70 kW Heating capacity zone 4 cylindrical (ZZ-4) : 15,50 kW Heating capacity zone 5 cylindrical (ZZ-5) : 9,90 kW Heating capacity zone 6 cylindrical (ZZ-6) : 8,80 kW Heating capacity zone 7 cylindrical (ZZ-7) : 8,80 kW Heating capacity adaption zone (AZ-1) : 3,40 kW Cooling pump : 1,10 kW Vacuum pump : 4,30 kW Total weight : approx. 20700 kg Laser filter LF_2_350 Drive : 4,00 kW Heating capacity of laser filter zone 1 (LFZ-1) : 2,70 kW Heating capacity of laser filter zone 2 (LFZ-2) : 4.70 kW Heating capacity of laser filter zone 3 (LFZ-3) : 7.22 kW Heating capacity of laser filter zone 4 (LFZ-4) : 4.30 kW Heating capacity of laser filter zone 5 (LFZ-5) : 5.50 kW Heating capacity - Discharge zone 1 (LFZ-6) : 0,87 kW Cooling fan - Discharge zone 1 (LFZ-6) : 0,36 kW Heating capacity - Discharge zone 2 (LFZ-7) : 0,62 kW Cooling fan - Discharge zone 2 (LFZ-7) : 0,36 kW Max. operating temperature : 300 °C Max. permissible mass pressure : 400 bar Dust extraction SAS_2500 Ventilation capacity : max. 3000 m3/h Drive power : 1,50 kW Weight : approx. 174 kg Service water tank BWB_500_500_S Tank volume : approx. 420 l Drive power of the water pump : 0,25 kW Weight : approx. 155 kg Hot cutting pelletizing head HG_244D Number of pelletizing blades : 4 Revolutions per minute of the knife head (50Hz) : 1420 rpm Drive power of the knife head : 2,20 kW Pelletizing zone heating capacity (GZ-1) : 4,30 kW Max. working temperature : 300 °C Max. permissible melt pressure : 160 bar Granulate dewatering screen GS_2010_1000 Vibrating screen dimensions : 1900 x 700 mm Lump separation : < 20 mm Tank volume : 630 l Drive power of vibrating motors : 2 x 0.30 kW Weight of the water separating screen : approx. 360 kg Condition of the water pump WPS_700 Driving power of the water pump : 5,50 kW Weight: approx. 245 kg Granule centrifugal dryer GZ_1000_M15 Drive power : 15 kW Weight : approx. 616 kg Conveyor blower FG_40 Ventilation capacity : max. 2600 m3/h Drive power : 3,0 kW Weight + soundproofing : approx. 123 kg Vertical Silo & Big Bag station included The entire electrical and mechanical part of the extruder was overhauled and new screws and gears were ordered. The machine is delivered with new rear screw, new intermediate assemblies (sprockets) and renewed front screw. The engine part is delivered with all the engines overhauled and with the bearings changed and the gearbox also overhauled. Invoice and reports of everything can be delivered.

It is an edge trim extraction + regranulation line. Sell since only used 10hours Output 10-50kg/h Water cooled

Machine was at Erema Customer Centre till 2022 Run washed LDPE flakes and occasionally clean dry LDPE materials. Operating hours: only 21 973 hours Cutter-compactor motor: 90 kW Equipment : Water pump Heat exchanger Centrifuge Extraction blower Cyclone Vacuum pump Big bag station Degassing water circulating system Agglomerator Dust removal system Spare part: New PCU rotor disc not installed yet ( Price was 10.000,- EUR, will be included with machine)

Screw and barrel regularly measured and exchanged. Important spare parts were exchanged recently (barrel, screw, cutter-compactor bearing, etc.). LDPE/LLDPE 700 - 850 kg/h HDPE 650 - 750 kg/h PP, BOPPP 500 - 600 kg/h Belt Conveyor FB 7000/1100 Processing unit 1512 TVE Plus Laser filter LF 2/354– prod. year 2018 – bought from UMAC (EREMA Group) completely refurbished in 2020. (adapter, electric cabinet, sealing elements), Production hours: 1.200h Pelletizer HG 244D Dewatering screen GS 2010/350 Pellet Dryer: GZ 350/700 Blower IFG 20(TRL 20) Big Bag Station ZS 1200 Reason of sale – will be replaced by a bigger one. Pick up End February 2025

Origin of material : Industrial waste Shape of material : Washed flakes, Shredded Double degassing Two screws: dedicated for PP; dedicated for LDPE (unused) Belt conveyor FB_7000_1100_SH Incl. dust- and sound insulation tunnel Double layer all metal detector MT2_1100_DTR130H40 Dosing unit for powder Dosing unit for pellets INTAREMA® process combination including shock sensor, preconditioning unit energy management, melt pressure indicator, melt temperature indicator and air/water heat exchanger for control cabinet; Liquid cooled bimetal extruder-cylinder Main drives: Preconditioning unit motor: 110 kW Extruder Motor: 132 kW frequency controlled Regrind Pro 90-100: is an upgrade for the INTAREMA® recycling system designed especially for the processing of regrind Process utility supervision PUS for the monitoring and checking of cooling water, compressed air and gear oils EREMA air flush technology Powered exhaust system Extruder vacuum pump EREMA Laser filter LF_2_354 screen diameter: 350 mm number of screens: 2 total filter area: 1,342 cm2 cleaned by 6 scrapers Cleaning oven for Laser filter: Tabo FEVD, year 2020 Set die face pelletising system Hot die face pelletiser Pellet dewatering screen Water pump station Pellet drying centrifuge Pellet transport system Bag fill unit QualityOn:MVR- Continuous online measuring of melt volume-flow rate (MVR) in real time directly at the machine. Included: Chiller Aquatech CA 2442 HT; year 2021: cooling capacity 301 kW Working hours Erema:1100 Working hours Chiller: 5200
