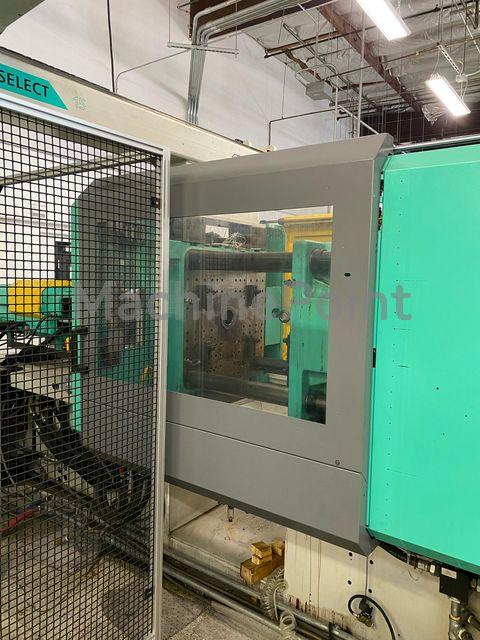

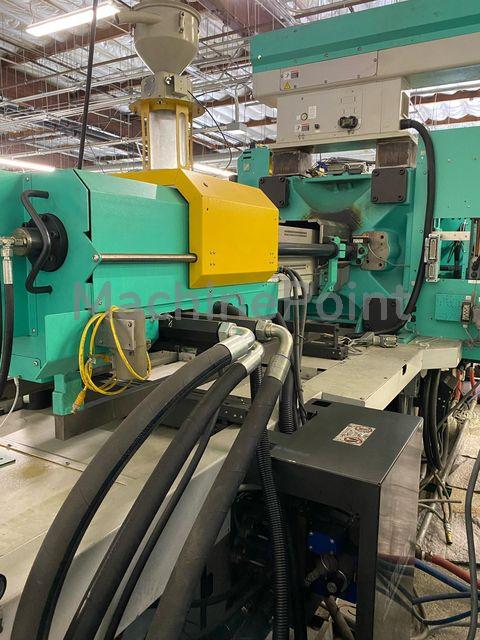

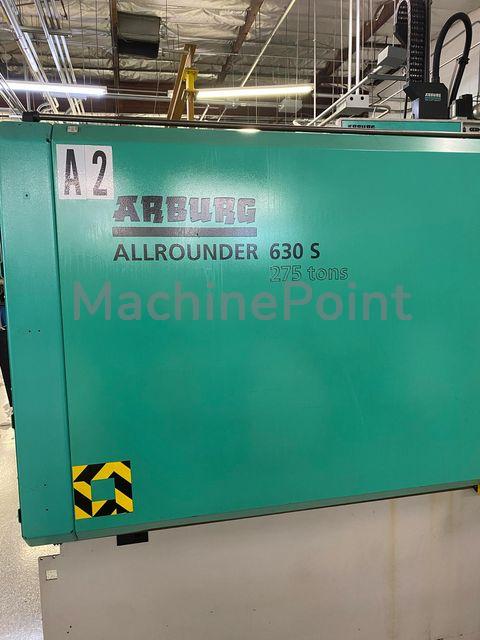

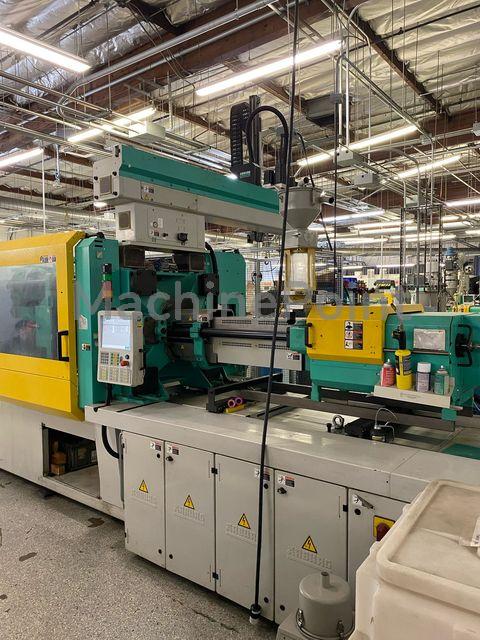

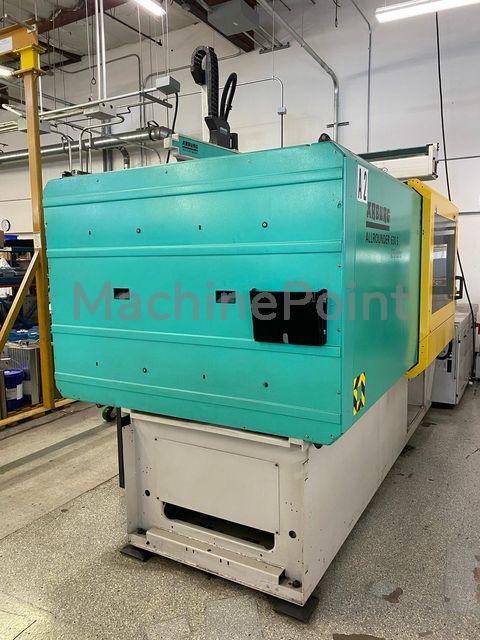

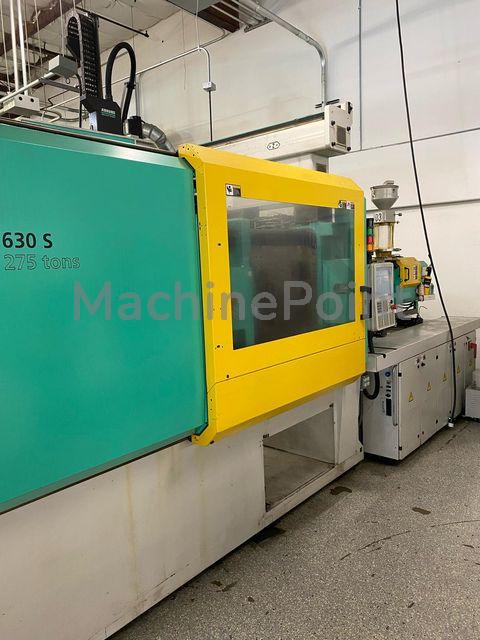

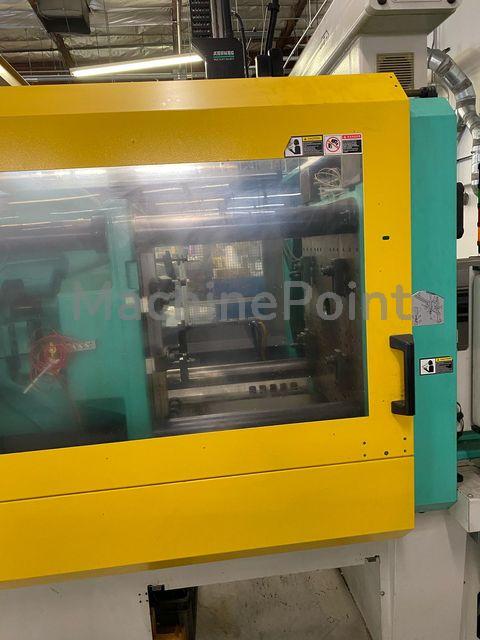

Used ARBURG 630S-2500-800 of 2012 for sale
2012 | Ref.: 300048604
Injection molding machine up to 250 T ARBURG, You can contact our team and analyze your needs so we can offer you the best possible solution depending on your budget.
Data Sheet of Used ARBURG 630S-2500-800
Ref.: 300048604
Year: 2012
Brand: ARBURG
Status:
For sale
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 250 ton
- Shot Weight (Max): 434 g
- Distance Between Tie-Bars (H): 630 mm
- Distance Between Tie-Bars (V): 630 mm
- Platen Size (H): 900 mm
- Platen Size (V): 900 mm
- Screw Diameter: 55 mm

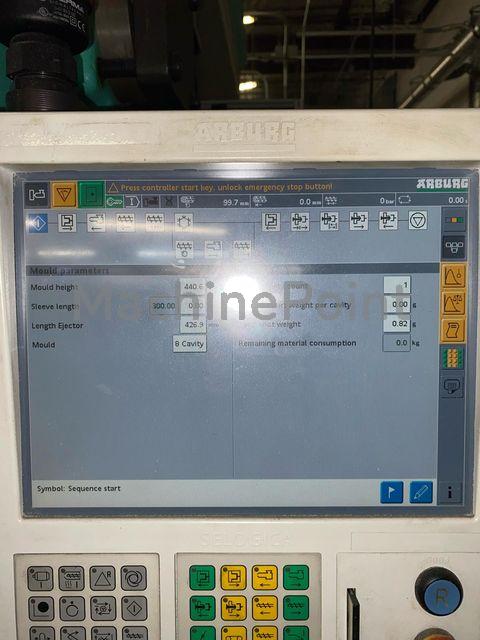

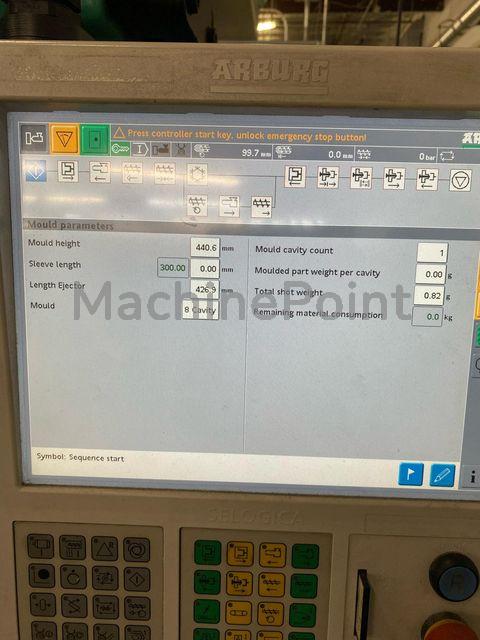

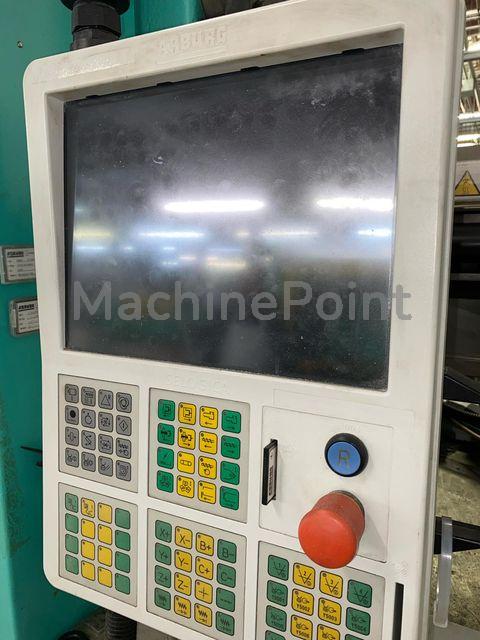

- Control Type: Electronic
- Mould Height (Max): 700 mm
- Mould Height (Min): 300 mm
- Daylight Between Platens (Max): 1300 mm
- Opening Stroke (Max): 600 mm
- Ejector Force: 9 ton
- Ejector Stroke: 225 mm
- Screw L/D Ratio: 18
- Screw Torque: 880 N·m
- Injection Volume: 474 cm³
- Injection Pressure: 1650 bar
- Nozzle Force (Max): 7 ton
- Nozzle Stroke (Max): 400 mm
- Heating Zones: 8
- Heating Capacity: 19.9 kW
- Oil Tank Capacity: 330 l
- Orientation: Horizontal
Other Specifications:

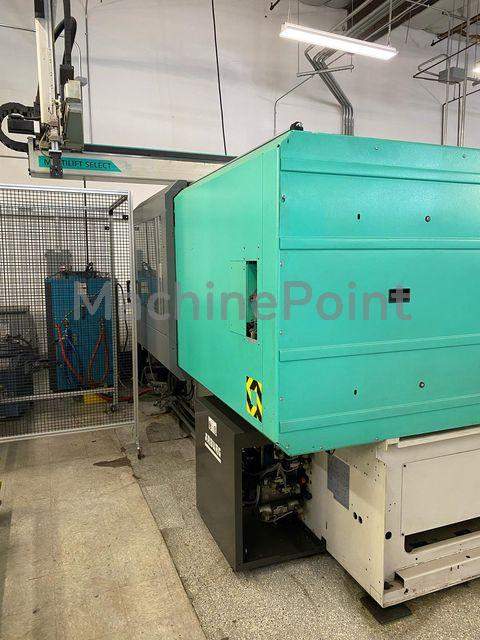

Multilift/robot included
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Voltage: 460 V TriphaseFrequency: 60 Hz
Voltage: 102 Kw
