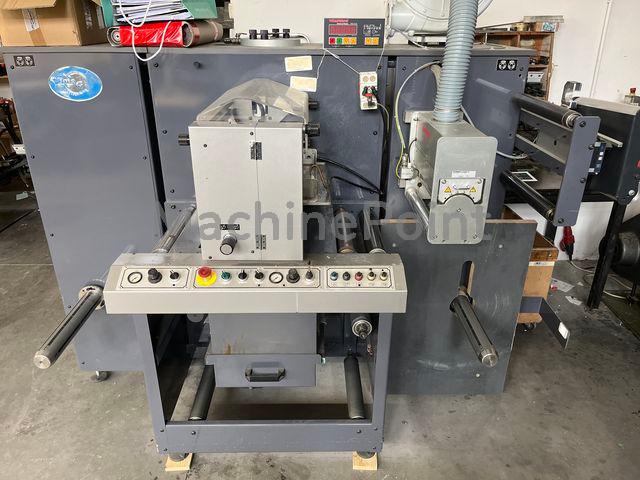

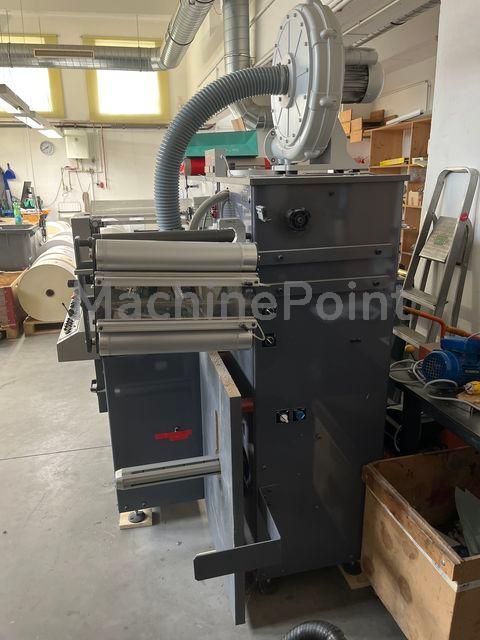

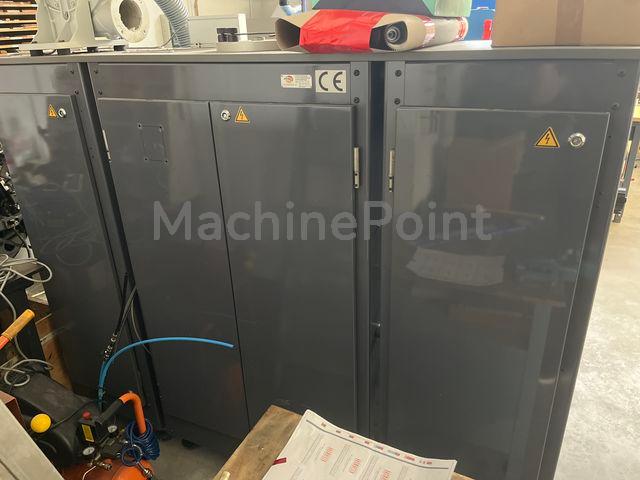

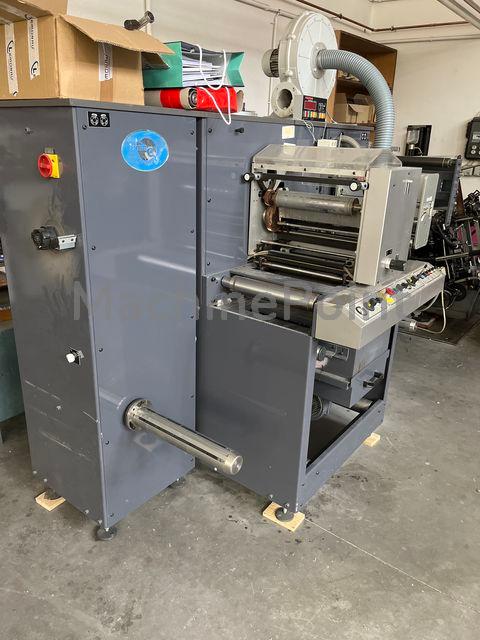

Used SMAG DIGIPRIME 350 of 2016 for sale

Knife and counter-knife cutting Manual control panel 10 slitting knives Winding shaft: Ø40x2 & Ø76x2 max. mother reel diameter: 650mm max. final reel diameter: 350mm

Cutting and Inspection Machine Web width: 350mm Maxi. unwind roll diameter: 800mm Maxi. rewinding diameter: -single rewind shaft: 500 mm -two mandrels "alternate mode": 500 mm -two mandrels "simultaneous mode": 300 mm Maxi. nº of slitting blades: 10 Maxi. distance between blades: 12 mm Compressed Air requirements: 6 bars Maxi. web speed: 250m/min Additional spare shaft included. Leibinger Numbering inkjet body (only three years old.) The machine was overhauled and restructured two years ago by Smag.

Finishing machine : repacker, slitting and inspection Cells to detect missing labels Metric and label counting Rewinding mandrel 40 and 76mm Max. unwinding roll diameter: 800mm Max. web speed: 250m/min Slitting station Web guide Compressed air 6 bars 2 tables for splices (at the entrance and before the knife station) 11 knives There are spare parts like knobs / seals

In-line machine finishing machine Unwinder 1 UV Screen print unit 1 Hot foil stamping and embossing unit 1 Flat bed die cutting unit Slitter and rewinder Maximum web width: 330 mm Minimum web width: 100 mm Unwind diameter: 900 mm Silkscreen maximum format (W, L): 330 x 330 mm Flat bed foil and embossing maximum format (maximum 40 % of the surface): 330 x 330 mm Maximum rewind diameter according to the configurations:up to 900 mm Speed Flat bed foil: up to 40 m/min Speed Flat bed embossing: up to 45 m/min Speed flat bed screen: up to 30 m/min

Unwinder - Machine handling : left to right - Maximum unwind roll diameter : 850 mm - Minimum web width : 100 mm / Maximum web width : 350 mm Semi-rotary flexo unit . Type : full rotary servo and semi-rotary servo . Coating cylinder : included 12 inches . Cross adjustment : +/- 5 mm . Thickness of printing plate : 1,14mm . UV curing : GEW E2C -140 Watts HQV hot stamping . Thickness of plate : 7 mm . Heating : electrical . Max. working area : 340 mm x 330 mm . Max. foil area : 30% . Registration according to the printing spot : +/- 0,15 mm . Max. speed HGV Station : up to 40 meters/min SP printing unit . Maximum printing area : 340 mm (width) x 340 mm (length) . Registration according to the spot : +/- 0,15 mm . UV curing : GEW E2C -140 Watts . Max. speed : up to 25 meters/min - Slitting and rewinding station : - Maximum rewind diameter: 750mm - Maximum razor blades : 4 - Minimum distance between blades: 12mm Rewinder/Unwinder - Slitter section with 4 razor blades included in standard, - One rewind shaft low position to rewind big roll max. diam. 750mm Semi-rotary die cutting - Maximum unwind diameter : 750 mm - Maximum web width : 350 mm - Maximum die cutting width : 340 mm - Maximum speed on full rotary mode die with auto registration : 140m/min - Maximum speed (according to the plate length compared to the cylinder repeat) on semi rotary mode : up to 35m/min - Die cutting cylinder format : 25 inches - Die cutting lateral adjustment : +/- 3 mm - Thickness of die cutting plate : 0,44 mm - Minimum die cutting format (length) (25’’ cylinder) : 80 mm Maximum die cutting format (length) (25’’ cylinder) : 585 mm - Registration accuracy according to a printing mark (flexo and die station) : +/- 0,15 mm Control unit Nyquist (BST) camera for missing label and matrix default detection including tactile monitor control system : Tube scan Strobe++ model which gives also the possibility to detect a printing default of min. 1 mm. Slitter and rewinder section - Maximum rewind diameter: 750mm - Maximum razor blades : 4 - Minimum distance between blades: 12mm
