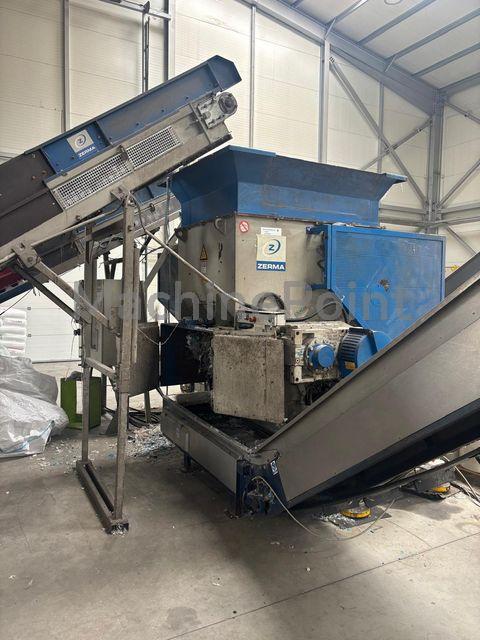

Used ZERMA ZPS 1200 of 2019 for sale

ZERMA Single-shaft Shredder Type ZSS 1200 Unused Effective working area : 800 x 1050 mm Rotor speed : 74rpm Drive capacity : 55kW Screen size : 40mm Nº of stator knives : 1x4 Cutting chamber vvolume: 1,82m3 With feeding conveyor and Mesutronic magnetic bridge Thermodryer TT 90 For drying different washed flakes – LDPE, PET, etc. MFT material transport system 1 Air mixing chamber 1 x electric hiting system, capacity 2 x 30 kW, 60 kW Working with 30 kW, the other 30 in case of need 1 x 20 m spiral tubes NW 200 1 x cyclone system 1 x temperature control system It is possible to buy only Zerma shredder (price on request)

Shredder ZERMA ZSS-1500 75KW, stopped since November 2020 (replaced by a bigger one) 15k€ repair bill on this equipment and many spare parts ZSS shredders are designed for a wide range of applications and industries such as post-production processing and recycling in general, electronic waste and post-consumer waste processing. The materials to be processed can be all kinds of plastics, such as blocks, pipes, film, woven bags, electrical cables and WEEE, but also paper, wood and many other organic materials. Rotor diameter: 457 mm Rotor width: 1500mm Rotor speed: 74 rpm Motor power: 75 kW Pusher power: 5.6 kW Hopper volume: 2.27 m3 Effective working area: 800x1290mm 1 row of fixed blades ; 102 mobile blades The machine has two motors of 75 kw (one mounted and one for spare part) 2 screens of 60mm (one mounted, one for spare part) 2 rotors (one mounted and one for spare part) Feeding conveyor with its metal detector Weight : 6500kg Width : 2300mm Length: 2590mm Height: 2585mm Changed in 2017: 1 Hydraulic power plant with : 1 Motor pump unit, flow 23 l/min - Pmax 100 bar Gear pump of 16 cm3/rev, lantern, coupling Electric motor power 4KW 1450rpm, 230v/400vtri Submerged pump assembly 1 Steel tank capacity 100 liters with Breather cap, Level indicator 30µm return filter with visual clogging indicator 1 Drain hole with plug 1 Regulation and distribution unit including : 1 Pressure gauge with isolation valve 1 Pressure switch 1 adjustable threshold type XMLA of telemechanics 1 Pressure limiter 1 NG6 distributor, 3 positions, open center, in 24V/DC 1 Double flow limiter module 1 Double pilot valve module 2 Standard connectors to be wired Changed in 2019: 1 Shredder ROTOR refurbished in 2019 - Removal by milling of 11 knife supports - Control of the concentricity of the picks - Manufacture of a bearing flange diam 309 - Dismantling of the pickaxe on the drive side and reworking of the pickaxe's support face - Reassembly of the pickaxe with screws class 10.9 - Supply and replacement of the 2 bearings 22324 MW33 with the seals - Reassembly of the knives with screws class 10.9 immobilized by loctite Repair of 1 hydraulic cylinder 50 x 100 Work done : 1 rod Ø 50, out of order, to be rebuilt new, (delarding and welding clevis) Manufacture of a rod nut for standardization with cylinder N°1, Replacement of the pocket of seals 1 asynchronous motor 1500TR/MN 75KW IP55 1 asynchronous motor revision 1500TR/MN 75KW IP55 1 NU 317 ECJ bearing 1 ball bearing 6317 2RS1 C3 1 Rototec front seal bearing 1 new plastic fan

Zerma GSE 500/700 - with 4,5 kW blowing system Output: 400 - 700 kg/h depending the material and the screen hole size Feed opening: 500/700 Stator knives: 2 pcs. Rotor knives: 3 x 2 pcs.

ZIS 2000E Gear motor : 2x55kW Rotor speed 85r/min 96 rotor knives(34x34x20) Hydraulic system : 5.6kW The biggest space of chamber : 1300 x 1850 mm Conveyors not included (and not available)

drive capacity 55 kW output: 150 - 900 kg/h Metal separator Suction cyclone Included two pairs of spare discs
