Used SACMI FILLING Alfa 70/70/20 of 2010 for sale
Complete PET filling line for still water SACMI FILLING, We guarantee that the buying process for used machinery through MachinePoint is safe and professional.
Data Sheet of Used SACMI FILLING Alfa 70/70/20
Ref.: 300048621
Year: 2010
Brand: SACMI FILLING
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Output: 40000 U/h
- Bottle Size: 0,5
- Valves-Filling Heads: 70
- Pitch: 90 mm
- Bottle Material: Plastic
Other Specifications:
Products: still water
Bottle type (basic): from 0.5 l to 1.5 l volume (due the specifications of the filler the maximum format is 1.5lt)
PET closing type: 30/25
Labels: Plastic Roll Fed
Package format: 3x2, wrapped in heat shrink film
Tray: Euro-type
Line capacity - 40.000 bottles/h
The capacity is calculated on the basis of a 0.5 l PET bottle
The line includes the following:
Injection molding machine for caps: Netstal Synergy S 2400-1700 from year 2006 - 48 Cavities

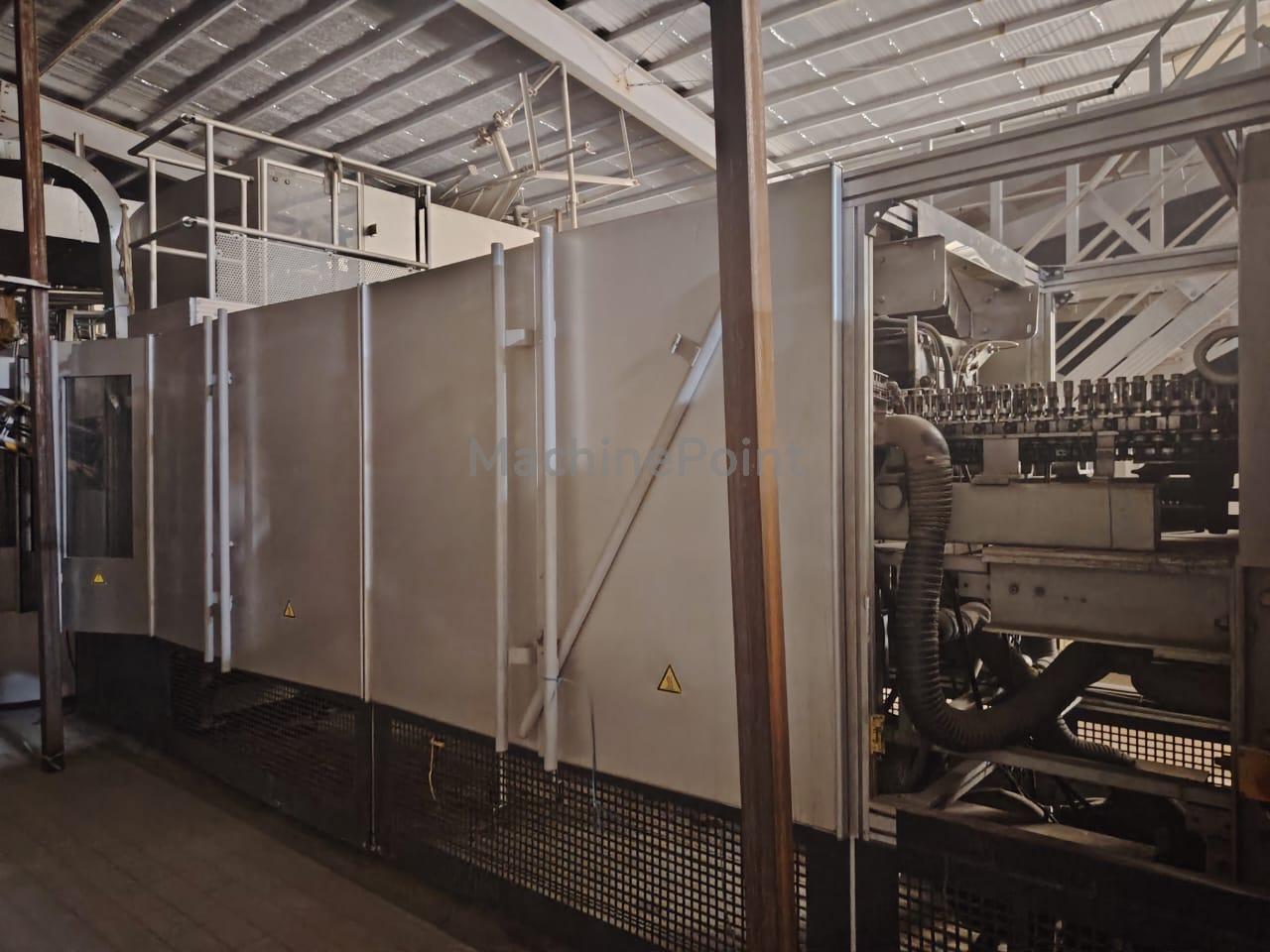

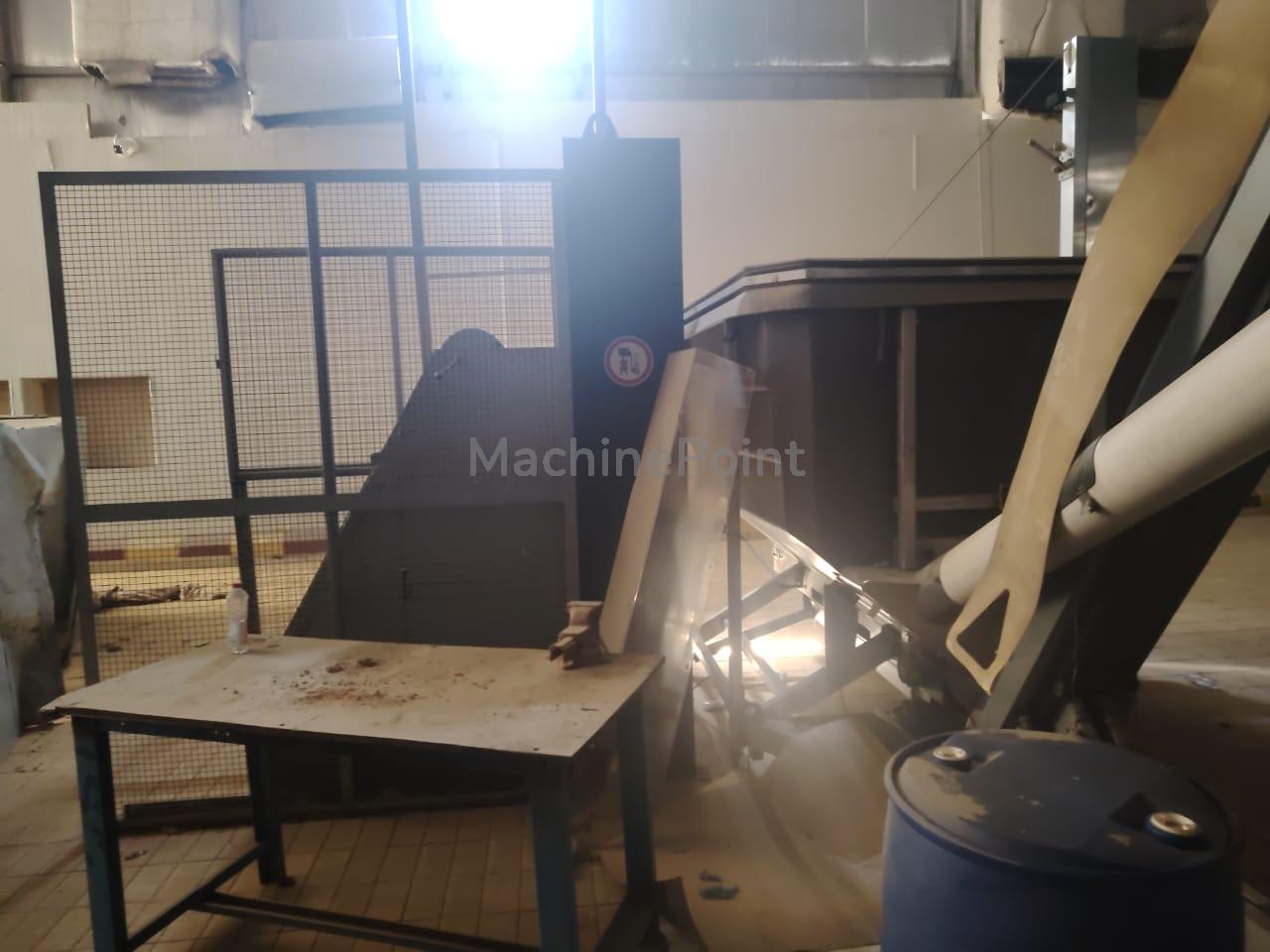

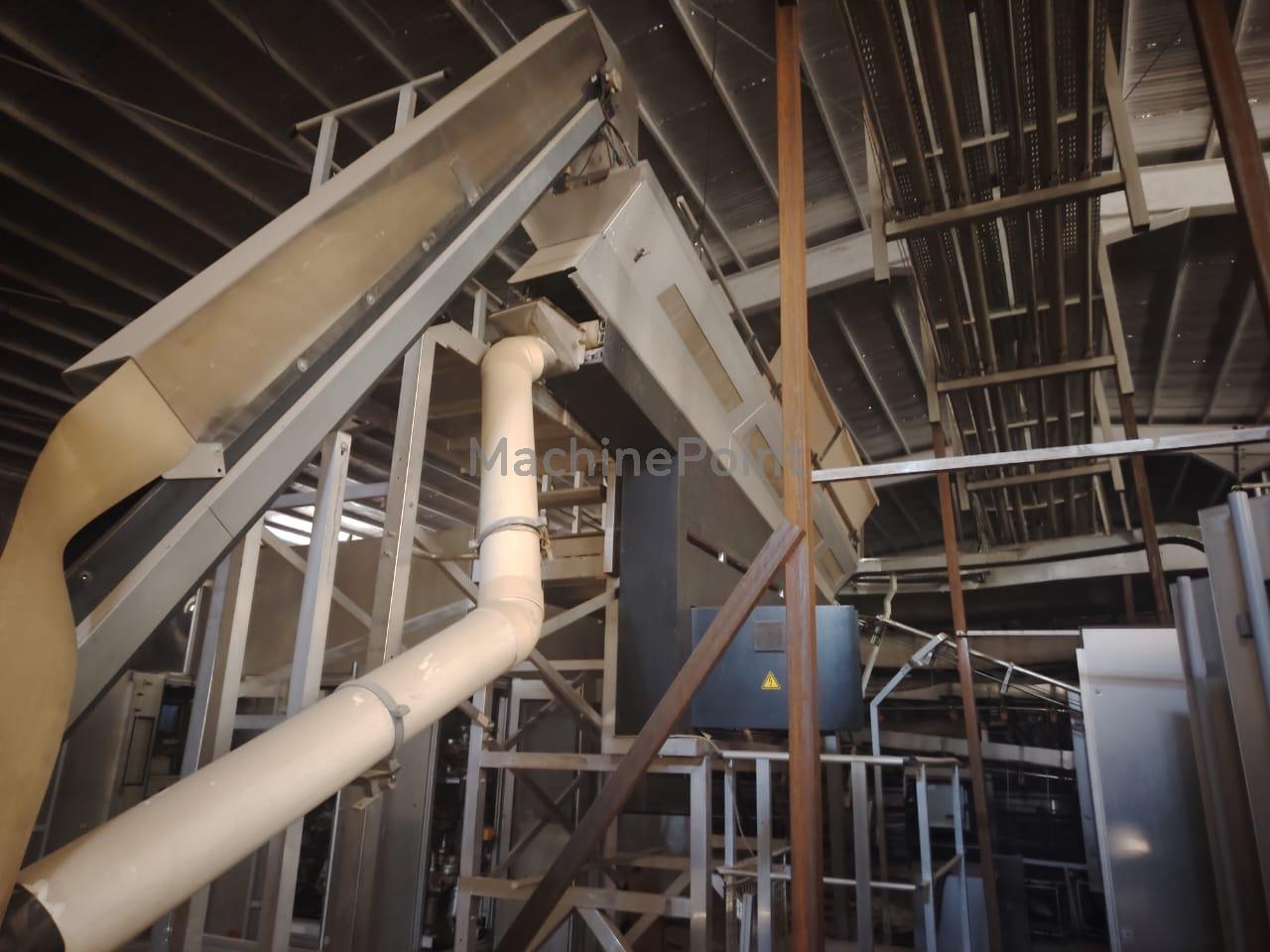

Stretch Blow molding machine Sidel SBO 20 Universal from 2010 complete with: preform tipper, preform elevator/orienter
Air Conveyor: Acmi

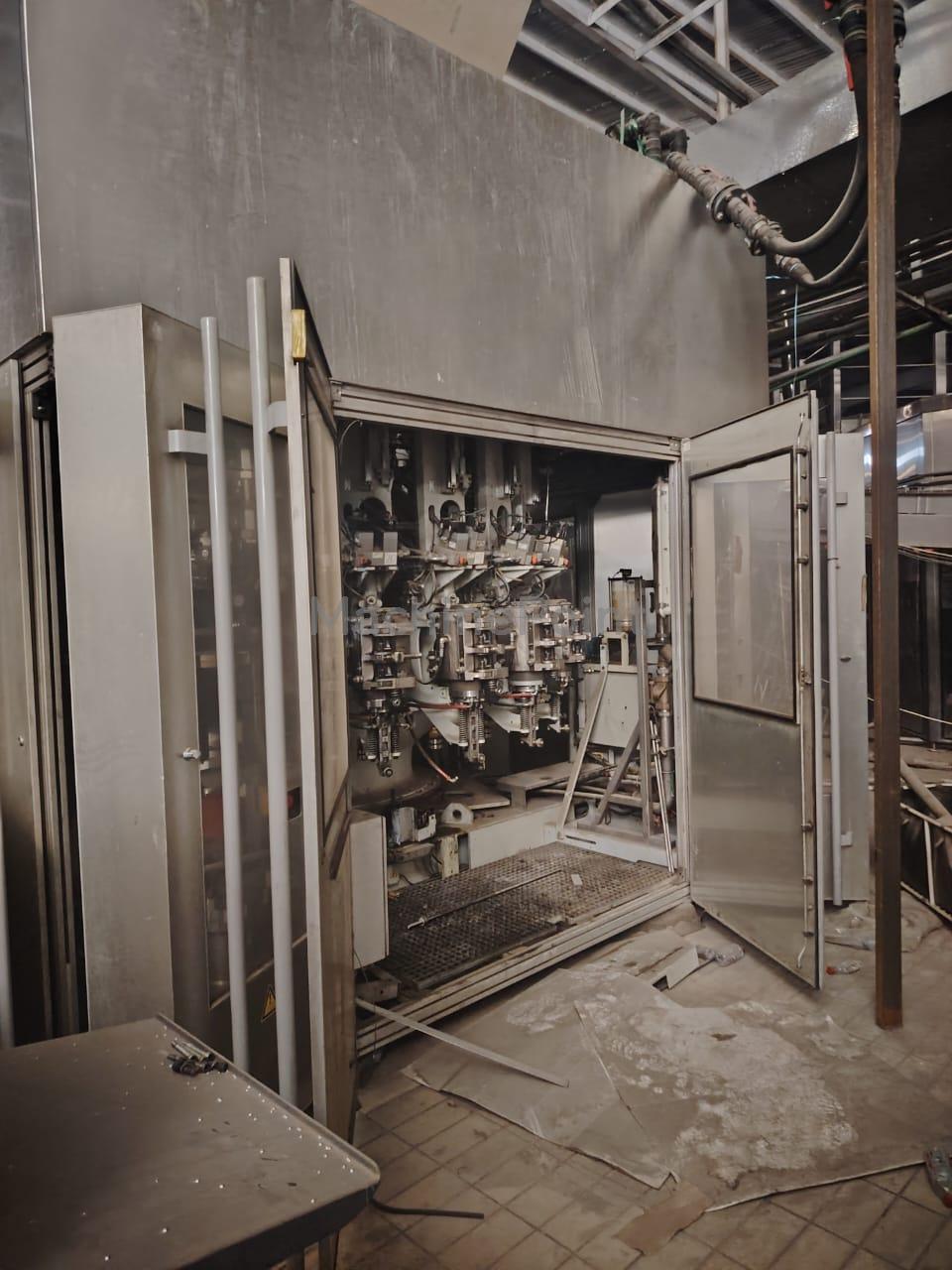

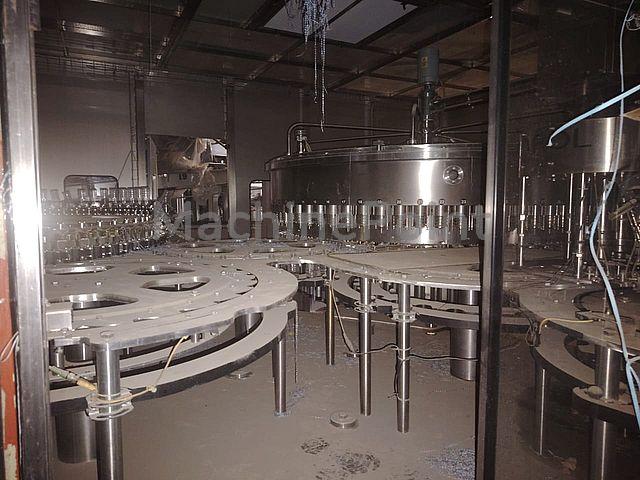

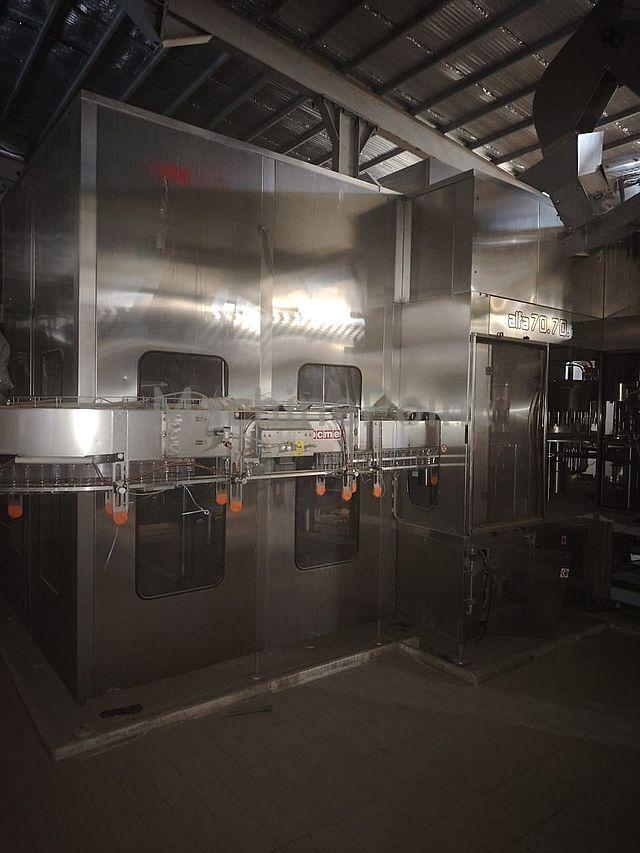

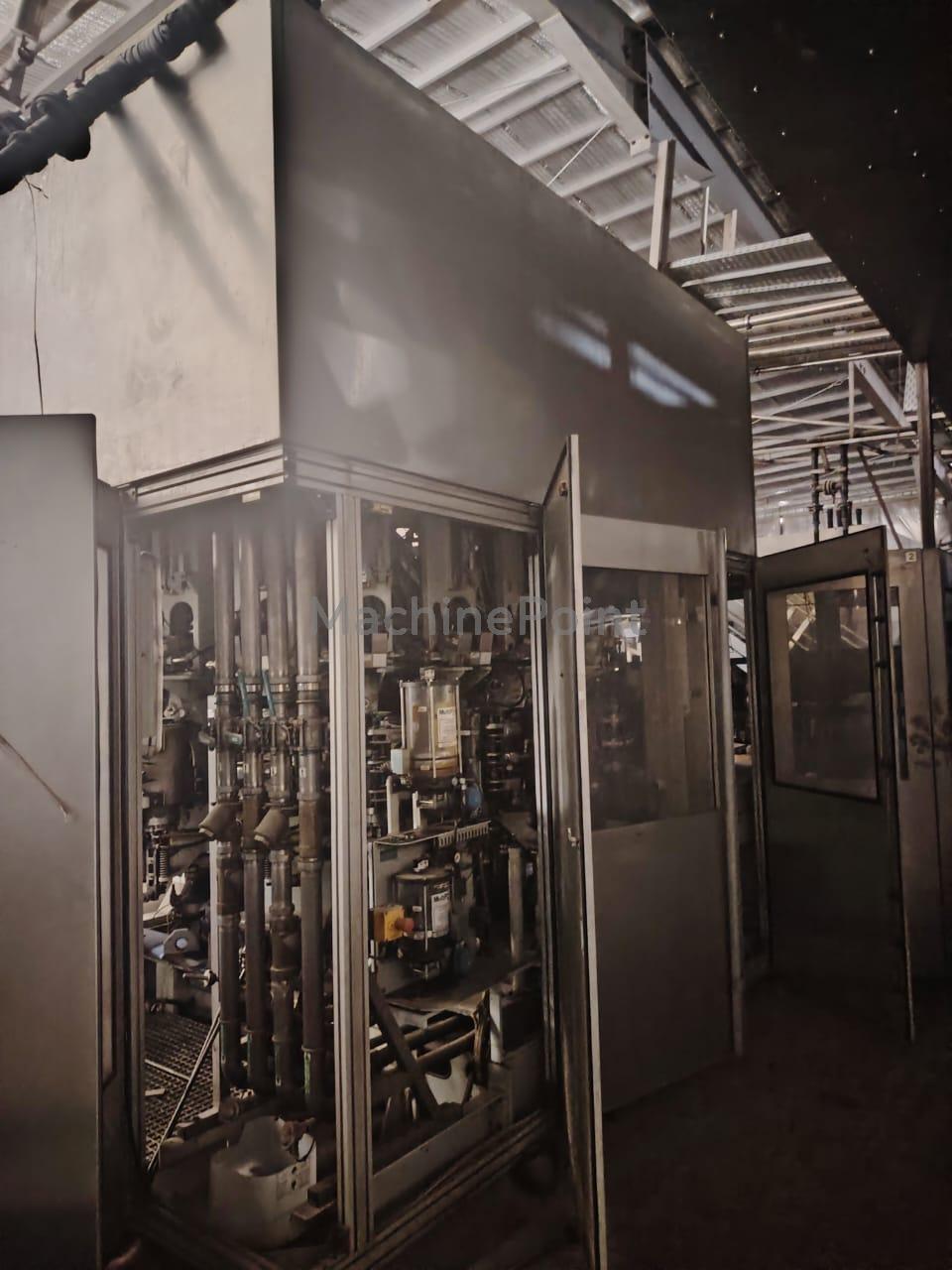

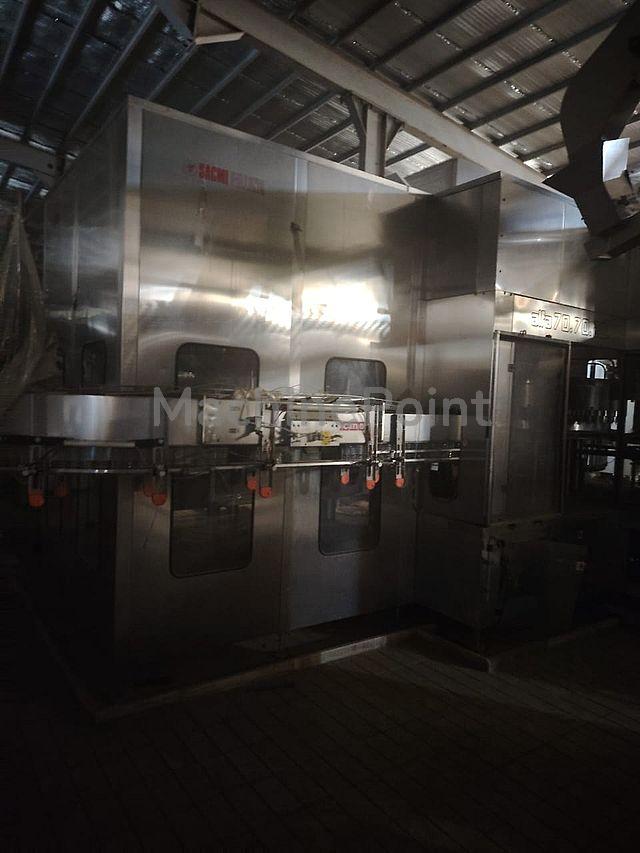

Monoblock: Sacmi Filling Alfa 70/70/20 Year 2010
Maximum bottle heigh 360mm
Maximum bottle diameter 90mm
Maximum bottle weight (with water) 2kg
Capper: Arol
CIP UNIT: SAP

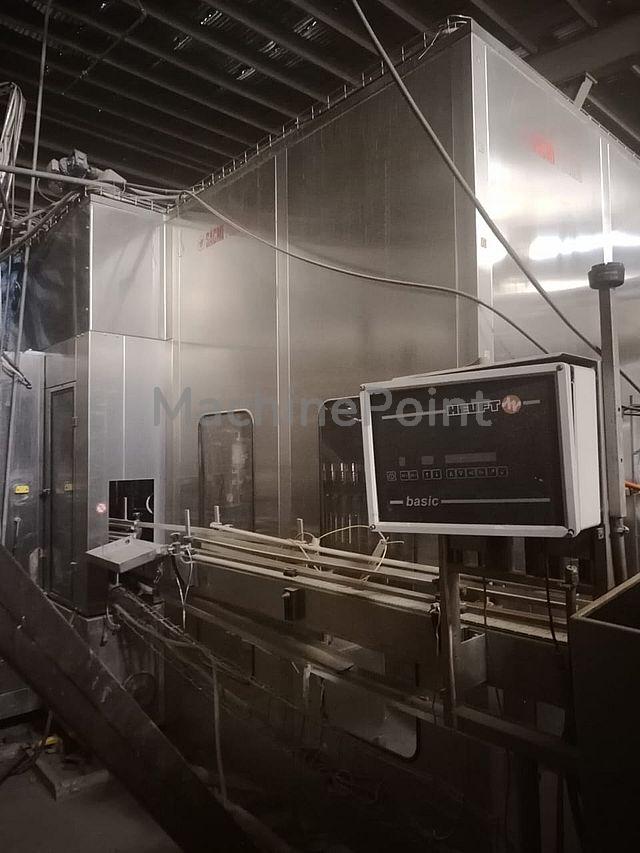

Bottle inspector: Heuft

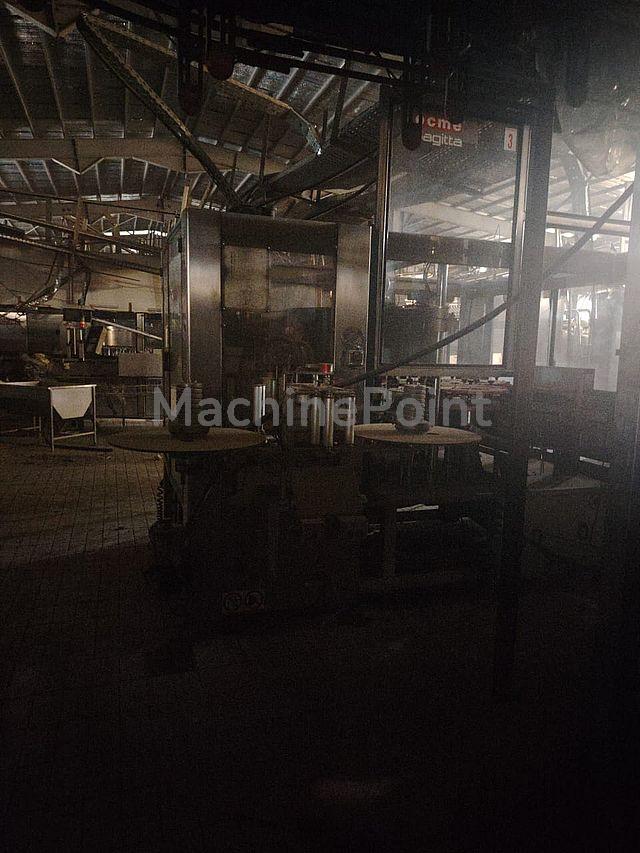

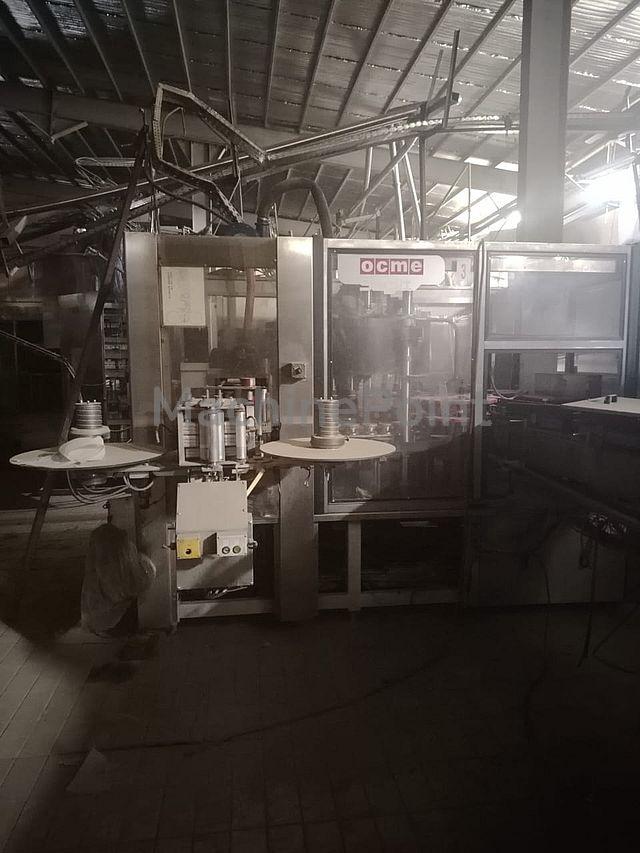

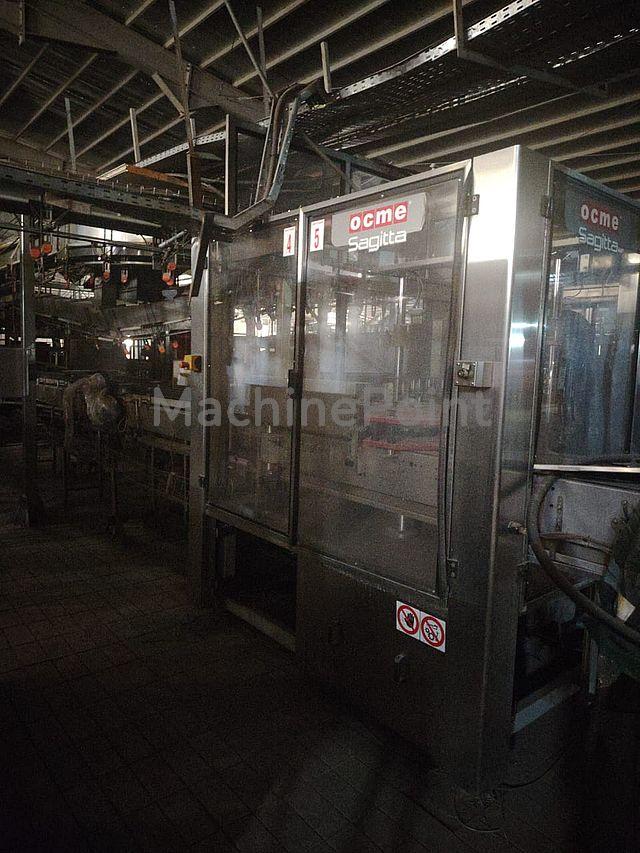

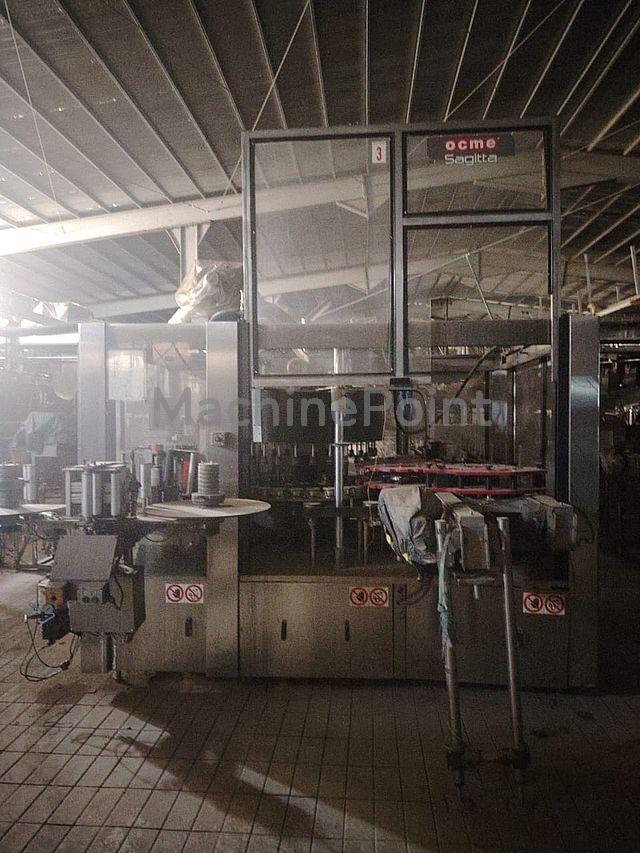

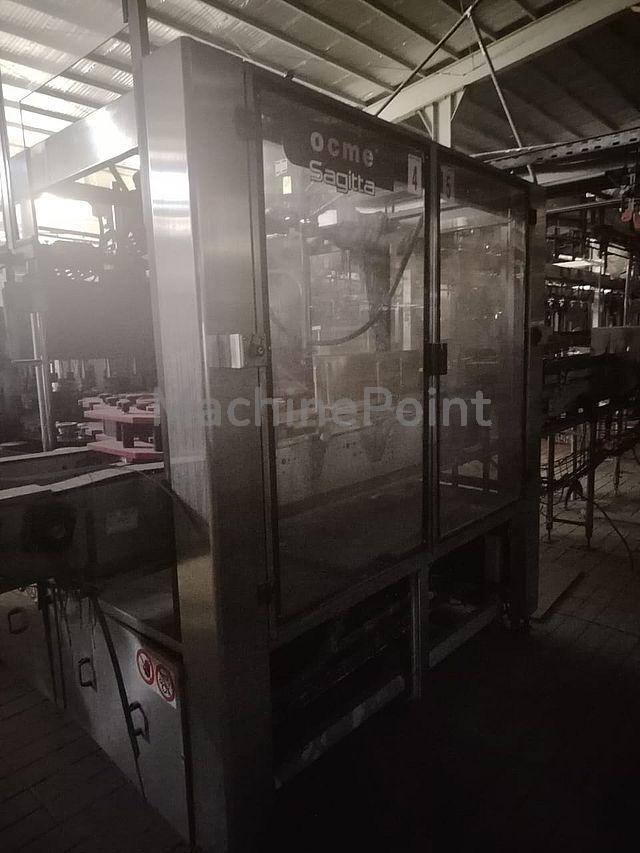

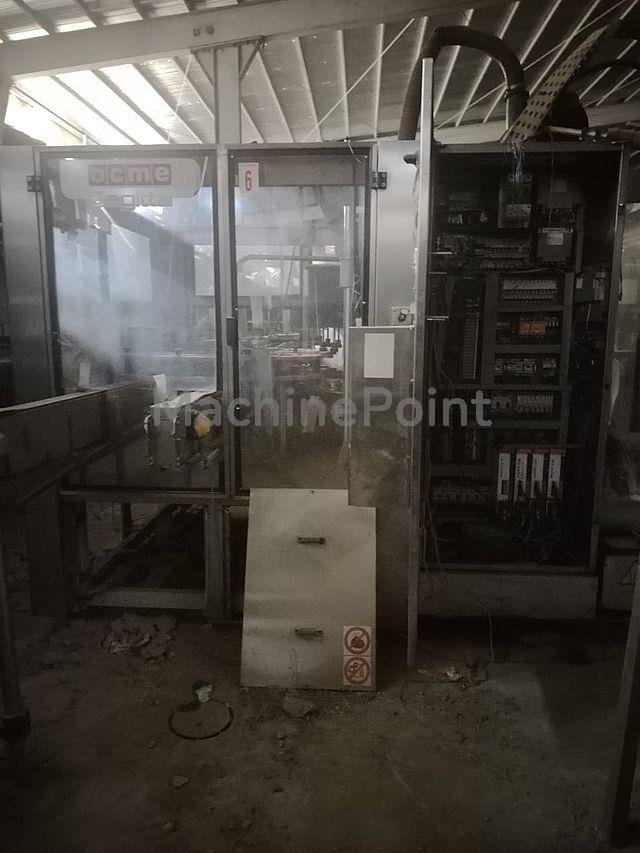

Labeller: Ocme Sagitta 2-21 from 2010
Laser Printer: Markem from 2010
Shrink Wrapper/Carton Packer : Ocme Gemini S60 from 2010
No Palletizer
the line is installed but disconnected
Other Details:
Guarantee: Without guarantee
Current condition: Not running. Can be shown in dry cycle
Availability: Immediate
