Used SAI MACHINE TOOLS SMT-2-65-18V of 2024 for sale

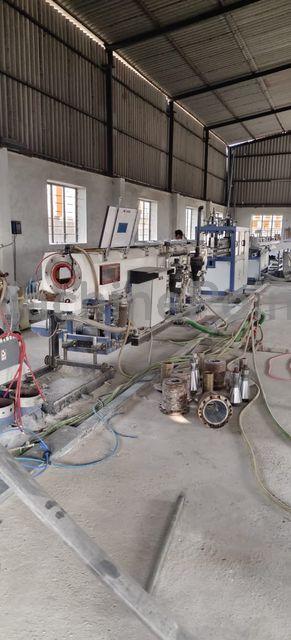

Extrusion line for PVC pipes SAI MACHINE TOOLS, MachinePoint offers their clients all the services necessary to buy the machine: Transport, dismantling, and legal consultancy.
Data Sheet of Used SAI MACHINE TOOLS SMT-2-65-18V
Ref.: 300048630
Year: 2024
Brand: SAI MACHINE TOOLS
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Maximum Diameter: 200 mm
- Minimum Diameter: 32 mm

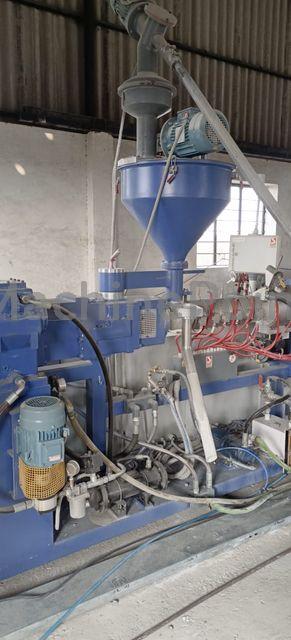

- · EXTRUDER: SMT-2-65-18V
- Screw Diameter: 65 mm
- Number Of Screws: 2
- Screw Configuration: Parallel
- Screw L/D Ratio: 18:1
- Output Capacity: 200 kg/h
- Main Drive Power: AC 18 kW

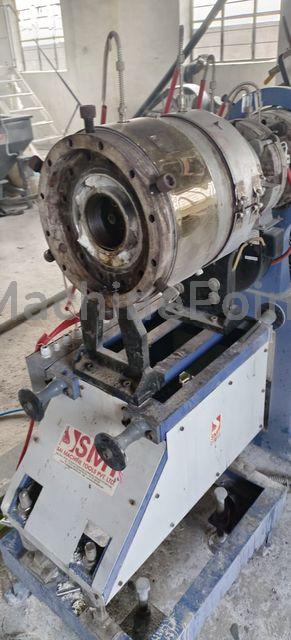

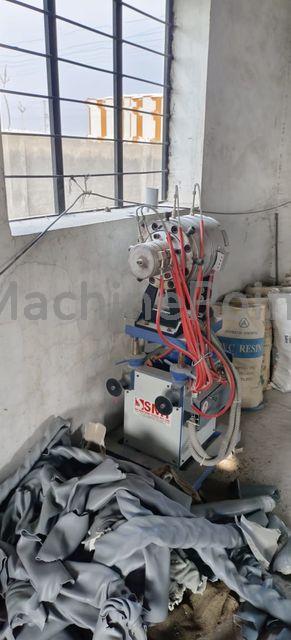

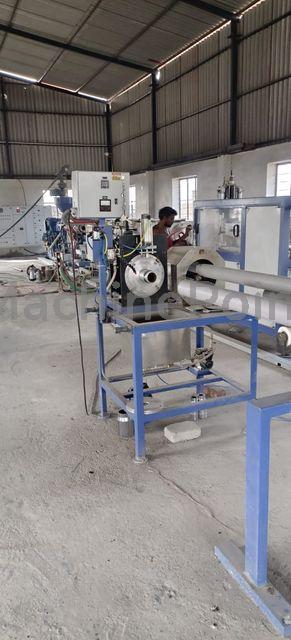

- · DIE HEAD: SMT - RPVC 200/400 Die Head
- Pipe Range Diameter: 32MM to 200 OD
- · CALIBRATION TANK: SMT - VST-200 Vaccum Caliberator
- Pipe Range Diameter: 32MM to 200 OD
- Vacuum Pump: Yes
- Vacuum Pump: Yes

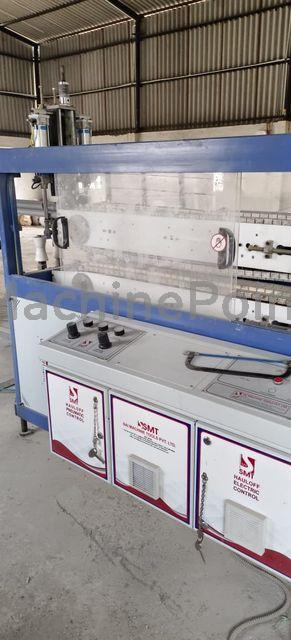

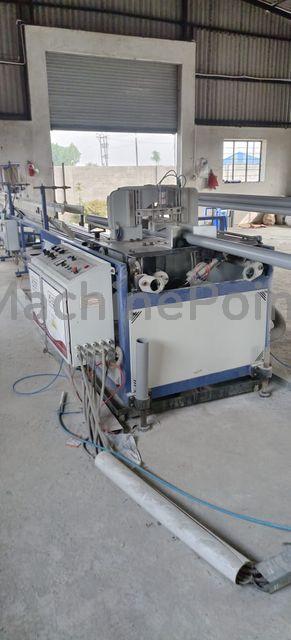

- · CATERPILLAR HAUL OFF: SMT - TTU-200 Haul Off
- Pipe Range Diameter: 32 mm to 200 OD
- Number Of Belts: 2
- · SAW: SMT - CUT-200 Cutting Saw
- Pipe Range Diameter: 32MM to 200 OD
Other Specifications:
Machine only used for production for 4 tons of material.
Machine Installed in January 2024. used for only 1 month.

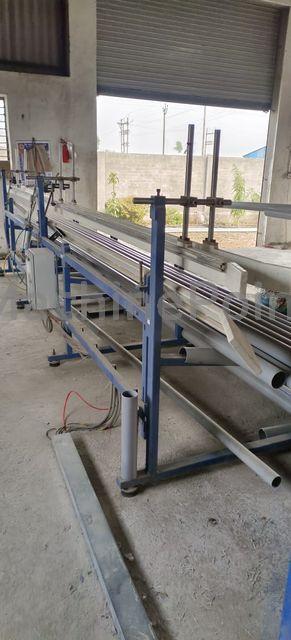

SMT - KR-200 Tipping Chute (used for stacking pipes post-cutting)
Pipe Diameter: 32 mm to 200 mm
Nominal Length: 5.2 meters
Cutting Length Range: 3–6 meters
Structure: Mild Steel with pneumatic controls

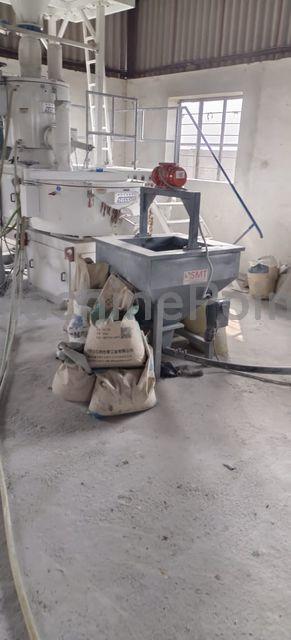

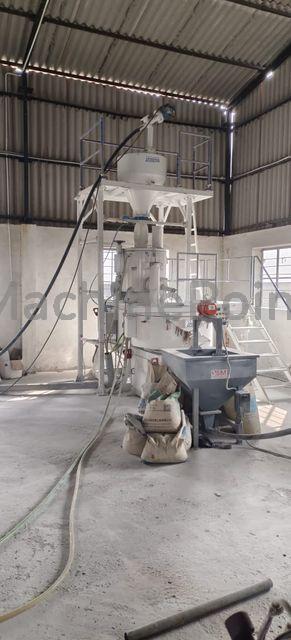

Seven star make auto heating and cooling mixer with capacity of 80 kg per batch
Material Mixer + cooler with spring loader unit to put material in mixer, 420 to 480 kg/hr output
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
