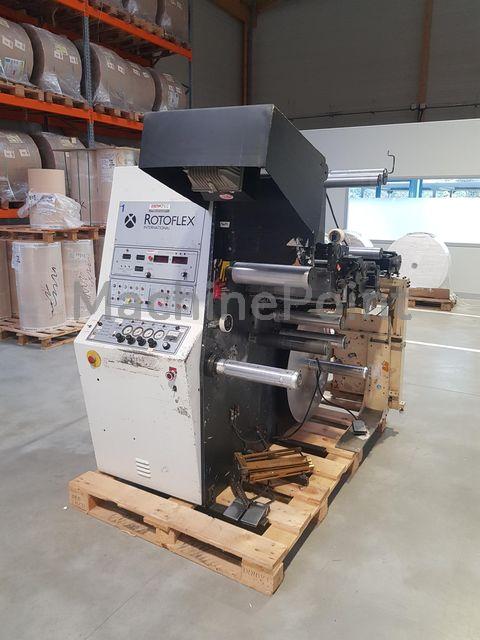

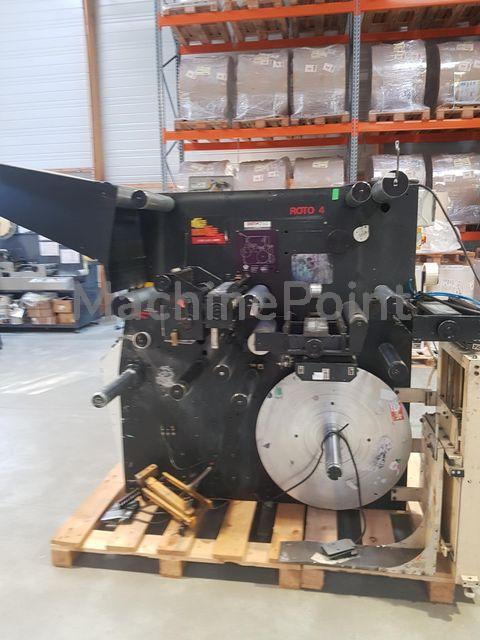

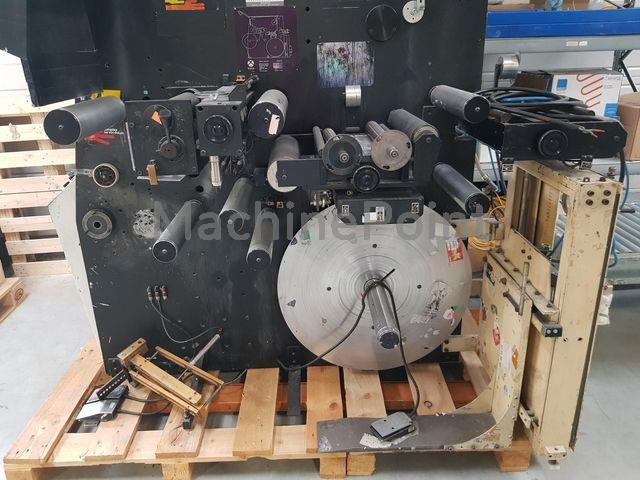

Used ROTOFLEX VLI 330 of 1993 for sale

1852 working hours and in pretty good condition. Tools included are: -die cutting cylinders: 80T, 88T,92T,96T,100T,104T,112T,123T -rewind shafts: 330mm length : 76mm, 45mm and 40mm diameter 230mm length : 25mm diameter Please note that this is equipped with a punching unit! The normal rotoflex did not have this.

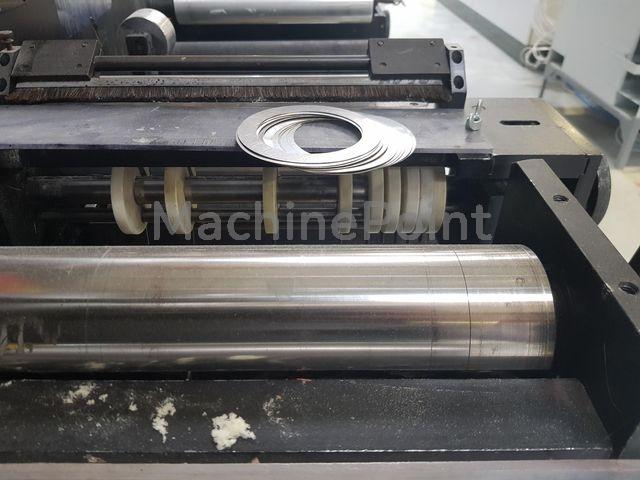

Inspection and cutting machine Width : 330mm Standard equipment: Controlled acceleration and deceleration Unwinder connection table 1 winding and unwinding shaft of 76mm Electromagnetic clutch changed in 2016 Pneumatic brake Web separator Maximum speed of the machine: 259m/min (the speed of use varies according to the inspection performed) Winding capacity: 610mm Unwinding capacity: 762mm Slow feed pedal (JOG): out of order but available Double clutch gearbox and automatic selection of the winding direction Front inspection Electronic web guide Automatic stop on end of roll Idle speed preselection Electronic metric counter Hour meter Conventional style cabinet Includes the following options: Longitudinal cutting unit with pressure knives (3 cutting sets included) Additional cutting units - quantity: 7 Automatic web feed and clamp Powder clutch changed in 2016 Standard cutting station -with interchangeable lower cylinders (counter part) -with 76mm diameter reel (max waste reel capacity : 660mm) and a capstan Min repeat : 8 1/2" or 68 teeth Max repeat : 18" or 144 teeth Universal adapter for Rotoflex tool Automatic inside/outside winding direction Rear connection table URC1 counter (Universal Rotoflex Controller) integrating the following counter functions -Split labels -Jointed labels -Linear metric and inch -Automatic cell configuration Ultrasonic tension control during unwinding 1 additional 40mm diameter winding shaft Magnetic cylinders 80 -144 Z and cylinders holder (see picture) 80 - 254,000 86 - 273,050 88 - 279,400 92 - 292,100 96 - 304,800 101 - 320,680 112 - 355,600 116 - 368,3 120 - 381,000 134 - 425,45 136 - 431,8 144 - 457,2

10 inch label rewinder 2kVA 18 Amps Speed 229 m/min

10 inch label rewinder 2kVA 38Amps Speed 259m/min

Equipment: 2 finished reels rewinders (76mm) 2 waste rewinders 1 unit circular knives 1 cutting frame (but no cutting tools) Max diameter : - Rewinder : 450 mm - Unwinder : 600 mm Max speed: 200 m/min Min and max material width: 100 mm and 330 mm the machine is equipped with 9 knives and counter knives 40 new knife blades winding and unwinding mandrels in 76 mm and 38 mm The machine has an additional independent rewinder installed on the machine frame (diameter 76) in addition to the two original rewinders.
