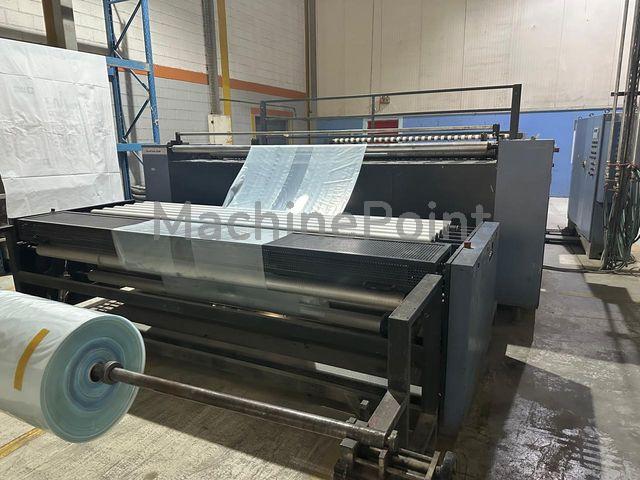

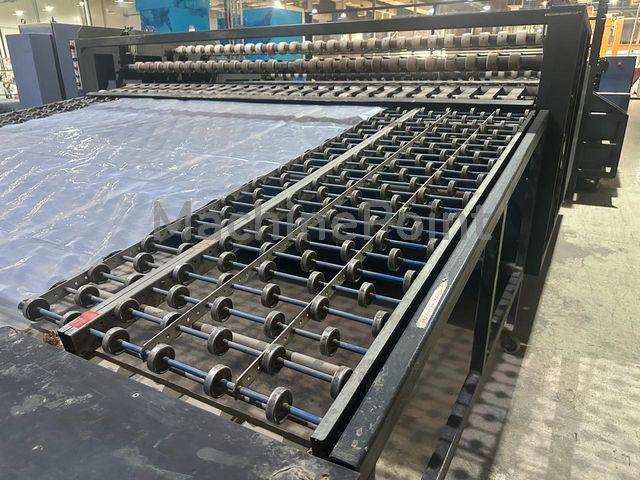

Used GÜNTER AB3000SP/AZ-W-2/STF2 of 2002 for sale

Material: LDPE/LLDPE/MDPE/mLLDPE Plastic type bag: Bags On 3” Core – Bottom Weld, Side Weld Bag length: Minimum Approx 300mm – 7000/8000mm approx Bag width: 550mm – 2000mm Film thickness: 20mu x 4 up to 150mu x 4 approx Unwinder type: Mother roll width: 2000mm Unwind shaft: Number: 1 Type: Pneumatic Mother roll diameter: max 1200mm Rewinding diameter : max 400mm (depending on type of film) Photoelectric cell control Sealing bar: Double Control panel: OMRON

Very low usage approx 1340 hours only Working width 850 mm single-lane bag thickness 2 x 0,006 - 4 x 0,06 mm Unwinder up to 1200 mm diameter motorized roller lifting Surface - friction drive Pneumatic winding shaft 73/78 mm Compensating dancer V-shaped Edge control with rotating frame Automatic welding machine Continuously heated welding bar Perforation 16 mm photocell control 2 folding triangles Coemter winder type WW4-450-1 coreless 4 winding stations max. winding width approx. 450 mm min. Roll diameter approx. 50 mm max. roller diameter approx. 130 mm max. roll change approx. 15/min., without banderole max. roll change approx. 13/min., with banderole Roll deposit Conveyor belt Automatic banding device B90 Width of the band roll 20 - 90 mm Roll diameter of the band up to 300 mm

Materials: PE film Bag types: bottom seal with tear-off perforation Final positioning of the bags: role Film thickness max: 8 microns; Min: 120 microns Rewinder type: pneumatic turret winder Unwind shaft An unwinding point. Pneumatic winding shaft. Path control (sensors adjustable by hand) Double sealing units Control panel PLC´s manufacturer: Baumüller Manuals

Materials: PE, PP 1-2 lanes Working width: 200 - 1150 mm Length: 80 - 800 mm Film thickness:2 x 0,012 mm - 2 x ,12 mm Speed Max. 240/min. depending on material, thickness, etc Earliest pick up mid November when new comes

Working width up to 2000 mm Length control 200.. -999999 mm (1000 m) Roll feed : 3-200 m/min, Roller drive : Servo - Motor welding/cutting system : rotating eccentric drive Eccentric drive : Servo - Motor Length control :digital. 1 mm resolution Welding principle : Impulse welding process Film thickness : Standard 2x10 um - 4x100 um Perforation knife : fixed segments, 5, 8, or 16 mm pitch Photocell control : prepared Clock speed : depending on film thickness / quality and bag length (max. 110 cycles / min)
