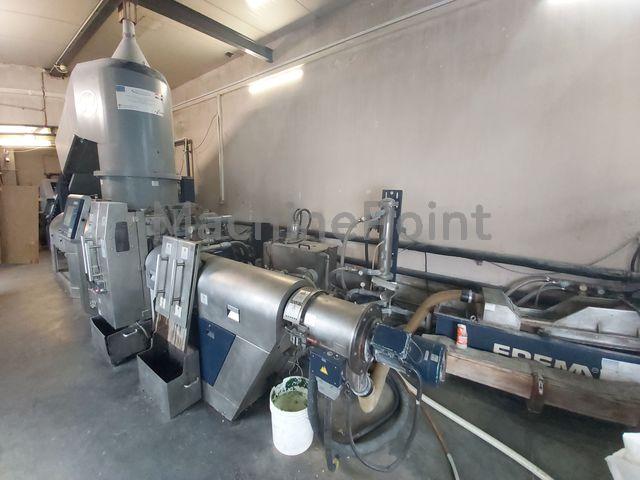

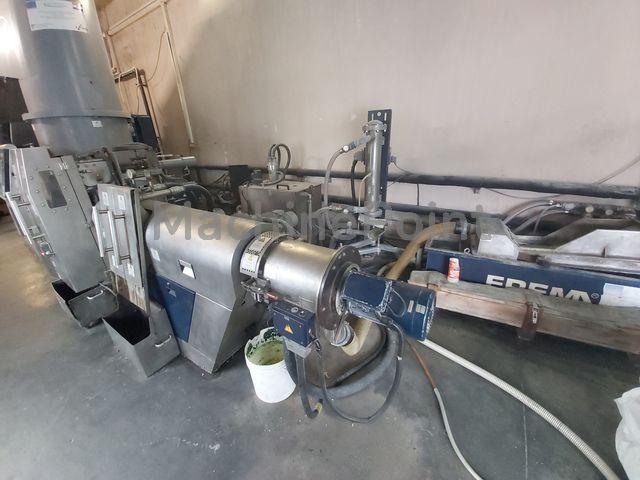

Used EREMA Intarema 1006 TVEplus of 2014 for sale

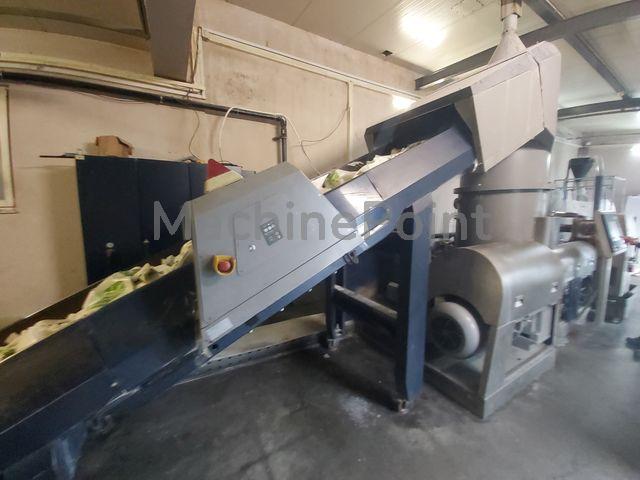

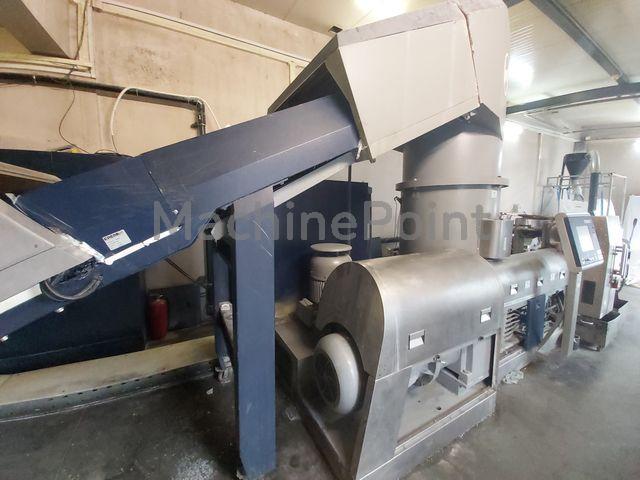

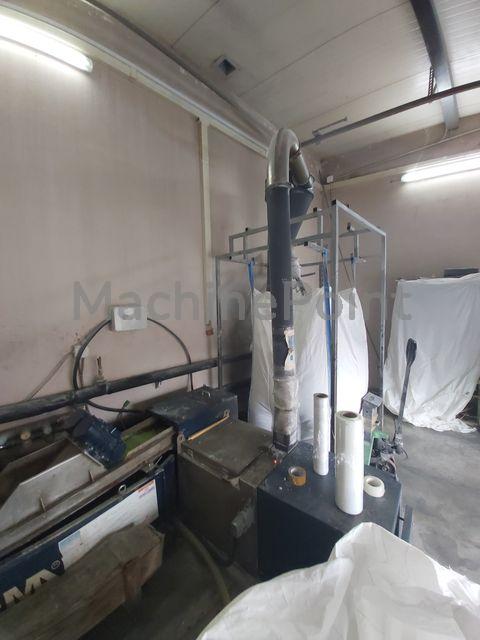

Screw and barrel regularly measured and exchanged. Important spare parts were exchanged recently (barrel, screw, cutter-compactor bearing, etc.). LDPE/LLDPE 700 - 850 kg/h HDPE 650 - 750 kg/h PP, BOPPP 500 - 600 kg/h Belt Conveyor FB 7000/1100 Processing unit 1512 TVE Plus Laser filter LF 2/354– prod. year 2018 – bought from UMAC (EREMA Group) completely refurbished in 2020. (adapter, electric cabinet, sealing elements), Production hours: 1.200h Pelletizer HG 244D Dewatering screen GS 2010/350 Pellet Dryer: GZ 350/700 Blower IFG 20(TRL 20) Big Bag Station ZS 1200 Reason of sale – will be replaced by a bigger one. Pick up End February 2025

Origin of material : Industrial waste Shape of material : Washed flakes, Shredded Double degassing Two screws: dedicated for PP; dedicated for LDPE (unused) Belt conveyor FB_7000_1100_SH Incl. dust- and sound insulation tunnel Double layer all metal detector MT2_1100_DTR130H40 Dosing unit for powder Dosing unit for pellets INTAREMA® process combination including shock sensor, preconditioning unit energy management, melt pressure indicator, melt temperature indicator and air/water heat exchanger for control cabinet; Liquid cooled bimetal extruder-cylinder Main drives: Preconditioning unit motor: 110 kW Extruder Motor: 132 kW frequency controlled Regrind Pro 90-100: is an upgrade for the INTAREMA® recycling system designed especially for the processing of regrind Process utility supervision PUS for the monitoring and checking of cooling water, compressed air and gear oils EREMA air flush technology Powered exhaust system Extruder vacuum pump EREMA Laser filter LF_2_354 screen diameter: 350 mm number of screens: 2 total filter area: 1,342 cm2 cleaned by 6 scrapers Cleaning oven for Laser filter: Tabo FEVD, year 2020 Set die face pelletising system Hot die face pelletiser Pellet dewatering screen Water pump station Pellet drying centrifuge Pellet transport system Bag fill unit QualityOn:MVR- Continuous online measuring of melt volume-flow rate (MVR) in real time directly at the machine. Included: Chiller Aquatech CA 2442 HT; year 2021: cooling capacity 301 kW Working hours Erema:1100 Working hours Chiller: 5200
