Used REICOFIL M 1600 RF of 2021 for sale
Extrusion lines for nonwovens REICOFIL, MachinePoint chooses the best machinery on sale in the market and we offer our clients a selection of high quality machinery.
Data Sheet of Used REICOFIL M 1600 RF
Ref.: 300048655
Year: 2021
Brand: REICOFIL
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
Other Specifications:

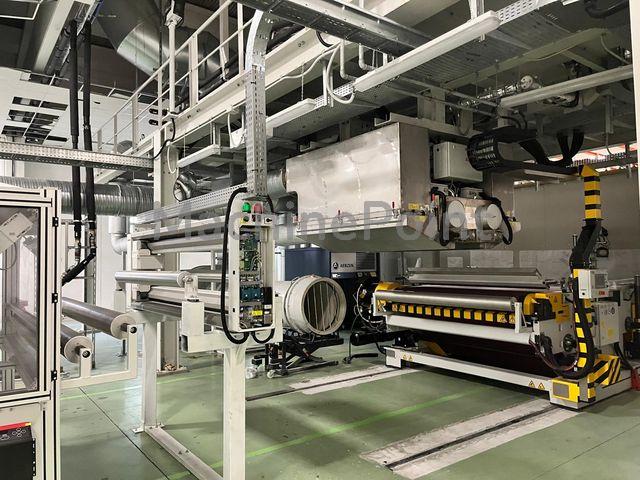

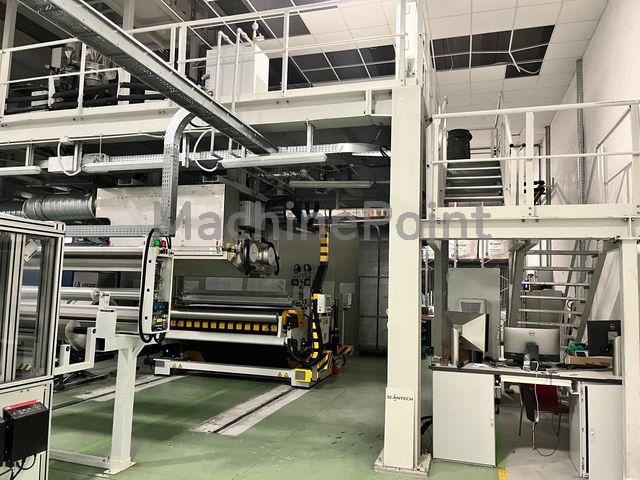

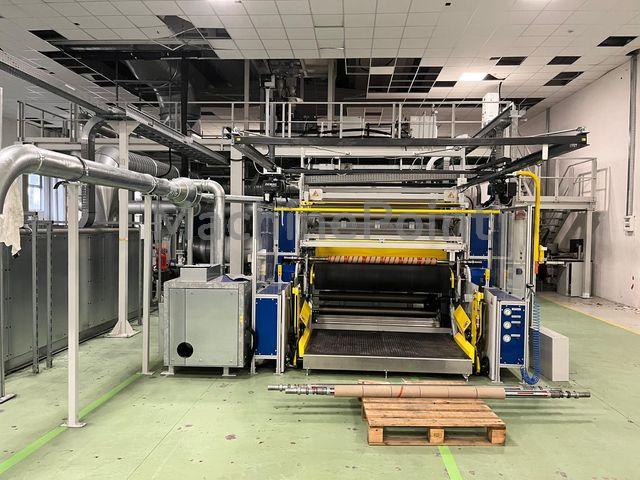

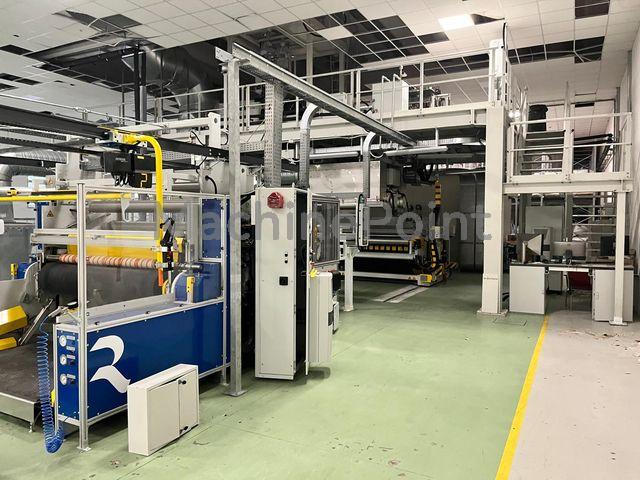

Line for the production of meltblown nonwovens, with 1 meltblown beam, 1600 mm nom. width with winding system
Fabric weight: 10-80 gsm
Resin for MB: PP, MFI 230/2.16 > 400 g/10 min
Throughput: MB: PP max. 65 kg/h/m
Installed line speed: 5 - 80 m/min
Extruder RT-1101-1-100-30D
3-component dosing unit (MB) for 200 kg/h for pellets and perlat, 1 main component and 2 secondary components

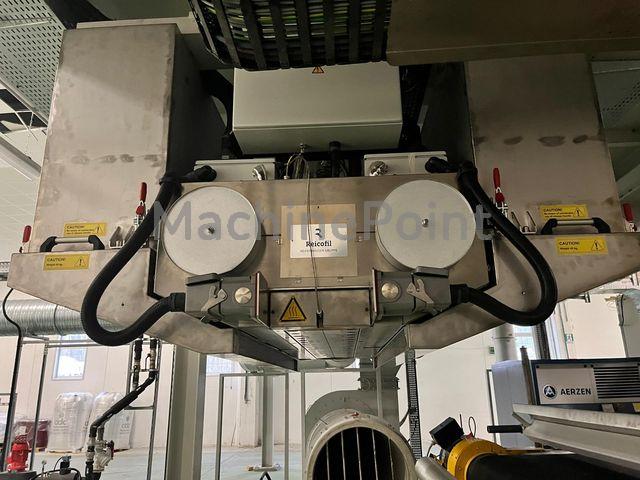

Meltblown spin beam MB 1600
Die pack meltblown 1600 MB (50 h/inch)

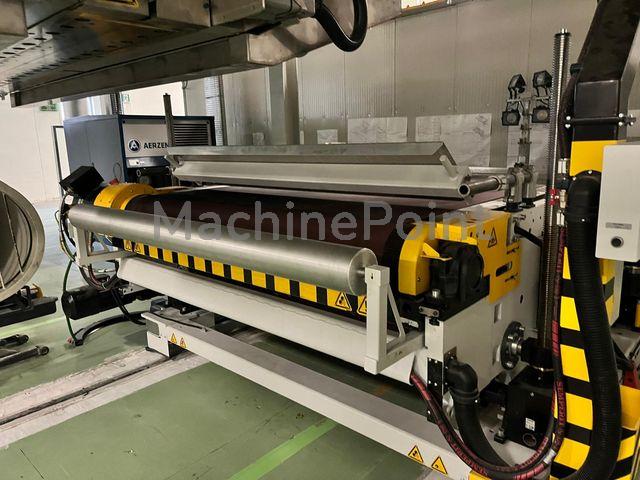

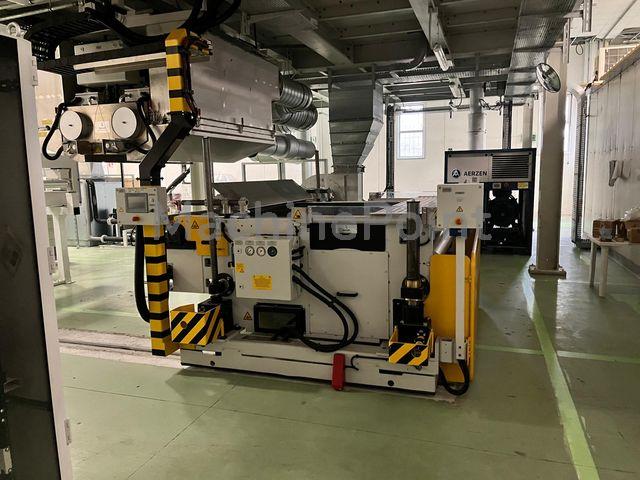

Collection of the entangled fibres, forming them into a web of MB fabric and conveying the web to the downstream equipment. Collecting section vertically adjustable, complete machine movable in machine direction.

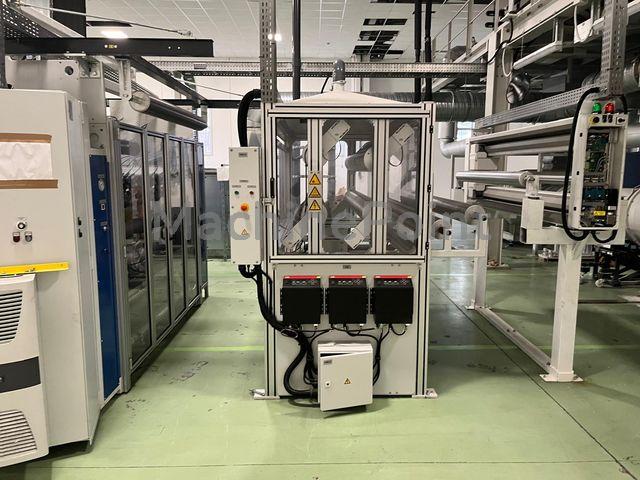

Electrostatic charging system MB 1600

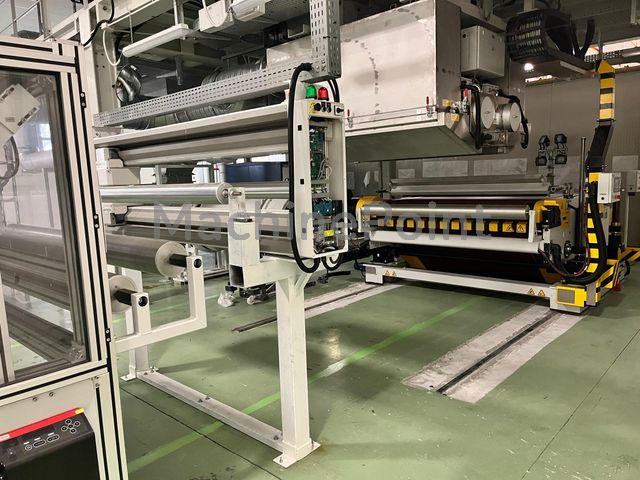

One station contact winder for MB products
Product to be wound: 10 - 80 g/m2
Web Width: 1700 mm
Max. reel diameter: 1250 mm
WOB: 1800 mm
Winding tension: 16 - 160 N
Other Details:
Guarantee: Without guarantee
Current condition: Not running. Can be shown with material
Availability: Immediate
Voltage: 480 V Triphase
Frequency: 50 Hz
