Used COMEXI F4 FLEXOEfficiency® of 2014 for sale

2014 | Ref.: 300048659

8 Colours CI Flexo Printing Machines COMEXI, We provide a quality service in the buying and selling of used machinery, with all the services necessary to achieve a successful transaction.

Data Sheet of Used COMEXI F4 FLEXOEfficiency®

Ref.: 300048659

Year: 2014

Brand: COMEXI

Status:
For sale

Delivery time: Immediate

Ask for machine price Want to sell your machine?

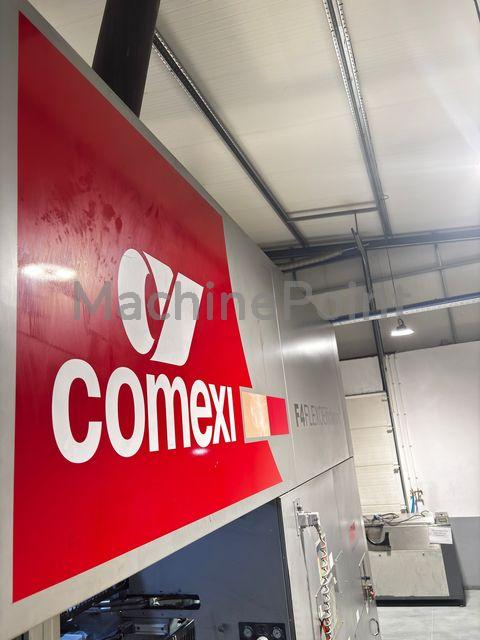

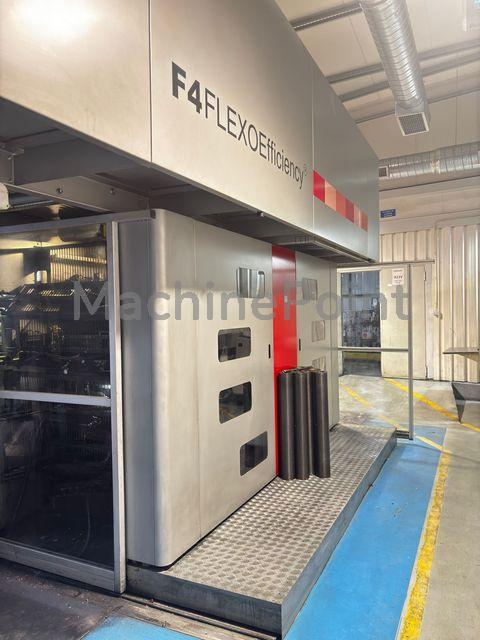

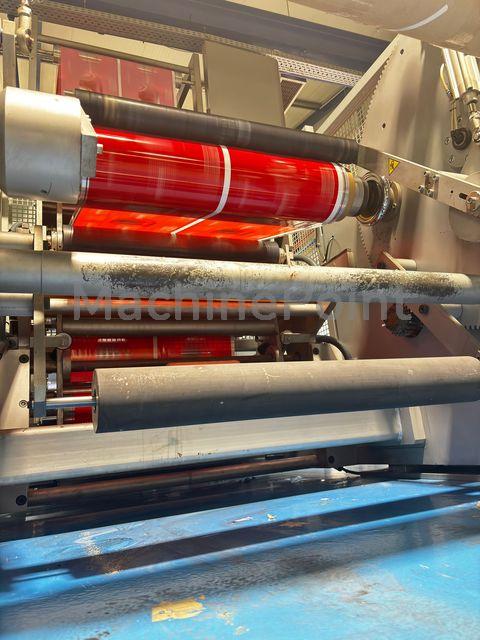

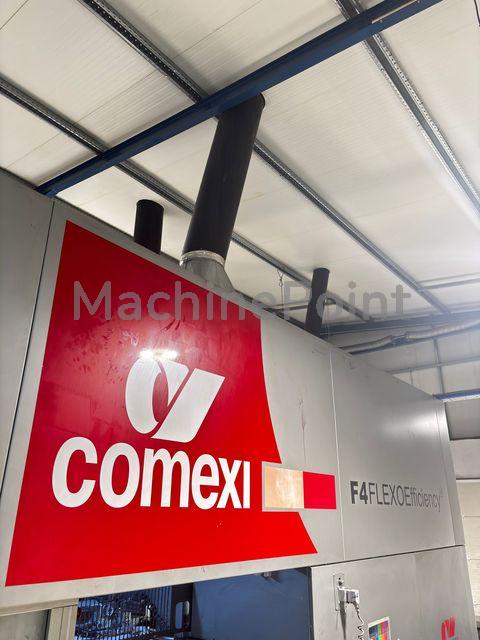

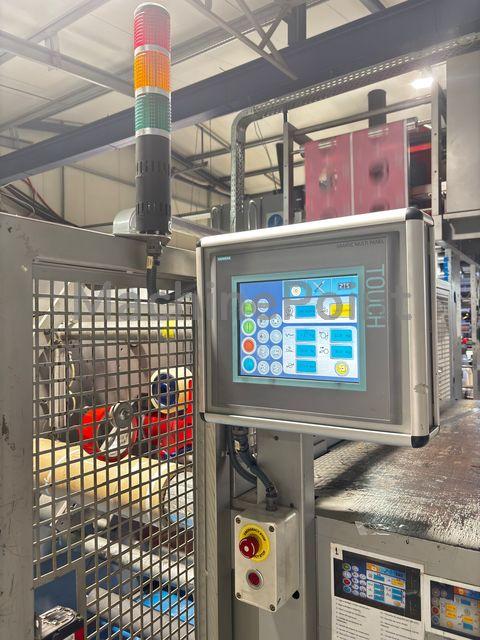

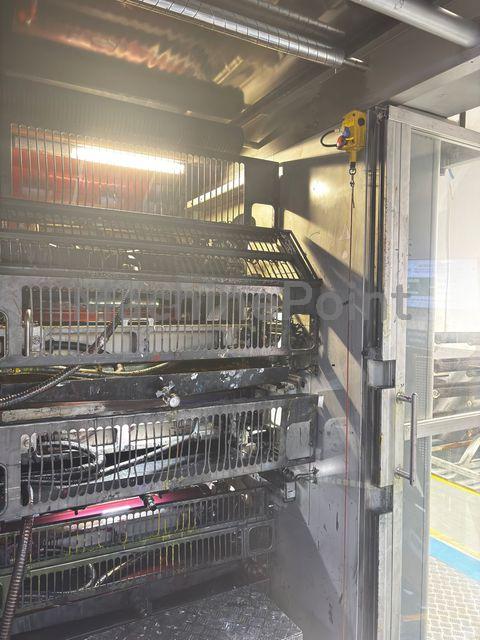

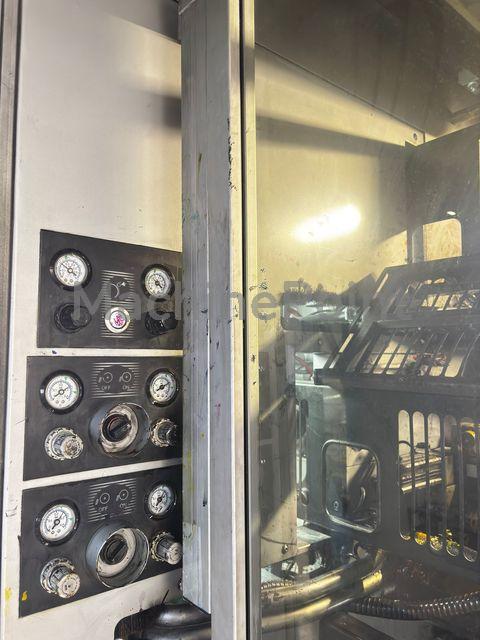

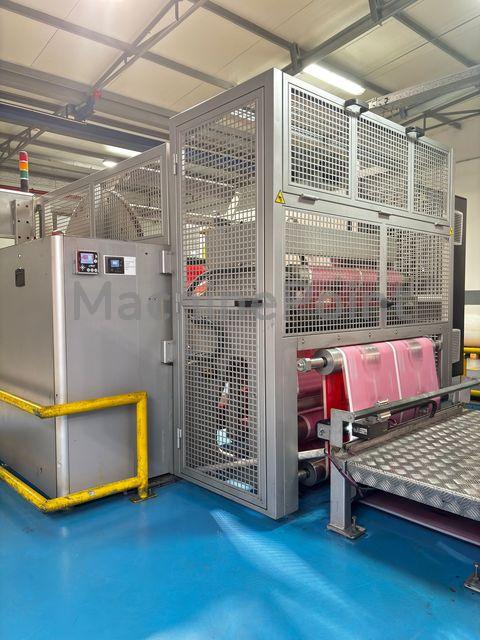

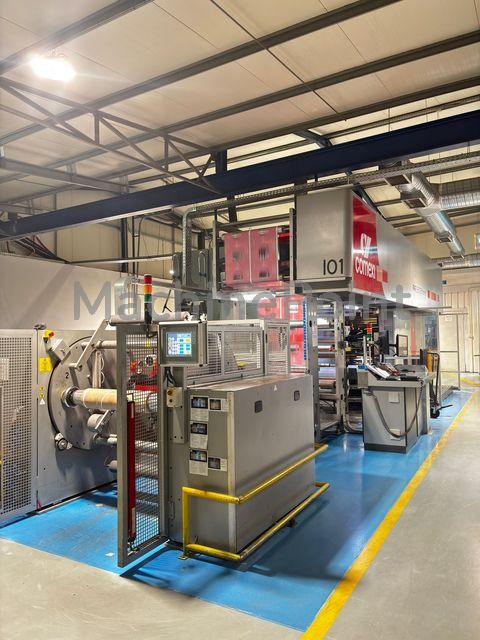

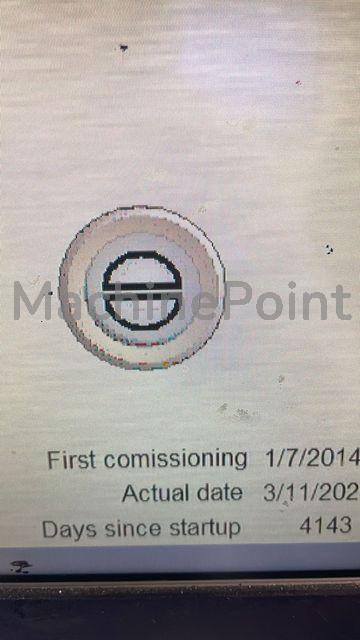

COMEXI - F4FLEXOEfficiency® - Used machine
COMEXI - F4FLEXOEfficiency® - Used machine
COMEXI - F4FLEXOEfficiency® - Used machine
COMEXI - F4FLEXOEfficiency® - Used machine
COMEXI - F4FLEXOEfficiency® - Used machine
COMEXI - F4FLEXOEfficiency® - Used machine
COMEXI - F4FLEXOEfficiency® - Used machine
COMEXI - F4FLEXOEfficiency® - Used machine
COMEXI - F4FLEXOEfficiency® - Used machine
COMEXI - F4FLEXOEfficiency® - Used machine
COMEXI - F4FLEXOEfficiency® - Used machine
COMEXI - F4FLEXOEfficiency® - Used machine
COMEXI - F4FLEXOEfficiency® - Used machine
COMEXI - F4FLEXOEfficiency® - Used machine
COMEXI - F4FLEXOEfficiency® - Used machine
Please accept marketing-cookies to watch this video.

Technical Specifications:

  • Printing Width: 870 mm
  • Web Width: 920 mm
  • Printing Repeat (Max): 600 mm
  • Printing Repeat (Min): 260 mm
  • Drying System: Electrical
  • System: Gearless

Other Specifications:

LDPE - 20μ - 150 μ
LLDPE - 20μ - 150 μ
HDPE - 10μ - 150 μ
BOPP - 12μ - 60 μ
PET - 12μ - 50 μ
OPA - 15μ - 50 μ
CAST PP - 20μ - 70 μ
PAPER 40 - 80 gsm
LAMINATED Film/Film 150 μ

Mechanical speed: up to 300 m/min, depending on substrate, inks, type of print, printing repeat, etc.

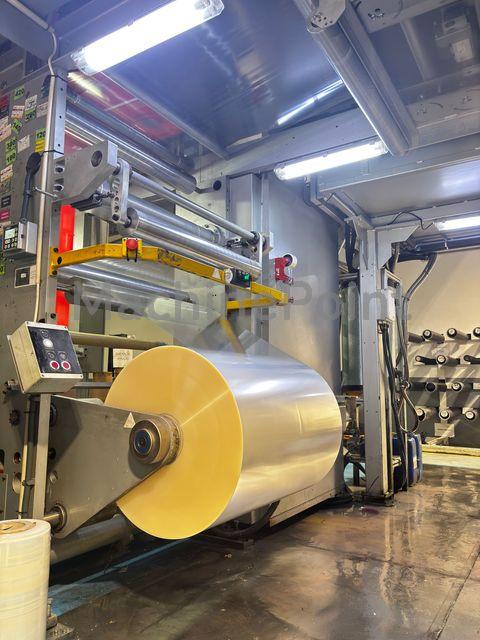

UNWINDING AND REWINDING:
Simple unwinder, shaftless, for diameters up to: 1,000 mm.
Maximum reel weight: 1.000 kg

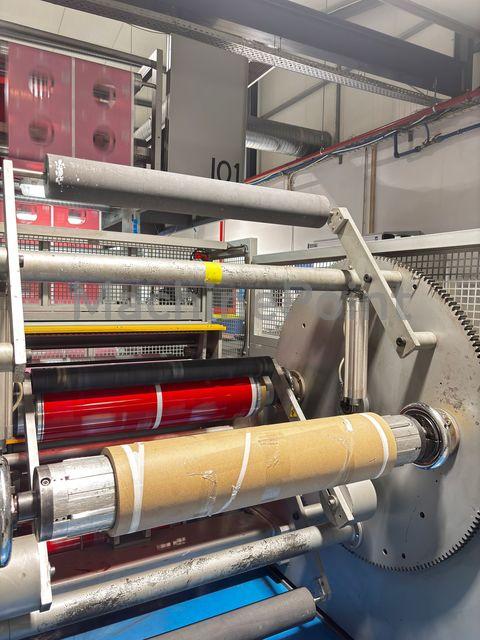

Turret rewinder for diameters up to: 1.000 mm.
Maximum reel weight: 1.250 kg
2 6” (152.4mm) reel shafts.
Tension range:
- Minimum: 20 N
- Maximum: 350 N

1 web guide BST OPG, motorized, ultrasonic cell BEFORE PRINTING. Edge detection
1 web guide BST brand, manual. Edge detection by photocell.
1 AUTOMATIC WASHING WITH A SINGLE PUMP - MODEL EXCITINK EXCEL. Viscometers integrated in the self cleaning. The cleaning of the viscometers is done automatically by the self cleaning system.
Integrated ink temperature control system.
1 CINGULAR DOT ®2. Automatic pressure adjustment with the CINGULAR DOT² system via video camera at the start of each job. The CINGULAR DOT², performs automatic pressure adjustment + register, according to the actual print.
1 CHILLER

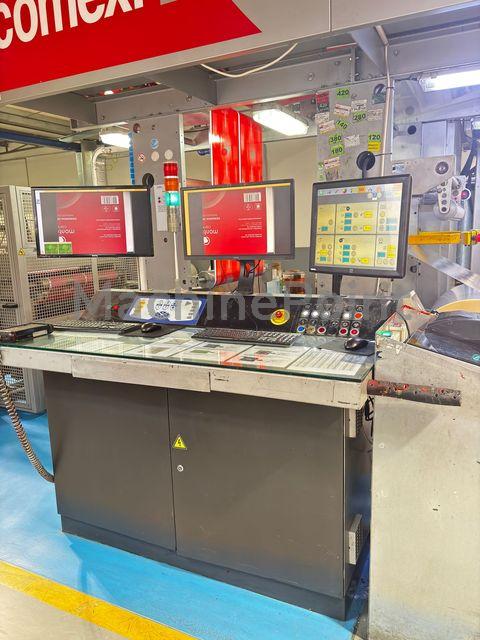

1 VIDEO AVT PRINT VISION PRELUDE

Anilox - Quantity
420 - 7
380 - 1
180 - 1
160 - 2
200 - 1
220 - 1
140 - 1
120 - 2
280 - 1
80 - 1
320 (damaged) - 1
140 (damaged) - 1

192 Sleeves
265x22 (3 are damaged, unusable)
275x8
285x8
300x10
310x8
325x12
340x8
350x10
360x10
380x12
400x8
420x18
440x9
450x8
460x15
480x12
500x14 (1 is damaged, unusable)

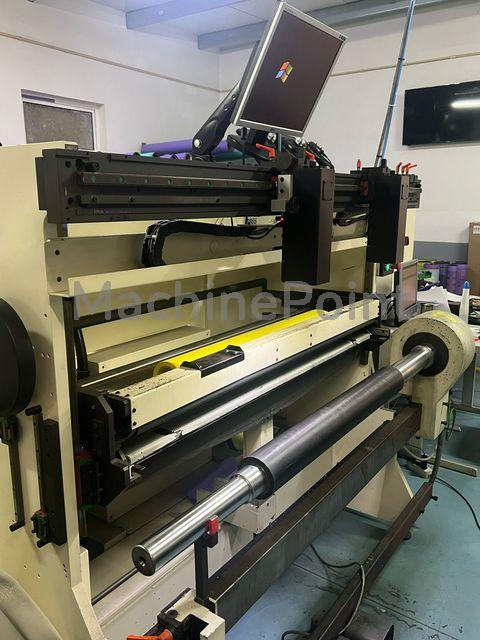

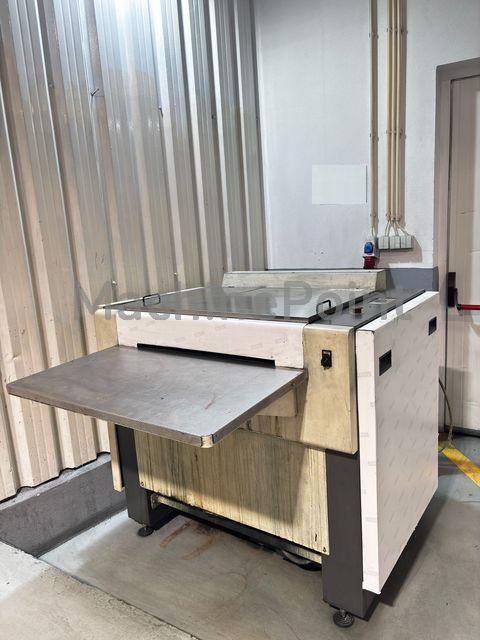

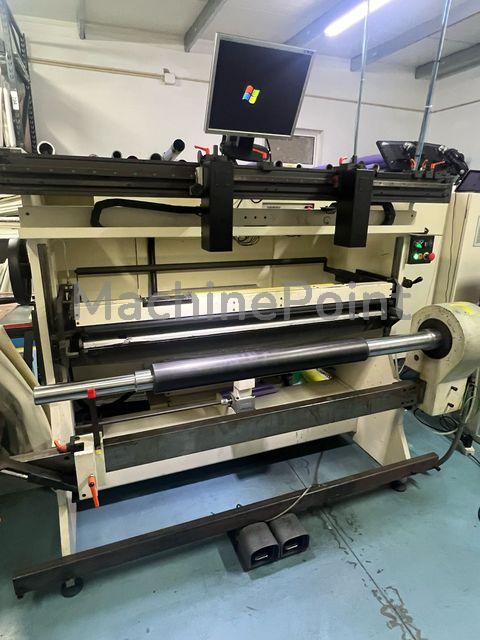

Included : mounter proofer Bieffebi year 2014, washing machine, distiller

Other Details:

Guarantee: Without guarantee

Current condition: In Production

Availability: Immediate

Voltage: 400 V Triphase
Frequency: 50 Hz
