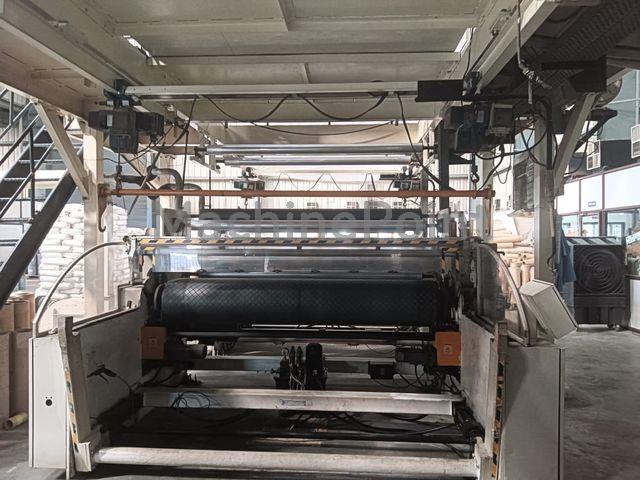

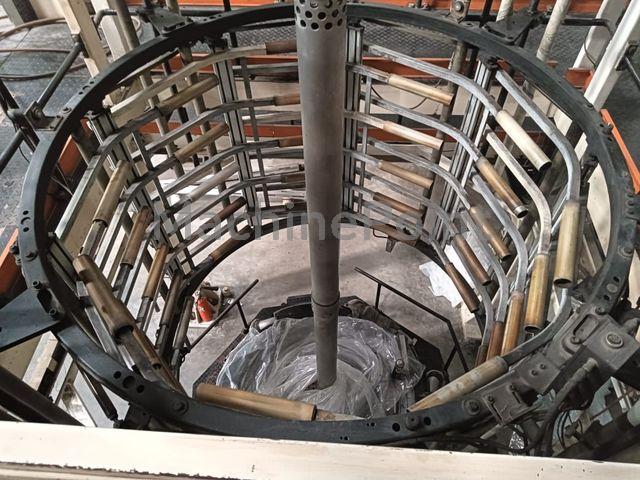

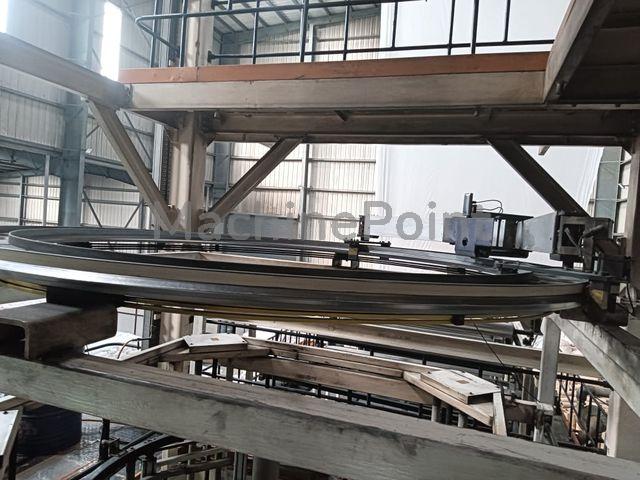

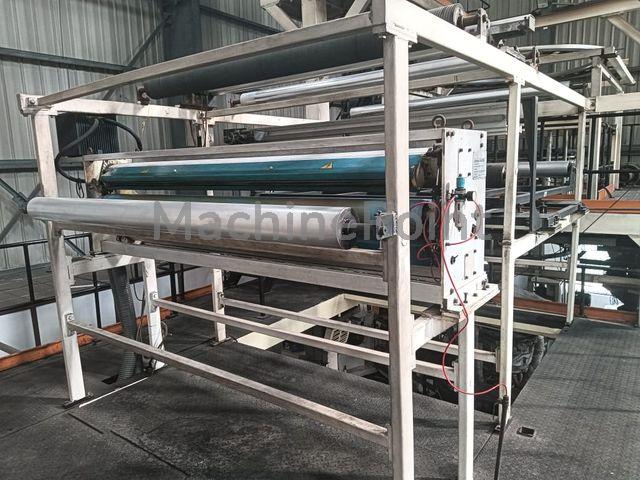

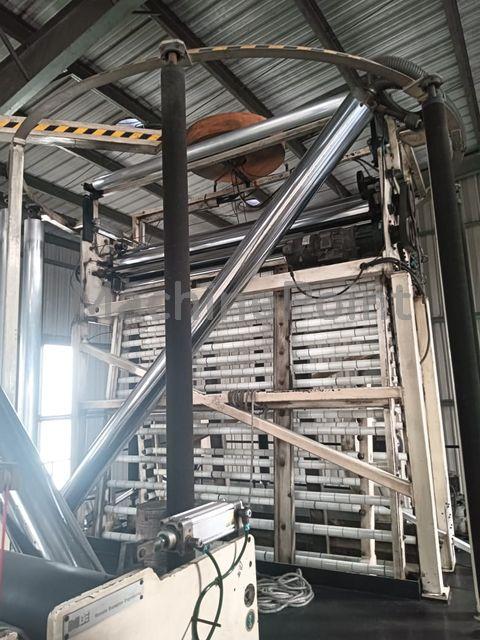

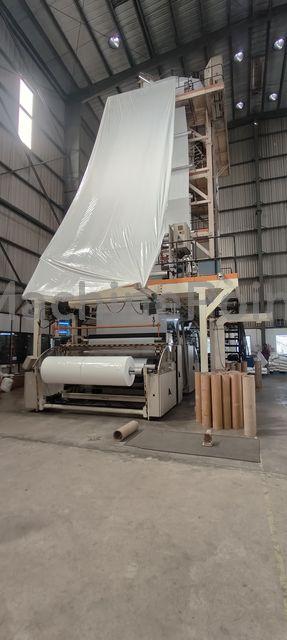

Used Coextrusion lines: MAMATA Coex of 2010

3-side seal bag making machine Type of Bottom seal bags: 3 side seal pouches, Zipper bags,Self-gusseted and stand-up pouches Materials; PET, BOPP, Laminates, LDPE, HDPE, MDPE Pouch width (draw length): Min 75mm – max 225mm Pouch height: Min 100mm – max 285mm Number of lanes: 1 Driving system: PLC controlled Operator interface terminal Print registration control Servo motor driven 2 input nip rollers 5 sealing bars Attachments and Accessories: Driven un-winder 670mm wide Gusseting station Slit-seal Side welder sealer Stacking/index table Presealers Angle sealers Photocell for printed film Web guide unit Anti-static bars Euro punch system Side cut System for easy opening

Very low working hours, as good as new Max speed 250 CPM Off-Wind reel diam. 500 mm Energy consumption 1.35 Kwh Laminates of PET+PE, MET PET+PE, CPP+BOPP Web width 120-770mm Pouch width 50-305 mm Draw length 25-500 mm Film thickness 30-80 microns Off-Wind - AC motor Film Index - AC brushless servo motor Main motor - AC motor

Very low working hours, as good as new Max speed 160 CPM Max. Off-Wind reel diam. 600 mm Laminates of PET+PE, MET PET+PE, CPP+BOPP Web width 200-720 mm Pouch width 100-350 mm Draw length without skip 100-410 mm Draw length with skip 200-820 mm Film thickness 40-140 microns Off-Wind - AC motor Film and rear Index - AC brushless servo motor Main motor - AC motor

Web width (Lay-flat Sheet width) Min. - 300mm and Max. - 1150mm Pouch width- 150 to 500mm Pouch length - 50 to 500mm without skip Pouch length - 200 to 900mm with skip Film Thickness - 40 to 140 micron. Type of pouch. Center seal Side Seal 3 Side Seal Stand up Stand up with zipper Quad seal with gusset Five side seal Suitable material - PET+MET, PET+LD, PET+BOPP No. Of sealers Transverse Sealer 3 Transverse Cooling 1 Horizontal Sealer 3 Horizontal Cooler 1 Unwinder, brake - MANUAL Max. Reel dia. and at unwinder 600mm Webguide - Yes

Side weld Bag making machine. Machine suitable for PP, HDPE, LDPE bags Delta make servo driven index rollers Conveyor, main cutter and Nip roller drive through Induction motor and VFD drives. Seperate winder with manual break for roll with web guide unit Stacking tray
