Used CMG LSW 1800DW of 2011 for sale

2011 | Ref.: 300048680

Coextrusion lines CMG, MachinePoint offers their clients all the services necessary to buy the machine: Transport, dismantling, and legal consultancy.

Data Sheet of Used CMG LSW 1800DW

Ref.: 300048680

Year: 2011

Brand: CMG

Status:

For sale

Delivery time: From date

Ask for machine price Want to sell your machine?

Photos

Technical Specifications:

Materials: LDPE
Film Width (Max): 1750 mm
Output Capacity: 250 kg/h
Number Of Extruders: 3
Layers: 3

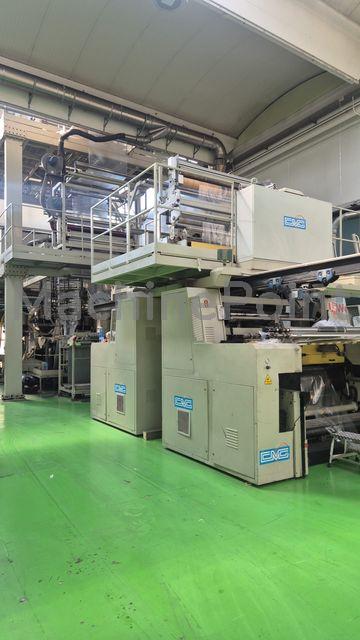

Rewind Unit Type: Back to back

Other Specifications:

Coextrusion line 3 layers

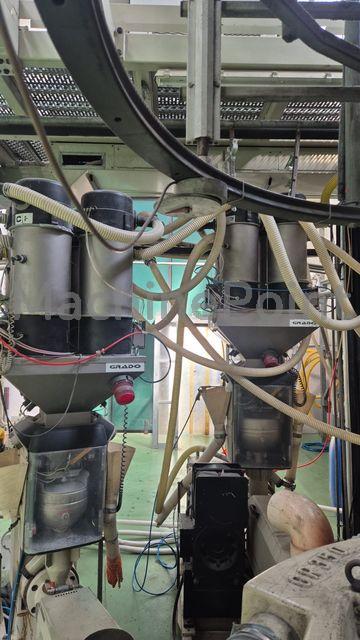

Doteco grado gravimetric units 4components per each extruder
Extruders 55-80-55 mm
Die head 300 mm with IBC

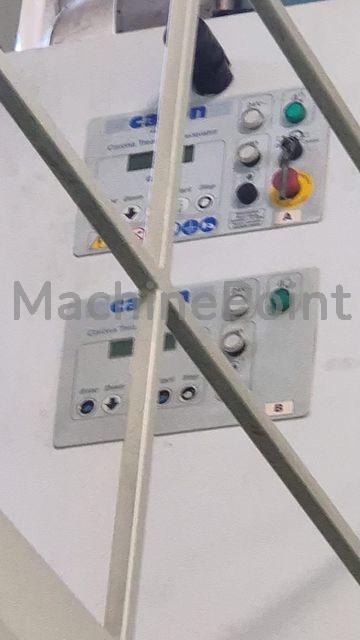

Cason corona treatment

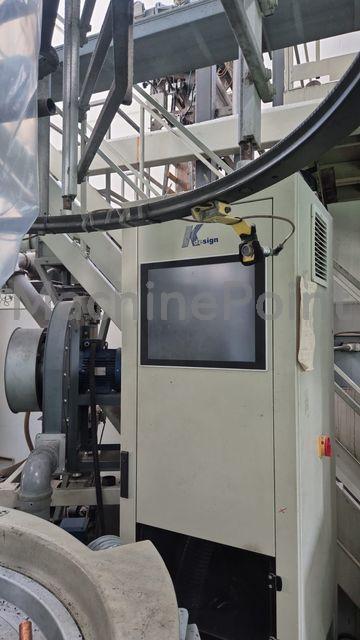

Kundig thickness control system

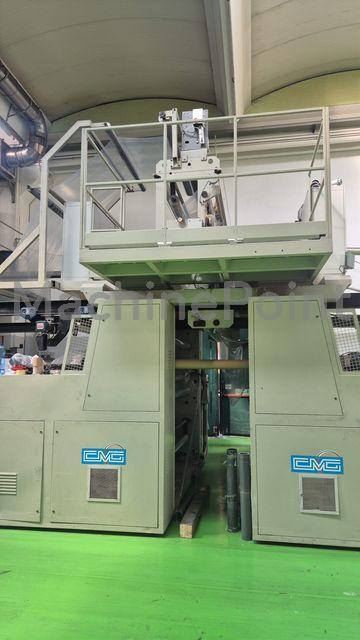

Rotating haul off

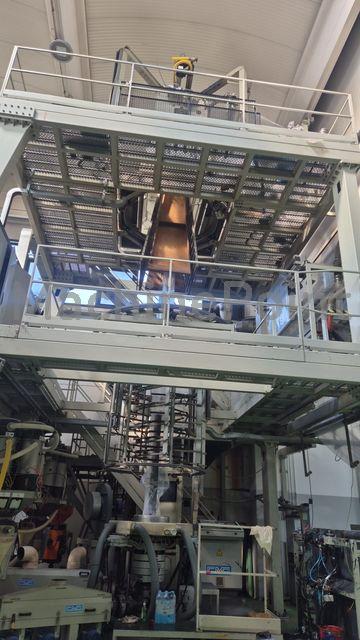

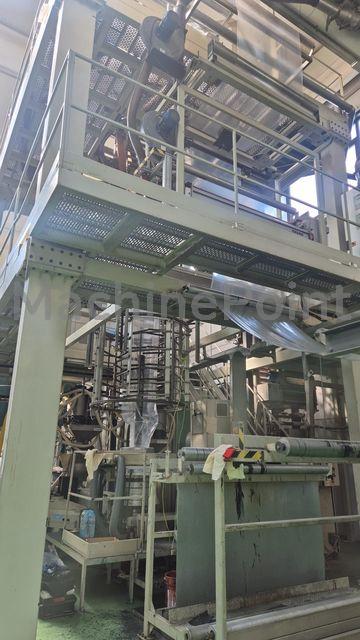

Tower
Thickness 13-200 my

Availability October 2025

Other Details:

Guarantee: Without guarantee

Current condition: In Production

Availability: From date

MachinePoint's services:

Loading and lashing

Packaging

Dismantling

Core Cutting machines

Upgrade your extrusion lines

Refurbishing & Overhauling services

Used Machinery Appraisals

Transport of industrial machinery
