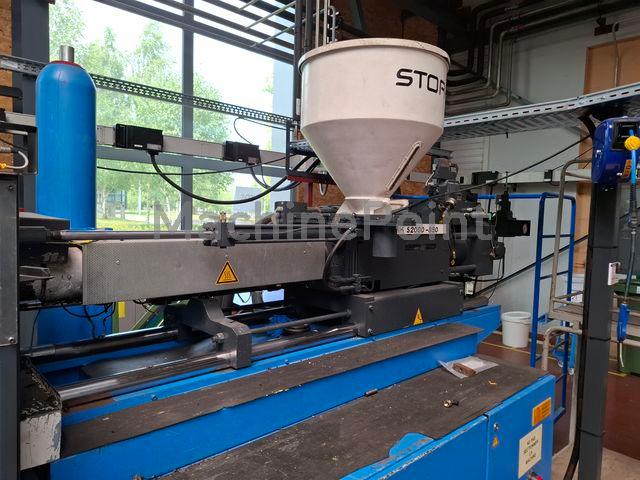

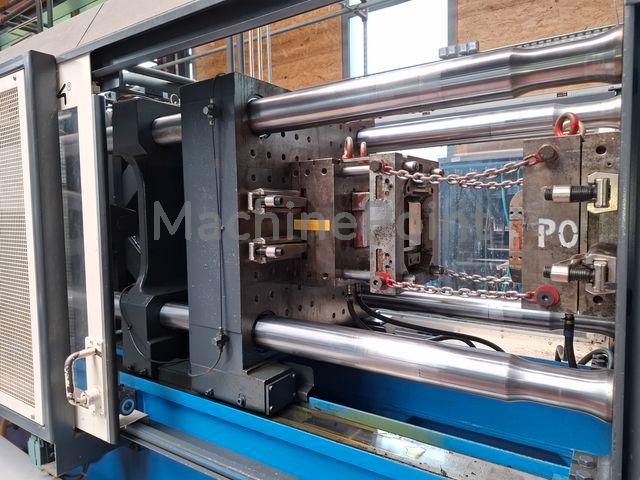

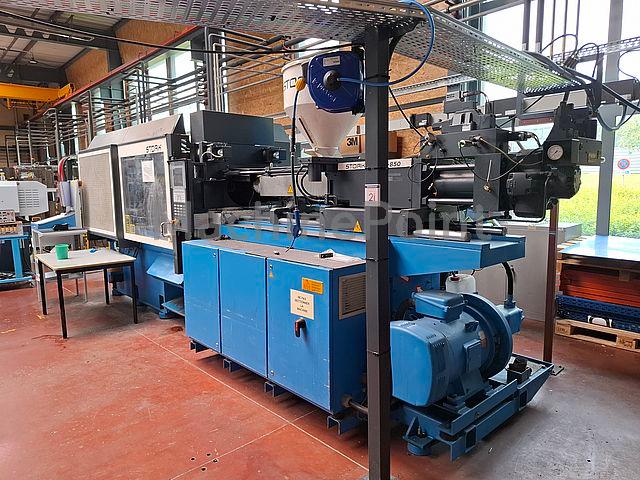

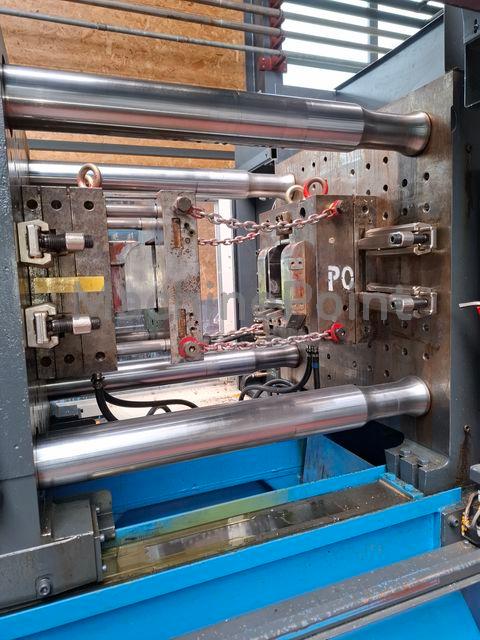

Used STORK SX 2000-850 S of 2002 for sale
2002 | Ref.: 300048683
Injection molding machine up to 250 T STORK, MachinePoint has a multicultural team with world presence to be able to be closer to our clients. We speak over 15 different languages.
Data Sheet of Used STORK SX 2000-850 S
Ref.: 300048683
Year: 2002
Brand: STORK
Status:
For sale
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 200 ton
- Shot Weight (Max): 340 g
- Distance Between Tie-Bars (H): 530 mm
- Distance Between Tie-Bars (V): 530 mm
- Platen Size (H): 830 mm
- Platen Size (V): 830 mm
- Screw Diameter: 45 mm
- Tie-Bar Diameter: 100 mm
- Mould Thickness (Max): 470 mm
- Mould Thickness (Min): 200 mm
- Daylight Between Platens (Max): 1050 mm
- Opening Stroke (Max): 550 mm
- Ejector Force: 5.5 ton
- Ejector Stroke: 235 mm
- Core Pulls: Yes
- Number Of Core Pulls: 2
- Dry Cycle (S): 1.5 s
- Screw Speed: 427 rpm
- Injection Volume: 374 cm³
- Injection Pressure: 2100 bar
- Injection Rate: 1590 cm³/s
- Nozzle Force (Max): 4.9 ton
- Nozzle Stroke (Max): 430 mm
- Plasticising Capacity: 42 g/s
- Heating Zones: 6
- Heating Capacity: 18 kW
- Oil Tank Capacity: 600 l
Other Specifications:
Hours worked : 10.646 h
Other Details:
Guarantee: Without guarantee
Current condition: Not running. Can be shown in dry cycle
Availability: Immediate
Voltage: 400 V Triphase
Frequency: 50 Hz
Voltage: 99 Kw
