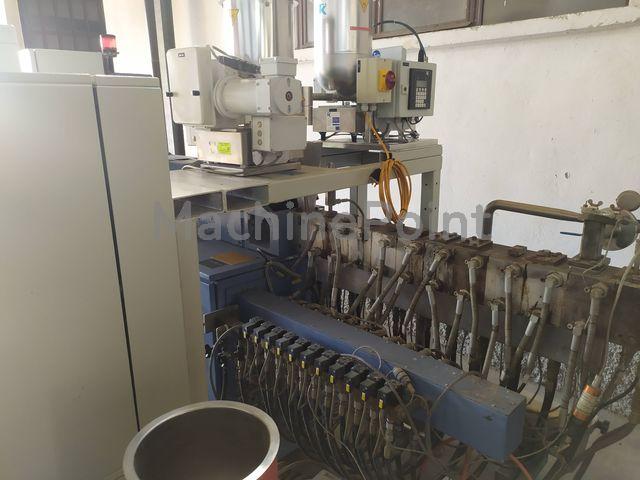

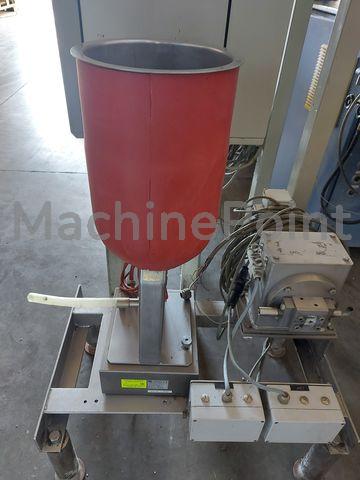

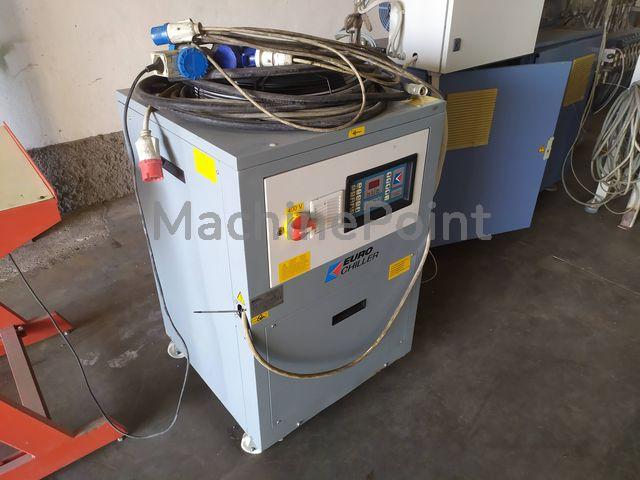

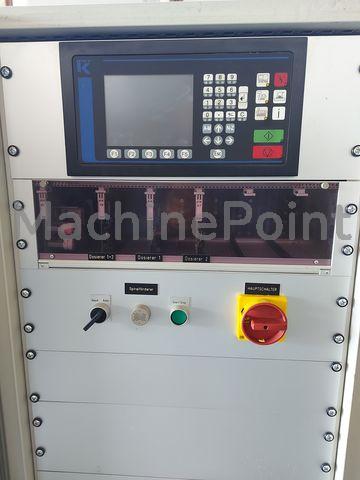

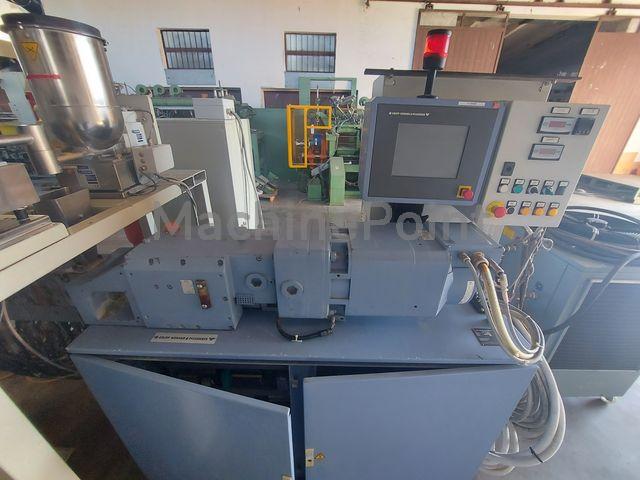

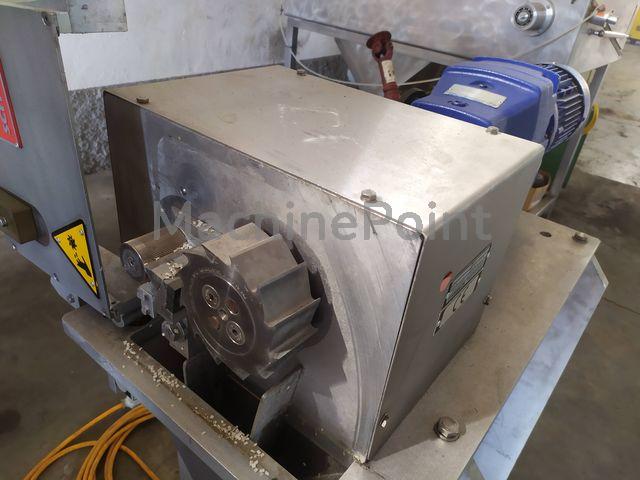

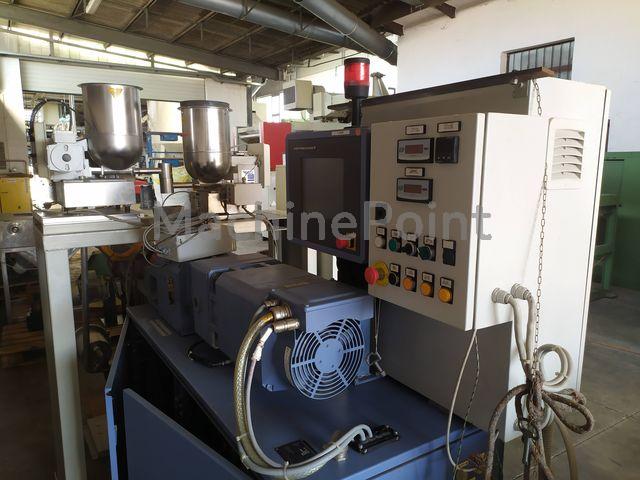

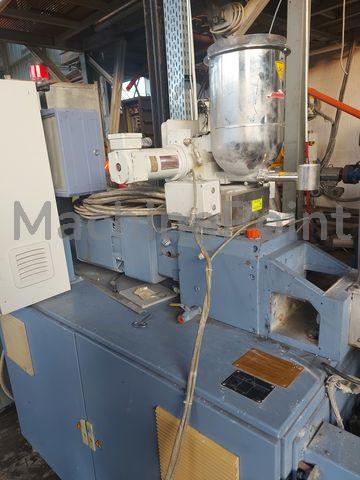

WERNER & PFLEIDERER ZSK 25 WLE of 1999

Twin-screw extruder, co-rotating Werner-Pfleiderer ZSK 70 with all its peripherals, pellet cutting, feeding system AEC HydReclaim, etc -A protection cage for the extruder feeding system. -Column drilling machine -Band Saw - 2m wide belt with motor in the drum, ultra fast: 3m/second. Output 300-600 kg/h depending on material worked

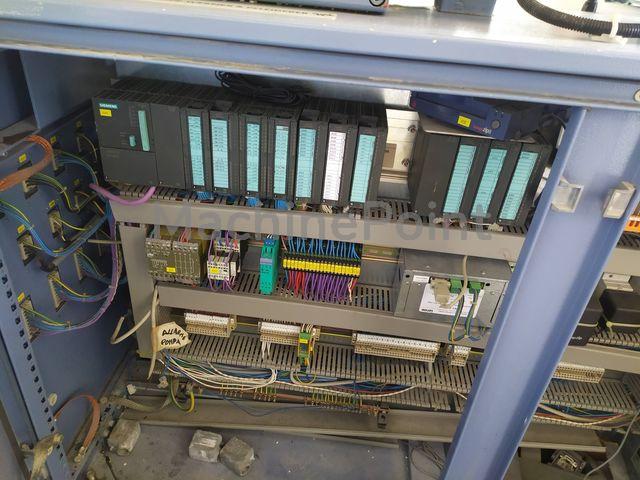

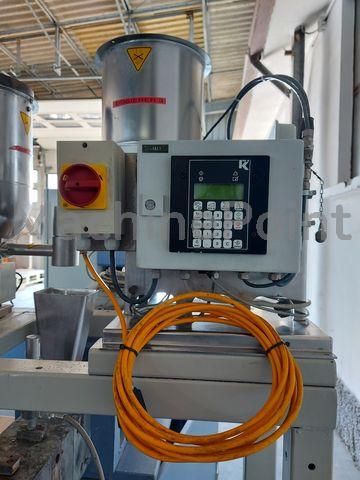

Compounding line ZSK 25 P8.2E Producer: KRUPP WERNER & PFLEIDERER GmbH (Coperion) Compounder ZSK 25 P8.2E Year of production: 2000 Dosing unit: K-Tron Screw diameter: 25 mm Screw flight depth: 4,15 mm Length per barrel section: 1L – 100 mm / 2L – 200 mm Length of processing section (max): 48D Torque per shaft: 82 Nm Max. operating melt pressure: 180 bar Drive power at a screw speed of: 600 rpm – 10,8 kW 1200 rpm – 21,3 kW Max. cooling water pressure: 10 bar Number of heaters: 20 barrerl +1 die-head Power per section: 1L – 2 x 0,5 kW 2L – 4 x 0,5 kW Side-Feeder Coperion ZS-B 25 (2004) Spaghetti Die-head 4-strands: 1 x 0,5 kW Cooling tank Strand pelletizer IPS SG-E 60 (2005) Sieve Dimensions (L x W x H): 2550 x 780 x 800 mm Weight (for 36D): 900 kg Control system: PLC Siemens S7 Output up to: - 100 kg/hour (PP or HDPE with CaCO3) - 60 kg/hour (color masterbatches) Condition: very good, working machine. Demonstration of work at any time. Spare parts set: 5x -heating cartridges, 6x -thermocouples. PRICE ON REQUEST (not included in the offer): Gravimetric dosing unit for pigment and other powder additives. Producer: PULSElectronic (Turkey) Year of production: 2018 Otput: up to 30 kg/hour Mixer: Variable speed Vibromotor Condition: like new

Werner & Pfleiderer extrusion line with Gala pelletiser including: Werner & Pfleiderer extruder ZSK 90, head type B34/76 M240, (1993), 11 zone specification, additional side feed system, rail mounted cutter head. Machine L/D 36. Main drive 320Kw, max speed 300rpm Two Brabender feeders, with infeed hopper(1996) - S & S metal separators with Primus control with exiting pipework.(2010) - With additional auxillary equipment, including dry face cutter head, strand die system, additional spare cutter screening system with hydraulic pack. Gala pelletising system,with stainless steel electrically regulated cooling vessel, with transfer pump, main control panel and NYB extraction fan Forsberg powered vibratory transfer conveyor DCE Unimaster dust extraction unit

MIXER Unit Type Internal mixer - intermeshing rotors Manufacturer HOMRICH (Werner & Pfleiderer) Model LH165 Mixing chamber volume Lt 165 Rpm- rotors g/1' Variable 28.5/31.5 RAM Pneumatic Thermogulation system Sectors Durs ring type Mechanical Start up operation date 1976 Rotors distance mm 565 MAIN MOTOR Unit Feeding AC Manufacturer Ansaldo Model CTF500Y4 Power kW 625 Tension V 380 Rpm rpm 1487 Insulation class IP44 Cooling Air Condition of the machine and Maintenance Machine is in good working condition and will be replaced for a bigger capacity one. The machine has been constantly maintained , in 1996 a complete revamping was made with original WP parts . The maintenance includes the mixing chambers plates, sealing of drop door and durst stop sealing rings, rotors were OK. Dosing System It’s composed by n°10 silos with a capacity of 10 cubic meters each. Screw transporter are installed to load the scales. From scale to mixing chamber the transfer is by gravity. The control system is able to manage the all line including mixing cycles, recipes and materials quantity. Some parts are not included Batch off and Mill Batch off and mill ( are in the pictures ) but are not available to sell. Machine support platform The machines is supported (mezzanine) by means of a steel platform that can be dismounted/re-used , has been designed specifically for this machine and is available to sell with the machine.

Werner & Pfleiderer ZSK 90-40 D Corrotanting extruder Production: LLDPE / CaCO3 -250 kg/h Motor power 132 kW Screen changer NO Side feeder YES no. 4 material feeding hoppers Gear pump Spaghetti die head (year 2010) Granulator RITER USG 150 (year 1997) Granules cooler Ganules fan conveyor Big-bag automatic loader NOTE: Complete Gear pump installed. Control Panel Resotec Machine overhauled in 2010 motor and AC drive New heating system New LLDPE and CaCO3 feeders instaleld With all security elements
