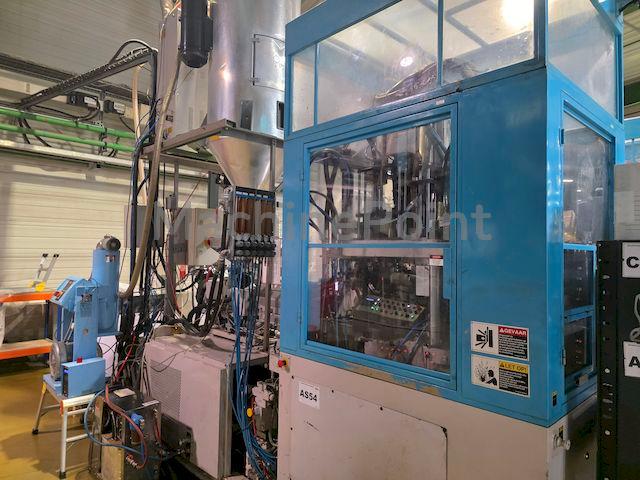

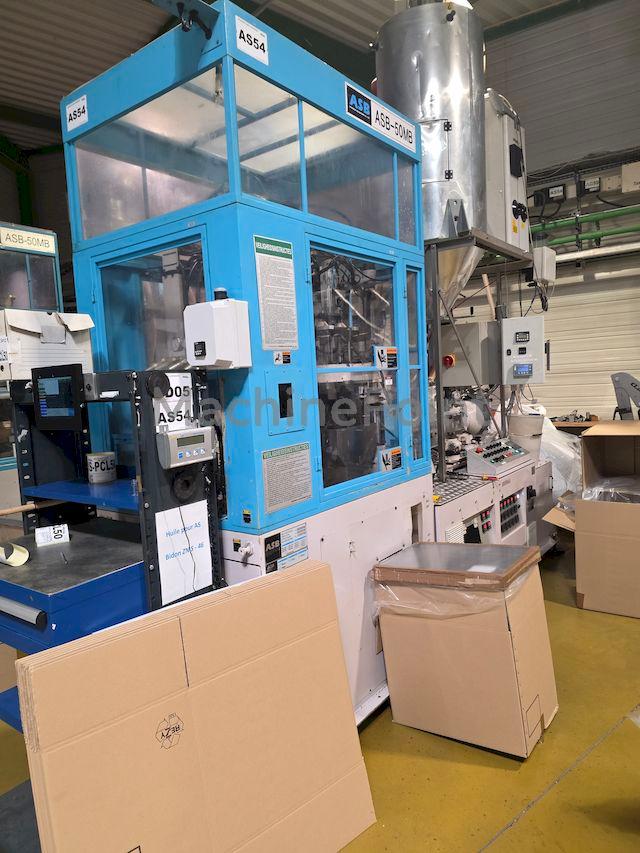

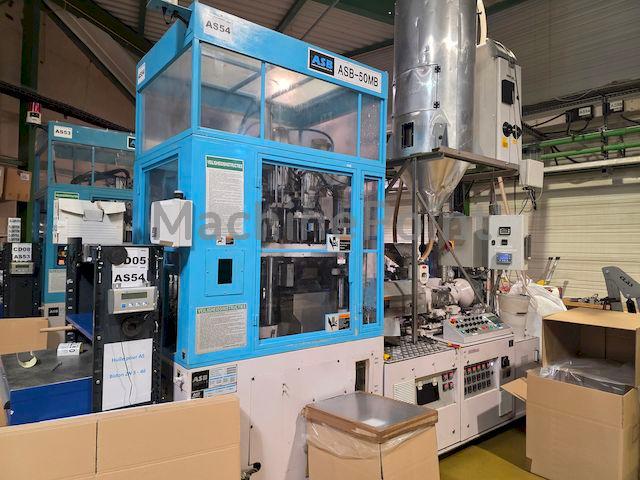

Used NISSEI ASB 50MB V3 of 2009 for sale
Injection stretch blow moulding machines for PET bottles NISSEI ASB, The team at MachinePoint will accompany you through the whole process of buying the machine.
Data Sheet of Used NISSEI ASB 50MB V3
Ref.: 300048838
Year: 2009
Brand: NISSEI ASB
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Container Size (Max.): 2,50 l
Other Specifications:
Injection molding machine Nissei ASB 50MB, year 2009
Included:
- Dryer
- Auto loader
Injection Clamping force: 60 kN.
Screw diameter: 44 mm.
Cavity Number: 1-6 .
Capacity max.: 0,03 l- 2,5 .
Thread Diameter max.: 17 - 63 mm.
Neck Diameter max.: 15 -60 mm.
Support Ring Diameter max.: 17 - 63 mm.
Body Diameter max.: 35 - 115 mm.
Width Parting Line max.: 35 - 145 mm.
Height max.: 150 - 300 mm.
Weight max.: 22g - 129 g.
Injection volume: 153*2 cm³.
Blow Clamping Force: 78 kN.
Oil tank capacity: 250 l.
No molds included
In production and available immediately!
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
Frequency: 50 Hz
