Used NISSEI ASB 50MB V2 of 2006 Container Size (Max.): 2.5 l for sale
Injection stretch blow moulding machines for PET bottles NISSEI ASB, We provide a quality service in the buying and selling of used machinery, with all the services necessary to achieve a successful transaction.
Data Sheet of Used NISSEI ASB 50MB V2
Ref.: 300048839
Year: 2006
Brand: NISSEI ASB
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Container Size (Max.): 2.5 l
Other Specifications:

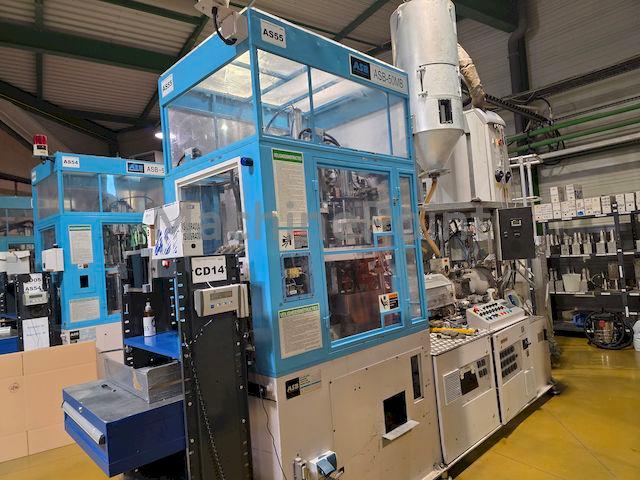

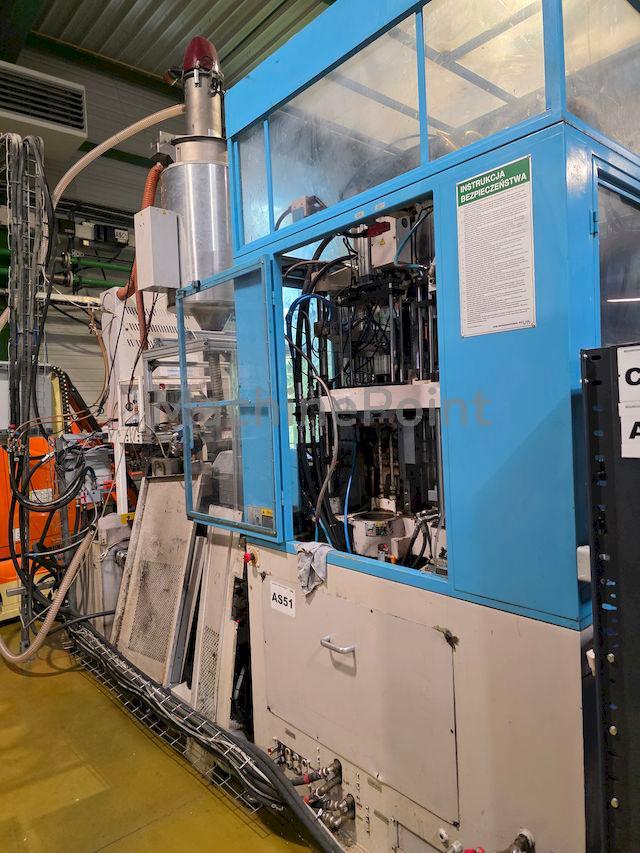

Injection molding machine Nissei ASB 50MB, year 2006
Included:
- Dryer
- Auto loader
Injection Clamping force: 60 kN.
Screw diameter: 44 mm.
Cavity Number: 1-6 .
Capacity max.: 0,03 l- 2,5 .
Thread Diameter max.: 17 - 63 mm.
Neck Diameter max.: 15 -60 mm.
Support Ring Diameter max.: 17 - 63 mm.
Body Diameter max.: 35 - 115 mm.
Width Parting Line max.: 35 - 145 mm.
Height max.: 150 - 300 mm.
Weight max.: 22g - 129 g.
Injection volume: 153*2 cm³.
Blow Clamping Force: 78 kN.
Oil tank capacity: 250 l.
No molds included
In production and available immediately!
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
Frequency: 50 Hz
