BUSS COMPEO BCC 88-25 MT-0 of 2022
Co-kneader extruder BUSS, In MachinePoint we work so that our buyers receive a professional service and so the transaction is safe.
Data Sheet of Used BUSS COMPEO BCC 88-25 MT-0
Ref.: 300048847
Year: 2022
Brand: BUSS
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Number Of Screws: 1
- Screw Diameters: 88
- Screw L/D Ratio: 25
- Degassing System: Yes
- Side Feeder: Yes
Other Specifications:
Production data:
The line BUSS COMPEO BCC 88-25 MT-0 is designed for producing the following types of masterbatch compounds, with a typical output of:
Black Masterbatch based on HDPE with up to 40% of CB: 750 – 850 kg/h
Black Masterbatch based on LDPE with up to 40% of CB: 800 – 900 kg/h
(Output rates can vary according to raw material used. Humidity of raw material used should not exceed 0.5% absolute humidity.)

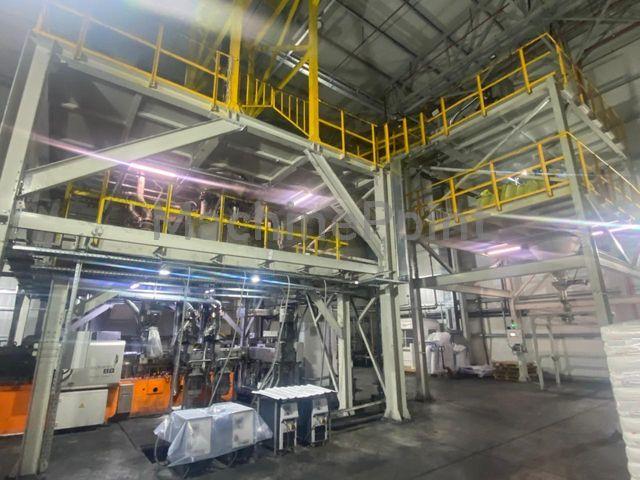

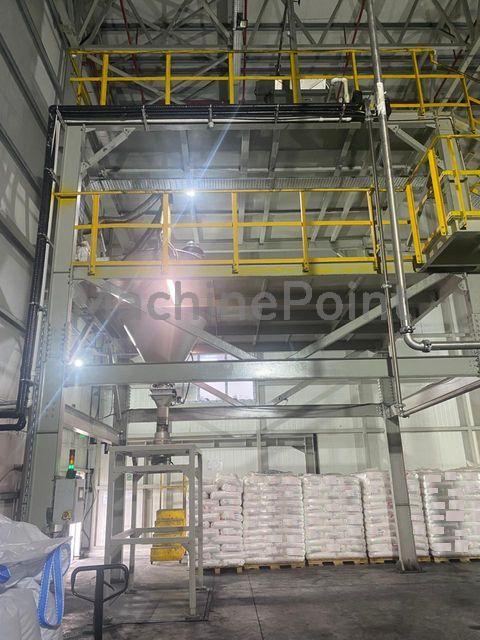

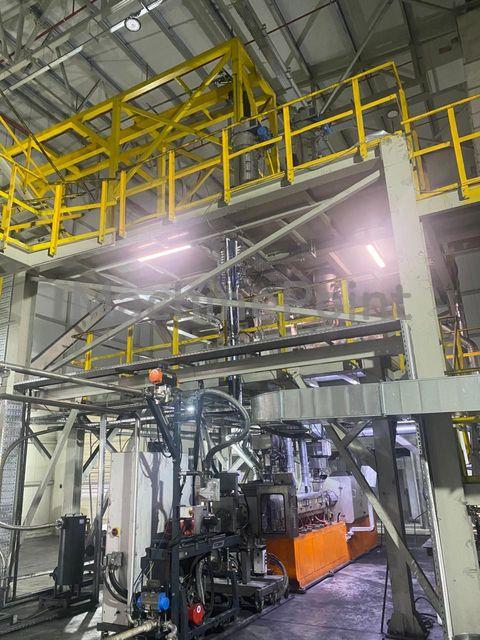

Line composition:

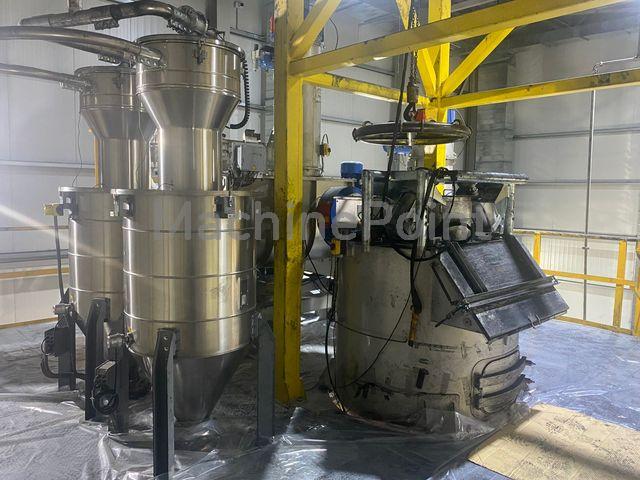

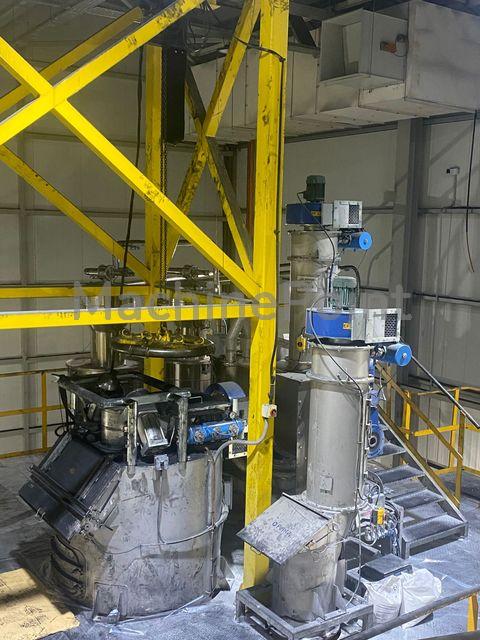

Hoppers: PE (2 pcs.) + ADD (2 pcs.) + CB (2 pcs.)

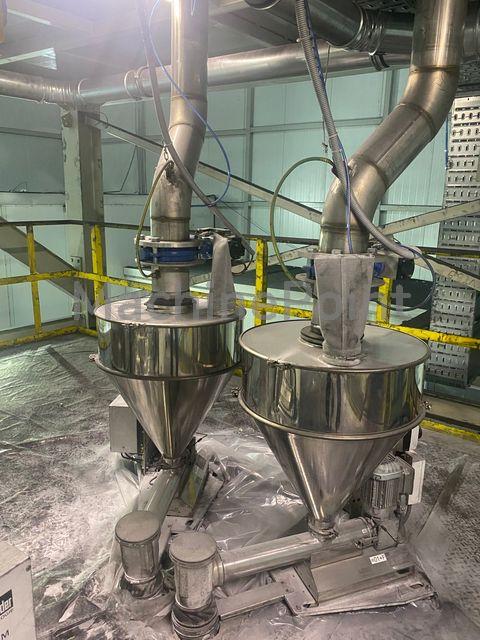

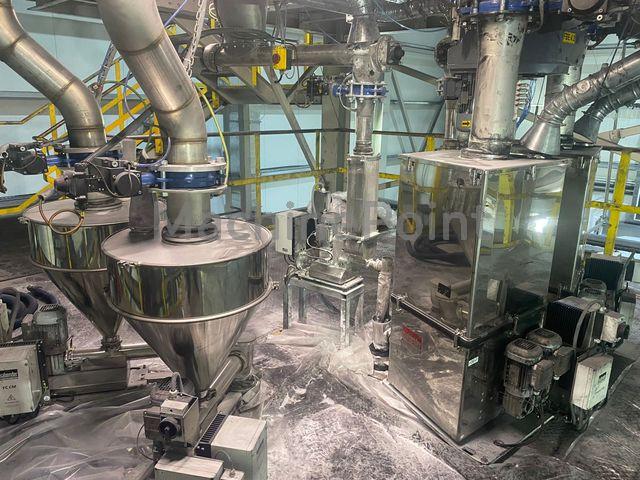

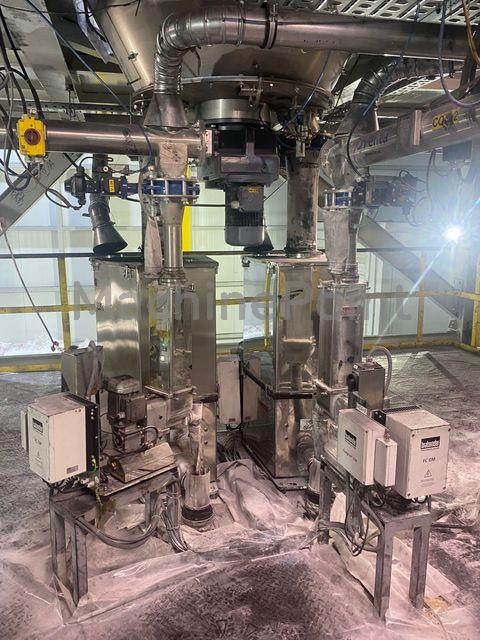

Gravimetric dosing units Brabender: PE (2 pcs.) + ADD (2 pcs.) + CB (2 pcs.)

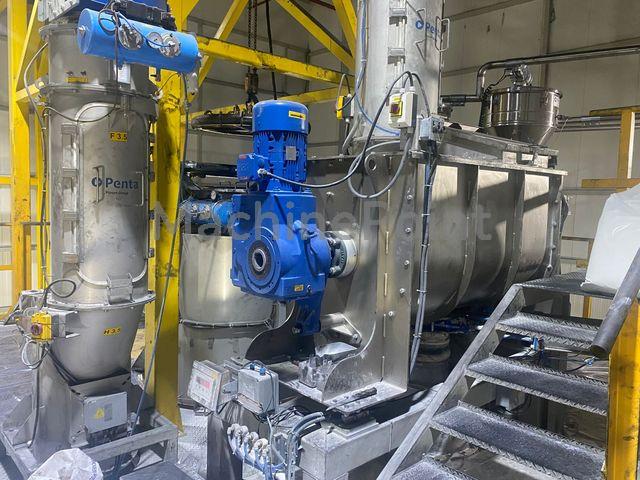

Horizontal mixer for ADD (1 pcs.)

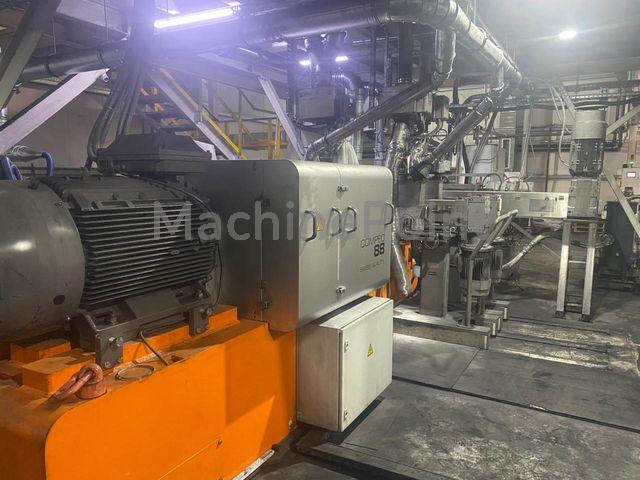

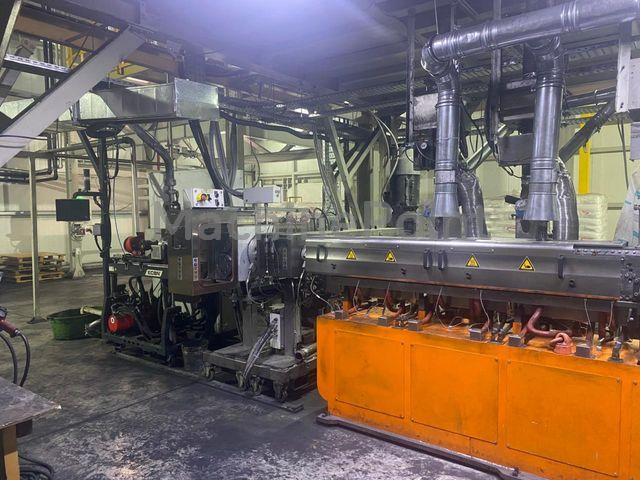

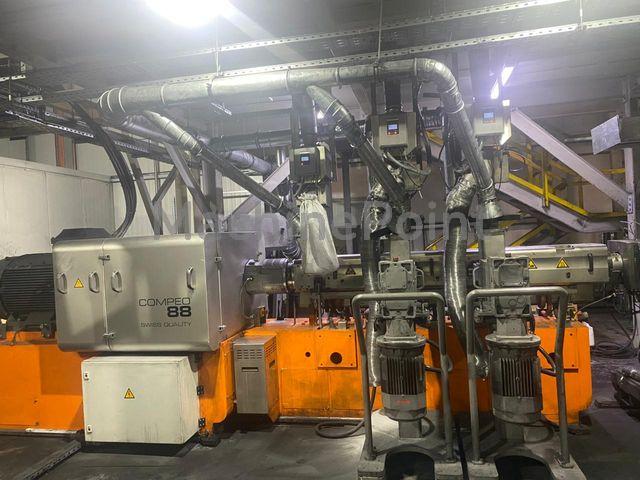

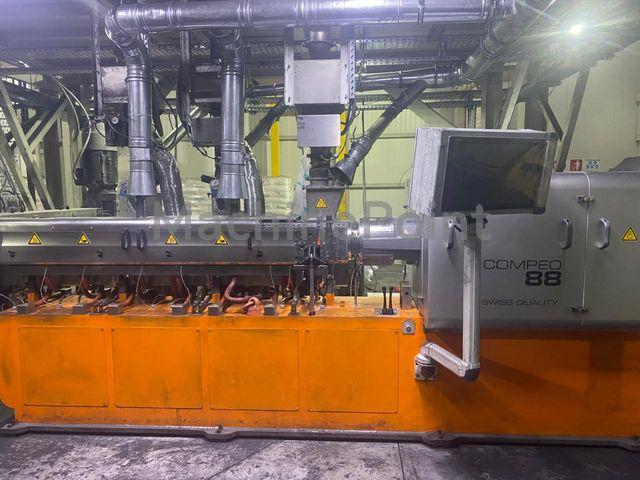

Extruder: BUSS COMPEO BCC 88-25 MT-0
Screen changer: MAAG CSC148PE
2 side feeders
Running hours: 3665

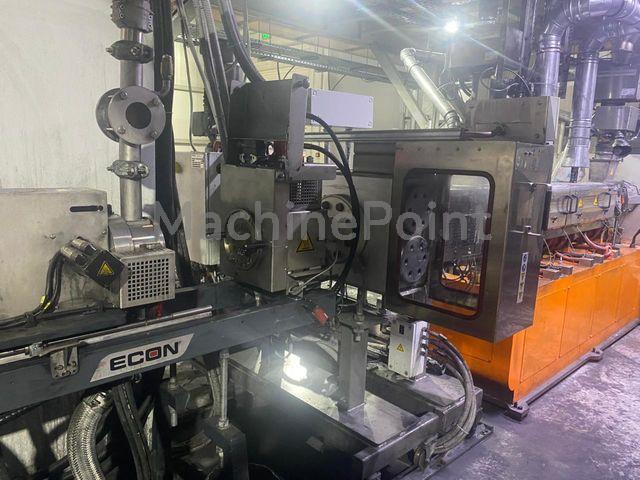

Underwater die head cutting system: ECON EUP 600 (2022)

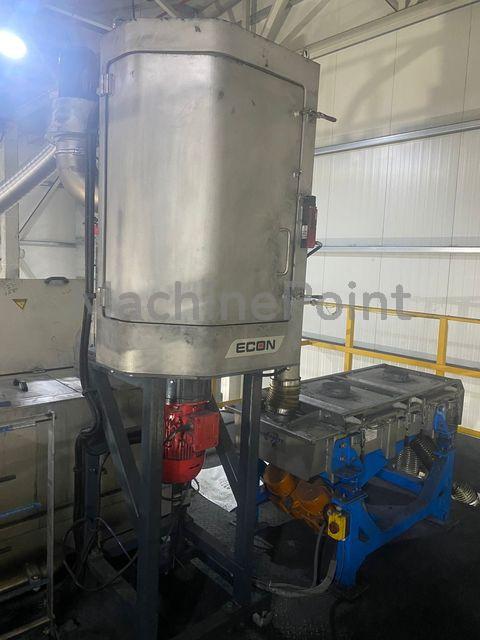

Granulator: ECON EWT 350 (2022)

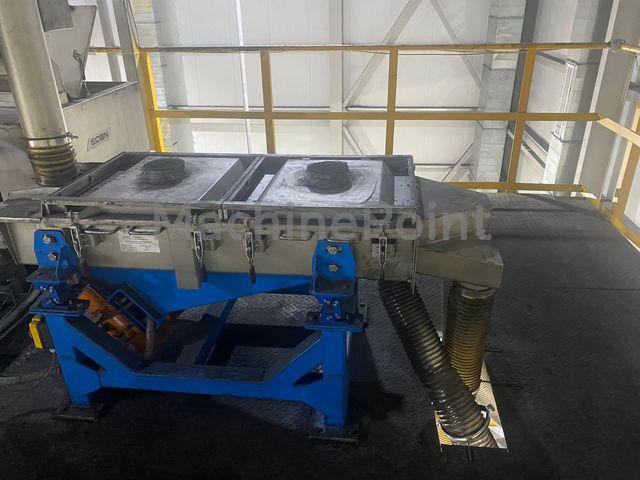

Granule cooler
Granule blower
Electronic scales
Silos Penta (2 m3 or 1000 kg).
Other Details:
Guarantee: Without guarantee
Current condition: Not running. Can be shown with material
Availability: Immediate
Voltage: 400 V Triphase
Frequency: 50 Hz
