Used ARBURG ALL-ROUNDER 275 V 250 - 70 of 2018 for sale
Injection molding machine up to 250 T ARBURG, In MachinePoint we work so that our buyers receive a professional service and so the transaction is safe.
Data Sheet of Used ARBURG ALL-ROUNDER 275 V 250 - 70
Ref.: 300048957
Year: 2018
Brand: ARBURG
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 25 ton
- Shot Weight (Max): 3 g
- Screw Diameter: 22 mm
- Mould Height (Max): 452 mm
- Mould Height (Min): 145 mm
- Opening Stroke (Max): 225 mm
- Ejector Force: 1.6 ton
- Ejector Stroke: 60 mm
- Injection Volume: 34 cm³
- Injection Pressure: 2000 bar
- Nozzle Stroke (Max): 40 mm
- Oil Tank Capacity: 80 l
- Orientation: Vertical
Other Specifications:

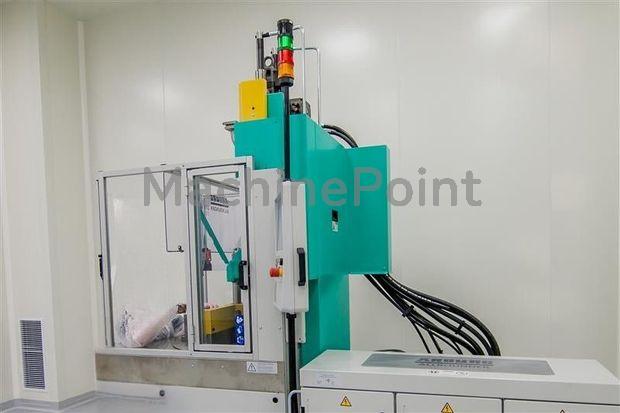

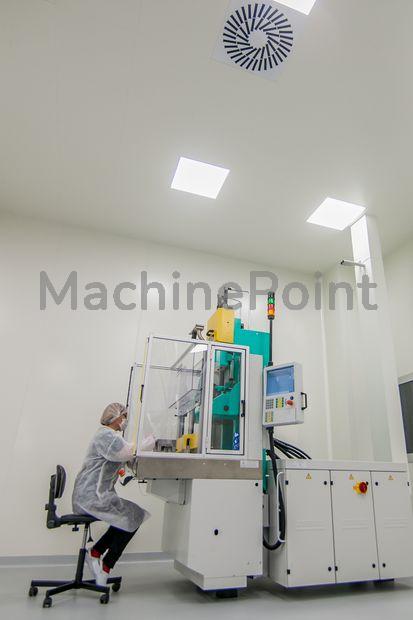

The machine is permanently located in a clean room.
Working hours: 300 – only used for testing purposes.

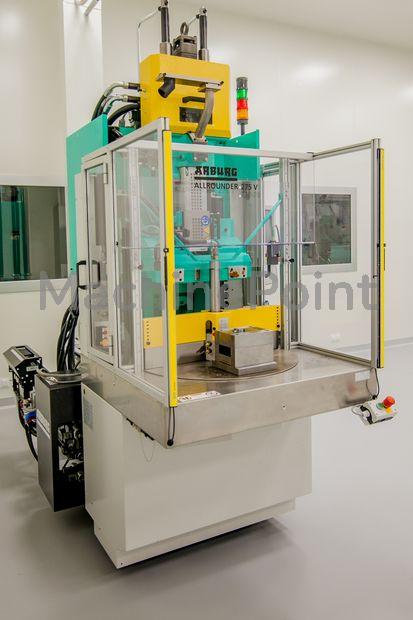

ALLROUNDER 275 V 250 - 70 with rotary table
Table diameter: 750 mm
Rotary running time 1,7 s
Clamping force: max. 250 kN
Injection unit: acc. to EUROMAP 70
Tool height (min.): 127 – 227 mm
Distance between platens (max.): 352 – 452 mm
Tool opening: max. 225 mm
Technical equipment:
1 x 22 mm plasticizing unit (without nozzle), wear-resistant version with tungsten carbide check valve — suitable for thermoplastics with high abrasive/corrosive filler content and high processing temperatures
Standard double-key screw coupling
22 mm open nozzle (without heating band)
Flat injection nozzle tip (standard)
Heating band for injection nozzle
8 L stainless steel hopper
Special equipment:
Spring-loaded needle shut-off nozzle (22 mm)
Heating band for needle nozzle
Control system upgrade: switch from injection to holding pressure based on hydraulic pressure (enables cavity deactivation in multi-cavity molds)
Kit for injection into the mold parting line (for vertical clamping unit)
Scissor table for positioning the injection unit (to align with parting plane)

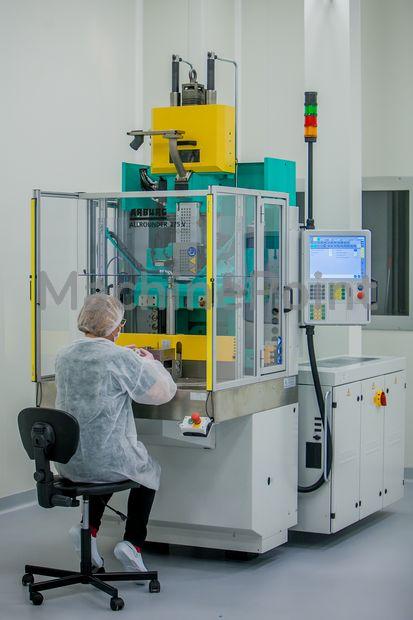

SELOGICA control system:
15” color TFT touchscreen monitor
Graphical programming of the machine cycle
Automatic recognition of connected devices
Patented real-time program verification system
Integrated quality monitoring with graphical error analysis
Water-cooled control cabinet with automatic temperature regulation
Multilingual interface (local language, German, English)
Extended machine monitoring software package
Advanced machine control software package
External cycle start button
Two extra power sockets (380V and 220V)
Other Details:
Guarantee: Without guarantee
Current condition: Not running. Can be shown in dry cycle
Availability: Immediate
Voltage: 14 Kw
