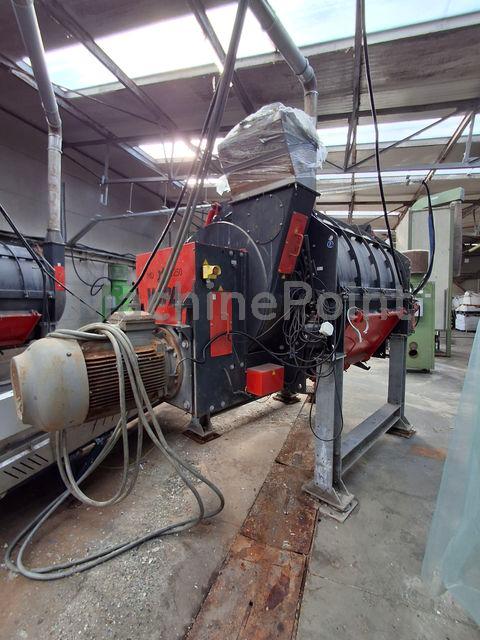

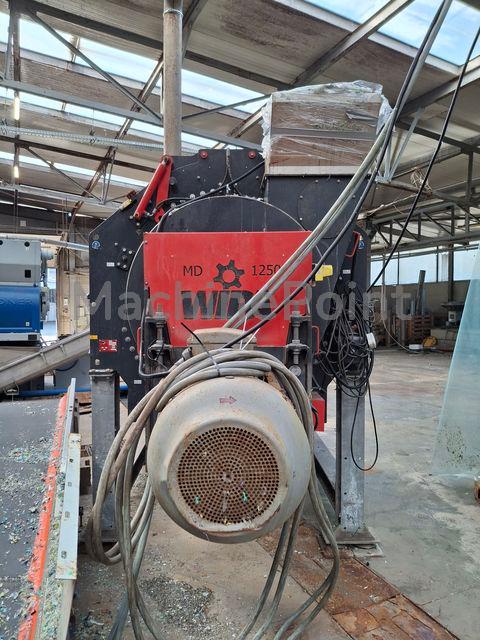

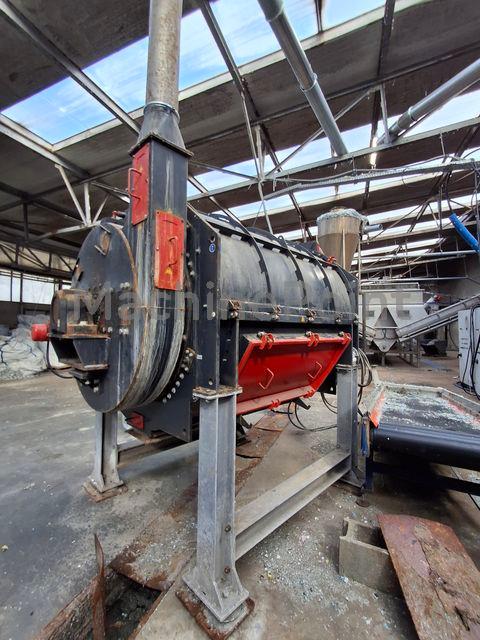

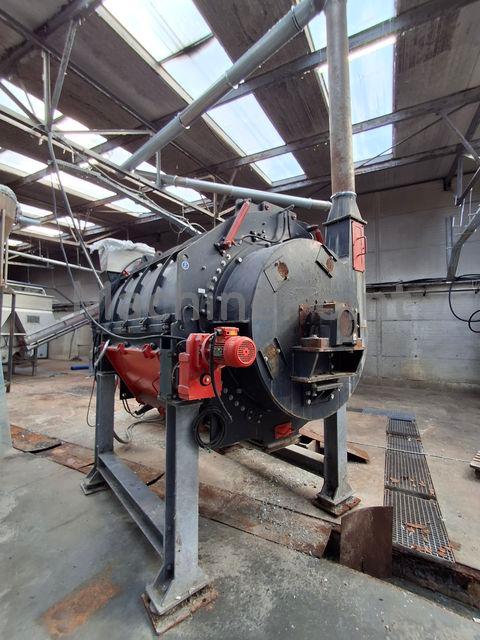

Used WIPA MD1250 of 2021 for sale

Plast Compactor PC 700/250 for sale Machine manufacter: WIPA Werkzeug&Maschinenbau GmbH Working hours: 9100 Output up to 1.000 kg/h. Materials: PE/PP The machine is equipped with a rotary valve for fine material return, agglomerate cooling and with software integration of the agglomerate cooling into the control cabinet. Grinder, wind sifter and double bigbag station can be sold separately if required. The Plastcompactor has just been repaired, kneading bars and spindle adjustment replaced and everything readjusted, and a test run carried out. The system has not been run since then. The motor of the Dreher regrooving mill was replaced in 2014. CE Certified Machine Manuals available

Less than 1500 hours working hours The WiPa Plast Compactor Type PC is an agglomerator for gentle densification of plastics with low bulk density, for example: • fibres • film • stretch film • foamed materials • powder • fine particles Output capacity depends a lot of type material (see chart) Output of 1600kg/h mentioned in offer is max. for PE Film (350g/l) for instance 1 Plast-Compactor Type PC 700/250 Consisting of: ++Feeding Unit of the Plast-Compactor Type PC 700 : Circular Buffer Tank with 2 level indicators, a service door, two windows and an agitator in the buffer container guarantees permanent filling of the feeding screw and prevents bridging. The Feed Screw is mounted on generously sized rail system. That allows to decouple the Feeding Unit from the Plast-Compactor, for cleaning or maintenance, even with strong contamination. Feed screw driven by a direct drive. The feed screw is divided in 2 pieces consisting of a bearing part and the transportation part. The feeding unit is quickly and easily accessible for cleaning and maintenance. Size / Volume ca. 3 m3 Material normal Steel Drive Agitator 4kW Drive feeding screw 22 kW. ++WiPa Plast-Compactor Type PC 700/250 The WiPA-Plast Compactor of the PC series is used for gentle processing of thermoplastic materials. In a continuous process the material is heated to its specific softening temperature area which is below the corresponding melting point. The result is a high-quality agglomerate with high bulk density, easy to dose, with lowest possible thermal damage. The feeding screw pre-compacts the plastic to be recycled and feeds it to the Plast-Compactor's disc pair. Kneading and rolling between the discs creates friction heat and plasticise, sinters and compresses the material. Housing: heavy welded steel sheet construction. Compactor discs: Disc diameter : 700 mm Material: surface hardened special tool steel Main Drive: V-belt with guard for V-belts Main Motor 1 x P = 250 kW, n = 1000 min-1 ++ Central Discharge System for PC 700 Discharge of the agglomerate out of the Disc Housing of the Plast Compactor * 1 central fan, Power 1 x P =11 KW * capacity ca. 3.300m3/h * Material inlet diam. 200 mm * Material outlet diam. 200 mm ++ Electrical Control / Switch Cabinet Electrical Control of the Plast-Compactor full automatic operation.
