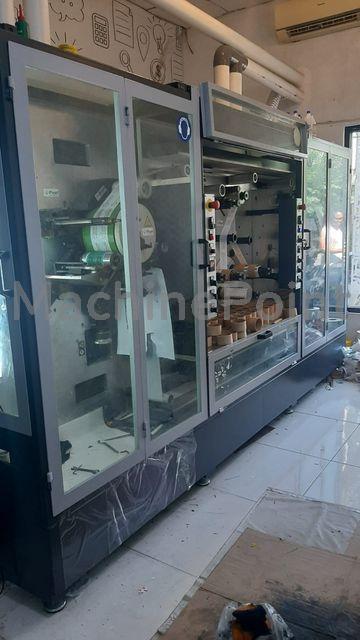

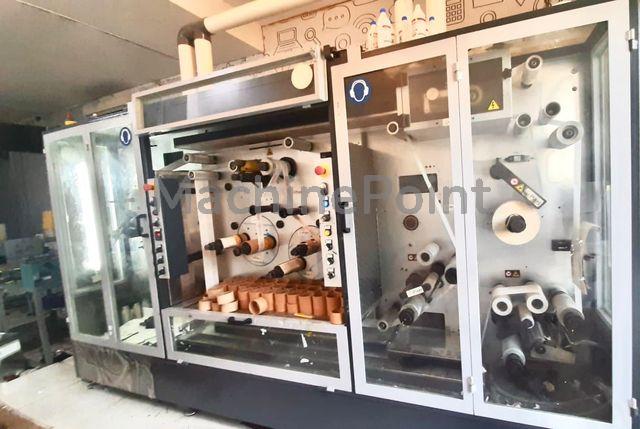

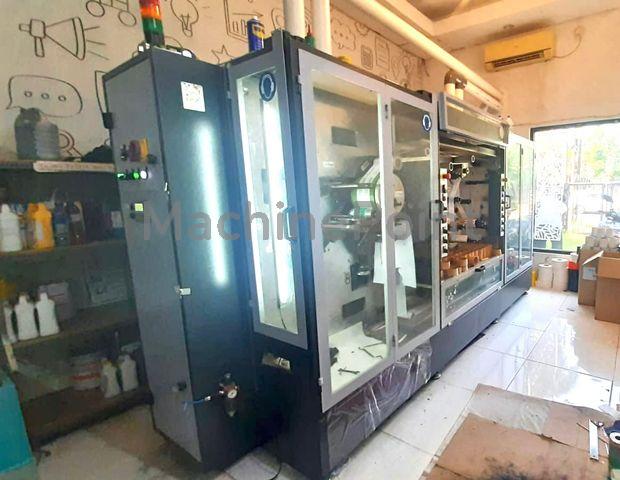

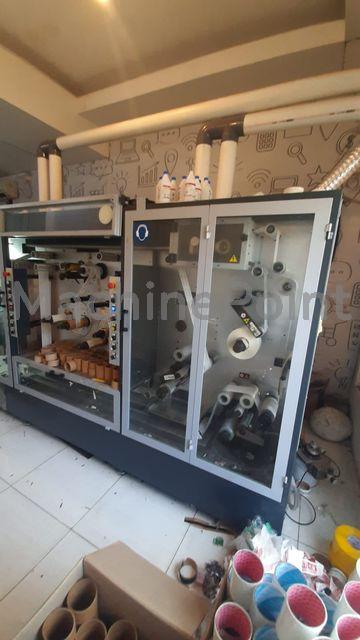

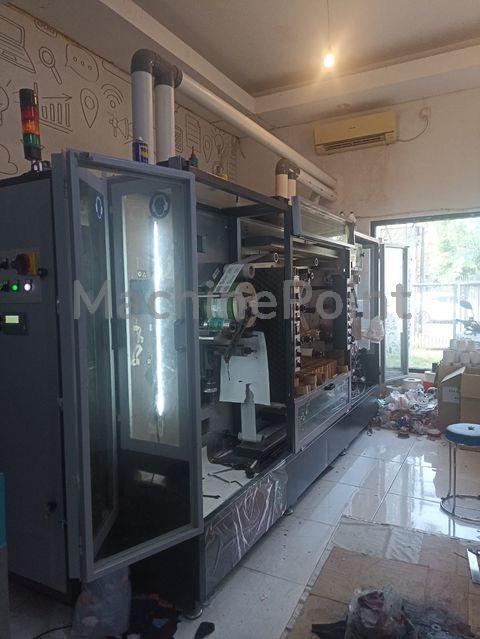

Used SIAT L36 150-TC-CE of 2022 for sale

Max. roll diameter in the unwinder: 400 mm Max. roll diameter in the rewinder: 350 mm Printing repeat: up to 369 mm Unwinder shaft diameter: 76,5 mm (3”) Rewinder shaft diameter: 76,5 mm (3”) Drying system: hot air Ink types: Solvent, Alcohol, Water based Materials: BOPP tape, Masking tape, Aluminium tape, Duct tape, Paper, Film etc. Thicknesses: from 20 mic to 250 mic Automatic twin turret rewinders rotating at the pre-selected tape roll length Cast iron support frame Safety guards all over the machine except rewinding shafts (operator position) 3” i.d. frictioned unwinder for tape Noise reducer & Low tape alarm pressure roller Corona treatment unit (proportionally adjusted on the tape speed) Ventilation & Suction system for corona treatment Primer station before printing for tape printing preparing Ventilation & Suction system for primer station Pressure roller for primer station 3 printing stations complete with metal screened rollers and printing cylinders with gears for 150,7 mm print repeat Adjustable bracers for each printing station Thermo-adjustable teflon covered central drum Ventilation & Suction tunnel for colours drying Release station after printing Ventilation & Suction system for release station Pressure roller for release station Slitting station with razor blades on the adhesive side Twin turrets rewinders with 2 mandrels for 3” i.d. cores Pneumatic pump for automatic primer and release feeding Cliché mounting device Set of spacers for slitting blade holders setting 152 mm rubber roller for fload coating 50 mm paper tab dispenser + 30.000 paper tabs Set of spare parts 6 aniloxes (Inks: 3 pcs, Varnish: 2 pcs, Primer: 1 pc) 9 cliché cylinders with gears 3 x Z60 3 x Z80 3 x Z100.

The L33 flexographic printing press can print up to 3 colors on most self-adhesive tapes (PVC, Cellophan, paper, reinforced films, etc.) provided the tape has not been treated with release coating compounds. The registration of the colors is accurate and easy. The high output is achieved as a result of the following characteristics : Automatic rotation of rewind turrets and automatic coupling of printed tape to empty cores is set without stopping or interrupting the printing operation Easy core loading during printing operation Simultaneous printing of 3 rolls (50min width) using the slitter and 2 rewind staltions. Max OD log roll : 360mm Max OD rewind roll : 300mm Max printing repeat : 502.6mm 3 printing stations Adjustable speed : 0-180 m/min

The machine cannot be seeing in production as needs the maintenance (around 20.000€) Max. web width : 150 mm Max. printing width : 150 mm Max. mother reel diameter : 400 mm Max. final reel diameter: : 160 mm Min. print repeat length diameter 56 : 170 mm Max. print repeat length diameter 160 : 502 mm Adjustable speed : 0÷215 m./min. Main motor : 4 KW AC 380/415V 3PH Power supply : 400V 50Hz trifase 50 Amp. 8 hours production for dimensions roll 50 x 66 mt. : 2800 pz. Automatic change of the log roll with tape hook and cut Electronic tape-guide for the automatic control of the tape alignment 4 printing stations equipped with chromium plated anilox rollers Drying tunnel between the printing stations by thermoregulated hot air with suction system Cliche-cylinders with lengthwise and axial register adjustment possibility Main drying tunnel with thermoregulated hot air temperature Automatic tape tab attachment Multiple cutting group with razor blades 3 rewind mandrels 3" diameter Cores feeding Automatic cutting at the end of the roller with tab position checkout Automatic discharge of the rewinding mandrel after cutting and positioning of the new core Corona treatment

Printing machine for adhesive and non-adhesive tapes complete with corona treatment and additional 1” turret Cylinders diam. 62 (3)-80 (3)-86.2 (3)-96.2 (3)-63.2 (3)-45 (3) Rubber roller diam 90 no. 2 Gears diam 67-80-90 100 3 Anilox Spare sleeve for corona treatment Spacers + axle for cutting with razor blades mm. 14-12-15 Doctor blades 3 Device for plate mounting Additional 1” turret

Materials: PVC, paper
