Used BIMEC TCA 64 C of 2017 for sale
Double-shaft film slitter-rewinders BIMEC, The team at MachinePoint will accompany you through the whole process of buying the machine.
Data Sheet of Used BIMEC TCA 64 C
Ref.: 300049108
Year: 2017
Brand: BIMEC
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Working Width: 1350 mm
- Parent Roll Diameter: 1000 mm
- Final Roll Diameter: 600 mm
- Speed: 800 m/min
- Unwinder Type: Single
- Web Guides: Yes
- Knife Type: Circular
- Slitting Width (Min): 45 mm
Other Specifications:

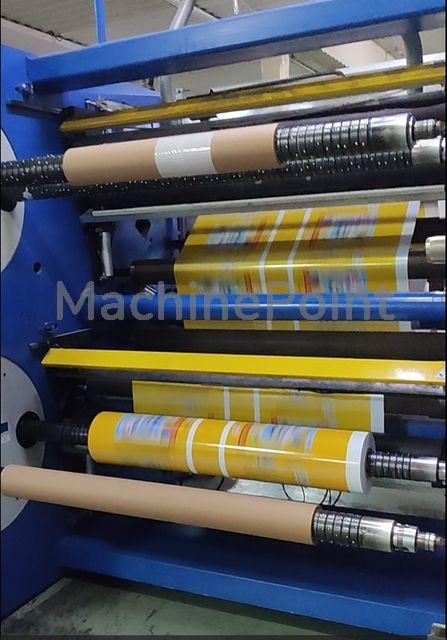

Duplex Turret Slitter Rewinder
Materials: plastics, papers, laminates
Material thickness: 12 - 300 μm
Finished roll weights: max. 680 kg (distributed to both axles)
Web guide system: FIFE with edge/line sensor SE-46C
Set of unwinding chuck: 76/152 mm
System for the batch rol lifting
Servo pneumatic brake
Pneumatic or motorized braking systems with automatic control of unwinding tension through dancer roller
Multi groove female knives: 12 pcs
Rewind shaft: 76mm (ball friction type)
Core positioning system: manual laser
Automatic rotation for quick unloading: up to 900mm web width
Ethernet card for remote connection
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
