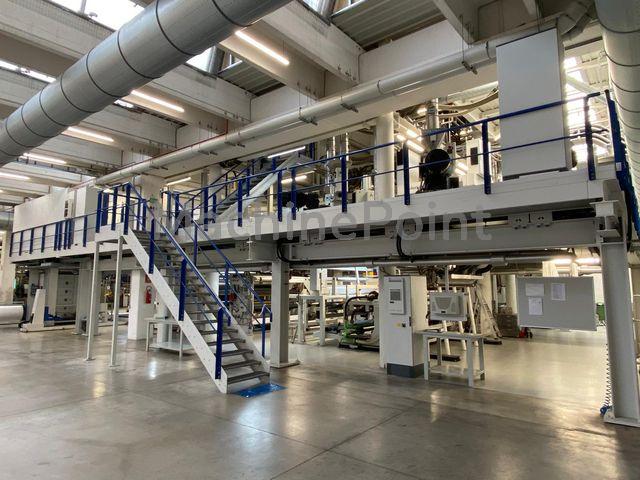

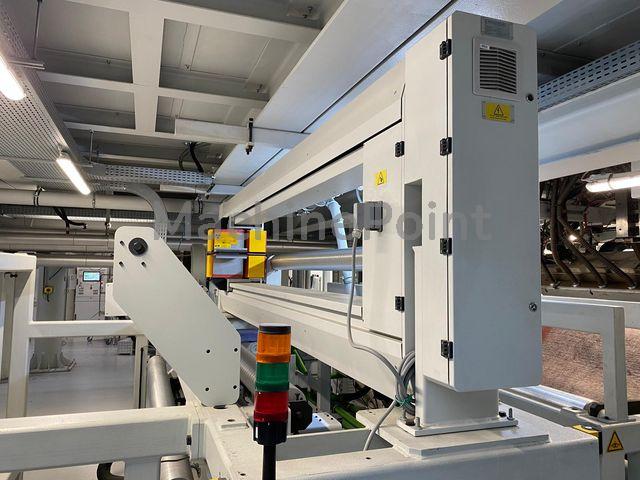

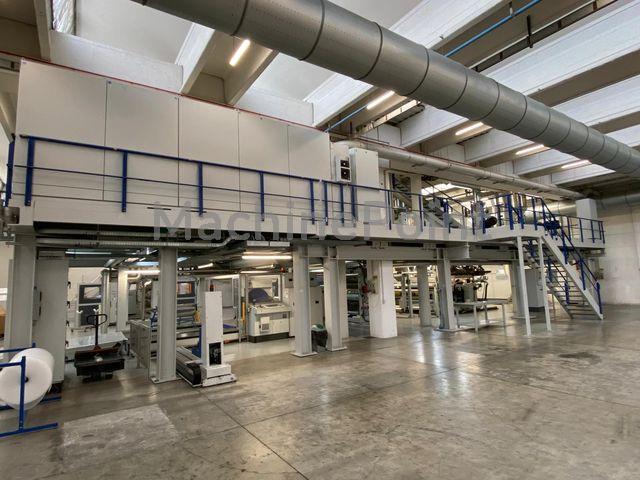

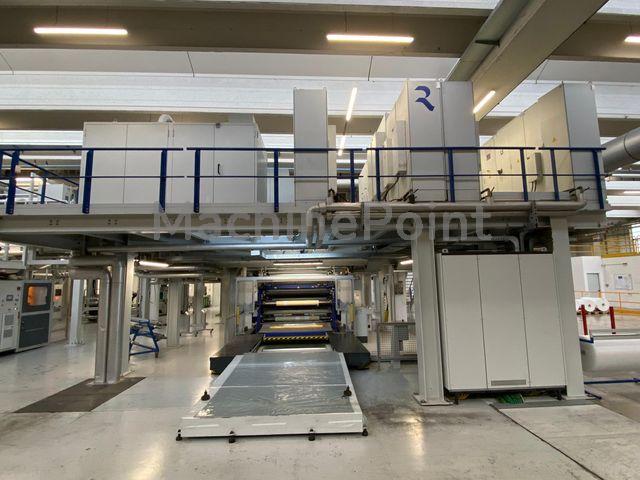

Used Cast coextrusion lines: REIFENHÄUSER Midex 9-150/80/80/60/60/80/60/60/60-2500 of 2013

Screw L/D 30 Rotating die 400 mm with IBC Dual lip air ring Thickness 20-150 my Gravimetric dosing unit 6 components Motorized calibrations basket Automatic thickness control system K-design Fixed haul off Double side corona treatment AFS Tower not included

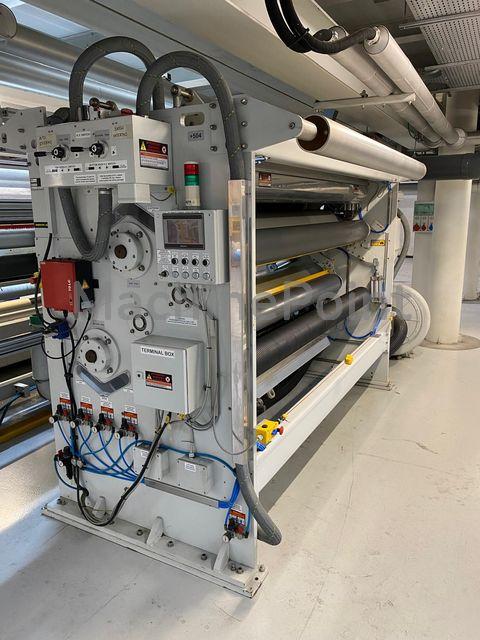

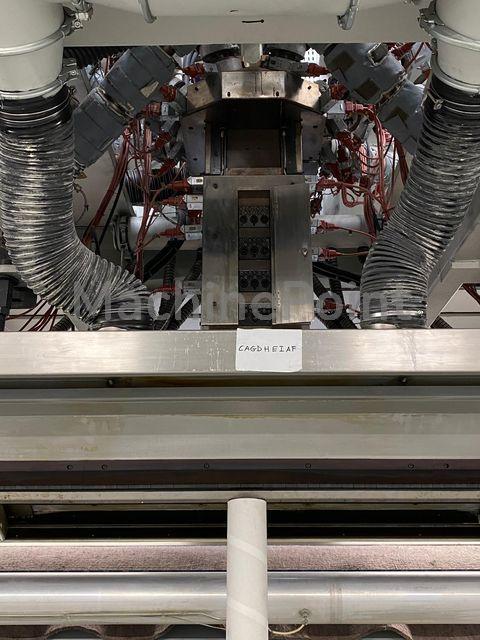

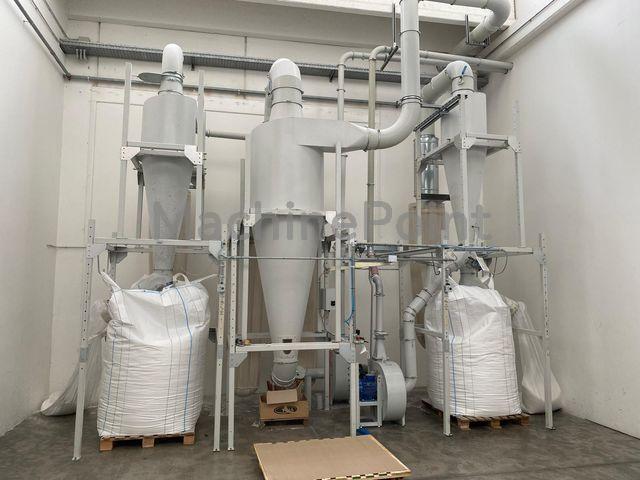

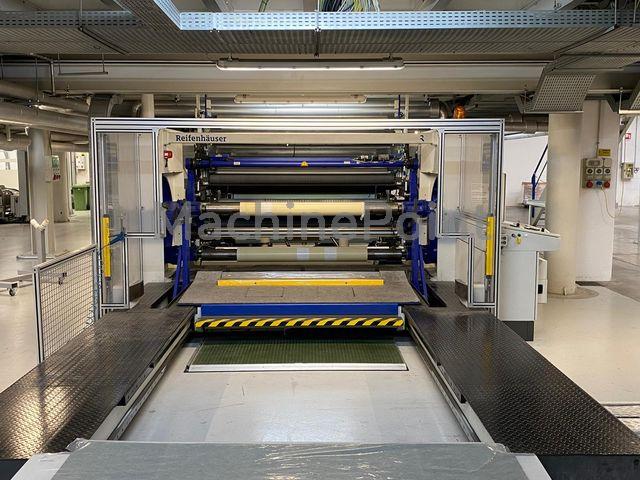

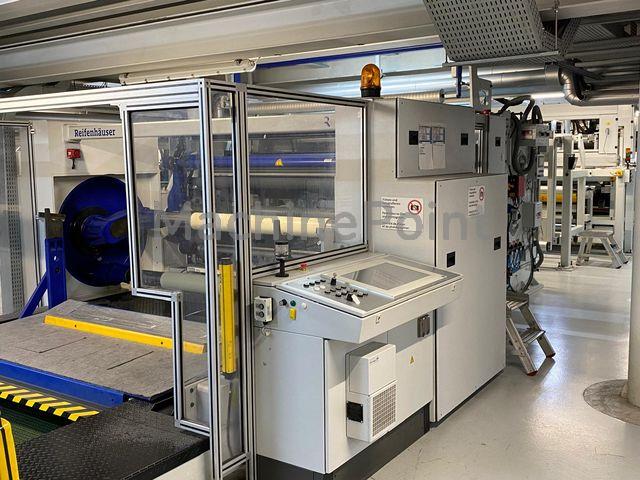

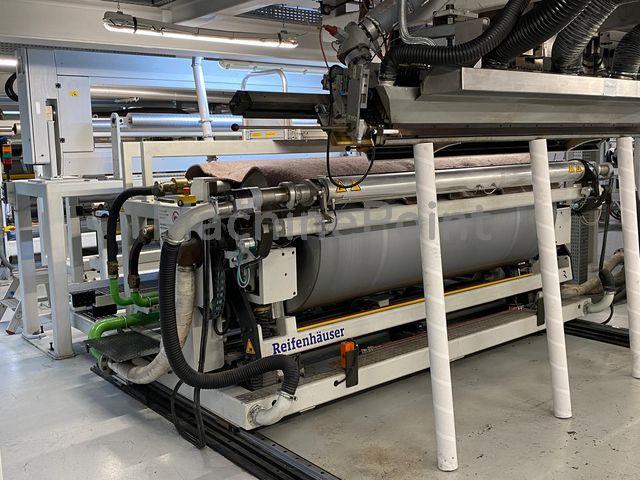

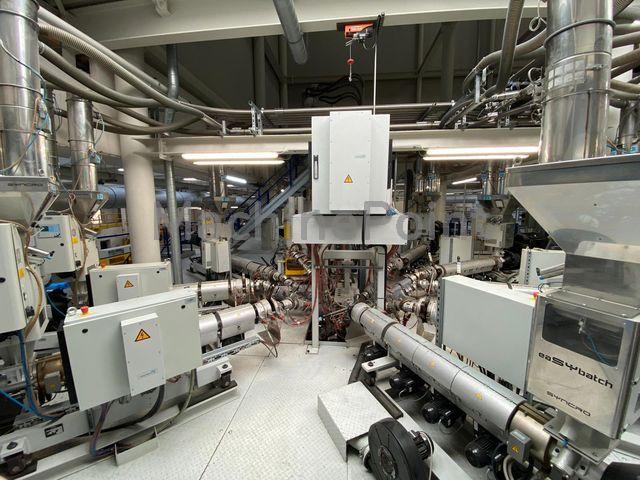

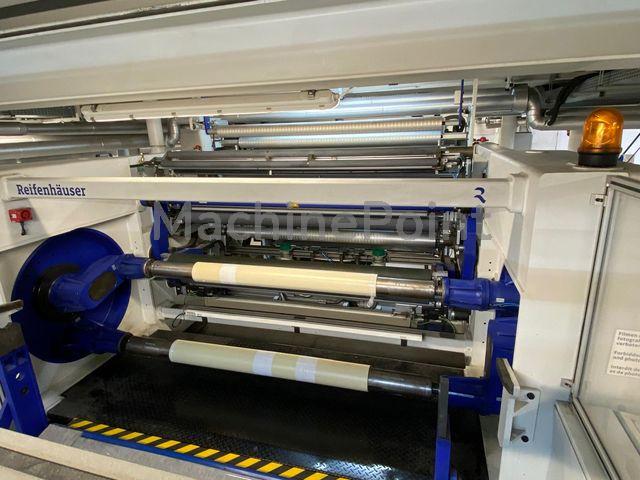

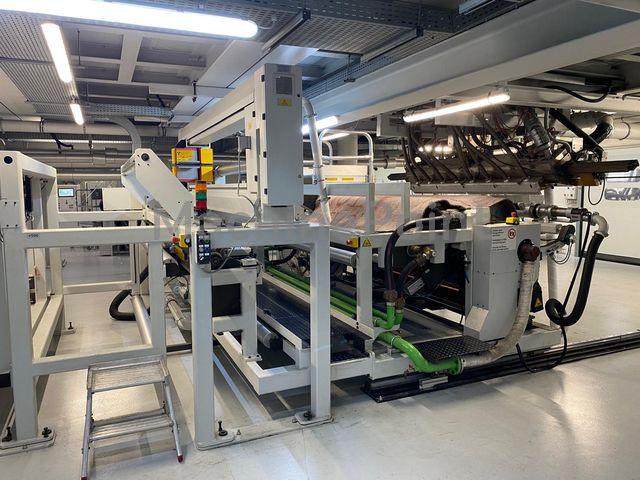

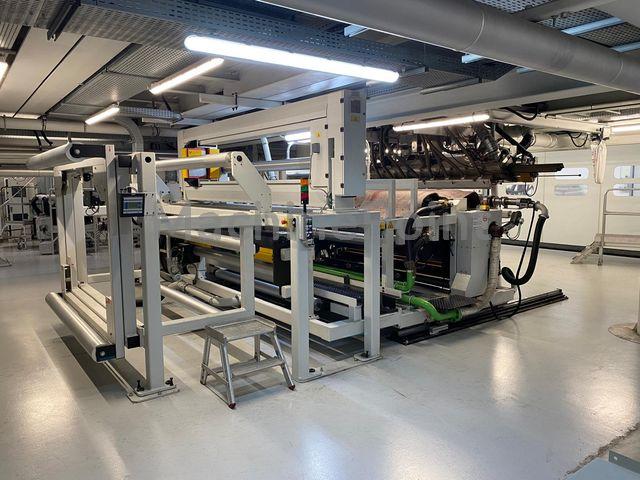

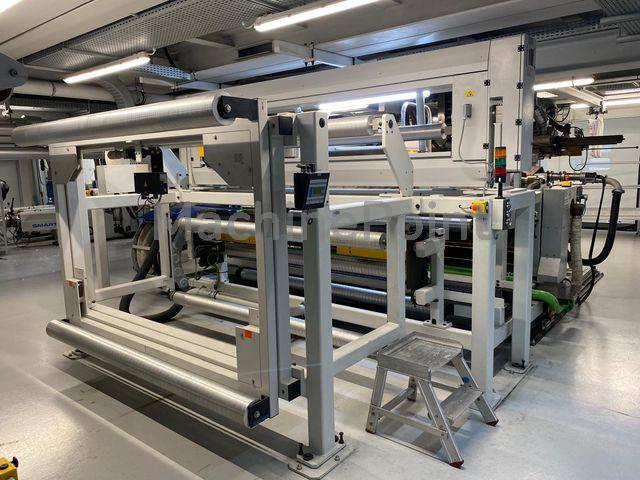

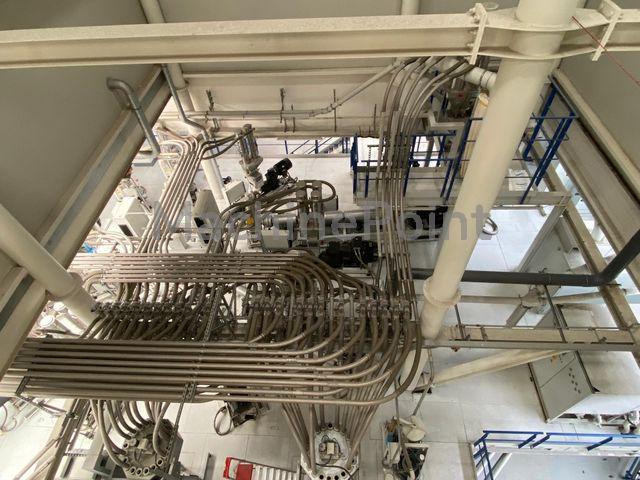

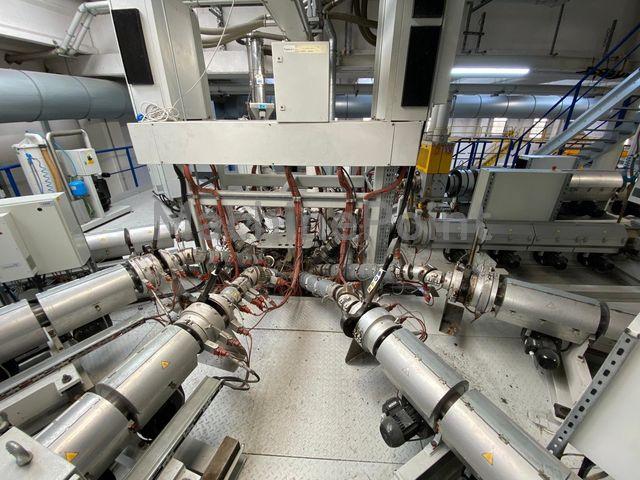

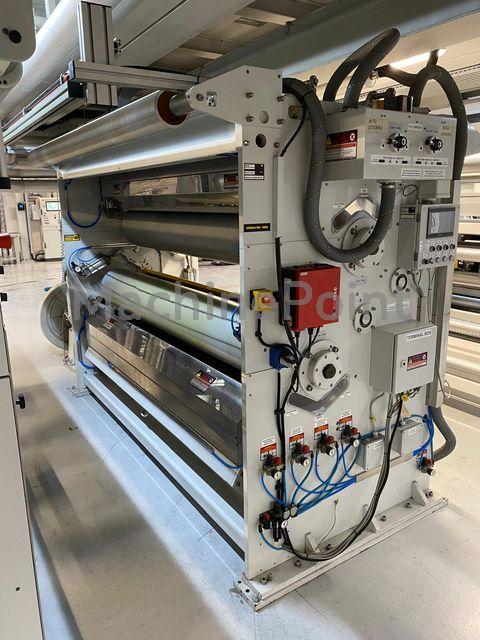

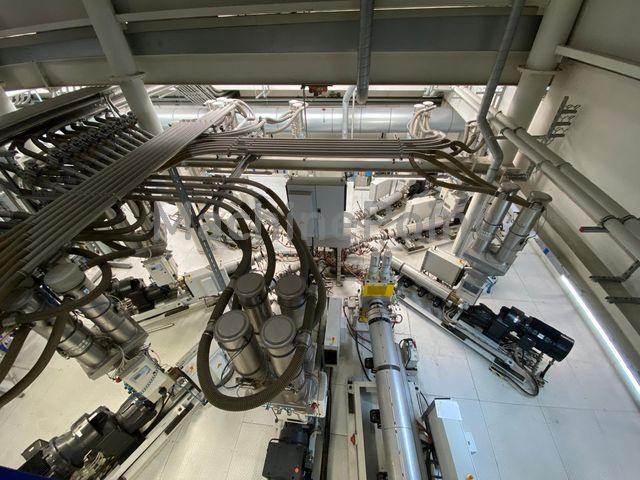

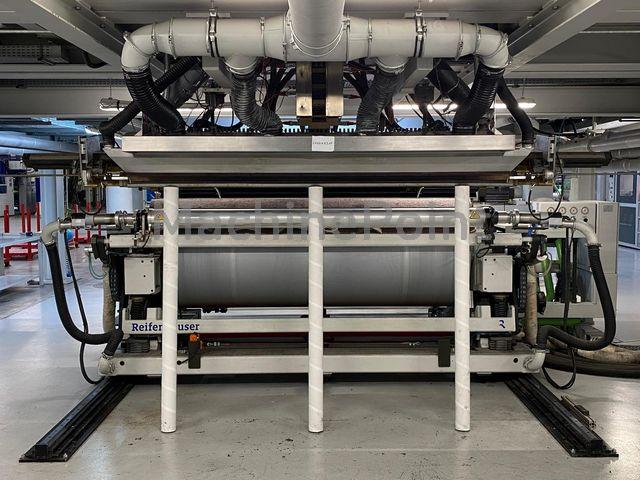

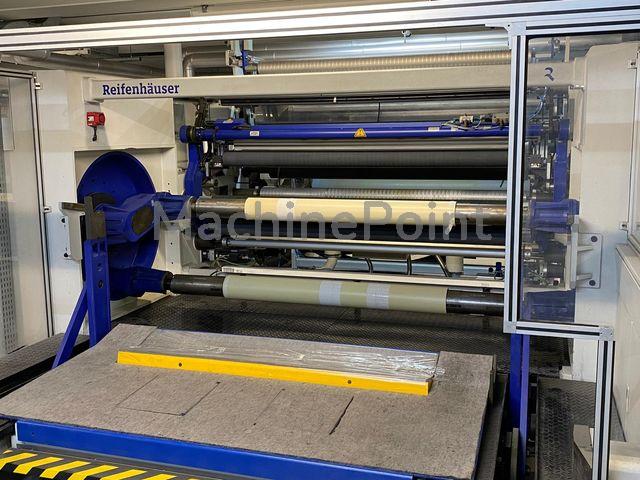

9 layers cast extrusion line designed for PP and barrier films Extruders 30D A: 150 mm B: 80 mm C:80mm D:60 mm E: 60 mm F:80 mm G:60 mm H:60 mm I:60 mm K:60 mm for encapsulation Flat Die Midex -SD-03-2400, die gap 0,2-0,8 mm Mechanical speed 350 mt/min Dosing unit Syncro 3 components for extruders A,D,E 4 components for extruders B, C, F 2 Components for extruders G,H,I K Coextrusion system REIcofeed 2,1-9 8x 9layers channel packs for different layers combinations Encapsulation device melt guiding through the side plates of the slot die MIDEX-SD-03 ND 2000-2600 Casting unit and downstream unit NF01-02/L-2500-1000 Heater for air knife Casting roll Stratodur NW2500- diam 1000 Vacuum box Midex VB-2500 Ultrasonic thickness measuring device with automatic gauge profile Pretreatment unit VBG 2500 ESU Edge trim refeeding Winder Midex-RA4 2.0-2500 Reel discharging device

Screws diam. 70/70/70 Manual screen changer Vollmar gravimatric dosing system 1main component-2 additional componat Die dia. 300mm Die lip gap 1.8mm Thickness range 20-200microns. L/d 30:1 Die with spiral mendrel IBC Motorized bubble cage with anti dust roller Horizontal Osclllating hall off unit with anti dust coated roller Collepsing basket with silicon sleev roller Kunding profile measurment scanner & profile control with in range +/- 3% Digital center guide system Corona trater AFS 3K Core loading system Reel diam 1000mm

3-Layer Co-Extrusion line Extruders EVOLUTION 60-30 EVOLUTION 90-30 EVOLUTION 60-30 Dosing units Extruder A: Main Comp. / 3 Side Comp. Extruder B: Main Comp. / 2 Side Comp. Extruder C: Main Comp. / 3 Side Comp. EVOLUTION 120/500-3 Die Head with Die Insert Set 450mm, inner gap heating, die gap: 1.7 - 2.5 mm , IBC Ultrasonic Bubble Control – 3 Sensors IBC Assembly 450 mm High Capacity Air Ring HL 325/450 – Profile Control C2 Air Ring Insert 300-M.2 Air Cooler BFC-3000 Air Cooler BFC-5500 Calibration Cage 2200-CFK Web Guide 2200EL Corona Treater A – 2200 mm, 200 m/min EVOLUTION T 2200.3 Advanced Take-off (Carbon Fibre Rollers) Idler Roller 2200 Take-Off Control Cabinet Heat Exchanger CFK Side Guides 2200 A Secondary Stabilization Cage 2200-S EVOLUTION T 2200.3 Advanced Take-off Anti-Static System 2200 Edge Trim and Multi-Web Slitting Station 2200 – Attachment Parts Twin Blade Holders - M Stabilization Plate 2200 Trim Guide Roll Mounting Parts 2200 Trim Guide Rollers for Edge Trim EVOLUTION W-P 2200-02 Film Winder, Profile Measurement 2200 for C2/C3 (capacitive) Non-contact Measuring Head Adjustment & Display of Collapsing Frame Angle and Side Guidance Width Measurement 2200 Automatic Width Control Tower Film thickness 20-150 my
