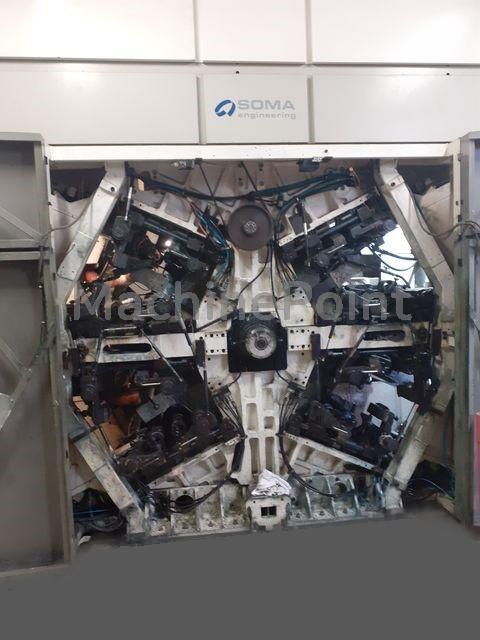

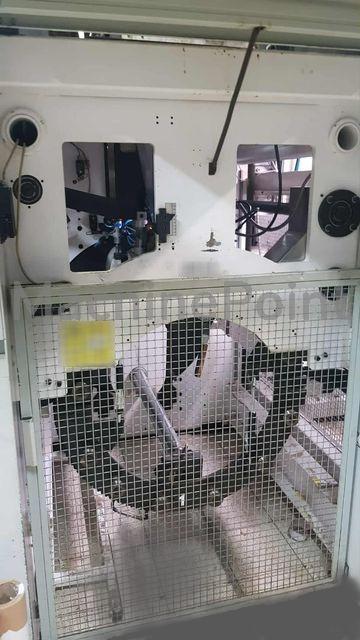

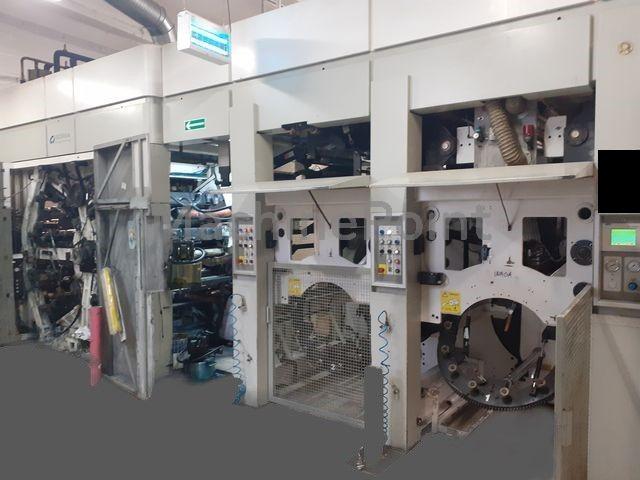

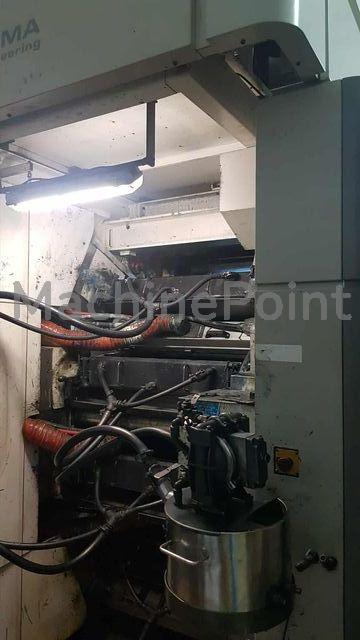

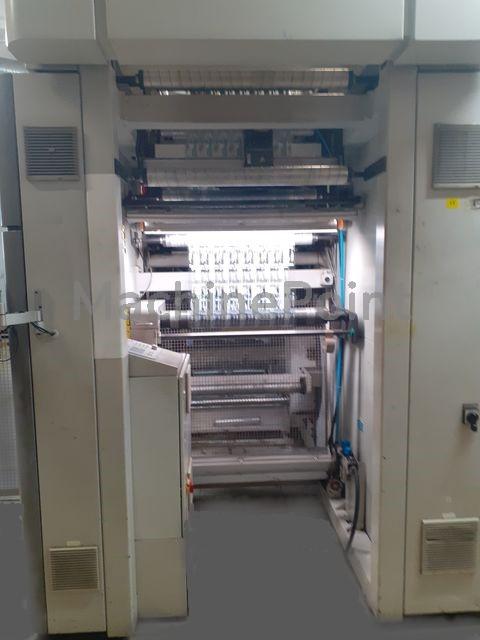

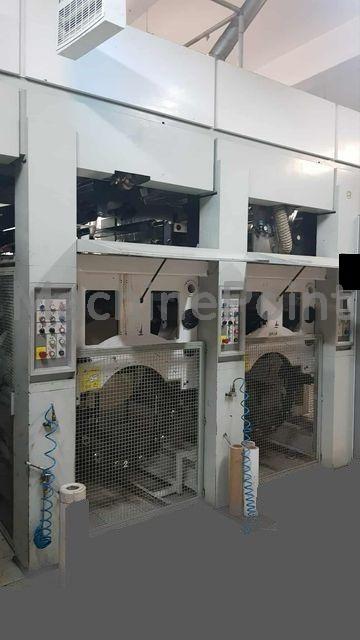

Used SOMA FLEX MINI 80-8-EG of 2005 for sale

Materials : LDPE 0.020 – 0.160 mm HDPE / OPP 0.010 – 0.150 mm CPP 0.020 – 0.070 mm BOPP 0.010 – 0.060 mm PET 0.012 – 0.050 mm OPA 0.015 – 0.050 mm Paper 25 – 180 g/m2 Laminates 0.020 – 0.150 mm Min. web width 500 mm Max. mechanical speed 450 m/min Printing web tension: NONSTOP 40 ÷ 420 N Without automatic exchange 10 ÷ 420 N Unwind/rewind rolls diam.: max. roll diam 1000 mm inner core diam. (paper) 76, (152) mm outer core diam. (paper) 105, (181) mm max. roll weight 1000 kg Min. roll diameter at flying splice unwinding 300 mm Web guide Erhardt+Leimer FX5100 Camera inspection system AVT Jupiter 16 x Anilox Type/LPI--Volume--Quantity Apex C10 -- 3,5 -- 5 650 -- 6 -- 4 450 -- 8 -- 4 Apex C10 -- 10 -- 2 400 -- 9 -- 1 144 x Sleeves 8x (420,440,470,485,500,530,535,540,620,745,765) 16x (365,4559 24x 385 Plate mounter included J.M Heaford WW Cobra year 98

Installed in 2021 Max coating width 1310mm Min. roll width 300 mm Inner core diameter 76,2 mm (3''), (152,4 mm (6'')) Max. reel weight 800 kg Web edge guiding range + 50 mm Water temperature for roller temperature control max. 90°C Provision for installation of corona surface treatment unit - connecting holes Optional accessories included: 1 Primary and secondary unwind unit mechanical clamping cones for 152,4 mm core diameter (4 pcs) - Dural: 1 pair 2- Adhesive coating unit: set of Teflon dams (2 pcs): 3 sets 3- Rewind unit pneumatic shaft for 76 mm diameter cores with carriers (assembly instead of mechanical cones or pneumatic chucks), 1 pc 4- Temperature control system loop for application roller R4 temperature control 1 pc 5- Adhesive evaporation ducting: filter material for ca 60 pcs of collector fillings 1 pc 6- Cooling cylinder: driven cooling cylinder 1 pc 7-Adhesive dosing unit: two-components adhesives dosing and mixing unit bi-2 MINI mixer from co. LR incl. automatic refilling for mixer 1 pc 8- Static plastic mixing element (consumable) will deliver all pieces existing 9- compressor cooling unit for cooling cylinder 1 pc MATERIALS Primary materials for adhesive application: BOPP 0,012 – 0,08 mm PET 0,01 – 0,03 mm PE, LDPE 0,03 – 0,20 mm OPA 0,012 – 0,06 mm CAST PP 0,04 – 0,15 mm CAST PA 0,04 – 0,08 mm ALU FOIL 0,012 – 0,04 mm Possibility of Al-foil processing depends on its quality. PAPER 30 – 150 g/m2 For paper processing, special optional equipment is necessary - one-component adhesive dosing system. LAMINATES up to 150 g/m2 Minimal thickness of PE, LDPE, CAST PP, CAST PA depends on kind of used adhesive. Secondary materials - laminated: BOPP 0,012 – 0,08 mm PET 0,008 – 0,03 mm PE, LDPE 0,02 – 0,20 mm OPA 0,012 – 0,06 mm CAST PP 0,02 – 0,15 mm CAST PA 0,02 – 0,08 mm ALU FOIL 0,009 – 0,04 mm Possibility of Al-foil processing depends on its quality. PAPER 30 – 150 g/m2 For paper processing, special optional equipment is necessary - one-component adhesive dosing system.

For solvent & water inks Max. mechanical speed 500 m/min Turning bar to print both sides 1 ÷ 8 / 1 ÷ 8 (half width) with servo-unit with register control and spreader rollers prior to print and rewind Web guiding system for 2nd web path with 2 pcs of motorized web guiding sensors according to material edge Max. print width for both-side printing 610 mm Max. web width for both-side printing 635 mm Min. web width 400 mm – NONSTOP – air shafted 1000 Min. web width for both-side printing 100 mm – under condition of web guiding with 1 pc of ultrasonic sensor Anilox cylinder inner diam. 136,989 mm, perimeter 500 mm, sleeve length 1350 mm INK PUMPING SYSTEM WITH INKSTORM ELITE AUTOMATIC WASH-UP SYSTEM Automatic wash-up system INKSTORM Elite for 8 printing units + 8 membrane pumps Automatic wash-up modification for changing water-based and solvent-based inks Automatic viscosity control for 8 printing decks with 1 solvent type - InkSpec ultrasonic principle 8 pcs ink pumping units located behind the printing unit at the drives side 8 pcs container of 25l , possible to use the containers from ink supplier (height ≈ 400 mm) 16 pcs pneumatic membrane pumps for ink supply and at the same time ink drain from the doctor blade chambers 8 sets connecting hoses with quick-acting couplings extension to the second solvent type A-RUN AUTOMATIC SETTING SYSTEM: Plate Mounter A-Run for automatic impression and register setting WEB VIEWING SYSTEM: 1 chip digital camera BST Super Handy Scan 4000 CORONA Ahlbrandt 6kW (tension control prior to printing) One Side Surface cleaning unit Unwinder/rewinder rolls diam.: Max. roll diameter 1000 mm Inner core diameter (cardboard) 76,2 mm (3“), [152,4 mm (6“)] Outer core diam. (cardboard) 95 mm, [181 mm] Max. roll weight 1000 kg Min. roll diameter at flying splice unwind 300 mm Max. speed at roll exchange at flying splice unwind: full printing speed Printing web tension: Without automatic exchange 10 ÷ 400 N NONSTOP flying splice 40 ÷ 400 N Side of operating staff on the left from longitudinal axis from unwind to CI drum Others included: Aphasonic cleaning equipment for anilox sleeve cleaning - Model MIA for 1 anilox sleeve Polymount plate cleaner - PPC L2 max size 1600x1000mm Print viewing counter 14 Anilox Included APEX XS Solvent + water x5 GTT Flex M Solvent + water x1 GTT Flex L Solvent + water x1 GTT Flex SANDON 180 L/cm Solvent + water 1 HVP 180 L/cm Solvent + water 1 HVP 220 L/cm Solvent + water 1 HVP 220 L/cm Solvent + water 1 HVP 280 L/cm Solvent + water 1 ipro 120 L/cm Solvent + water 1 HVP 320 L/cm Solvent + water 1 ipro 184 x Sleeves (Printing Repeat / Inner diameter /Outer diameter/ Quantity) 360 108,342 mm 111,291 mm 16 Thin a sleeve 370 108,342 mm 114,474 mm 8 Starcoat 380 108,342 mm 117,657 mm 8 Starcoat 390 108,342 mm 120,841 mm 8 Starcoat 400 108,342 mm 124,024 mm 8 Starcoat 410 108,342 mm 127,207 mm 8 Starcoat 420 108,342 mm 130,390 mm 8 Starcoat 440 108,342 mm 136,756 mm 8 Starcoat 460 108,342 mm 143,122 mm 8 Starcoat 480 108,342 mm 149,488 mm 8 Starcoat 500 108,342 mm 155,855 mm 8 Starcoat 520 108,342 mm 162,221 mm 8 Starcoat 540 108,342 mm 168,587 mm 8 Starcoat BRIDGE 108,342 mm 165,637 mm 8 Carrier Stat Standard 560 165,637 mm 174,953 mm 8 Starcoat 580 165,637 mm 181,319 mm 8 Starcoat 600 165,637 mm 187,685 mm 8 Starcoat 620 165,637 mm 194,052 mm 8 Starcoat 640 165,637 mm 200,418 mm 8 Starcoat 660 165,637 mm 206,784 mm 8 Starcoat 680 165,637 mm 213,150 mm 8 Starcoat 700 165,637 mm 219,516 mm 8 Starcoat

Min. material width 300 mm Max. mechanical speed 800 m/min (from rewind diameter of 270 mm) Min. recommended working speed 70 m/min Min. roll diam. for loading from the floor 360 mm Max. load of rewinding shaft 400 kg Materials Paper 17 ÷ 130 (200)* g/m2 ÷ 180 g/m2 at max. width 1100 mm and roll diameter 635 mm ÷ 150 g/m2 at max. width 1350 mm and roll diameter 635 mm Film PP, PET cca. 0,010 ÷ 0,060 mm LDPE cca. 0,020 ÷ 0,200 mm HDPE cca. 0,012 ÷ 0,060 mm Paper Laminate + Al (flm) total max. 130 g/m2 (paper min. 17 g/m2) Lower limit of processed material thickness depends on its kind and quality and refers to the min. unwound roll width of 800 mm. UNWIND UNIT Basic equipment: - integrated unwinding stand – shaftless, with hydraulic loading of parent roll - hydraulically controlled tilting arms enabling easy loading of parent roll directly from the floor (from roll diameter approx. 360 mm) - mobile remote controller for easier parent roll clamping - both directions of unwinding available - shaftless parent roll locking for easy parent roll handling - automatic web edge guiding system (incl. ultrasonic sensor) - laser pointer for parent roll loading Optional accessories included: - unwinding adapter heads from diam. 70 - 76,2 mm to diam. 150 - 152,4 mm - optical sensor for web guiding system acc. to printed line or contrast image edge - vacuum splicing table with two pneumatically controlled web holders and backlit table SLITTING AND TRANSPORTATION UNIT Basic equipment: - adjustable guiding roller for optimal web position to lower knife shaft during tangential slitting, respectively for web path change during lower knife shaft wrap around slitting Optional accessories included: - Automatic knife/blade positioning system includes: - electropneumatic manipulator pneumatic expansible knife shafts - special holders for lower and upper rotary knives - lower knives – rotary knives (for lower knife holders for tangential slitting) - upper knives – rotary knives (for upper knife holders) - high performance trim edge removal system (out of the machine), external supplied fan with individual power supply lead, manual or automatic output regulation available, “Venturi” unit REWIND UNIT Basic equipment: - automatic strip holders prior to rewinding shafts for slit web - carousel system for rewinding shaft change over after the end of rewinding cycle - pneumatically tilt-controlled supports for locking the unsupported ends of rewinding shafts during the rewinding process - rotary support system for locking the unsupported ends of rewinding shafts during its changeover - rewinding shafts for friction rings diam. 76,2 mm - 2 rewinding shafts placed above each other - pneumatically expansible rewinding shafts equipped with special friction rings - easy core change of different diameters - friction rings - width 25 / diameter 76,2 mm -“Tenzomat“ system for exact regulation of rewind tension by means of tensiometers - laser scanning system to prevent non authorized presence at the rewind area Optional accessories included: - friction rings - diameter acc. to customer request (ring width versions mentioned in price list) - automatic tape application unit for tapping the ends of rewound reels and/or for splicing of slit web strips with cores at automatic rewinding shaft changeover - set of tape rolls for automatic tape application unit - automatic laser core guiding system for quick and exact core installation prior to each rewinding cycle (assembled individually or together with working area lighting as a supplement of unloading mechanism system) - ionization bars with VN sources for electrostatic discharges (set of 2 pcs + 1 pc for unwinding web)

Min Printing width 400 mm Speed up to 450 m/min; Double automatic unwinder and rewinder, max diam reels 1000 mm, shafts 76 and 152 mm Corona treatment Ahlbrandt System GmbH Web video inspection system :Premis 3 –chip BST; automatic web fault control system and automatic register setting system Elecrtic ink pumps; Aautomatic viscosity control for 8 pumping units CAMBRIDGE Web surface cleaning system SIMCO Web guiding before and after the printing unit 10 pcs doctor blade chambers with pumping units; pipes, fast clamps. Processed material: LD PE, PP 0,020 ÷ 0,160 mm HD PE, OPP 0,012 ÷ 0,100 mm BOPP, PET, OPA 0,01 ÷ 0,05mm metal foil 00,01 ÷ 0,05mm laminated foil 0,02 ÷ 0,16 mm paper 25 ÷ 120 g.m- Sleeves 330x8 340x8 350x8 360x16 370x8 380x8 390x8 400x8 410x8 420x8 430x8 440x8 450x8 460x8 470x8 480x8 490x8 500x8 510x8 520x16 540x8 550x8 560x8 570x8 580x8 600x8 620x8 640x8 660x8 760x8 416x8 Carrier 520x 8 Anilox 100 v14 120 v12 140 v10 180 v10 200 v7,5 280 v7,5 340 v5,5 340 v5,5 340 v5,5 340 v5,5 420 v4 420 v4 420 v4 420 v4 470 v3,2 470 v3,2 285 v6 80 v 20 140 v14,7 340 v 5,4 320 v9 160 v8 160 v8 390 v3
