Used ITIB F250/45 of 2003 for sale

Corrugator for PEHD and PP corrugate pipe NO die head, molds or tooling included

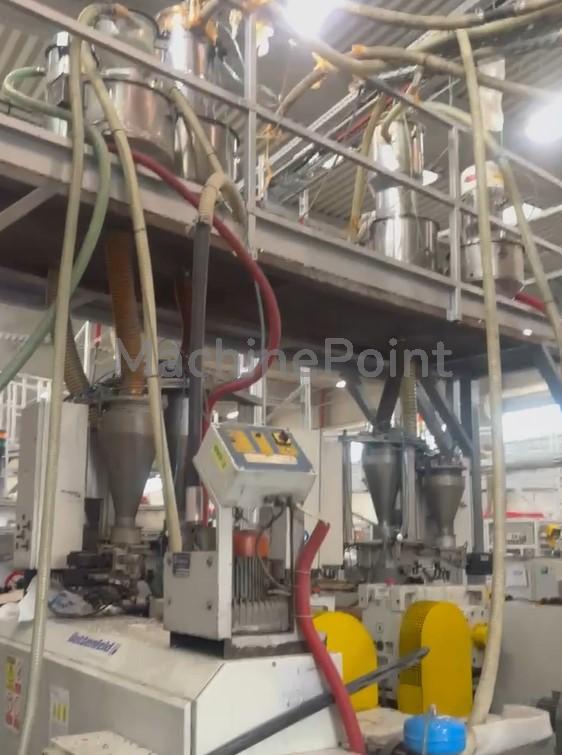

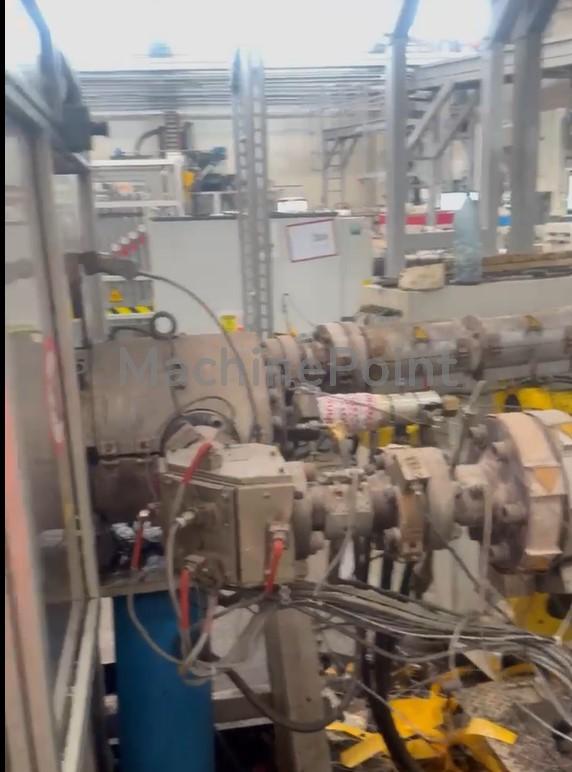

CORRUGATED PIPE EXTRUSION LINE ITIB F250 Production of double-walled corrugated pipes and drainage with external diameter 75 mm to external diameter 200 mm, consisting of: 1. MAIN EXTRUDER Manufacturer: KRAUSS MAFFEI Model: KME 1-75-30 Year of construction: 2000 2. SECONDARY EXTRUDER Manufacturer: KRAUSS MAFFEI Model: KME 1-60-30 B Year of construction: 2000 Note: A sophisticated 2-component gravimetric feeding system from INOEX is integrated with the extruders. Note: in April 2004 the plasticizing units (screws, cylindrical bushings) were replaced. 3. EXTRUSION HEAD Manufacturer: ITIB MACHINERY Model: 250/DWP Year of construction: 2001 Note: the head includes accessories for making pipes DN75, DN90, DN110, DN125, DN160 and DN200 with the relative mandrels and the device for introducing the wire. 4. ADAPTERS FOR DIE HEAD 250DWP ON F250 PARALLEL CONFIGURATION New parts, unused, designed and manufactured by ITIB MACHINERY, brand new, with the role of allowing the installation of extruders in parallel configuration. 5. CORRUGATOR Manufacturer: ITIB MACHINERY Model: F250 33 Serial number: 1560 Year of construction: 2001 Note: The corrugator is supplied with the head with its accessories: dies for manufacturing pipes DN75, DN90, DN110, DN125, DN160, DN200 with the relative mandrels; the device for introducing the wire; the series of molds, the cooling tank, the haul-off, the saw-off. Note: in April 2007 the corrugator was completely overhauled, with the replacement of the parts subject to wear. 5.1 Series of molds 75-90; 110-125, 160, 200. 6. COOLING TANK Manufacturer: ITIB MACHINERY Model: W322 Year of construction: 2001 7. HAUL-OFF Manufacturer: ITIB MACHINERY Model: U322 Year built: 2001 8. AUTOMATIC WINDER Model: SICA LEOPARD 2000/2 Year built: 2002 9. EXTRUDER FEEDING SYSTEM The feeding system of the extruders is consisting of the following equipment: 9.1 Line feed pump Manufacturer: DEGA Model: ASPIROPLAST AT600 DUO Year built: 2007 9.2 Primary extruder dye feeder Manufacturer: DEGA Model: ASPIROPLAST PIXIE Year built: 2007 9.3 Secondary extruder dye feeder Manufacturer: DEGA Model: ASPIROPLAST PIXIE Year built: 2007 9.4 Receiver Main extruder power supply Manufacturer: DEGA Model: Cyclone Size 5 Year built: 2007 9.5 Receiver Secondary extruder power supply Manufacturer: DEGA Model: Cyclone Size 5 Year built: 2007

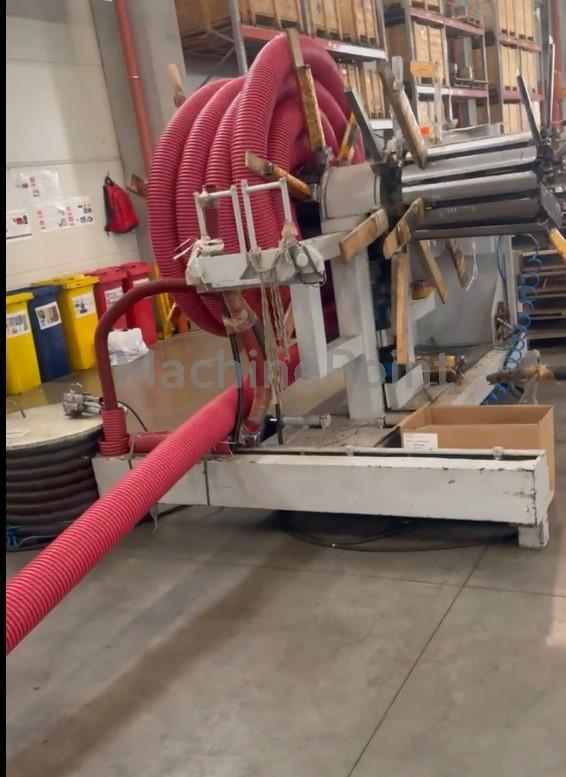

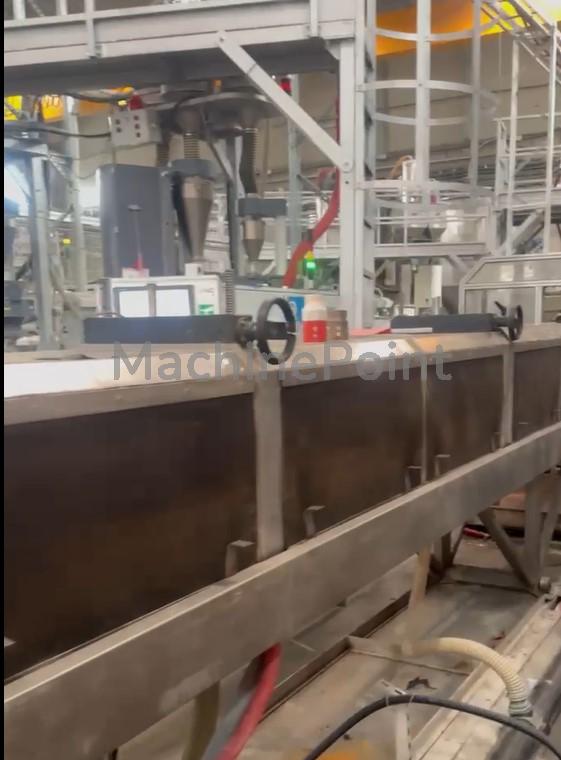

Extrusion line for HDPE Double Wall Corrugated pipes Production speed: 15 m/min Brand: ITIB Model: Corrugator F250/33 Year: 2008 Working hours: 48 000 h Nr Extruders: 2 1x Extruder: Cincinnati Proton 75; year 2004 1xExtruder: Cincinnati Proton 60; year 2004 Tools and equipment Die head: with adapters and heaters; year 2008 Moulds: one for OD 40; 50; 63; one for 75; 90 mm Complete tools and equipment (mandrels, etc.) for dimensions: OD 40; 50; 63; 75; 90 mm Cooling chamber with drier for pipes: length 5.5 m; year 2008 Haul off: IPM, T-1C-315; year 2001 Saw: IPM TPC/K 250; year 2008 Coiler: Lunardon ML 3; semi-automatic; year 2012; diameters: Ø OD 40; 50; 63; 75; 90; 110; 125; 160; 200 mm Available from February 2023

Tooling ID, SN4, SN8

Production line for production of corrugated DUCTconduit pipe/hose Production speed: up to 15 m/min Diameters: Φ OD 40; 50; 63; 75; 90 1. Corrugator: ITIB F250/33 Year: 2008 Working hours: 68 000 h 2. Tools and equipment Molds: OD 40; 50; 63; 75; 90 Die head with adapters and heaters (2008) Complete tools and equipment (mandrels, etc) for dimensions: OD 40; 50; 63; 75; 90 3. Cooling chamber with drier por pipes ; L= 5.5 m (2008) 4. Haul off: IPM; Φ OD 40-200; Year 2008 5. Saw: IPM TPC /K 250 Year:2008 6. Balzanelli Avolgitori EC 2000 L1/6 Full automatic coiler with integrated cutter Year: 2012
