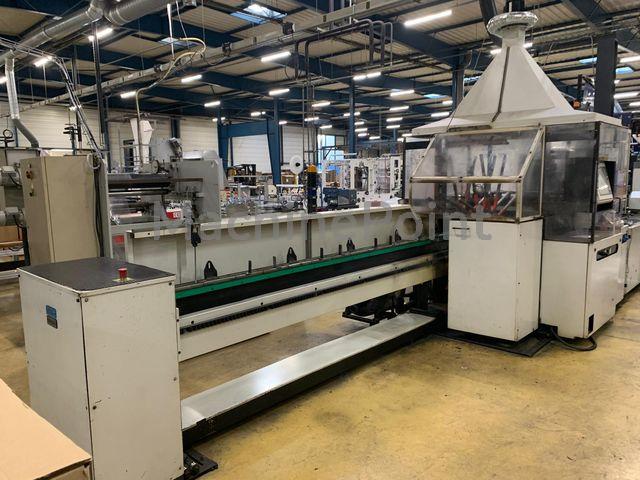

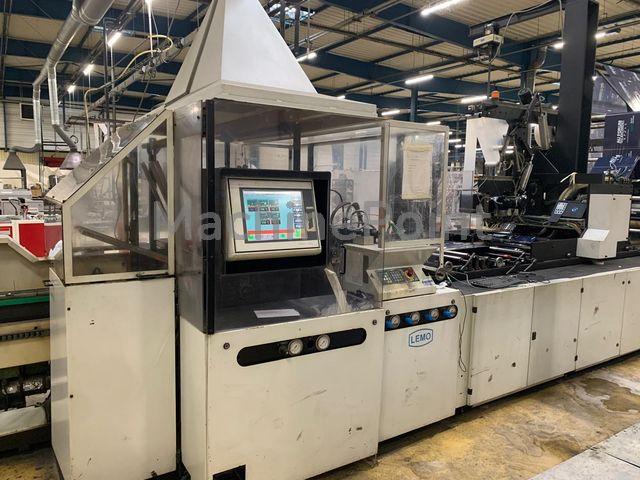

Used LEMO IS 850 DKT CT of 2003 for sale

High performance machine for the production of bags with side seal flexible handle, from suitable LDPE polyethylene film with a mix percentage of up to 30% LLDPE. Max bag height without flexible handle : max 700mm Bag height : max : 600mm + bottom folding Bag width (length of feed) : 300-750mm Height of flexible handle : max 80mm Mechanical output, without film : max 150 strokes/min Web speed max : 70 m/min Material type and thickness : HDPE : 2 x 18-40 microns** LDPE (with max 30% LLDPE) : 2x40-80 microns** - 4x40-60 microns** ** : welding bar radius required. The machine can work all these thicknesses: 2 x are two layers of plastic (front and back of the bag) and 4 x are four layers (when you do bottom folding on the bag, weld 4 layers). Some will be more optimal than others depending on the lip radius of the welding rod which is usually 1.0 mm to 1.2 mm. For example, if you want to weld polypropylene, the radius would be approx. 0.3 mm; the one that the machine currently has is suitable for the materials and thicknesses indicated. Shaftless unwinder FAU SL 1600/1200 Unwinding width min-max : 400-1600mm Max. reel diameter max : 1200mm Shaftless reel lifting device Cones for inside diameter of cores 74-76mm Max reel weight : 2500Kg Ultrasonic probe for web edge adjustment 1 adapter for 6” core diameter 1 oscillator unit for web tension and speed control 1 folding triangle FD1600 to form a half tube, web infeed width of flat film max : 1600mm 1 bottom folder BF 1600.1 to form the bottom fold on one side. Depth of bottom folding : 30-100mm 1 longitudinal hot air welder with inner fold forming station for folding and welding the film edges to reinforce the loading area. 1 2-lanes pre-welder for the bottom folding area. 1 flexible handle application device with : 2 unwinders for handle film with central drive. Pneumatically expandable unwind shafts diameter 72-76mm Reel width (handle length): max 345mm Reel diameter : max 600mm Thickness of handle film, LDPE : 150-200 micron Cutting and feeding device for handle tapes for handle width : 30mm 1 embossing device for handle embossing Main machine INTERmat SGS 850 with print register control on 1 lane Max. welding and cutting width : 850mm Photocell for print register control SICK KT5 W2 P1116D Welding and cutting station for side welding with welding wedge and welding roller Suction belt conveyor unit Cross conveyor belt with stopper, to collect and deposit the finished product. Bag width max : 750mm Accumulation and folding station in C or Z shape. The machine has been modified to also make plastic sachets, although it would be sold together with all its loop equipment. To convert it back to loop, the buyer would only need to lengthen the machine bed again. Although not shown in the video, there is a separate robotic pick-up table, which is included, for the loop bag product. So, in summary, both products can be produced with the machine.

High performance machine for the production of bags with side welding flexible handle. Max height of bag without flexible handle : max 700mm Height of the bag : max : 600mm + bottom folding Bag width (feed length) : 300-750mm Height of flexible handle : max 80mm Real output : max 170 strokes/min Belt speed min-max : 15-80 m/min Material type and thickness : HDPE : 2 x 18-40 microns** LDPE (with max 30% LLDPE) : 2x40-80 microns** - 4x40-60 microns** ** : welding bar radius required. The machine can work all these thicknesses: 2 x are two layers of plastic (front and back of the bag) and 4 x are four layers (when you do bottom folding on the bag, weld 4 layers). Some will be more optimal than others depending on the lip radius of the welding rod which is usually 1.0 mm to 1.2 mm. For example, if you wanted to weld polypropylene, the radius would be approx. 0.3 mm; the one that the machine currently has is suitable for the materials and thicknesses indicated. From a thickness > 45 microns, the use of a pre-welder is recommended to ensure maximum performance. Shaftless unwinder FAU SL 1600/1200 Unwinding width min-max : 400-1600mm Max. reel diameter: 1200mm Shaftless reel lifting device Cones for inside diameter of cores 74-76mm Max reel weight : 2500Kg Ultrasonic probe for web edge adjustment 1 adapter for 6” core diameter 1 FAU central web adjustment 1 oscillating unit for web tension and speed control 1 folding triangle FD1600 to form a half tube, flat film web infeed width max : 1600mm 1 bottom folder BF 1600.1 to form the bottom fold on one side. Depth of bottom folding : 30-100mm 1 hot air longitudinal welder with inner folding station for folding and welding the film edges to reinforce the loading area. 1 2 lanes pre-welder for bottom and handle folding area. bottom folding : 20x120mm, upper welding head flap : 20x120mm 1 flexible handle application device with : 2 unwinders for handle film with central drive. Pneumatically expandable unwind shafts diameter 72-76mm Reel width (handle length) : max 345mm Reel diameter : max 800mm Thickness of handle film, LDPE : 150-200 microns Cutting and feeding device for handle tapes for handle width : 30mm 1 embossing device for embossing the handles Main machine INTERmat SGS 850 with print register control on 1 lane Max. useful welding and cutting width : 850mm Photocell for print register control SICK KT5 W2 P1116D Welding and cutting station for side welding with welding wedge and welding roller Suction belt conveyor unit, removable Stacker with stopper for products without suspension holes, flake stacking Accumulation station C- or Z-shaped folding station The machine has been modified to also make plastic envelopes, although it would be sold together with all its loop equipment. To return to loop configuration, the company that will purchase the machine would only have to re-lengthen the machine bed. Although not shown in the video, there is a separate robotic pick-up table, which is included, for the loop bag product. Therefore, in summary, both products can be produced on the machine.

Glue patch handle bags with or without bottom gusset Bag width :250- 600 mm Unwind unit with 1600 mm, reel diam. max 1200 mm Folding board (30- 80 mm) Bottom gusseter Neumatic hole punching unit

Material: LDPE; LLDPE; MDPE; HDPE; PP Cast Type of bags: wicket; longitudinal welding Unwinder diam. max.: 1600 mm Welding method: welding bar Length of welding bar: 880 mm Confection speed: min. 50 - max. 400 pcs/min Bag width: min.: 100 mm; max.: 400 mm Thickness of the bag: min.: 15 my (hand cut); max.:150 my (without fold) Guiding the film through the machine: two-sided FIFA (on the machine) Trim foil: YES Sleeve diameter: Ø 76 mm; Ø 152 mm; shaftless Roll diameter: max. 800 mm Printed foil: photocell Additional seam: YES. Product ventilation: a) hole: yes; b) cross: yes Available from September 2024

Unwind with magnetic power brake + tension control roll Airshaft for mother reel 4 x roll dancer 2 x rotary perforator Trim winder Edge guide Fife 2 x bottom gusseter 2 perforation units with 4 and 5 punches of diameter 5 or 6mm Suction pump + barrel Infeed rollers in good condition LDPE sealing bar + sealing roll Control panel with digit screens Photocell for printed film Protective light curtain for safety Siemens PLC 19KVA, 35Amp
