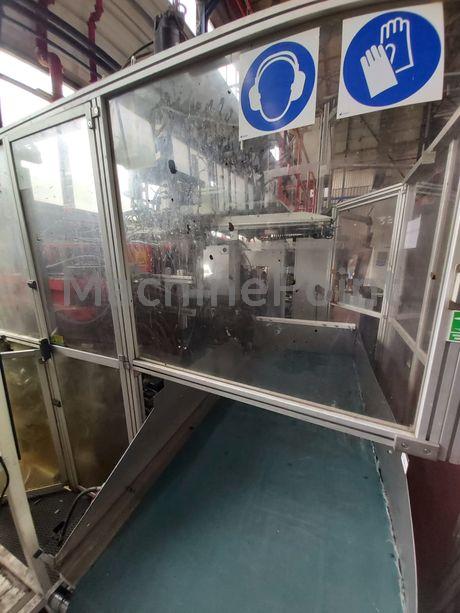

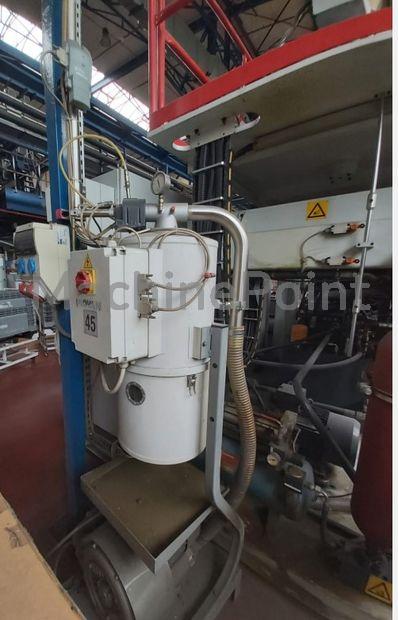

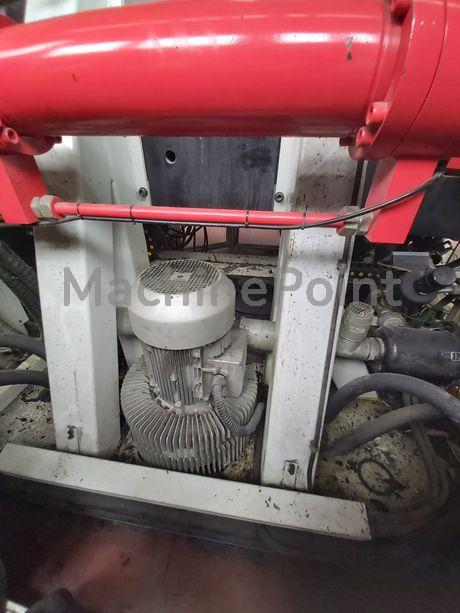

Used UNILOY UMA 20 SH - SeCo2 of 2010 for sale
Accumulation Head Extrusion blow moulding machine UNILOY, MachinePoint chooses the best machinery on sale in the market and we offer our clients a selection of high quality machinery.
Data Sheet of Used UNILOY UMA 20 SH - SeCo2
Ref.: 300049295
Year: 2010
Brand: UNILOY
Ask for machine price Want to sell your machine?
Technical Specifications:
- Accumulation Head Capacity : 2.5 l
- Number Of Heads: 1
- Material Type: PE
- Number Of Stations: 1
- Output Capacity U/H Or Kg/H: Kg/h 150
- Extruder Type: Accumulator
- Number Of Extruders: 1
- Screw Diameter: 70 mm
- L/D: 24
Other Specifications:
Machine Specifications:
Average consumption: 65 kW
Hours in production (as of 07.2024.): 16,880 h
Mould closing force (200 bar): 21 tons
Available width of mould holder plates (A): 645 mm
Available height of mould holder plates (H): 700 mm
Minimum thickness of each half-mould (B): 400 mm
Opening of mould holder plates (min–max) (S): 790 – 1,400 mm
Product take-out horizontal stroke: 1,000 mm
Core pulls:
9 hydraulic
12 pneumatic
Heating zones:
Aggregate – 5 zones
Extrusion head – 8 zones
Total heating capacity: 30.5 kW
Oil tank capacity: 600 L
Weight of clamping unit: 5,300 kg
Other Details:
Guarantee: Without guarantee
Current condition: Not running. Can be shown in dry cycle
Voltage: 400 V TriphaseFrequency: 50 Hz
Voltage: 98 Kw
