Used KRAUSS MAFFEI KM 250/2000 CX of 2009 for sale
2009 | Ref.: 300049366

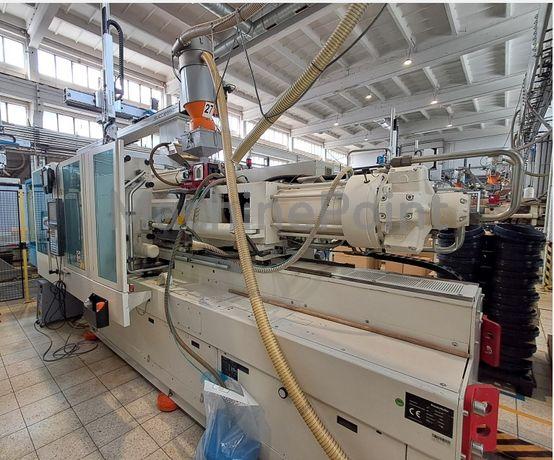

Injection molding machine up to 250 T KRAUSS MAFFEI, The team at MachinePoint is constantly looking for the best offer of machinery all over the world in order to offer our clients attractive and quality machinery.
Data Sheet of Used KRAUSS MAFFEI KM 250/2000 CX
Ref.: 300049366
Year: 2009
Brand: KRAUSS MAFFEI
Status:
For sale
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 250 ton
- Shot Weight (Max): 981 g
- Distance Between Tie-Bars (H): 630 mm
- Distance Between Tie-Bars (V): 630 mm
- Platen Size (H): 995 mm
- Platen Size (V): 1050 mm
- Screw Diameter: 60 mm
- Tie-Bar Diameter: 145 mm
- Mould Height (Max): 330 mm
- Daylight Between Platens (Max): 1140 mm
- Opening Stroke (Max): 810 mm
- Ejector Force: 58 ton
- Ejector Stroke: 220 mm
- Core Pulls: Yes
- Number Of Core Pulls: 1
- Injection Volume: 1078 cm³
- Nozzle Force (Max): 8 ton
- Nozzle Stroke (Max): 600 mm
- Oil Tank Capacity: 525 l
- Orientation: Horizontal
Other Specifications:
Hours in Production at 07/11/2025 : 73 900 hr
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
Voltage: 400 V Triphase
Frequency: 50 Hz
Voltage: 80 Kw
