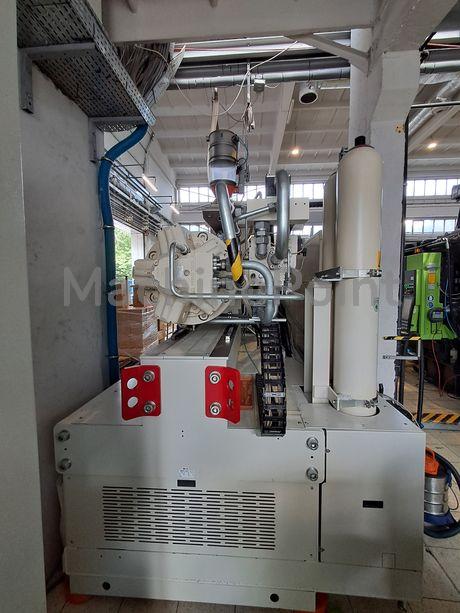

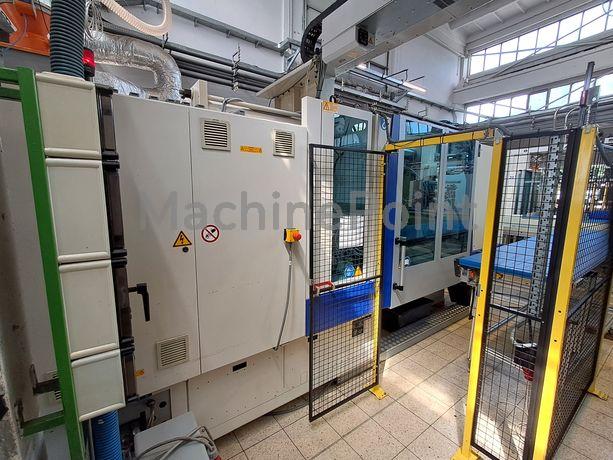

Used KRAUSS MAFFEI KM 420/4300 CX of 2014 Clamping Force: 420 ton for sale
2014 | Ref.: 300049374
Injection molding machine from 250 T up to 500 T KRAUSS MAFFEI, You can contact our team and analyze your needs so we can offer you the best possible solution depending on your budget.
Data Sheet of Used KRAUSS MAFFEI KM 420/4300 CX
Ref.: 300049374
Year: 2014
Brand: KRAUSS MAFFEI
Status:
For sale
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 420 ton
- Shot Weight (Max): 2084 g
- Distance Between Tie-Bars (H): 800 mm
- Distance Between Tie-Bars (V): 800 mm
- Platen Size (H): 1270 mm
- Platen Size (V): 1230 mm
- Screw Diameter: 90 mm
- Tie-Bar Diameter: 170 mm
- Mould Height (Max): 380 mm
- Daylight Between Platens (Max): 1400 mm
- Clamping Speed: 900 mm/s
- Opening Stroke (Max): 820 mm
- Ejector Force: 95 ton
- Ejector Stroke: 250 mm
- Core Pulls: Yes
- Number Of Core Pulls: 1
- Dry Cycle (S): 2.8 s
- Injection Volume: 2290 cm³
- Injection Pressure: 1839 bar
- Injection Rate: 604 cm³/s
- Nozzle Force (Max): 13 ton
- Nozzle Stroke (Max): 600 mm
- Heating Zones: 7
- Heating Capacity: 44 kW
- Oil Tank Capacity: 1075 l
Other Specifications:
Hours in Production at 07/11/25: 58 000hrs
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
Voltage: 400 V Triphase
Frequency: 50 Hz
Voltage: 105 Kw
