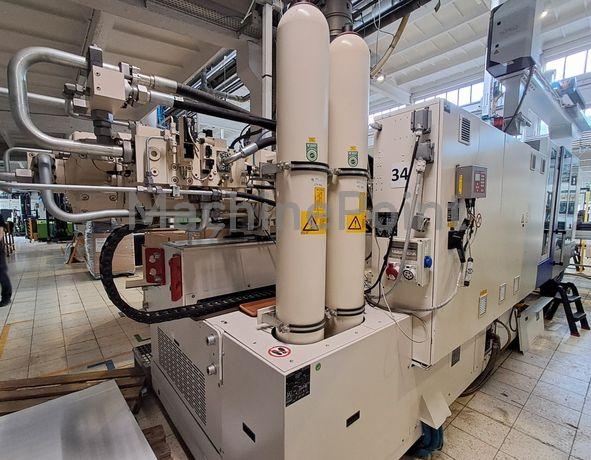

Used KRAUSS MAFFEI KM 420/4300 CX of 2014 Clamping Force: 420 ton for sale
2014 | Ref.: 300049377
Injection molding machine from 250 T up to 500 T KRAUSS MAFFEI, In MachinePoint we work so that our buyers receive a professional service and so the transaction is safe.
Data Sheet of Used KRAUSS MAFFEI KM 420/4300 CX
Ref.: 300049377
Year: 2014
Brand: KRAUSS MAFFEI
Status:
For sale
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 420 ton
- Shot Weight (Max): 2084 g
- Distance Between Tie-Bars (H): 800 mm
- Distance Between Tie-Bars (V): 800 mm
- Platen Size (H): 1270 mm
- Platen Size (V): 1230 mm
- Screw Diameter: 90 mm
- Tie-Bar Diameter: 170 mm
- Mould Height (Max): 380 mm
- Daylight Between Platens (Max): 1400 mm
- Clamping Speed: 900 mm/s
- Opening Stroke (Max): 820 mm
- Ejector Force: 95 ton
- Ejector Stroke: 250 mm
- Core Pulls: Yes
- Number Of Core Pulls: 1
- Dry Cycle (S): 2.8 s
- Injection Volume: 2290 cm³
- Injection Pressure: 1839 bar
- Injection Rate: 604 cm³/s
- Nozzle Force (Max): 13.2 ton
- Nozzle Stroke (Max): 600 mm
- Plasticising Capacity: 185.8 g/s
- Heating Zones: 7
- Heating Capacity: 44 kW
- Oil Tank Capacity: 1075 l
- Orientation: Horizontal
Other Specifications:
Hours in Production at 07/11/2025 : 57 300hrs
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
Voltage: 400 V Triphase
Frequency: 50 Hz
Voltage: 105 Kw
