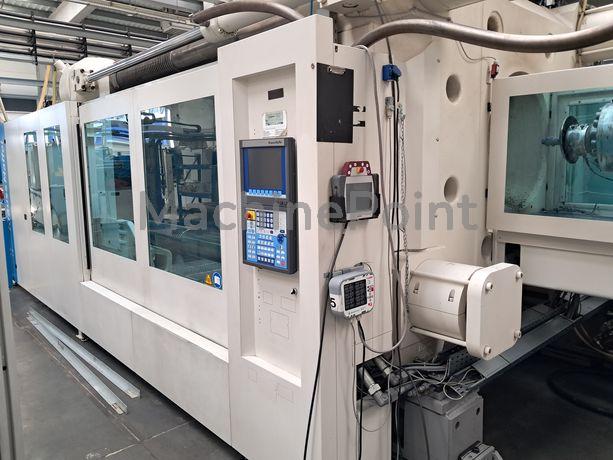

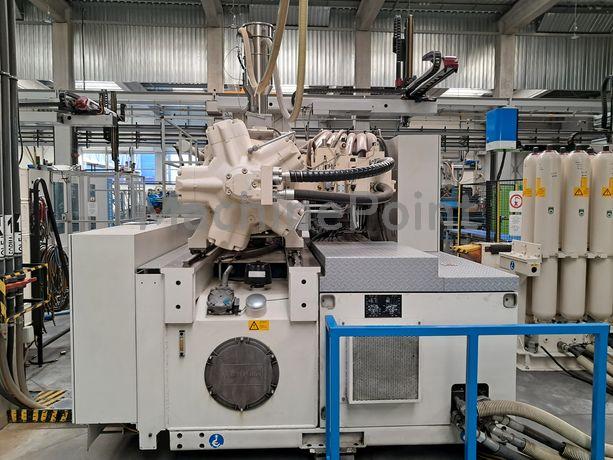

Used KRAUSS MAFFEI KM 1600/17200 MX of 2013 Clamping Force: 1600 ton for sale
2013 | Ref.: 300049384
Injection molding machine from 1000 T KRAUSS MAFFEI, You can contact our team and analyze your needs so we can offer you the best possible solution depending on your budget.
Data Sheet of Used KRAUSS MAFFEI KM 1600/17200 MX
Ref.: 300049384
Year: 2013
Brand: KRAUSS MAFFEI
Status:
For sale
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 1600 ton
- Shot Weight (Max): 8792 g
- Distance Between Tie-Bars (H): 1870 mm
- Distance Between Tie-Bars (V): 1420 mm
- Platen Size (H): 2550 mm
- Platen Size (V): 2100 mm
- Screw Diameter: 135 mm
- Tie-Bar Diameter: 260 mm
- Mould Height (Max): 1600 mm
- Mould Height (Min): 700 mm
- Daylight Between Platens (Max): 3700 mm
- Clamping Speed: 670 mm/s
- Opening Stroke (Max): 2700 mm
- Ejector Force: 300 ton
- Ejector Stroke: 350 mm
- Core Pulls: Yes
- Number Of Core Pulls: 4
- Dry Cycle (S): 5.8 s
- Injection Volume: 9662 cm³
- Injection Pressure: 1784 bar
- Injection Rate: 1290 cm³/s
- Nozzle Force (Max): 21.41 ton
- Nozzle Stroke (Max): 1300 mm
- Plasticising Capacity: 182 g/s
- Heating Zones: 7
- Heating Capacity: 97 kW
- Oil Tank Capacity: 2400 l
- Orientation: Horizontal
Other Specifications:
Hours in Production at 07/11/2025 : 53400 h
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
Voltage: 400 V Triphase
Frequency: 50 Hz
Voltage: 206 Kw
