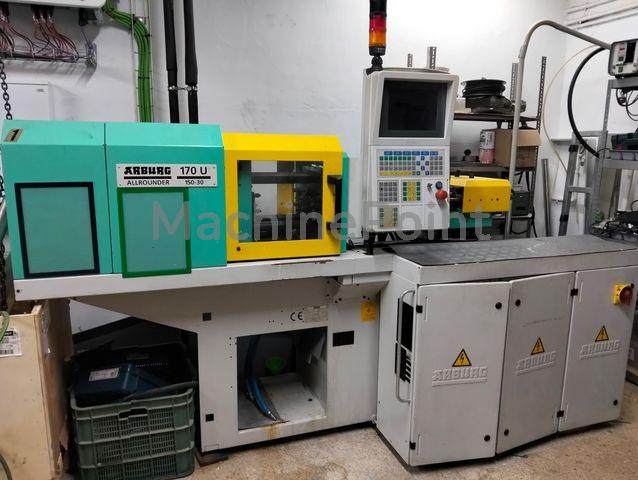

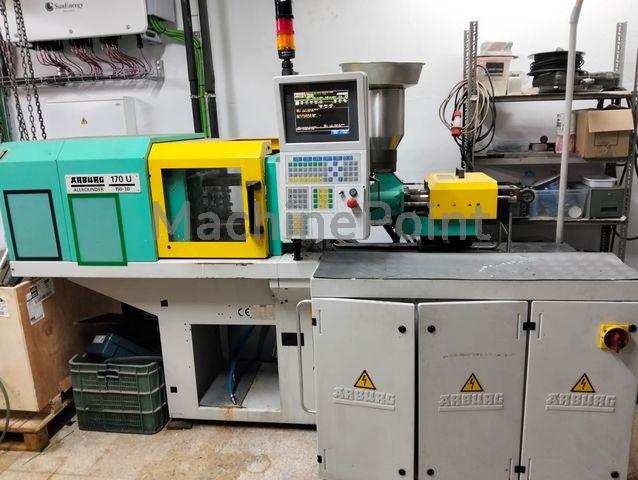

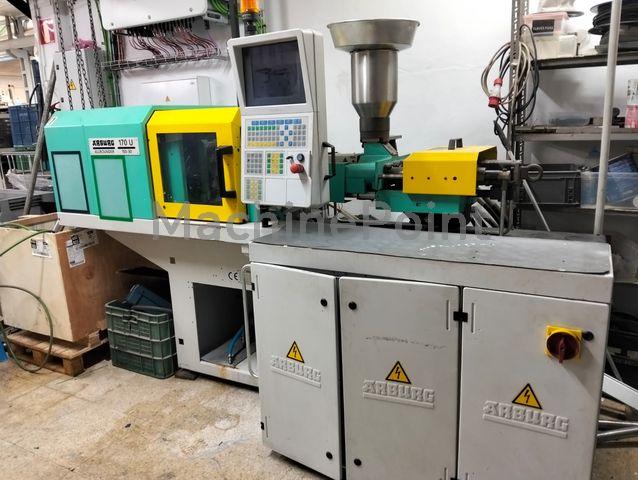

Used ARBURG 170 U 150 -30 of 2005 for sale
2005 | Ref.: 300049394
Injection molding machine up to 250 T ARBURG, You can contact our team and analyze your needs so we can offer you the best possible solution depending on your budget.
Data Sheet of Used ARBURG 170 U 150 -30
Ref.: 300049394
Year: 2005
Brand: ARBURG
Status:
For sale
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 15 ton
- Shot Weight (Max): 14 g
- Distance Between Tie-Bars (H): 170 mm
- Distance Between Tie-Bars (V): 1700 mm
- Platen Size (H): 275 mm
- Platen Size (V): 275 mm
- Screw Diameter: 18 mm
- Mould Height (Min): 150 mm
- Daylight Between Platens (Max): 350 mm
- Opening Stroke (Max): 200 mm
- Screw L/D Ratio: 14,5
- Screw Torque: 100 N·m
- Injection Volume: 15.3 cm³
- Injection Pressure: 2000 bar
- Nozzle Force (Max): 5 ton
- Nozzle Stroke (Max): 60 mm
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
Voltage: 400 V Triphase
Frequency: 50 Hz
