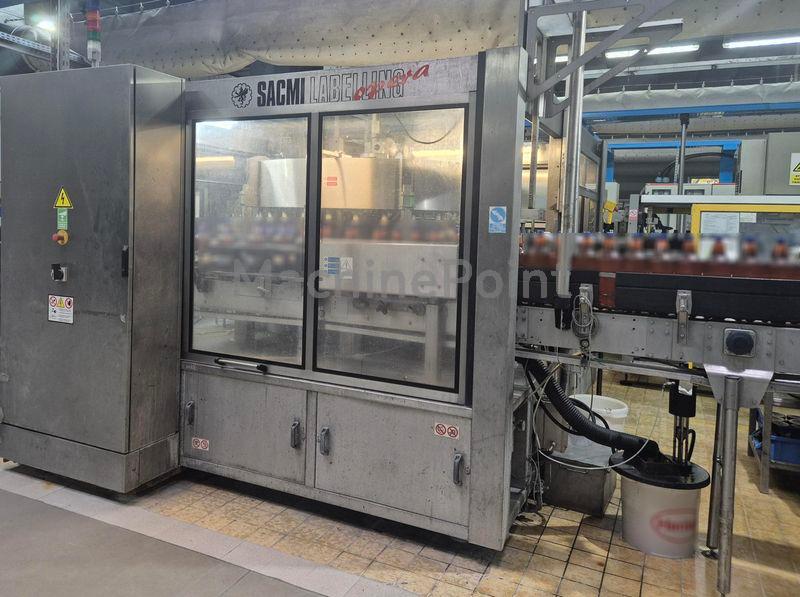

Used SACMI OPERA 500 COMBI 30T of 2008 for sale
PET labelling machine SACMI, MachinePoint has a multicultural team with world presence to be able to be closer to our clients. We speak over 15 different languages.
Data Sheet of Used SACMI OPERA 500 COMBI 30T
Ref.: 300049403
Year: 2008
Brand: SACMI
Ask for machine price Want to sell your machine?
Technical Specifications:
- Output: 12000 U/h
- Bottle Size: up to 2.5L
- Glue: Hot
Other Specifications:
ROLL-FED LABELLING MACHINE SACMI
Model: OPERA 500 COMBI 30T S1/E1 RF+S3/E3 CG
Operating Speed: 12.000 BPH
Year of Manufacture: 2008
Automatic rotary labelling machine equipped with 1 (one) roll-fed labelling station,
hot-melt glue type, to apply one plastic fullwrap label and 1 (one) cold glue labelling station to apply one front or one partial
Full wrap around neck or one back pre-cut paper label on cylindrical/shaped filled PET containers
Containers technical information
Container minimum diameter: 55 mm
Container maximum diameter: 110 mm
Container minimum height: 150 mm
Container maximum height: 370 mm
Roll-Fed Labels information
Label minimum length: 185 mm
Label maximum length: 360 mm
Label minimum height: 30 mm
Label maximum height: 175 mm
Cold Glue Label Specs
Label minimum length: 20 mm
Label maximum length: 180 mm
Label minimum height: 20 mm
Label maximum height: 150 mm
Including:
-Double feedscrew infeed system
-Platforms rotation by means of brushless motors
-Three glue heaters for cold glue labelling station
-Motorisation of RF group
-Disconnecting system for CG groups
-Motorization to conveyor belt through inverter
-Lincoln automatic lubrication
-Air conditioner for main electric board
-SEW Motors
-Bottle dryer (P=15 kW, ACI manufacturer)
Other Details:
Guarantee: Without guarantee
Current condition: In Production
