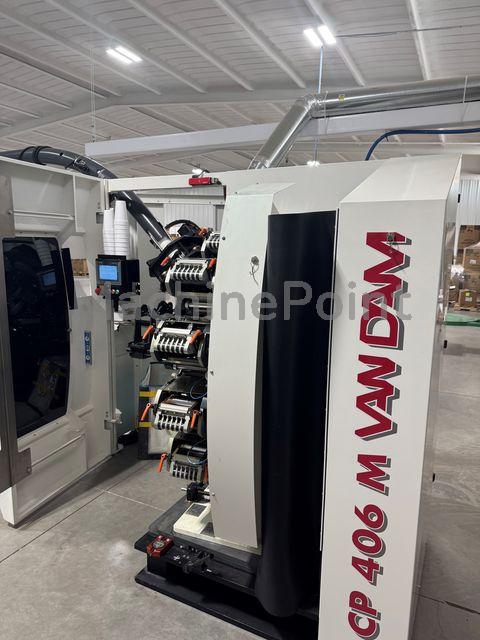

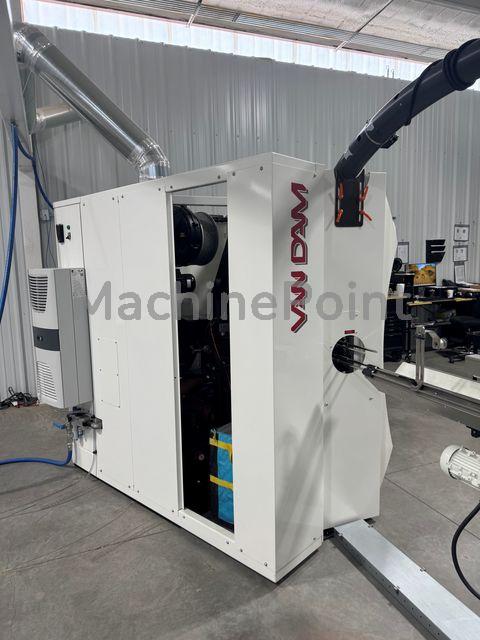

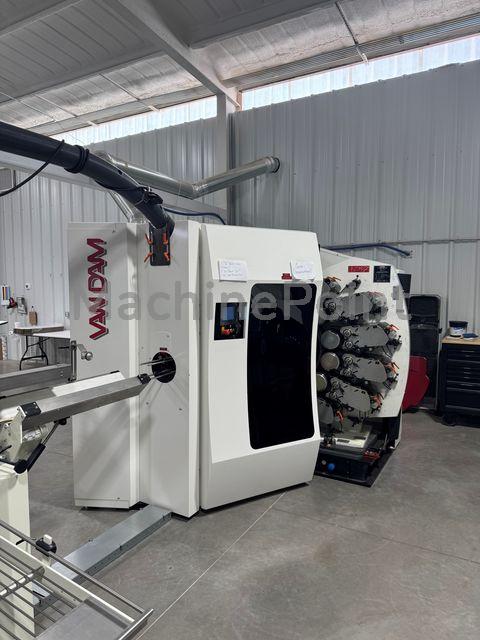

Used VAN DAM CP 406 M 152 of 2023 for sale

4 x Van dam CX-708 2006 ONLY valid for spares One with 8 heads One with 7 heads Two with 5 heads.

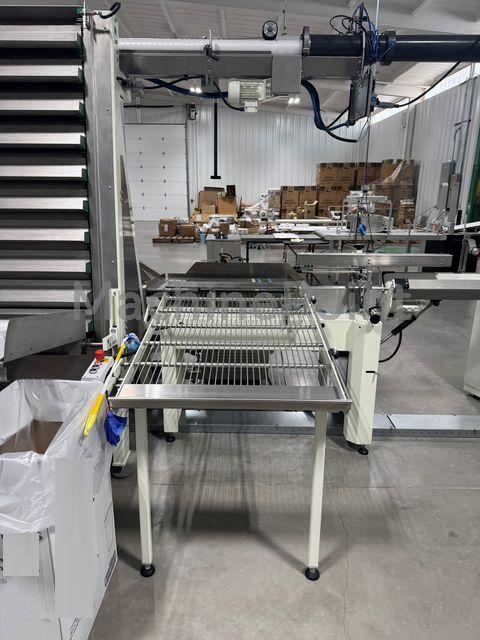

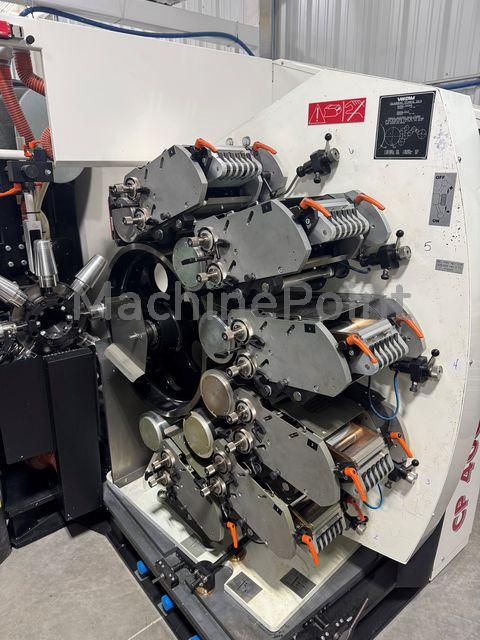

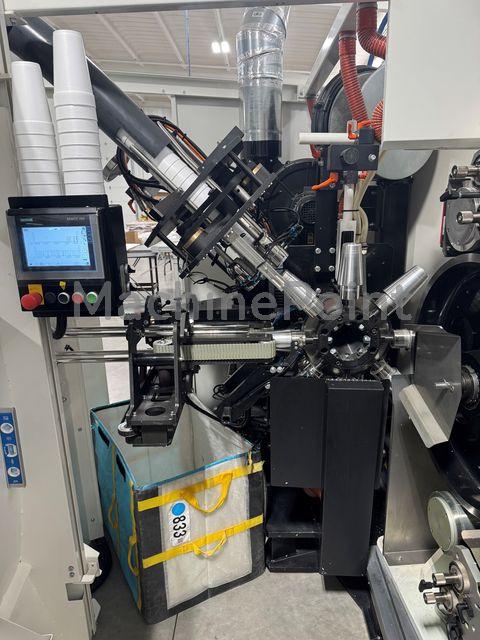

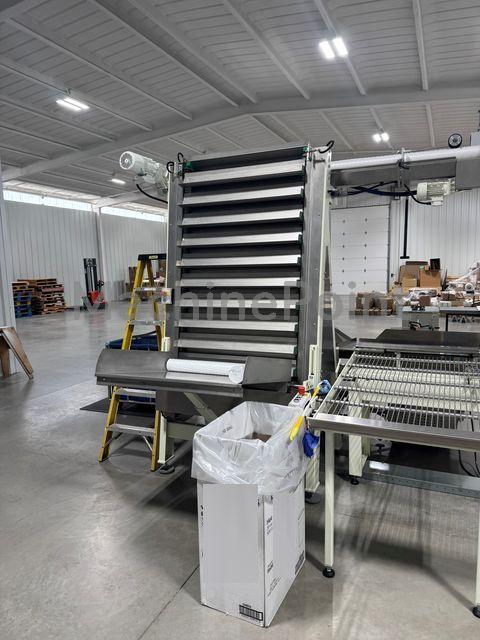

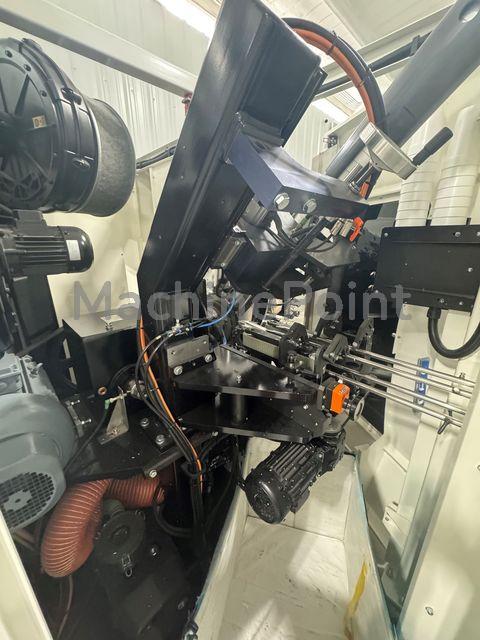

Maximum taper 15 degrees Maximum print height 120 mm Maximum print length in 4 BLANKET MODE: 340 mm (Ø 108 mm) M Maximum print length in 2 BLANKET MODE: 425 mm (Ø 135 mm) option Maximum mechanical speed 400 products per minute The actual maximum printing speed depends on the cup design. Transformer for Frequency 50 - 60 Hz Connected load 40 kVA Nominal load 32 kVA The basic line configuration includes: •Feeding unit/IN- Feed System. A single lane feeding belt, which transports the products into the feeder tube. Feeder Tube for Belt Feeder Transports the product stacks from belt feeder to the screw feeder •Handling section •Corona Pre-treatment station •Printing section with 6 colour heads •Curing station: Curing on Mandrel, Single UV-lamp system, 6kW curing capacity •Take off / re-stacking unit Extras included: 1- Video Punch and Bending Jig: A tool for punching of mounting holes in the printing plates. The tool uses one camera and monitor for high accurate punching of the mounting holes and guarantees a registration accuracy within 0.07 mm. The plate ends can be accurately bent for precise mounting of the printing plates. 2-Quick Set Ink Fountain with Segmented Knife: A scale to show ink flow through ink knife giving reference point and repeatable settings. Levers are used to adjust the segmented ink knife. 3-Laser Counting Re-stacker: The cups rims are counted when they pass a laser. When the correct number of cups has passed the laser sensor, the stack is pushed forward and rolls onto the collecting table. 4- 2 Blanket Mode (for print lengths > 340 mm): This (electronic) mode changes the drive ratio between the index unit and the print section and enables longer printing lengths up to 425 mm. Hold-on Mechanism . A mechanical hold-on which ensures the product stays on the mandrel during printing (required for special cup types only). 5- Tray Feeder: A-frame tray feeder with width of 950 mm (useful width). 6- EPS In-feed Belt: Conveying Belt up to 10’, actual length TBD above feeder rods under an angle of 45° for stack pressure with 3 sensors (high, medium and low level) to control in-feed speed. 7- Screw Separator: Feeds cups one by one into a special feeding tube (sized to product) with stack level control. Used for non- bending stacks. 8- Air Jet Separator: Feeds cups one by one, by air, into a special feeding tube (sized to product) with stack level control. Used for non-bending stacks. 9- Holder for Rubber Rollers: To store rollers when not in use. 10- Tool Sets 1 set (8) mandrels, shafts, ring for product up to Ø 100 mm 1 set (8) mandrels, shafts, ring for product Ø 100 mm - Ø 160 mm 1 set (8) mandrels, shafts, ring for product Ø 160 mm - Ø 205 mm 1 set of 3 feeder screws (if needed) 1 set (3) special blow pieces 1 special infeed tube with blow pieces for high speed EPS feeding

Van Dam CM 608 M Dry offset printing machine for decoration of round cups Production speed up to 600 cups per minute Max. printing height: 150 mm High printing quality Modular building concept Siemens operator panel Included: Plates making machine Van Dam 560 COM DOT Serial number PD8194 Machine number MD 1005 Van Dam 684 Base Printer Serial number PD8194 Machine number MD 1009 Available for pick up from June 2022

Dry-offset printing machine for decoration of round cups Material : all products such as PP, PET, PS, even paper cups. Six color heads each provided with eight distribution rollers. ‘First time right’ plate mounting Sharp print results with two form rollers on each color head. Easy access to product handling areas and print areas. Optimum product feeding with separate screw feeder motor. Graphic operation panel for easy machine-control. Belt feeder with pressure control. Corona pretreatment with easily adjustable electrodes. Quick change mandrel disc assembly, usable on all Van Dam cup printers. Mandrel rotation control for all around pretreatment and curing. High powered ‘Curing on Mandrel’ UV-lamp system with stand-by mode. Belt take off. Counting restacker with packing table. Camera punch jig / bending jig for printing plates. Max. printing height : 120 mm Max. printing length : 150° / 120° / 90° - 300 / 340 / 385 mm Blanked mode : 425 mm Min./max. taper : 0 – 15° Production speed up to 400 cups per minute The machine is not longer in production, but it can be set up very easy for show run. The machine is in perfect condition The video is showing a test-run, so no full speed, & re-used cups The machine has very few running hours & only printed 45 million cups form 2012-2017.

VAN DAM high speed foam cup printing machine. The machine has 6 printing heads with the option to add another 2. This cup printer is an automatic, electronically controlled machine able to transfer multi-coloured images to tapered cups at high speed. Max machine speed : up to 400 cups/minute, depending on the cup dimensions and cup properties Details : 1 cup printer Model CM408 M incl 150 drg index unit, incl : 6 color heads 1 hold-on unit 1 Belt take off system 1 corona pre treatment unit, type Vetaphone 1 Curing on mandrel UV system 1 control panel 1 main cabinet 1 UV cabinet 1 modem mounted in the cabinet Cup dimensions : Cup rim diameter : 50-205mm Max cup height : 200mm (240mm at some productshapes) Max taper : 12° Ink : Typ of ink : Ultraviolet ink Max printing dimensions : Max printing height : 150mm Max printing length : 367 mm at an indexing period of 150° and 6 blankets - 535mm at an indexing period of 150° and 3 blankets Index unit : Number of stops : 8 Dwell period : 210° Index period : 150° Offset cylinder : Pitch diameter : 1200,38mm Width of offset cylinder : 223mm Side adjusment :-2 - 80mm (in relation to stripper dimension 167mm) Taper adjustment : 0° - 12° Diameter adjustment : 2-205mm Number of blankets : 6 (or 3 for printing lengths of more than 422mm) Plate cylinder : Pitch diameter : 200,58mm Width of cylinder : 187mm Circumferential adjustment : 10mm (+ and - 5mm) Lateral adjustment : 8mm (+ and - 4mm) Fixed and spring loaded pin bar mounting Drive : Offset cylinder : Servomotor via gearbox Index unit : Servomotor Screw feeder : Servomotor The machine is working properly and is fully automatic. It can print up to 6 colors and it can also make embossed printing with colors.
