Used PROCOMAC Fillstar 80.10.113 of 2000 for sale

Used Aseptic filler Gea Procomac Monobloc Filler and capper Fillstar CX PET2 AS 120.25.113 Bottle discharge tunnel Foil induction sealing tunnel Sterilizable caps elevator Tunnel for the pre-sterilized caps feeding Peracetic solution automatic titration system Formats:2,0 L – 1,5 L – 0,5 L – 0,33 L – 0,25 L Output- 1.5 liter- 30,000 b/h 0.5 liter- 36,000b /h Product: “High Acid” still products (pH < 4.5) still and carbonated “Low Acid” products (Ph >4.5) Products specifications Brix 0-16 Minimum conductivity 5 mS/cm Viscosity: 1-15 cp (filling with contact) and 1-50 cp (filling without contact) - 4 Amount of pulps and fibres for still products up to 10% w/w Amount of pulps and fibres for carbonated products up to 2% w/w - 5 Size of pulps and fibres 2 mm width, 18 mm length for still drinks (for carbonated drinks max 1 and 5 mm). Fruit content 0 – 100% CO2 content up to 6 grs./liter for carbonated products in aseptic conditions - 6 Bottles: Material: PET Formats: 2,0 L – 1,5 L – 0,5 L – 0,33 L – 0,25 L Dimensions: Min height: 140 mm Max height: 350 mm - 7 Min diameter: 80 mm - 8 Max diameter: 108 mm Filling: Still product: no contact between bottle and fill valve Carbonated product: contact between the bottle mouth and fill valve. Temperature: min 20°C max 30°C (indicated minimum temperature is mandatory, to avoid moisture formation within the sterile environment). - 9 Oxygen Pick-Up (during bottle filling): max 1 ppm Accuracy: With still drinks: Product without pulps * Maximum tolerance per volume < 1200 ml: sigma 2 ml * Maximum tolerance per volume > 1200 ml: sigma 2,5 ml Product with pulps * Maximum tolerance per volume < 1200 ml: sigma 2,3 ml * Maximum tolerance per volume > 1200 ml: sigma 2,8 ml With carbonated drinks: Product without pulps * Maximum tolerance per volume < 1200 ml: sigma 1,8 ml * Maximum tolerance per volume > 1200 ml: sigma 2,3 ml Product with pulps * Maximum tolerance per volume < 1200 ml: sigma 2,1 ml * Maximum tolerance per volume > 1200 ml: sigma 2,6 ml Remark:Minimum bottle head space height to be equal to 25mm from bottle top (including bottle tolerance and filling precision). Product wastage, upon each product changeover: max 50 liters (on the filler). - 10 Product changeover required time: (between two compatible products, for which just one sterile water rinse is sufficient): max 30 minutes. Oxygen content in the head space: max. 5% including nitrogen flushing in the bottle before filling and liquid nitrogen droplet before capping. Procomac will make new test in the next 15 days in order to be able to guarantee a lower oxygen content. We’re ready to share with Jafora the results of the test and to agree on a better guarantee. - 11 Capper - 12 Heads Flat, plastic caps 38mm without alu foil Capping Loose caps: max 1:25.000 (single principle thread type caps) - 13 max 1:10.000 (multi-principle thread type caps). Cap application torque guaranteed precision: ± 10%. Slanted caps: max 1:25.000 (single principle thread type caps) - 14 max 1:10.000 (multi principle thread type caps). In any case the guarantee on the capping will not be lower than the guarantee given on the caps by the caps supplier. – 15 Line in production until October 2025

Products: mineral water Bottle type (basic): from 0.5 l to 2.0 l volume PET closing type: PP screw-cap format 28mm Labels: paper (not from roll) Package format: 3x2, wrapped in heat shrink film Tray: Euro-type working hours of the line: tbc Line capacity: - 13.000 bottles/h The capacity is calculated on the basis of a 0.5 l PET bottle - 12.000 bottles/h The capacity is calculated on the basis of from 1.lt to 2.0lt PET Bottles - 10.000 bottles/h The capacity is calculated on the basis of a 0.66 lt PET Bottles sport cap The line includes the following machines: Blower SIPA SFR 12 year 2004 Saturator Alcaimpianti year 2006 Filler Procomac Fillstar 48.12.141/B Year 1997 Capper: Arol Euro PK year 2018 Labeller PE Futura D825-15T-1S-1E Year 1997 Shrink Packer SMI Apet 143D year 1997 Printer VideoJet 37plus year 2012 Handle applicator SMI MAB60 Year 1997 Conveyors Procomac Air Conveyors Procomac Palletizer TMG Sirio Year 1997 Wrapper Tosa 121 Year 1997 CIP TBC

Procomac isobaric filler for water Model: Fillstar Pet 2 With capper AROL 140 filling valves 20 capping heads With 29/25 neck configuration With cap feeder From 2007 Running hours: 20.000h (October 2021) Available in February 2023

Procomac unscrambler Construction year 1995 incl. hopper, conveyor belt from the hopper to the erector. We have been using bottles with a neck finish 1810. should also be adjustable to other diameters. Disconnected in good condition and immediately available!

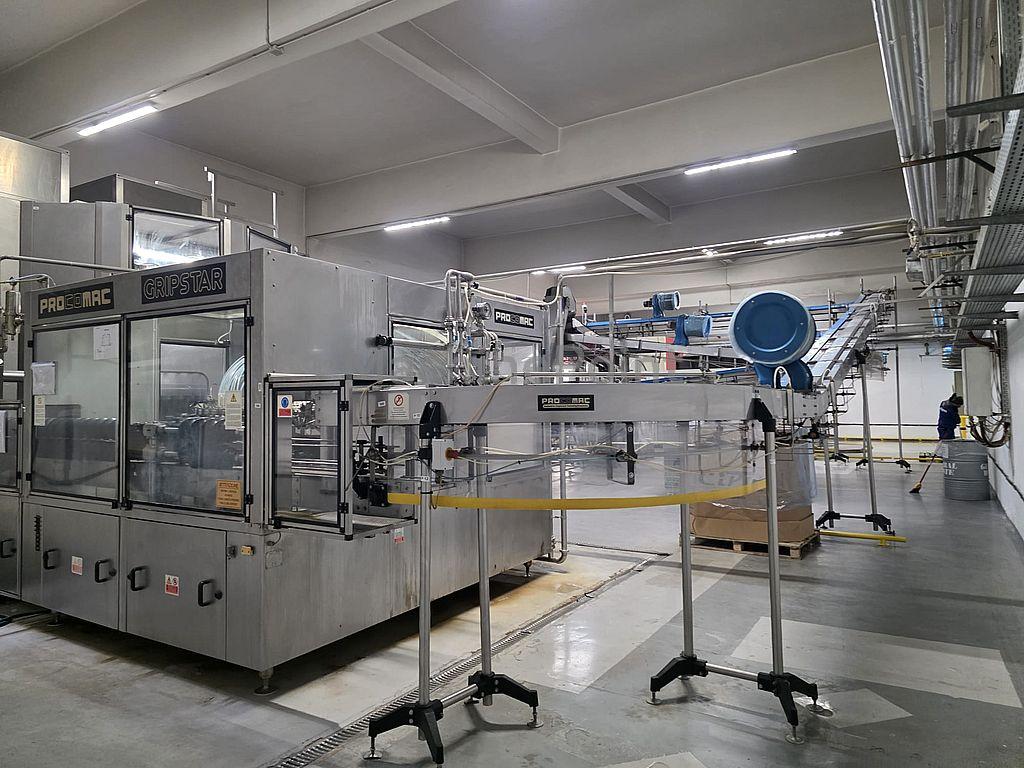

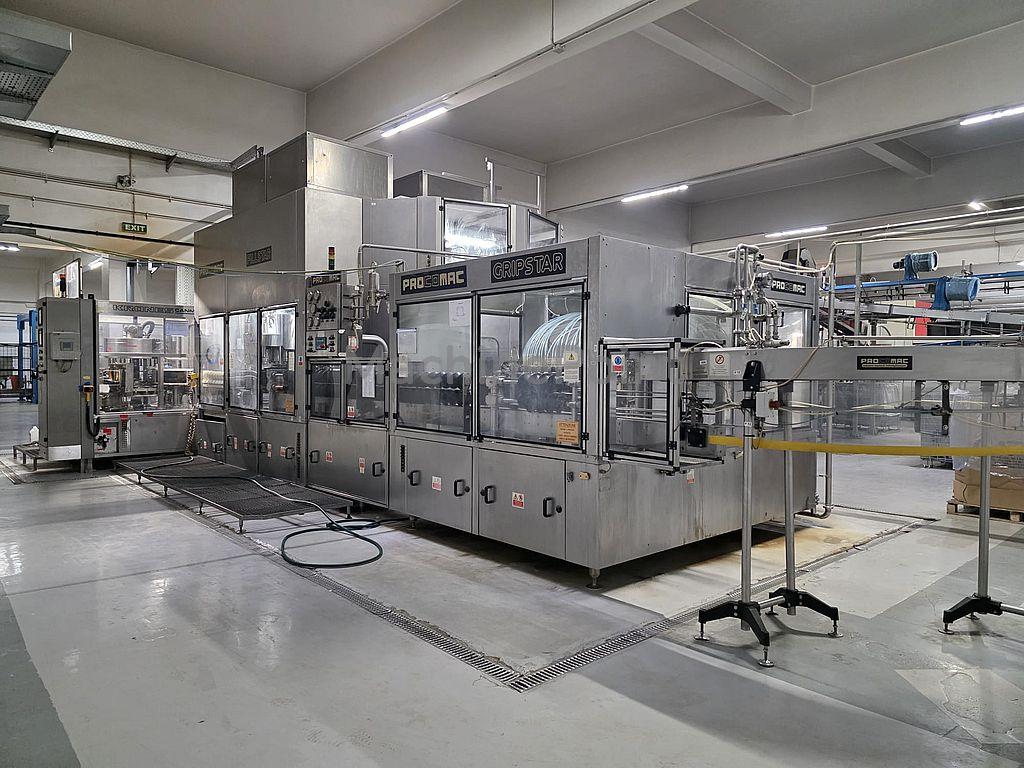

Complete PET milk bottling line Procomac Fillstar FX Aseptic 65.102.113 Products: Milk - 3 months shelf life Bottle type (basic): from 0.5 l to 1.0 l volume PET closing type: PP screw-cap Neck 38mm Labels: plastic RollFed Package format: 3x2,4x3 wrapped in heat shrink film Tray: Euro-type Line capacity - 10.000 bottles/h for all formats working hours: 15.000 approx - Microfiltration Unit Procomac Uniflux AS and Unifoam - filtration of the air - Tanks Steritanks - Sterilizer Unit Procomac Unidox - Acid Peracetic and sterlized water - Water Pasteurizer Procomac Unitherm H - Air Conveyor - Rinser Procomac Gripstar GX bloc 1P.65.102.113 - Filler Procomac Fillstar FX AS 50-10 pitch 113, FX-P filling head - Sterlizer caps Sterlicap W with Arol Quick head - Capper Eleseptic 10 T with pitch 113 - Exit tunnel - Microbiological isolator and scrubber - bottles convair at filler exit - electrical cabinet for Air Conveyor and Bottle Conveyor The line was in working condition till winter 2021 Has been regurarly maintened by the manufacturer It is still installed but not in working condition.
